Description
Features | HDMI Matrix Switch Kit Ideal for Digital Signage in Offices, Schools and Trade Shows

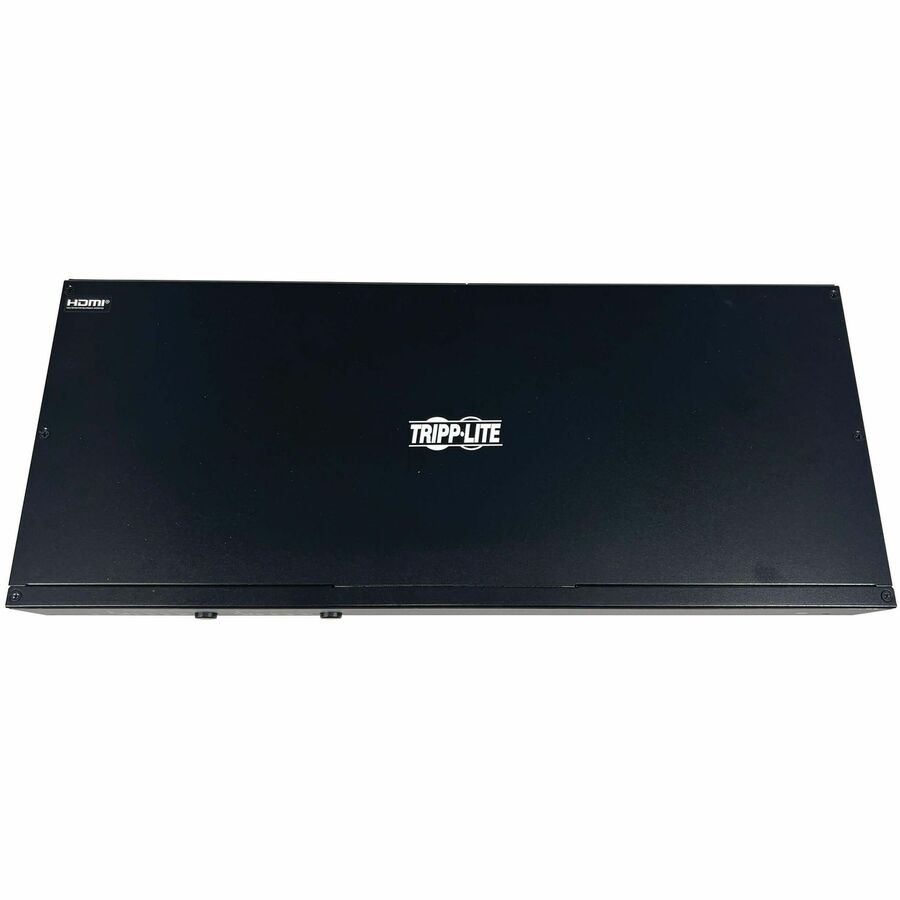

This HDMI matrix switch kit includes a quad-input switch and two pigtail-style receivers. It's recommended for office buildings, schools, houses of worship, trade shows, meeting facilities, retail settings, hotels and other locations with video presentations or digital signage applications. The matrix switch and receivers extend 4K audio/video up to 230 feet (70.1 meters), making the kit ideal for areas where the four source devices and dual displays are farther apart than conventional cabling allows.
Extends a 4K A/V Transmission up to 230 ft....or Even Farther

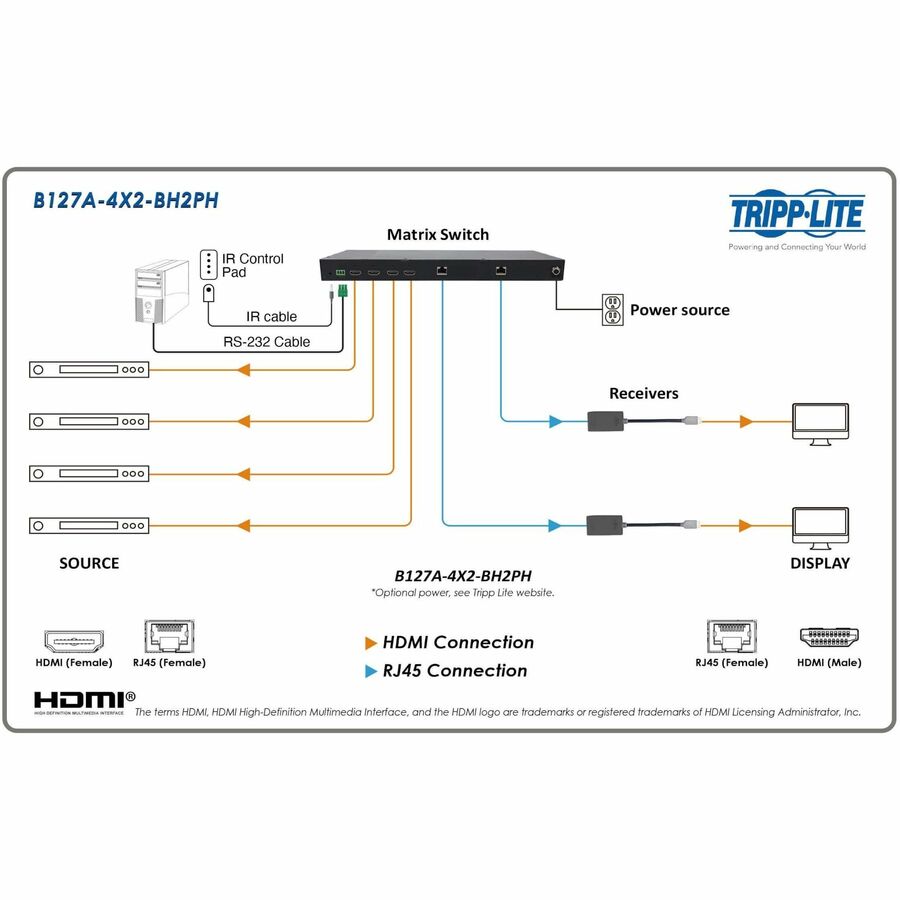

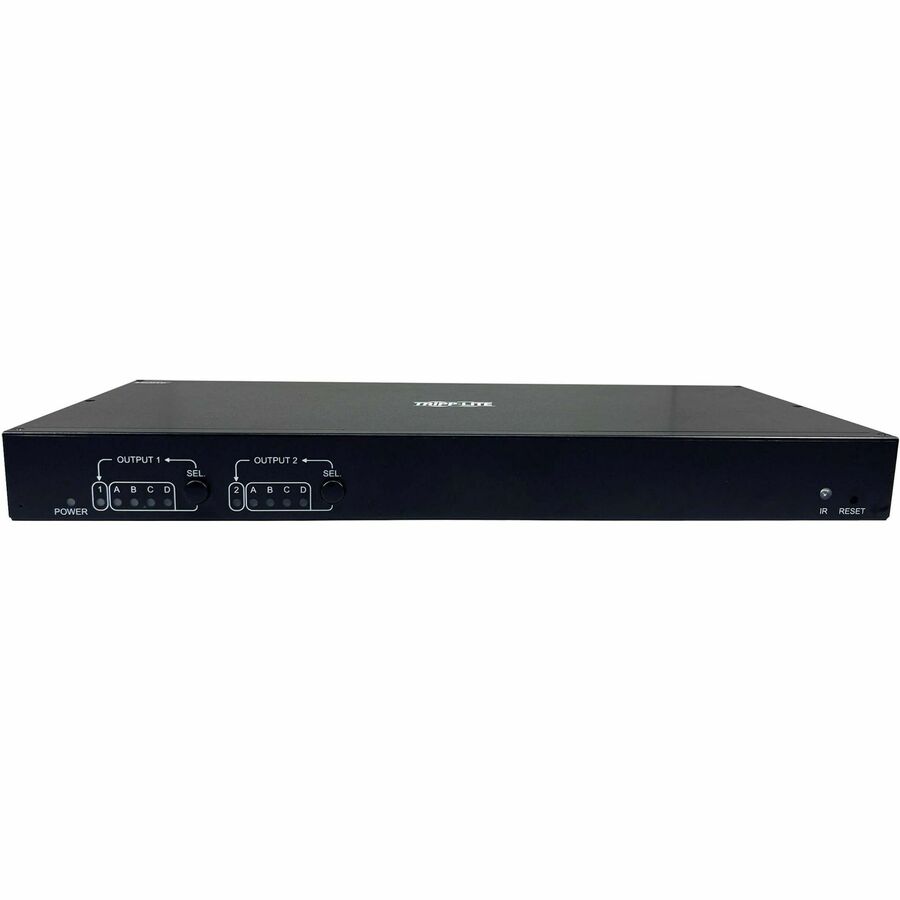

The B127A-4X2-BH2PH allows video from any of four connected HDMI sources to display on two HDMI displays up to 230 feet away via user-supplied Cat6 cabling. You may select which video to display on which monitors by using the push button on the switch or the included IR remote control, which lets you operate the switch from the receiver end of the installation. By installing B127A-010-H signal repeaters (sold separately) between the switch and receivers, you can extend the signal up to 400 feet (121.9 meters) total per video output.
Transmits Crystal-Clear 4K Video with Multi-Channel Audio, HDR and 4:4:4 Color
The B127A-4X2-BH2PH supports Ultra HD resolutions up to 3840 x 2160 (4K x 2K) at 60 Hz, as specified in HDMI 2.0, with 36-bit Deep Color. High Dynamic Range (HDR) provides a wide range of vibrant colors with richer contrast, brighter whites and deeper blacks that pop on your 4K display. HDCP 2.2 compliance allows you to stream 4K Amazon and Netflix content with no complications. This switch kit also supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor.
Built-In PoC Technology Provides Power to Avoid Bulky External Power Bricks

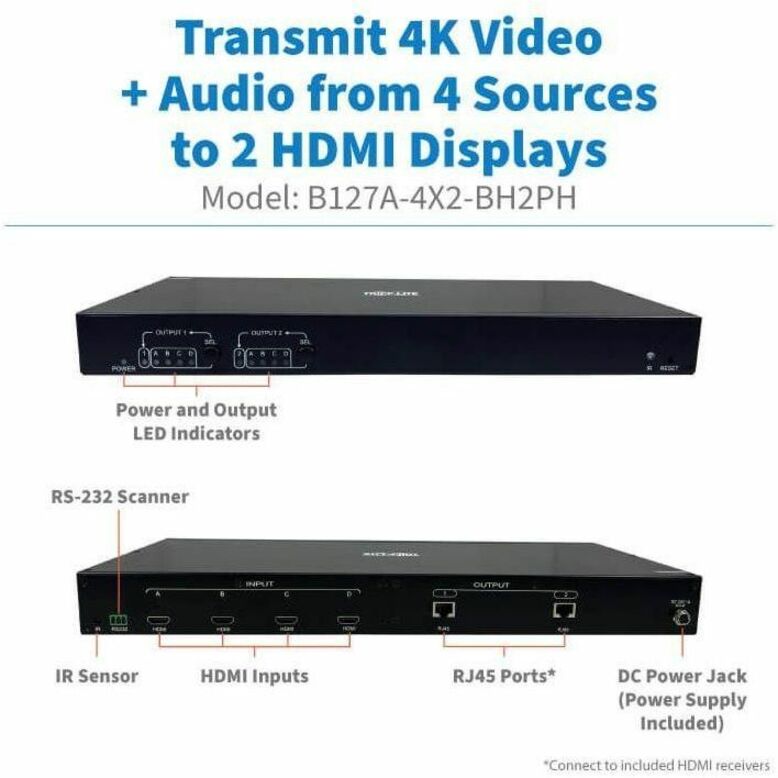

After you connect the included external power supply to the switch, Power over Cable (PoC) technology powers the receivers over Cat6 cable. LEDs on both the switch and receivers will light up to indicate the system is receiving power and a signal is being transmitted. PoC lets you avoid the hassle of a bulky power brick and gives you the freedom to place the receivers without the need for a nearby AC outlet.
Multi-Resolution Support Allows Mixing and Matching of Displays of Different Resolutions
Say you have a brand new 4K/60 Hz HDTV in the living room, but want to extend video from the source devices to the older 1080p TV in the kitchen or the 4K (at 30 Hz) monitor in your home office. The B127A-4X2-BH2PH is backward compatible with 4K/30 Hz and 1080p resolutions via automatic switching, allowing each connected monitor to display video at its maximum resolution.
Plug-and-Play Operation for Quick Setup and Immediate Use

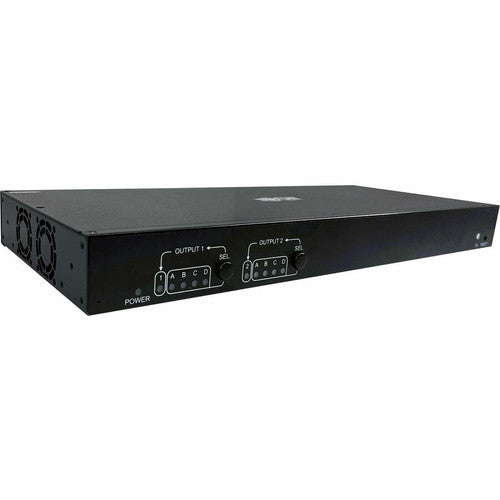

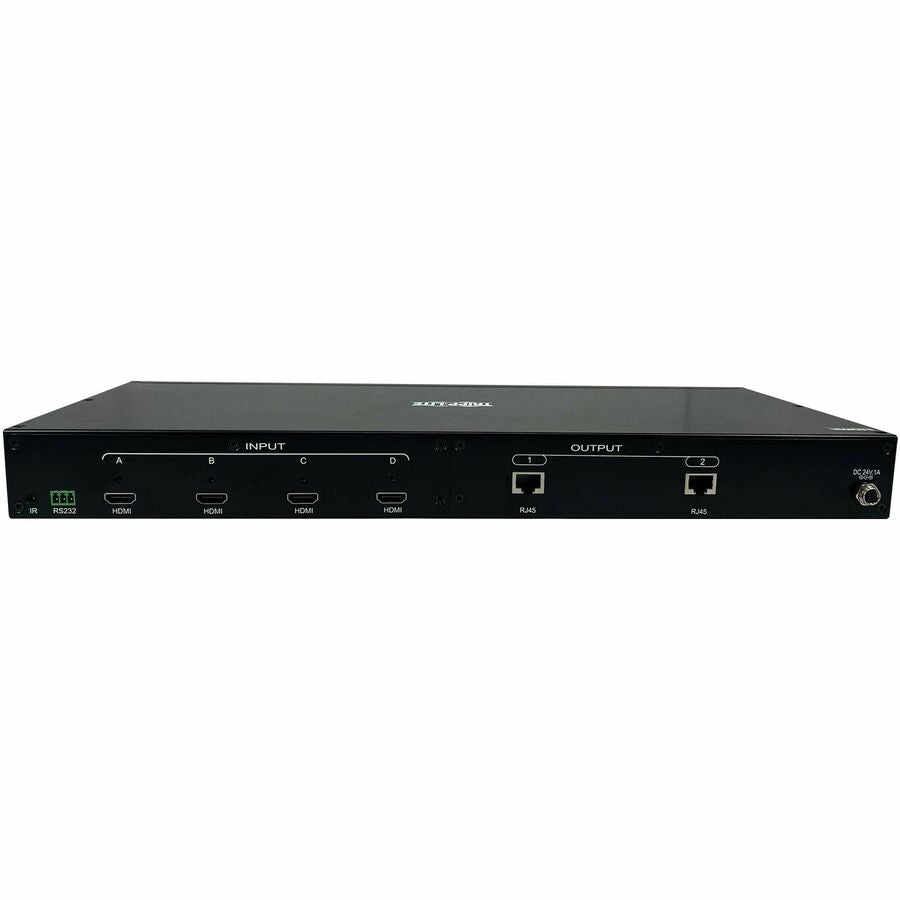

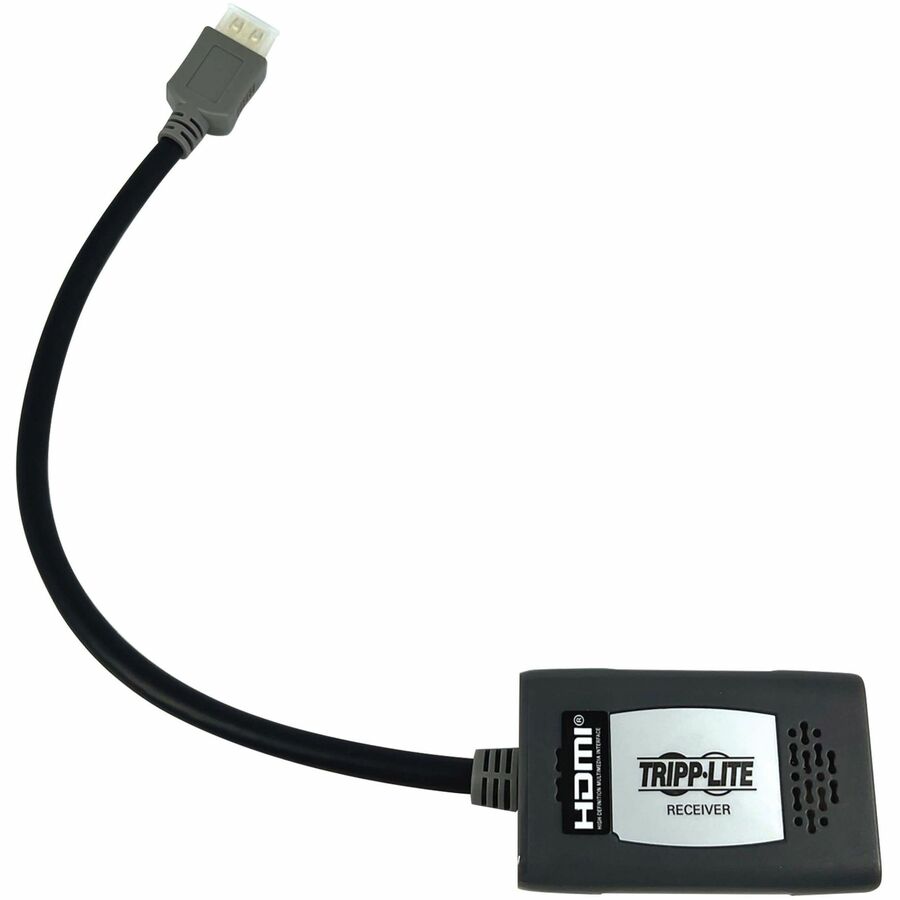

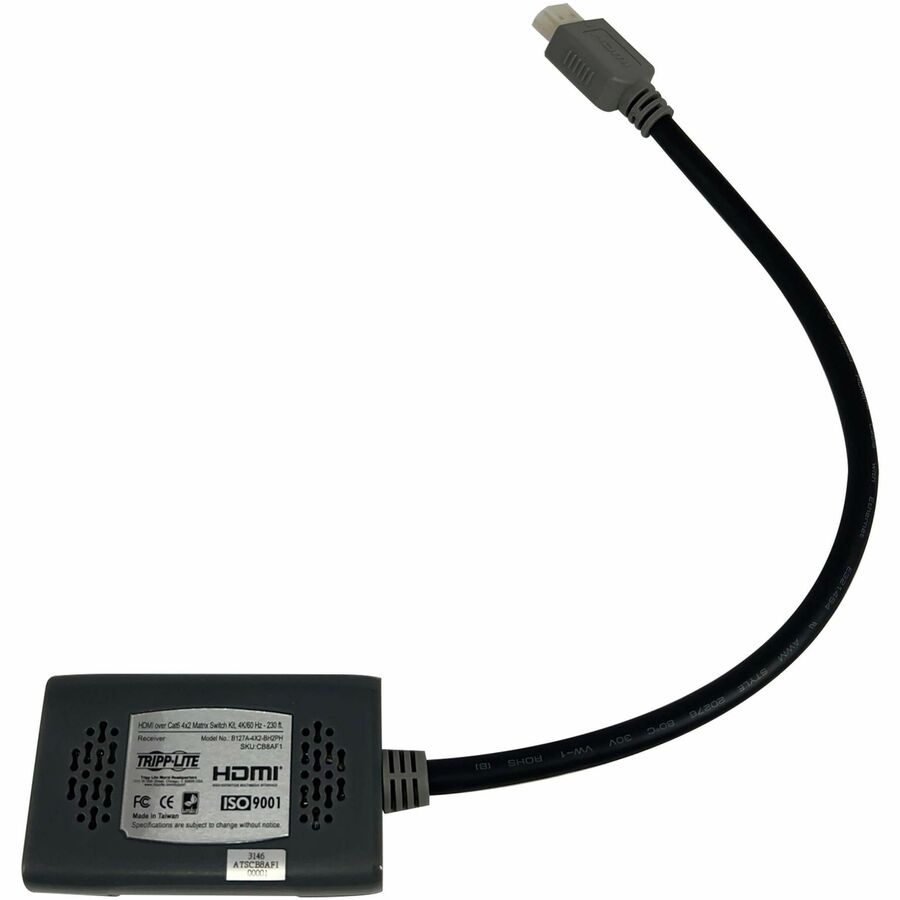

The included matrix switch and receivers operate with no software required. The switch comes with detachable surface-mount brackets for mounting to a pole, rack or flat surface. Connect the switch to as many as four sources with user-supplied HDMI cables (such as P568- or P569-Series). Then, connect the pigtail receivers' built-in HDMI plugs to the displays. Finally, connect the switch to the receivers with user-supplied Cat6 patch cable (such as N202-Series).
TAA-Compliant for GSA Schedule Purchases
The B127A-4X2-BH2PH is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
- Quickly and easily connect with the display
- Up to 3840 x 2160 video resolution
- Maximum Video Resolution : 3840 x 2160
- TAA Compliant : Yes
- Environmentally Friendly : Yes
- Number of Displays Supported : 2
- HDMI In : Yes
- Maximum Operating Distance : 230 ft (70104 mm)
- Number of Input Devices Supported : 4
- Device Supported : Display,Blu-ray Disc Player,Set-top Box,Media Center,Projector,Computer,TV
- Limited Warranty : 1 Year
- Form Factor : Surface-mountable,Rack-mountable,Wall Mountable,Desktop
- Package Contents :
- 4x2 Matrix switch
- 2 x Pigtail Receivers
- IR Adapter Cable
- IR Remote Control
- RS-232 Adapter
- External power supply (Input: 100-240V, 50/60 Hz, 1.5A; Output: 24V 1A)
- 4 x International plug adapters (Australia, Europe, U.S., U.K.)
- Mounting Hardware
- Owner's Manual
- Manufacturer Website Address : https://tripplite.eaton.com/
- Number of Connectivity (RJ-45) Ports : 2
- Number of HDMI Inputs : 4
- Product Type : Audio/Video Switchbox
- Graphics Modes : 4K
- Manufacturer : Tripp Lite by Eaton
- Product Model : B127A-4X2-BH2PH
- Media Type Supported : Twisted Pair
- Connectivity (RJ-45) : Yes
- Connectivity Technology : Cable
