Description

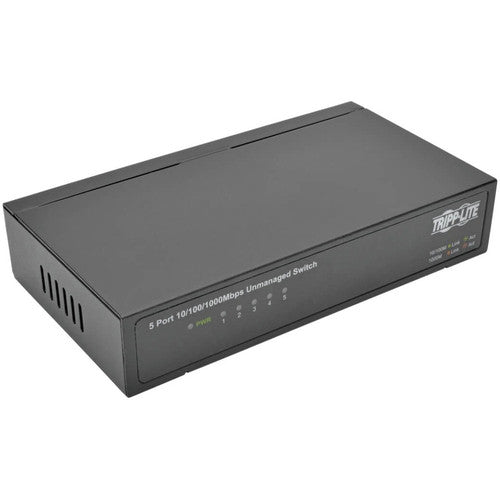

The NG5 5-Port 10/100/1000 Mbps Desktop Gigabit Ethernet Unmanaged Switch adds 10/100/1000 Mbps Ethernet capacity to your home office, small office, workgroup or creative production environment. Share large bandwidth-intensive files, such as CAD drawings and videos, at Gigabit speeds, improving efficiency and cutting costly downtime.

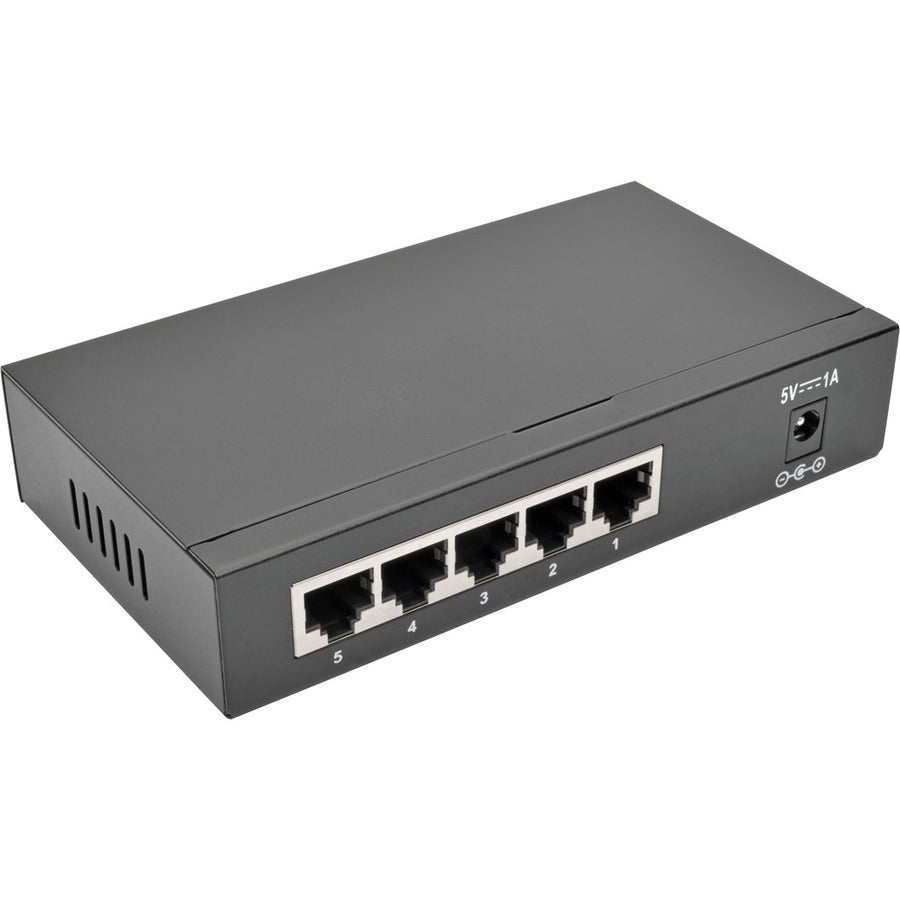

This desktop switch features five twisted-pair RJ45 Gigabit Ethernet ports that support auto-negotiable 10/100/1000 Mbps and auto MDI/MDIX cross-over detection functions for convenient plug-and-play capability. No configuration is required, so you can have your Gigabit network up and running immediately. Easy-to-read LEDs indicate connection and activity status for each port. IEEE 802.3x flow control allows smooth transmission of large files.
The NG5 supports IEEE 802.3az Energy Efficient Ethernet standards by putting unused ports into a low-power state without interrupting network connections. It consumes very little input power-just a single watt. The detachable five-foot input cord with NEMA 1-15P plug connects to a protected UPS, generator or mains input AC source. The heavy-duty metal housing includes keyhole tabs for optional wall-mounting.
This desktop switch features five twisted-pair RJ45 Gigabit Ethernet ports that support auto-negotiable 10/100/1000 Mbps and auto MDI/MDIX cross-over detection functions for convenient plug-and-play capability. No configuration is required, so you can have your Gigabit network up and running immediately. Easy-to-read LEDs indicate connection and activity status for each port. IEEE 802.3x flow control allows smooth transmission of large files.
The NG5 supports IEEE 802.3az Energy Efficient Ethernet standards by putting unused ports into a low-power state without interrupting network connections. It consumes very little input power-just a single watt. The detachable five-foot input cord with NEMA 1-15P plug connects to a protected UPS, generator or mains input AC source. The heavy-duty metal housing includes keyhole tabs for optional wall-mounting.
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 5 ports
- No need to deal with power supply issues, the switch comes with a separate AC adapter to power up the unit
- With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience

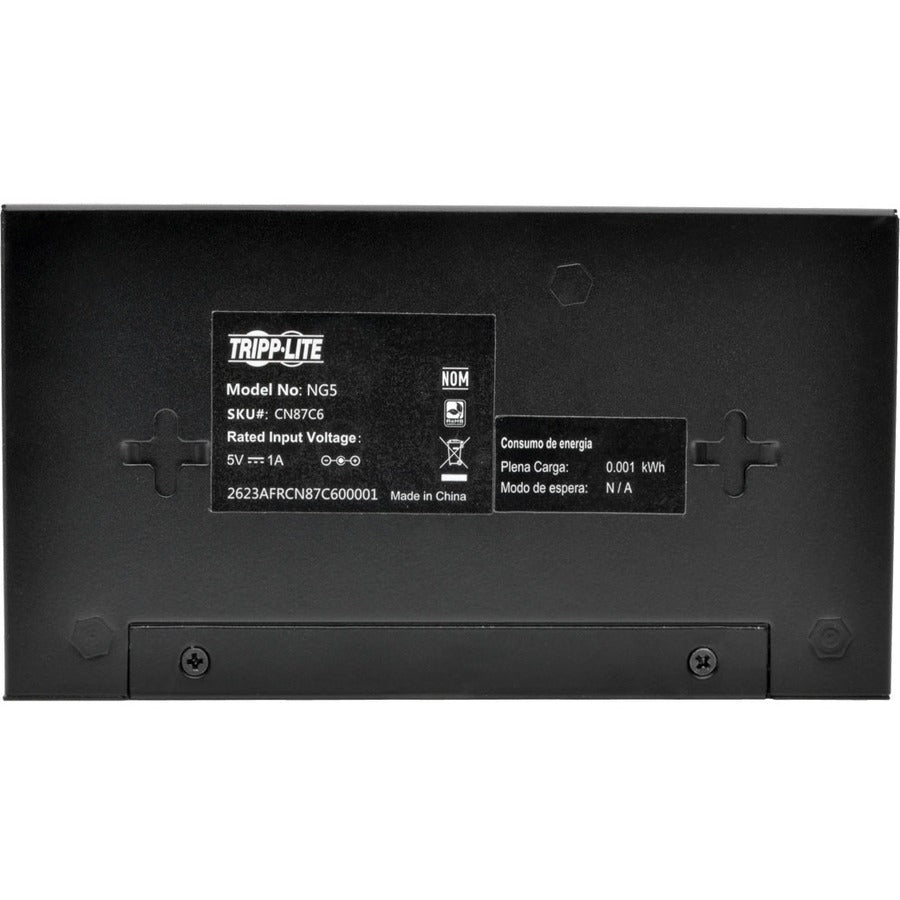

- With Wall mounting feature, you can conveniently install the switch while keeping the wires and cables organized
- The unmanaged switch provides a quick, easy and cost-saving way to add wired networking to your home, office or small business; no intervention needed
- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Redundant Power Supply Supported : No
- Ethernet Technology : Gigabit Ethernet
- Environmentally Friendly : Yes
- Power Source : AC Adapter
- Layer Supported : 2
- Port/Expansion Slot Details : 5 x Gigabit Ethernet Network
- Modular : No
- Limited Warranty : 5 Year
- Form Factor : Desktop,Wall Mountable

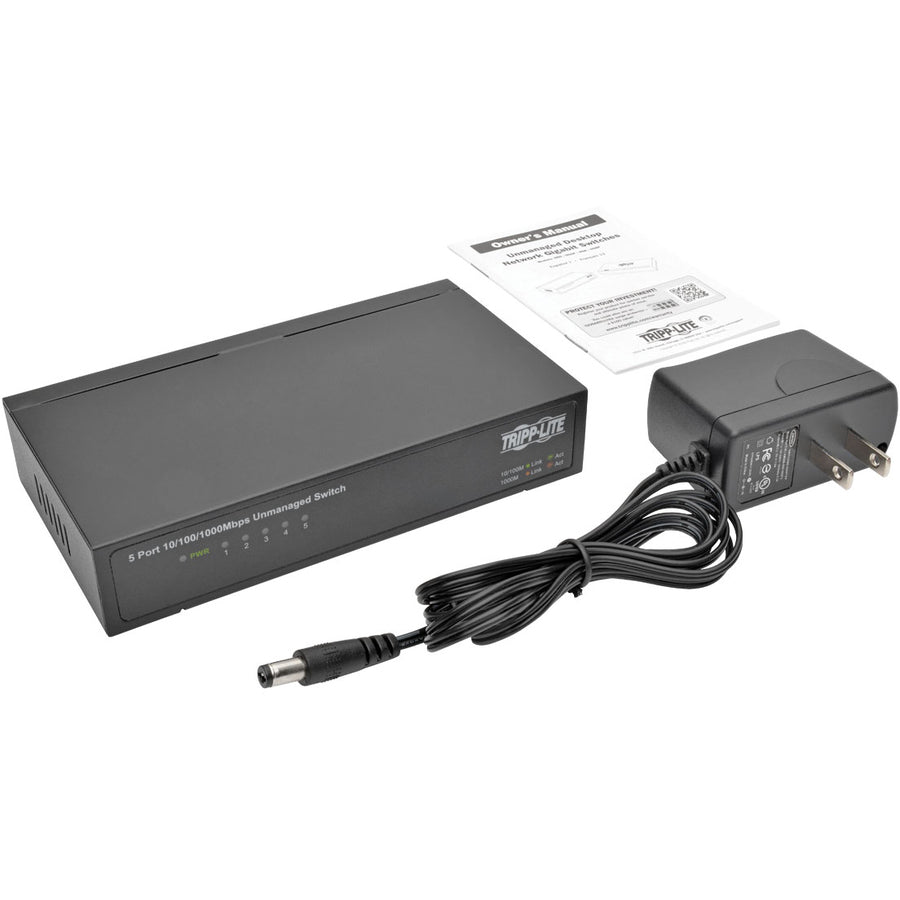

- Package Contents :
- 5-Port 10/100/1000 Mbps Desktop Gigabit Ethernet Unmanaged Switch, Metal Housing
- 5 ft. Cord
- Owner's Manual

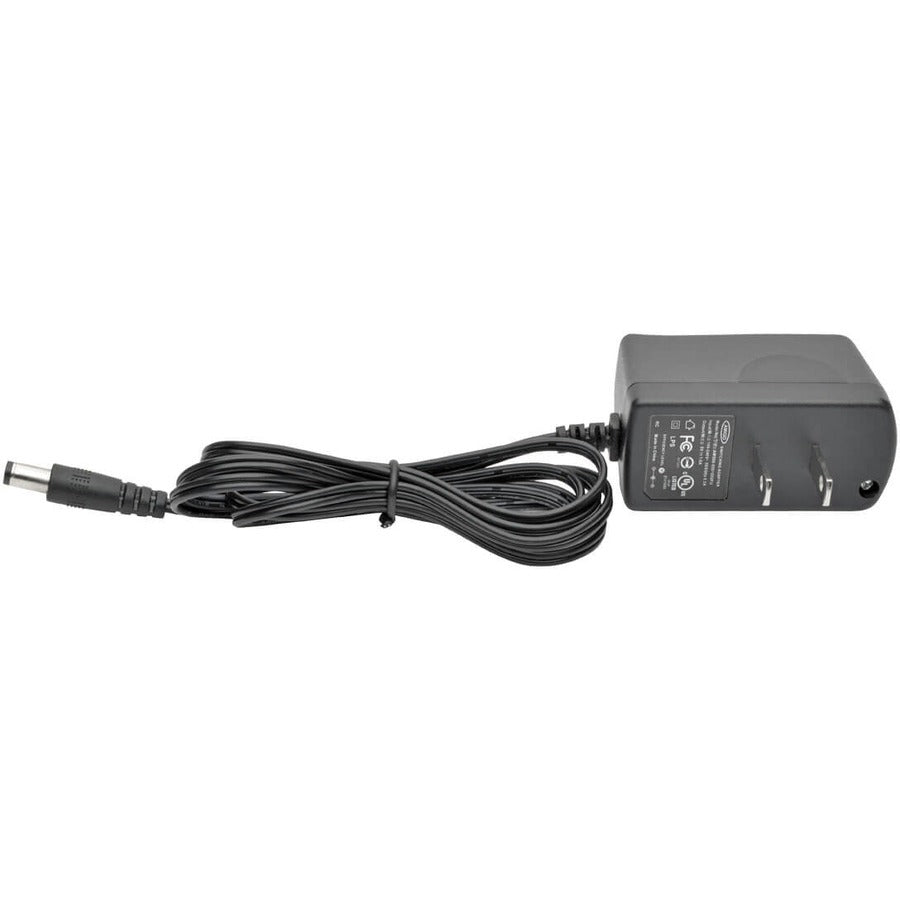

- 5V DC Output Power Adapter
- Uplink Port : No
- Product Type : Ethernet Switch
- Stack Port : No
- Manufacturer : Tripp Lite by Eaton
- Product Model : NG5
- Total Number of Network Ports : 5
- Manageable : No
- Media Type Supported : Twisted Pair
- Country of Origin : China
- Network Technology : 1000Base-T
- Manufacturer Website Address : https://tripplite.eaton.com/
