650VA/480W/120V Battery Backup for PCs, Home Theater or Digital Signage
This 120V UPS with AVR protection provides reliable battery backup and AC power protection against blackouts, brownouts, overvoltages, surges and line noise that can damage valuable electronics or destroy data. The six-outlet 120V battery backup is ideal protection for your home office, media center or commerce components, including computers, routers, printers, HDTVs, Blu-ray players, game consoles, ATMs, security systems and digital signage equipment.
Allows Time to Back Up Critical Files During a Blackout
Backup support allows you to work through short power failures, and gives you enough time to safely save files and shut down your system in case of a prolonged blackout. Backup time varies according to load, but the line-interactive UPS system should keep an energy-efficient desktop computer with small LCD monitor powered as long as 45 minutes. During normal operation, incoming utility power keeps the replaceable internal battery fully charged, so backup power will always be available.

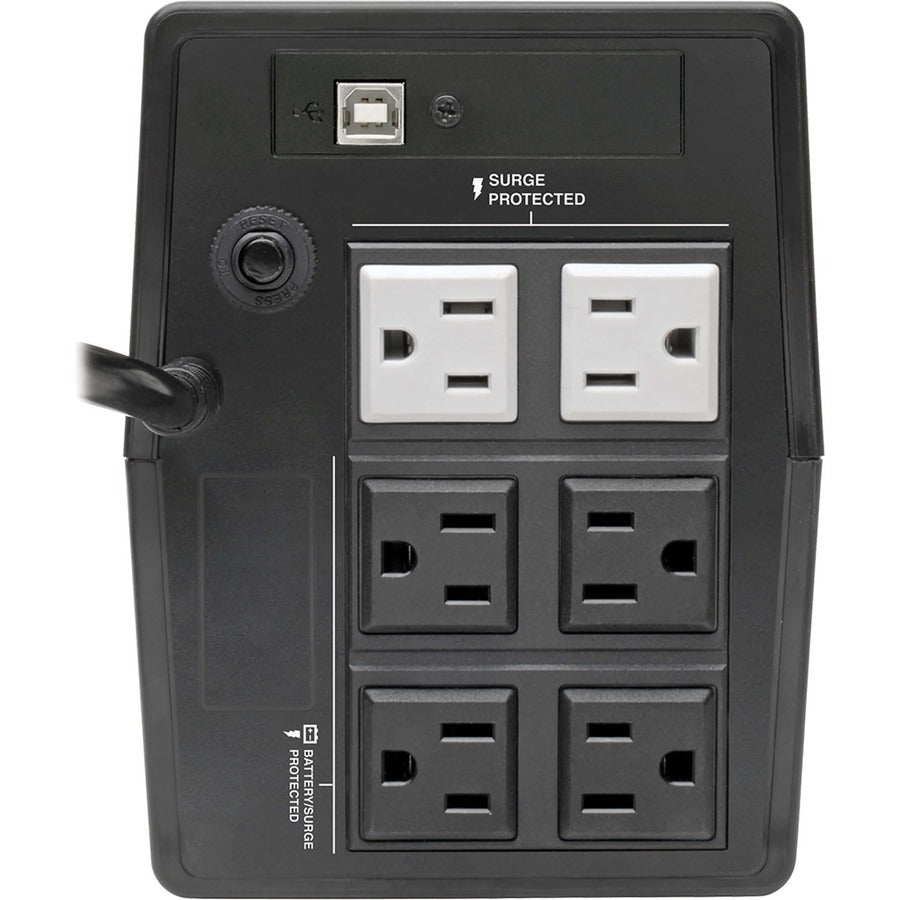

Connects Your Equipment to 6 NEMA 5-15R Outlets
Four 5-15R outlets provide both battery backup and surge protection for your computer, monitor and other crucial components. The other two 5-15R outlets are surge-protected only for printers, scanners and other non-essential equipment. A high >95% line mode efficiency rating reduces BTU emissions, energy consumption and, ultimately, your energy costs.
Automatic Voltage Regulation (AVR) Corrects Low- and High-Voltage Conditions
AVR protects your equipment from incremental hardware damage, data loss and performance problems caused by brownouts and overvoltages. The AVRT650U can correct brownouts as low as 89V and overvoltages as high as 145V back to nominal 120V power without drawing on the battery backup needed to support your equipment during a blackout.
316 Joules Fight Back Against Unexpected Power Surges
A 316-joule surge suppression rating protects connected components from the harmful effects of power surges.
Combats Electromagnetic Interference That Can Harm Equipment
Various electromagnetic and radio sources found in virtually every home and business can cause disruptive interference on the AC line. Known as EMI (electromagnetic interference) and RFI (radio frequency interference), this line noise is a common cause of performance problems and can lead to incremental hardware damage, data corruption and audio/video transmission problems. The AVRT650U incorporates technology that filters out disruptive line noise so that it won't affect your equipment.

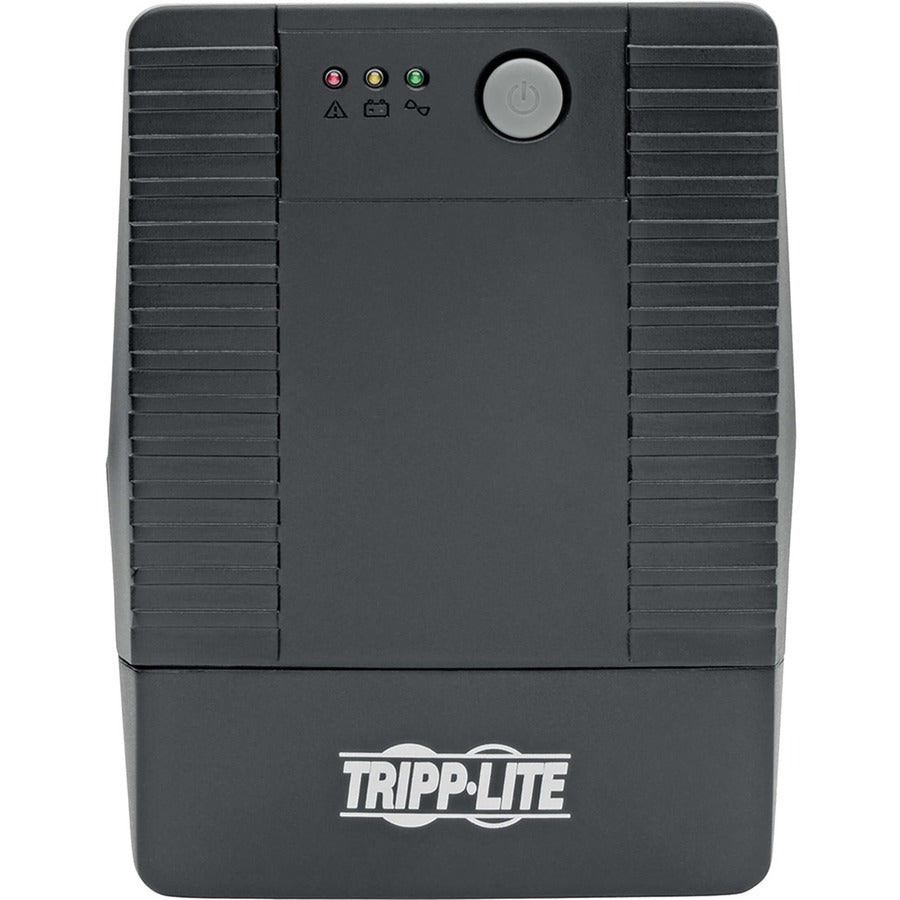

Easy-to-See LEDs Report Real Time UPS and Power Status
Front-panel LEDs provide UPS and site power information when the AVRT650U is operating in either on-line or battery power mode. They indicate operating mode, low battery, overload and fault condition. An audible alarm will sound in case of low battery, excessive load and fault condition.
HID-Compliant USB Port Allows for Automatic Saves and Shutdowns
This port connects the AVRT650U to a computer running Tripp Lite's free downloadable PowerAlert® software to enable safe unattended file saves and system shutdown in case of a prolonged power failure. USB cable is included. The UPS works with Windows, Mac and Linux operating systems.
. .- Receptacle Detail : 6 x NEMA 5-15R
- Phase : Single Phase
- Number of Surge-only Outlets : 2
- Number of Battery & Surge Outlets : 4
- Form Factor : Tower
- Package Contents :
- AVRT650U 650VA Tower UPS
- USB Cable
- Owner's Manual
- Backup/Run Time (Full Load) : 30 Second
- Load Capacity : 650 VA/480 W
- Manufacturer : Tripp Lite by Eaton
- Product Model : AVRT650U
- Input Voltage Range : 110 V AC - 120 V AC
- Backup/Run Time (Half Load) : 3.80 Minute
- Receptacle Type : NEMA 5-15R
- Environmentally Friendly : Yes
- Input Voltage : 120 V AC
- Transfer Time : 6 ms
- Limited Warranty : 3 Year
- Typical Battery Recharge Time : 8 Hour
- Waveform Type : Pulse-width Modulated Sine Wave

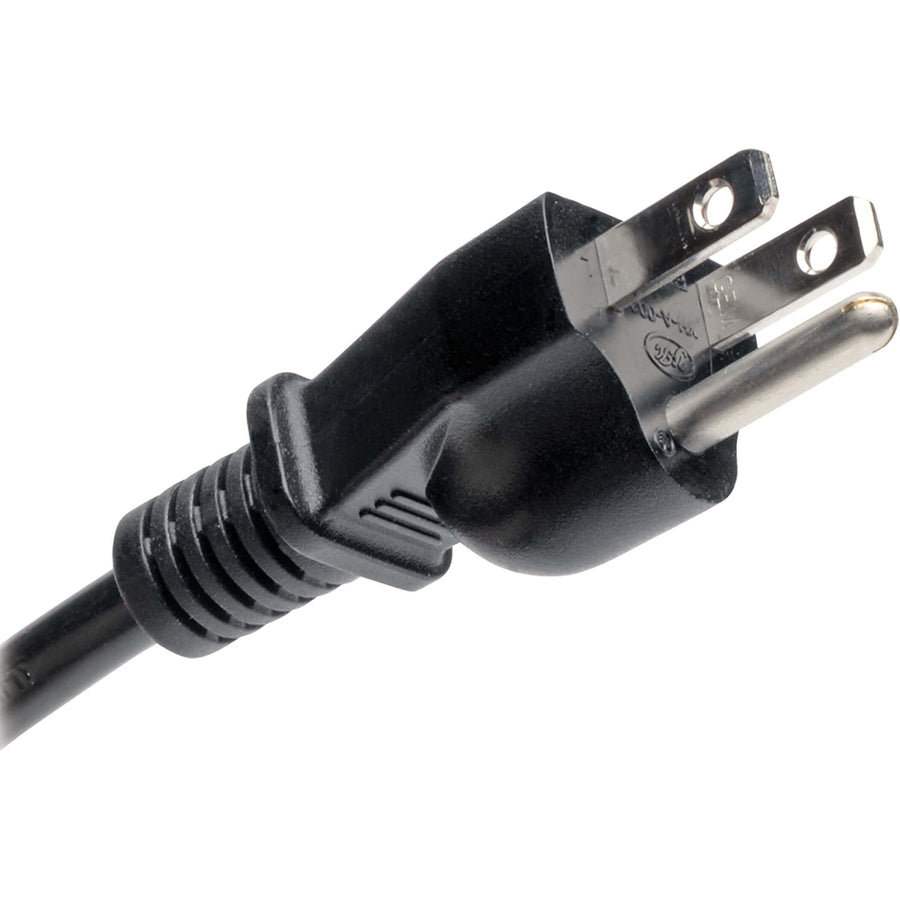

- Plug/Connector Type : NEMA 5-15P
- Product Type : Line-interactive UPS
- Replaceable Battery : Yes
- Application/Usage : Desktop Computer,Electronic Device,Gaming Console,Router,Television,ATM,Printer,Blu-ray Player,DVR,Digital Signage,Home Theater,Office,Security System,Monitor,Media Center,Scanner
- Output Voltage : 110 V AC,115 V AC,120 V AC
- AVR : Yes
- Country of Origin : China
- DC System Voltage : 12 V DC
- Battery Size : 12V
- Maximum Operating Elevation : 9842.52 ft (3000000 mm)
- Energy Saving : Green Energy-Saving
- Thermal Dissipation : 43 BTU/h
- Maximum Operating Temperature : 104°F (40°C)
- Output Frequency : 60 Hz
- Storage Temperature : 5°F (-15°C) - 113°F (45°C)
- EMI/RFI Noise Filter : Yes
- Input Frequency : 60 Hz
- Surge Energy Rating : 316 J
- Alarm : Low Battery,Fault,Overload,Replace Battery
- Storage Relative Humidity : 90%
- USB (HID Compliant) Port : Yes
- Status Indicators :
3 LED Indicators:
- Line power availability (green)
- Battery power mode (yellow)
- Low battery (red)
- Overload (red)
- Replace-battery (red)
- Fault mode (red)
- Manufacturer Website Address : https://tripplite.eaton.com/
