Description
Connects Two Computers to Two 4K Monitors and a Single Keyboard/Mouse
This dual-monitor KVM switch lets you access, control, boot and reboot two computers or other devices with HDMI ports and switch back and forth between them. It's ideal for work-from-home applications in which you'd like to share two monitors between your home and work computers. Both computers share two HDMI 4K monitors and one USB keyboard/mouse, which saves space on your desk or workspace.
Switching Between Computers Is Fast and Easy

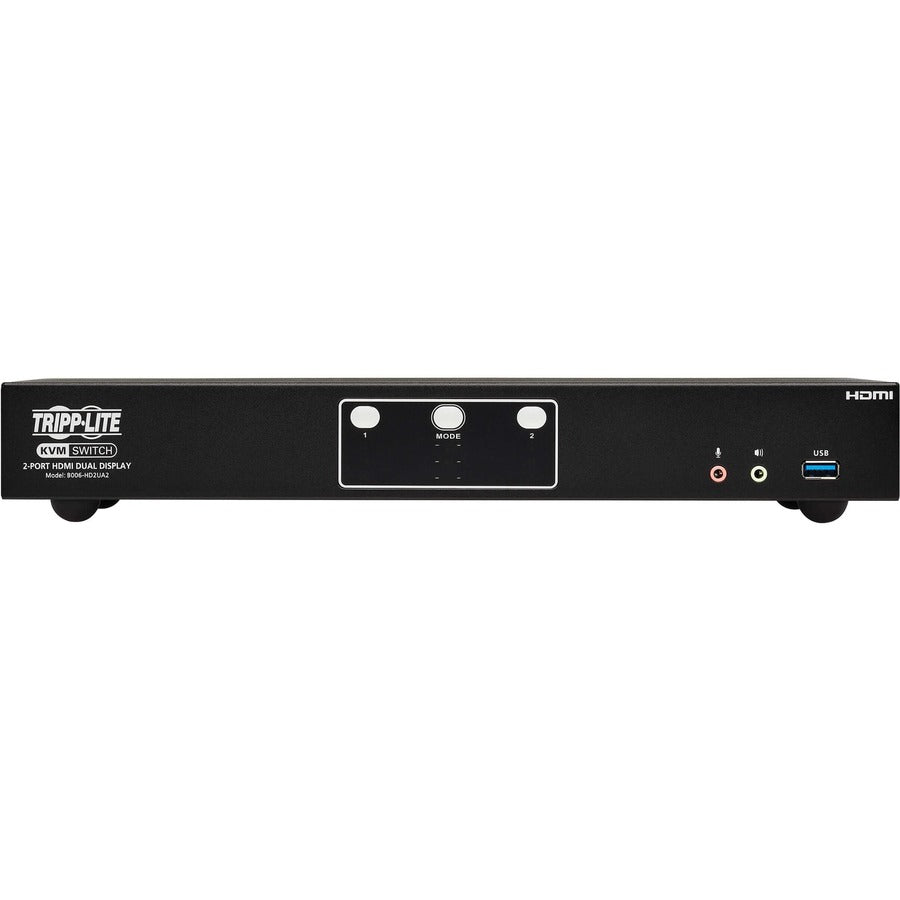

Use the front-panel push buttons, hotkey commands, mouse movement, RS-232 commands or the included remote port selector for quick and easy toggling between computers. You can also use the Auto Scan feature to scan all connected computers in five-second intervals automatically. LEDs indicate which computer is currently selected.
Transmits Crystal-Clear 4K Video with Digital Audio
The B006-HD2UA2 supports video resolutions up to 4K UHD (3840 x 2160 @ 60 Hz) and 4K DCI (4096 x 2160 @ 60 Hz) on two HDMI monitors, as well as 2.1-channel surround sound for music, movies and games. Independent audio switching lets you listen to music or a podcast on one computer, while simultaneously working on a second computer. Front-panel audio jacks have priority over the rear-panel jacks. A DCC (Daisy Chain Control) port lets you connect two B006-HD2UA2 KVM switches for a quad-display installation.
USB Hub Lets You Share Peripherals between Computers
Two USB 3.2 Gen 1 hub ports allow you to share USB peripherals, such as printers, hard drives, scanners, webcams and flash drives, between all connected computers. This lets you avoid the expense and clutter of separate USB hubs. The USB-A ports support data transfer speeds up to 5 Gbps and are backward compatible with previous USB generations.
Designed for Convenient Mounting with Included Brackets
The heavy-duty metal housing can be placed on a desktop or other level surface that can safely support the weight of the KVM switch and attached cables. It can also be mounted at the front or rear of a standard 19-inch rack with user-supplied hardware. The included DC power supply connects to any standard AC power source.
System Requirements
- HDMI monitors
- USB mouse/keyboard
- Computers with HDMI and USB-A ports (audio ports optional)
- Windows 7 or 10, macOS 10 or higher, Linux with kernel .15 or higher
- With this KVM Switchbox, avoid the constant switching of cables between sources
- Up to 4096 x 2160 video resolution
- KVM Switchbox can be mounted as desktop
- Maximum Video Resolution : 4096 x 2160
- Environmentally Friendly : Yes
- USB : Yes
- Number of Computers Supported : 1
- Limited Warranty : 3 Year
- Form Factor : Desktop,Rack-mountable

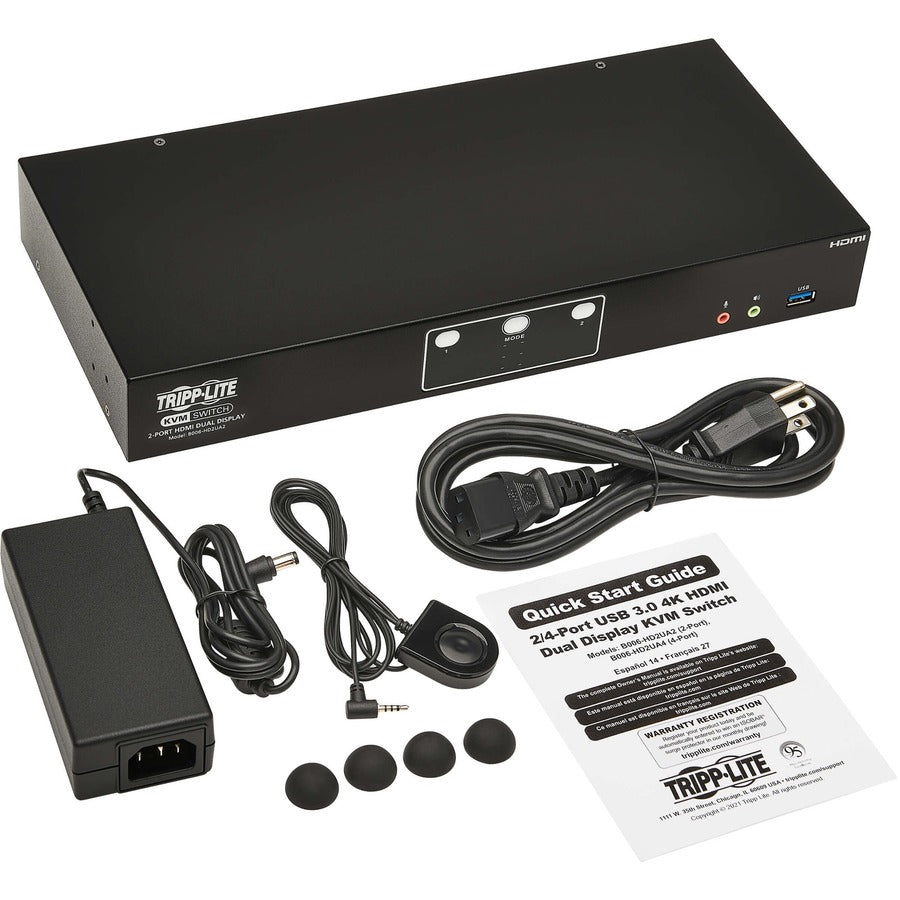

- Package Contents :
- B006-HD2UA2 HDMI Dual-Display KVM Switch
- External power supply (Input: 100-240V, 50/60 Hz, 1.2A; Output: 12V 3.33A)
- Remote port selector
- 4 x Rubber foot pads
- Quick Start Guide
- Number of USB Ports : 6
- Network (RJ-45) : Yes
- Number of HDMI Ports : 5
- Product Type : KVM Switchbox
- Manufacturer : Tripp Lite by Eaton
- Frequency : 50 Hz,60 Hz
- Product Model : B006-HD2UA2
- Input Voltage Range : 100-240V
- HDMI : Yes
- Country of Origin : Taiwan
- Number of Network (RJ-45) Ports : 1
- Manufacturer Website Address : https://tripplite.eaton.com/
