Description
HDMI Splitter Transmits 4K Video + Audio to 2 HDMI Displays at the Same Time
Recommended for home theaters or short-distance digital signage applications in classrooms, offices, churches, restaurants, bars, hotels and trade shows, this Ultra High Definition (UHD) HDMI splitter is quick and easy to install. It connects to an HDMI source device, such as a computer or Blu-ray player, and transmits a 4K audio/video signal to two HDMI monitors, projectors or televisions simultaneously. You can cascade up to three levels of splitters, which expands the total number of connected displays to eight. Note: You can expand the total up to 64 by including multiple B118-004-HDR splitters (sold separately) in the three-level cascade. Note: The B118-002-HDR is an HDMI Splitter, it sends the same image to all connected displays. If you would like to extend an image over multiple displays you will need an MST hub, like the B156-002-HD-V2.
Supports UHD 4K x 2K Signals up to 15 ft. via HDMI Cabling
Using standard 28 AWG HDMI cable, the B118-002-HDR distributes a 4K x 2K audio/video signal (at 60 Hz) up to 15 feet (4 meters). Be sure the HDMI cables connecting the splitter to the source and displays are no longer than 15 feet. For best performance, we recommend using Tripp Lite's P569-Series Premium High-Speed HDMI cables.
Multi-Resolution Support Allows Mixing and Matching of Displays of Different Resolutions
Say you have a brand new 4K (at 60 Hz) HDTV in the living room, but want to also connect your Blu-ray player or satellite box to the older 1080p TV in the bedroom. The B118-002-HDR is backward compatible with 4K x 2K (at 30 Hz) and 1080p (at 60 Hz) resolutions via automatic DIP switching. This splitter allows each television to display video at its maximum resolution. Most other splitters default each television to the lowest common resolution (meaning you would only get a 1080p image on that new 4K TV).
Supports Up-To-Date Features and Formats
The B118-002-HDR supports a wide range of audio formats, including DTS-HD, Dolby TrueHD, Dolby Digital Plus and LPCM 7.1-channel surround sound. It also features lip sync pass-through, xvYCC and x.vColor, and video amplifier bandwidth of 600 MHz/6 Gbps per channel (18 Gbps total). To ensure compatibility with the latest hardware, this splitter is compliant with HDCP 2.2 and HDMI 2.0 standards for carrying HDR (high dynamic range) signals. It supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor, as well as 36-bit Deep Color (12 bits per channel).
Ready to Use Right Out of the Package

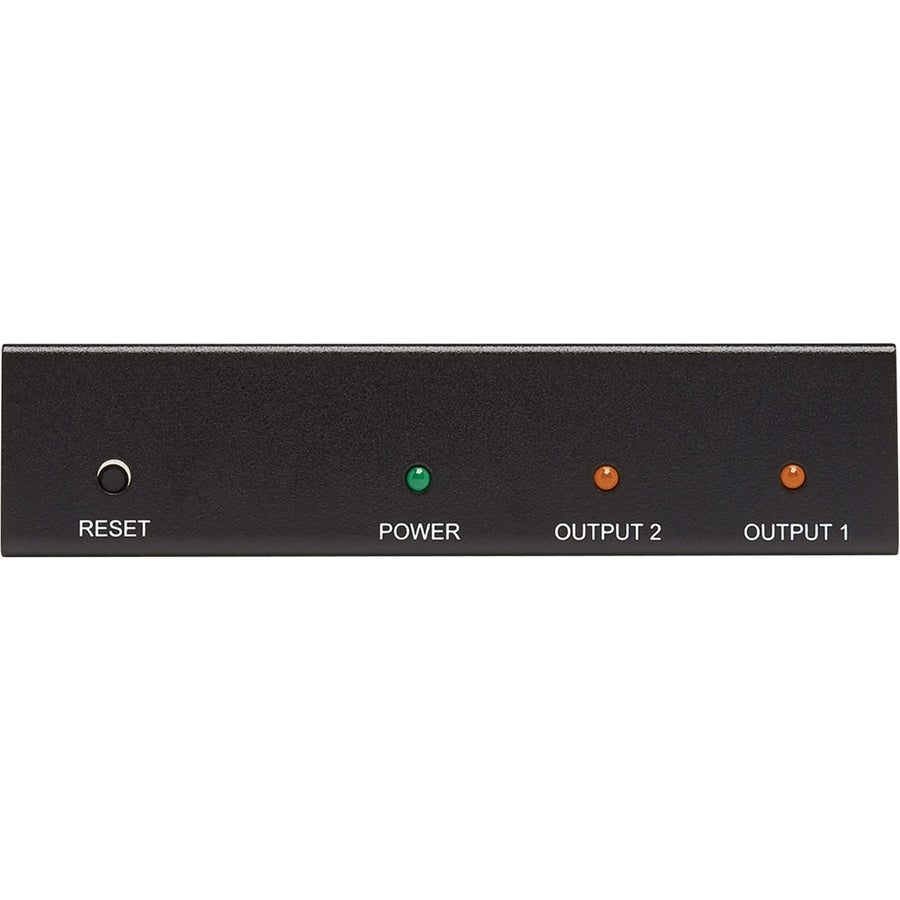

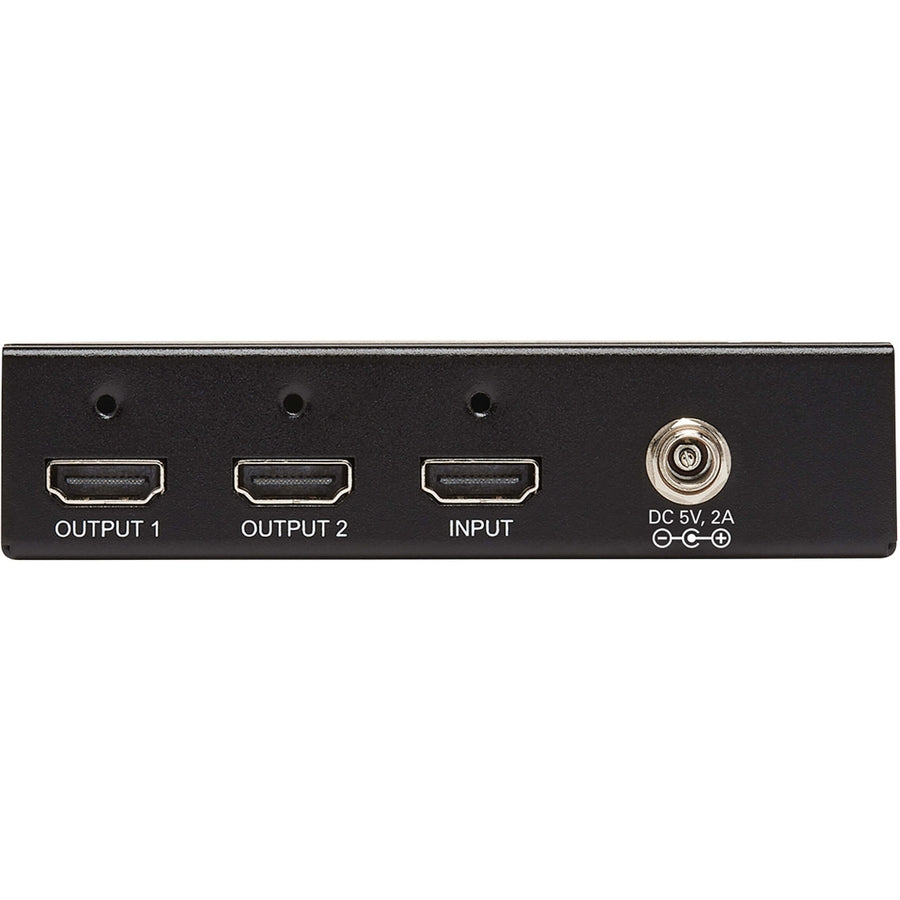

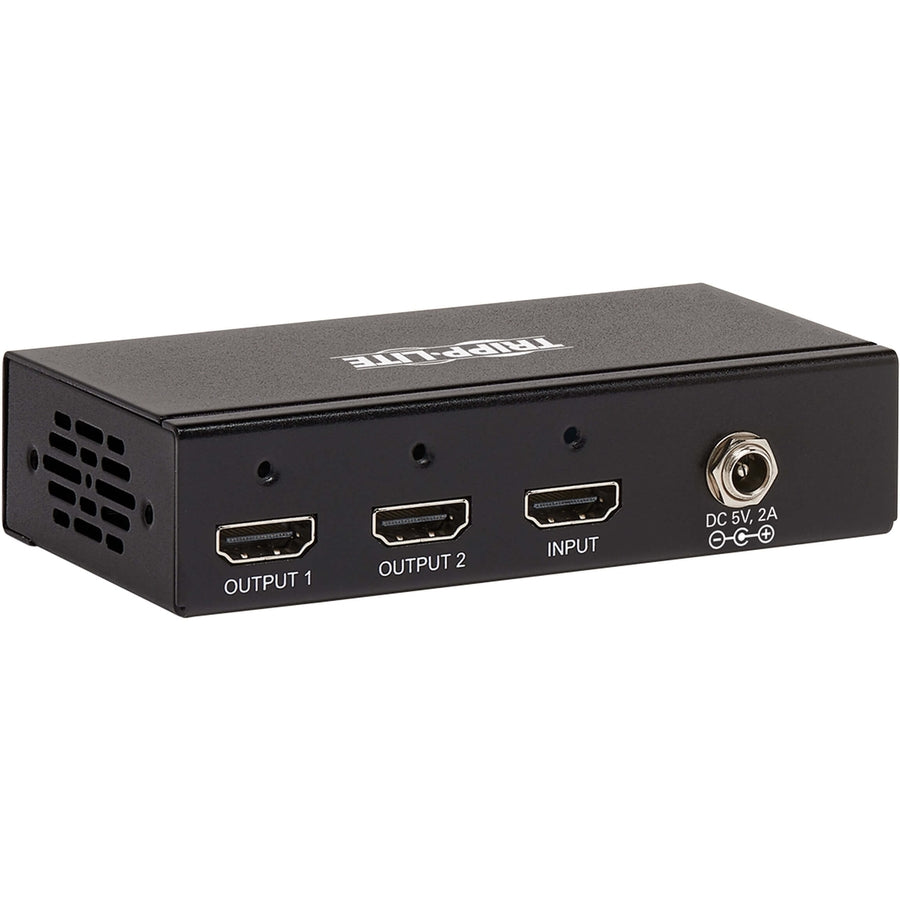

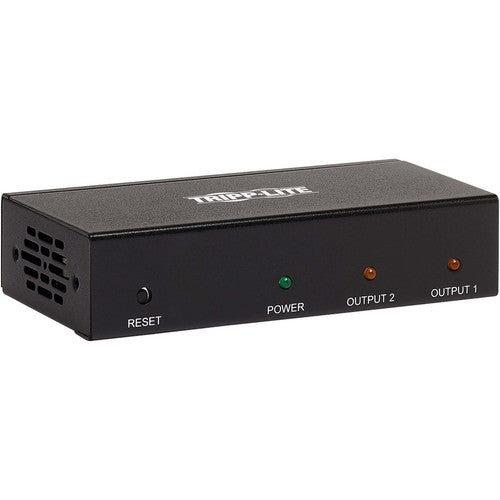

The plug-and-play B118-002-HDR requires no additional software or drivers. Connect your devices to the HDMI ports with user-supplied HDMI cables (such as Tripp Lite's P569-Series), and plug the included external power supply (with four international plug adapters to ensure use all over the world) into an AC power source to get started. A green LED indicates the unit is receiving power, and orange LEDs indicate connected HDMI inputs. Use the included hardware to install the unit on a desktop or mount it to a wall.
TAA-Compliant for GSA Schedule Purchases
The B118-002-HDR is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
- Splitter with multi-resolution support transmits 4K x 2K video and audio from an HDMI source to two HDMI displays at the same time.
- Transmits up to 15 ft. for digital signage in bars, offices, classrooms, trade shows, etc.
- Supports UHD resolutions up to 4096 x 2160 (@ 60 Hz) for crystal-clear 4K x 2K video
- Supports multi-resolution output to allow for combination of different display types
- Supports High Dynamic Range (HDR) for richer contrast and expanded color accuracy
- Capable of cascading up to 64 total displays in sophisticated applications
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
- 3-year limited warranty
- Maximum Video Resolution : 4096 x 2160
- TAA Compliant : Yes
- Environmentally Friendly : Yes
- HDMI In : Yes
- Number of HDMI Outputs : 2
- Maximum Operating Distance : 15 ft (4572 mm)
- Input Voltage : 120 V AC,230 V AC
- Limited Warranty : 3 Year
- Product Material : Metal
- Package Contents :
- B118-002-HDR 2-Port HDMI 2.0 Splitter with Multi-Resolution Support
- External Power Supply (Input: 100-240V, 50/60 Hz, 0.35A; Output: 5V 2A)
- International Plug Adapters (North America, Europe, U.K. and Australia)
- Mounting Hardware
- Owner's Manual
- HDMI Out : Yes
- Number of HDMI Inputs : 1
- Product Type : Signal Splitter
- Manufacturer : Tripp Lite by Eaton
- Product Model : B118-002-HDR
- Country of Origin : Taiwan
- Manufacturer Website Address : https://tripplite.eaton.com/
