Description
4-Port HDMI splitter transmits Ultra High Definition (UHD) 4K x 2K audio/video (A/V) from an HDMI source to four HDMI displays at the same time. Plug-and-play technology makes installation quick and simple - with no software or drivers to install. Using standard 28 AWG HDMI cabling, this splitter can transmit full 3D and a 4K x 2K (3840 x 2160) signal up to 15'. It supports a wide range of audio formats, including DTS-HD, Dolby TrueHD, Dolby Digital Plus, and LPCM 7.1-channel surround sound as well as 36-bit Deep Color (12 bits per channel). Splitter also supports HDMI 2.0 and HDCP 2.2 to ensure its compatibility with the latest audio/video hardware.
- 3-year limited warranty
- Plug and play-no software or drivers required
- Expand the number of connected displays, up to 64, by cascading up to 3 levels of splitters together
- Supports High Dynamic Range (HDR) for richer contrast and expanded color accuracy
- Compatible with HDCP 2.2, 3D, EDID and HDMI 2.0
- Supports DTS-HD, Dolby® TrueHD and Dolby Digital Plus™
- Distributes A/V up to 15 ft. when used with 28 AWG HDMI cable
- Recommended for digital signage in classrooms, churches, office buildings, restaurants/bars, etc.
- Transmits UHD video resolutions up to 4K x 2K @ 60 Hz
- Transmits Ultra High Definition (UHD) 4K x 2K audio/video (A/V) from an HDMI source to four HDMI displays at the same time.
- Maximum Video Resolution : 3840 � 2160
- TAA Compliant : Yes

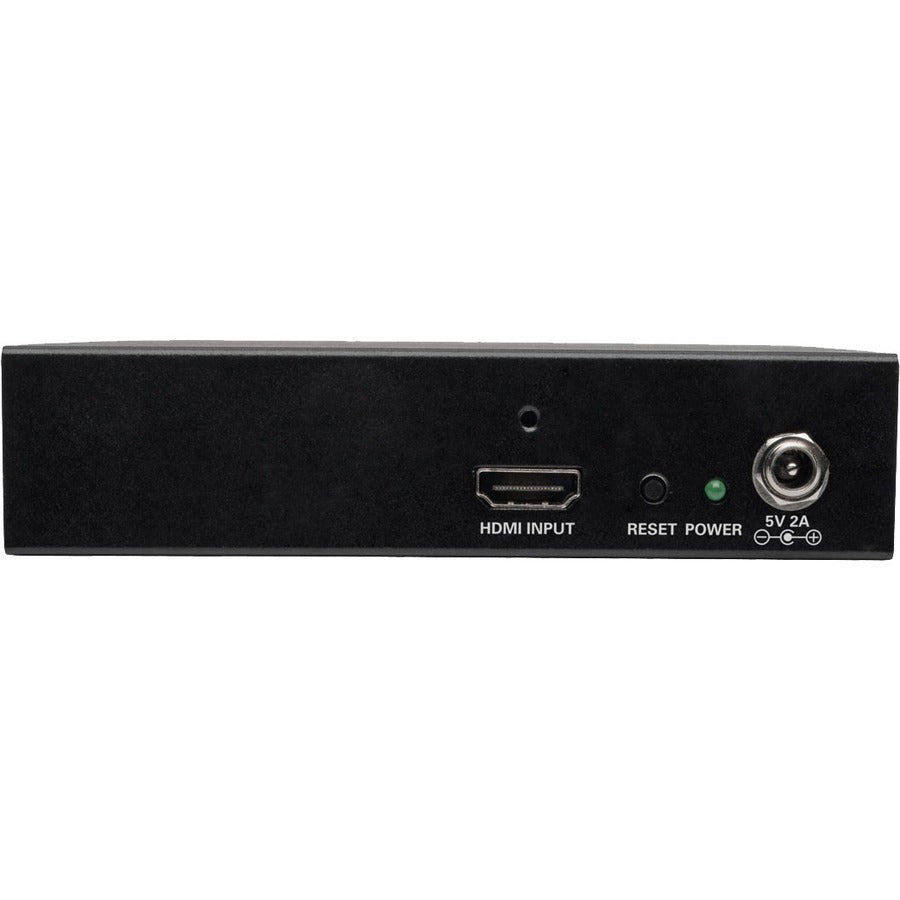

- HDMI In : Yes

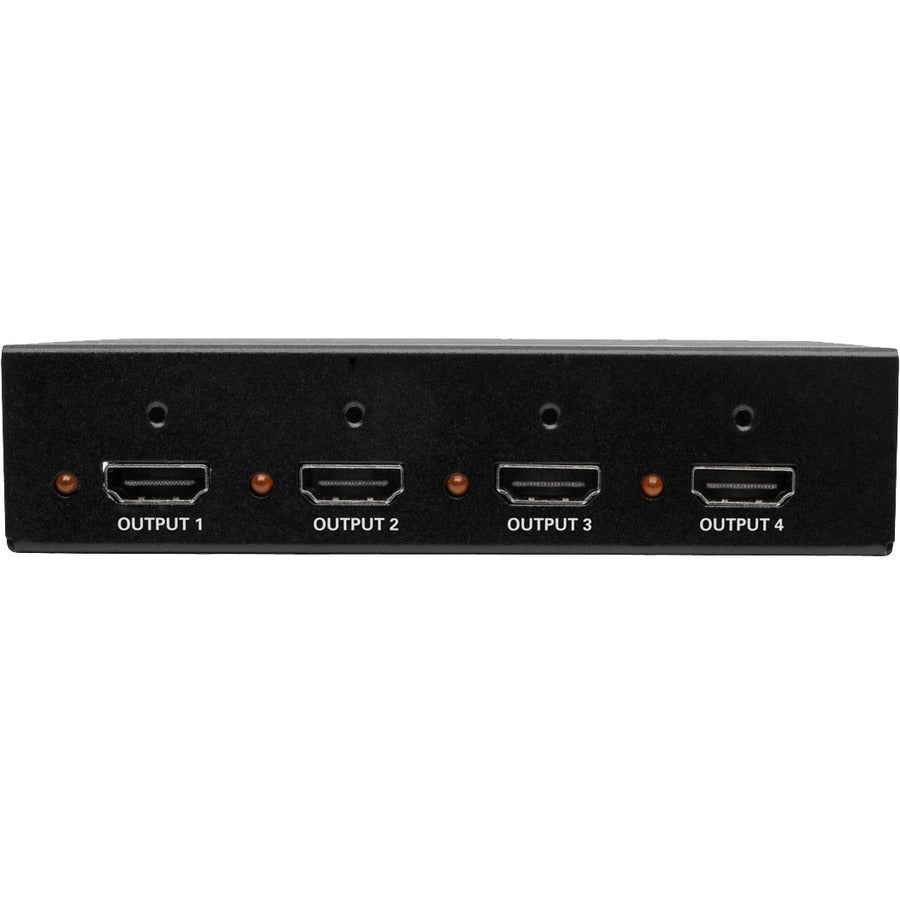

- Number of HDMI Outputs : 4
- Maximum Operating Distance : 22.97 ft (7000 mm)
- Input Voltage : 120 V AC,230 V AC,5 V DC
- Limited Warranty : 3 Year
- Packaged Quantity : 1
- Product Material : Metal
- Package Contents :
- B118-004-UHD-2 4-Port 4K 3D HDMI Splitter
- External Power Supply (Input: 100-240V, 50/60 Hz, 0.35A; Output: 5V 2A)
- International Plug Adapters (North America, Europe, U.K. and Australia)
- Mounting Hardware
- Owner's Manual
- HDMI Out : Yes
- Number of HDMI Inputs : 1
- Product Type : Signal Splitter
- Manufacturer : Tripp Lite by Eaton
- Product Model : B118-004-UHD-2
- Country of Origin : Taiwan
- Manufacturer Website Address : https://tripplite.eaton.com/
