Description

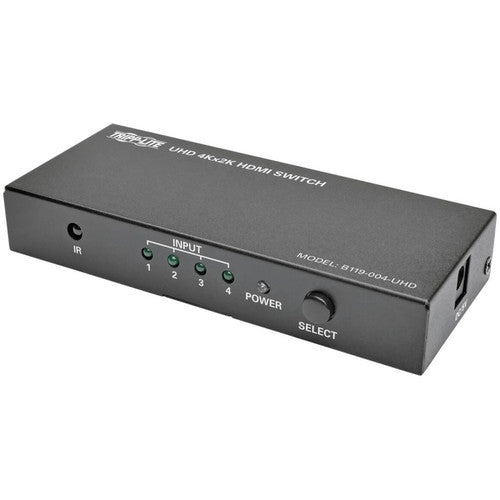

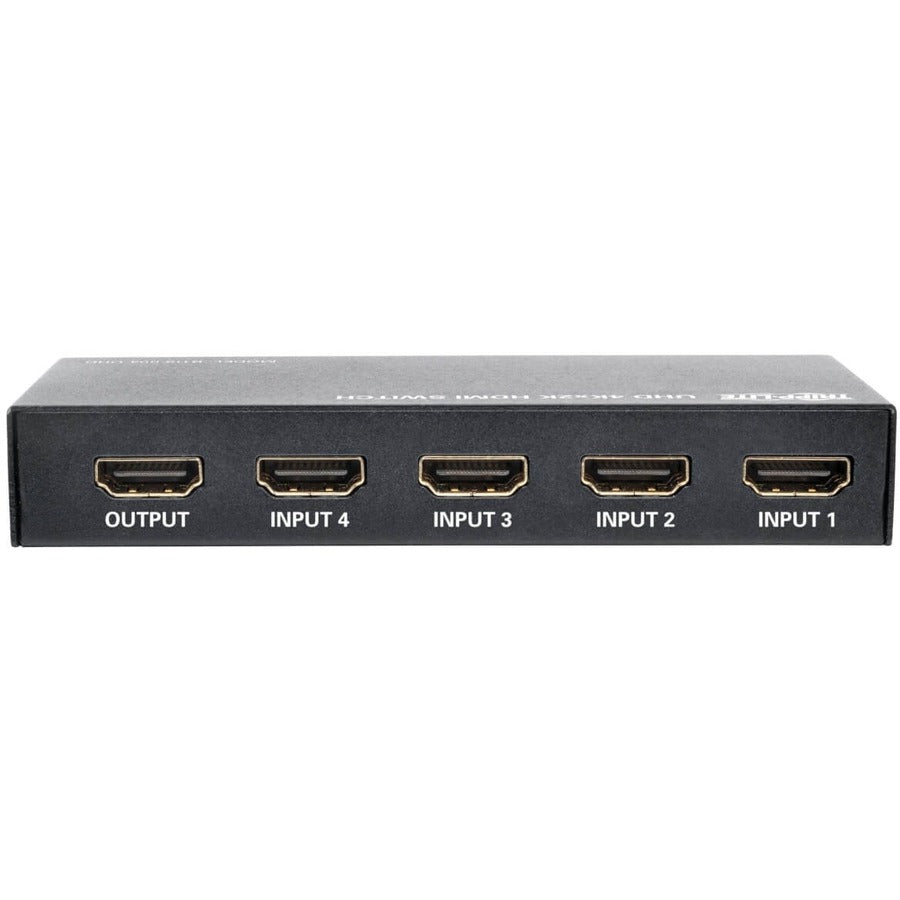

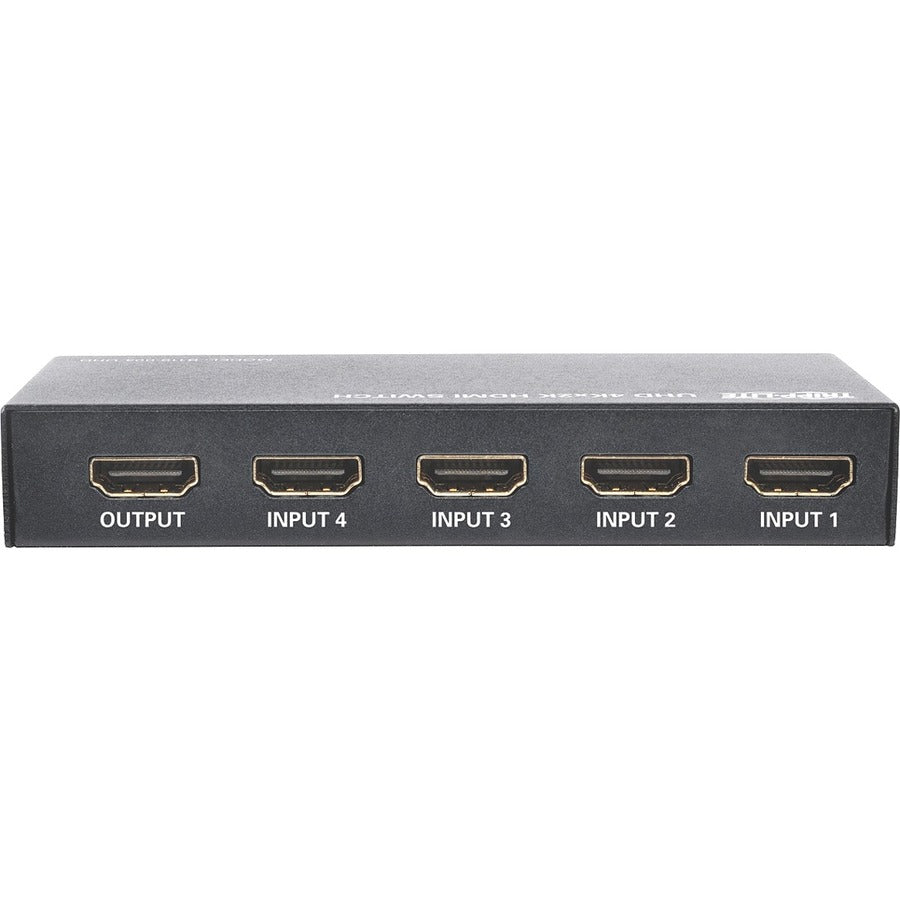

The B119-004-UHD 4-Port HDMI Switch allows you to connect four HDMI source devices to one port on an HDMI display and switch back and forth between them. For instance, you can connect a Blu-ray player, video game system, computer and cable/satellite DVR to one HDMI port on a monitor, projector or TV. Or you can connect up to four computers or media centers to a display for exhibiting digital signage or giving presentations.

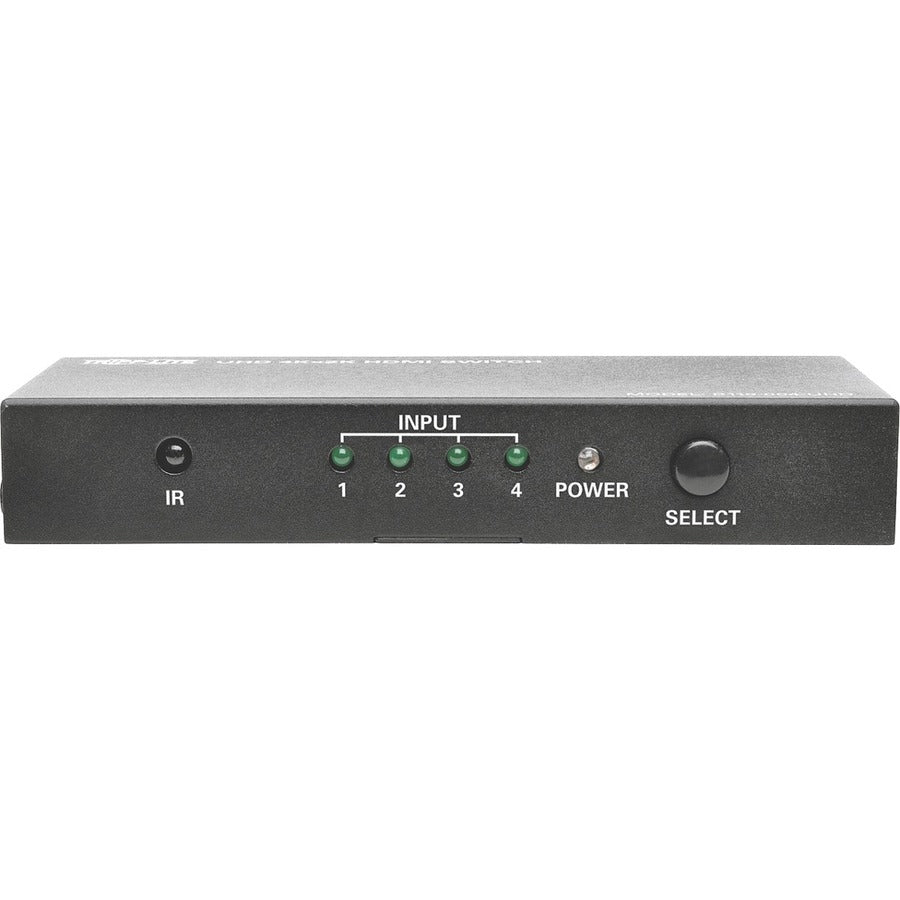

Connect your devices to the HDMI ports, and plug the included external power supply into an AC power source. A red LED indicates the unit is receiving power, and green LEDs indicate connected HDMI inputs. Switch between source devices using the unit's Select button or the included remote control. When the currently used device is powered off, the unit automatically switches to the next powered-on device.
The B119-004-UHD ensures top-quality performance with Ultra High Definition (UHD) video resolutions up to 3840 x 2160 (4K x 2K) @ 60 Hz and 48-bit True Color (16 bits per channel), as well as DTS-HD, Dolby TrueHD and 7.1-channel surround sound audio. It's compatible with 3D, HDCP v2.2 and EDID. Plug-and-play functionality requires no software or drivers to download and install.
Connect your devices to the HDMI ports, and plug the included external power supply into an AC power source. A red LED indicates the unit is receiving power, and green LEDs indicate connected HDMI inputs. Switch between source devices using the unit's Select button or the included remote control. When the currently used device is powered off, the unit automatically switches to the next powered-on device.
The B119-004-UHD ensures top-quality performance with Ultra High Definition (UHD) video resolutions up to 3840 x 2160 (4K x 2K) @ 60 Hz and 48-bit True Color (16 bits per channel), as well as DTS-HD, Dolby TrueHD and 7.1-channel surround sound audio. It's compatible with 3D, HDCP v2.2 and EDID. Plug-and-play functionality requires no software or drivers to download and install.
- Plug and play-no software or drivers required
- Supports DTS-HD, Dolby® TrueHD and 7.1-channel surround sound
- Switch source devices using button or included remote control
- Switches to next device when current device is powered off
- Supports UHD video resolutions up to 3840 x 2160 (4K x 2K)
- Maximum Video Resolution : 3840 � 2160
- Environmentally Friendly : Yes
- Number of Displays Supported : 1
- HDMI In : Yes
- Number of HDMI Outputs : 1
- Number of Input Devices Supported : 4
- Device Supported : Display,Blu-ray Disc Player,Computer,Gaming Console,Satellite Receiver,DVR
- Limited Warranty : 3 Year

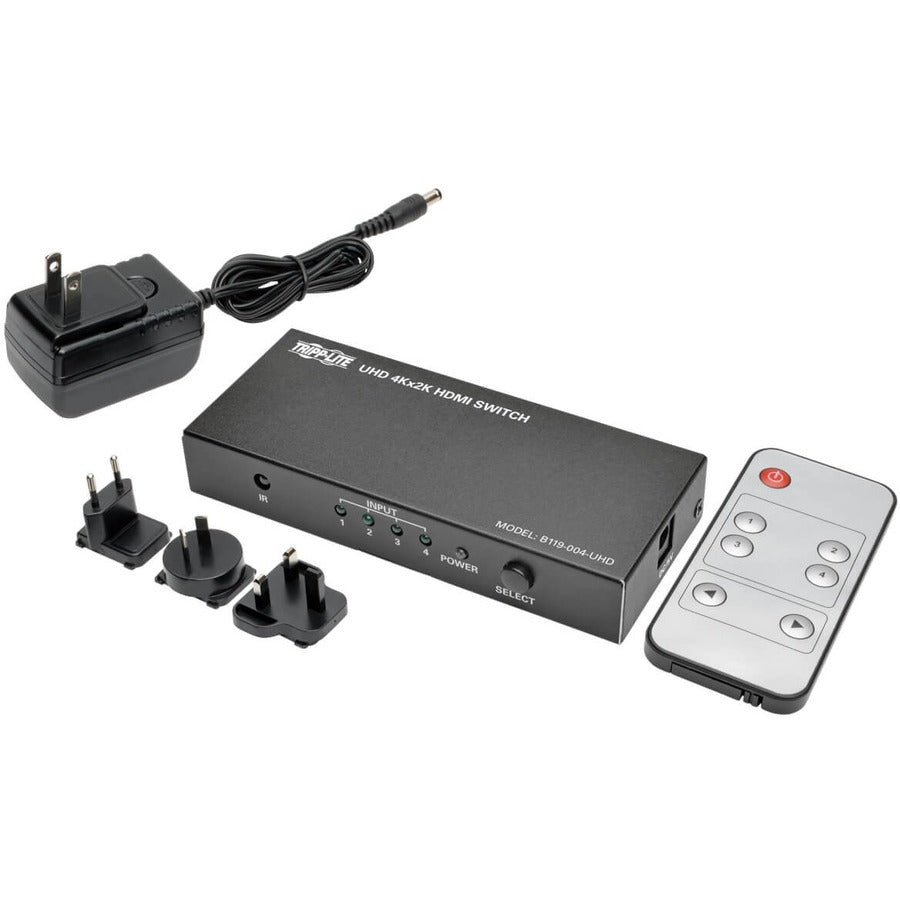

- Package Contents :
- B119-004-UHD 4-Port HDMI Switch
- Remote Control
- External Power Supply (Input: 100-240V, 50/60 Hz, 0.4A; Output: 5V, 2A)
- Owner's Manual
- HDMI Out : Yes
- Number of HDMI Inputs : 4
- Product Type : Audio/Video Switchbox
- Graphics Modes : 4K
- Manufacturer : Tripp Lite by Eaton
- Product Model : B119-004-UHD
- Country of Origin : Vietnam
- Connectivity Technology : Cable
- Manufacturer Website Address : https://tripplite.eaton.com/
