Description

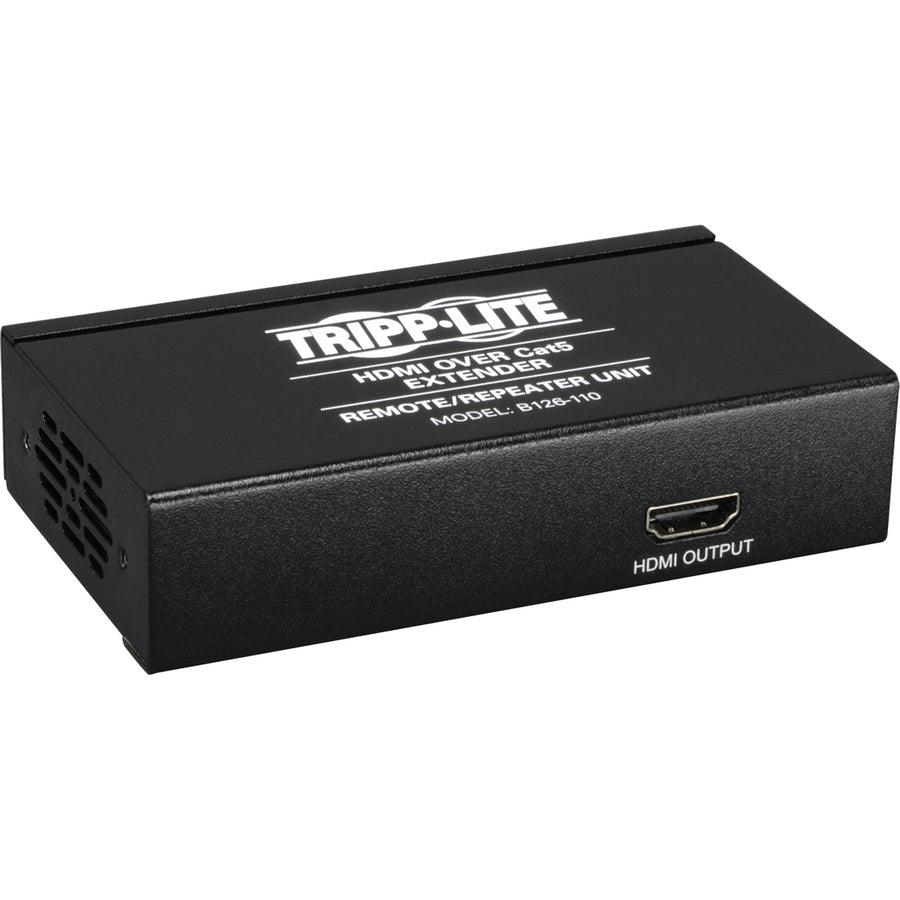

The B126-110 remote repeater unit can be added to your Tripp Lite B126-Series HDMI over Cat5 installation to increase the extension distance and/or add additional monitors. To achieve maximum distance and resolution, use 24Awg Solid Wire Cat5e/6 cable. (Tripp Lite's N202-Series) Supports 24-bit True Color (8-bits per channel), HDCP, 3D, and both stereo audio and 7.1 channel surround sound audio (7.1 channel surround sound signal will be Multi-Channel or PCM). Installation is simple; just insert the B126-110 repeater into the middle of your installation. In the case of a B126-1A1 extender kit, the transmitter is connected to the HDMI source using a Tripp Lite P568-Series HDMI cable (not included). It is then connected via Cat5e/6 cable to the B126-110, which is connected via Cat5e/6 cable to the B126-1A1 receiver unit. Finally, a monitor is connected to each remote receiver and repeater unit using Tripp Lite P568-Series HDMI cable (not included). The B126-110 unit is TAA GSA Compliant.
- Supports stereo and 7.1-channel surround sound audio
- Plug and play-no software or drivers to install
- Supports high-definition video resolutions up to 1080p (60 Hz)
- Connect up to 3 units in a chain for maximum extension
- Extends 1080i (60 Hz) signal up to 175 ft.
- Number of HDMI Outputs : 1
- Maximum Operating Distance : 700 ft (213360 mm)
- Number of Input Devices Supported : 1
- Transmitter Depth : 2.50" (63.50 mm)
- Number of Output Devices Supported : 2
- Form Factor : Wall Mountable,Rack-mountable,Pole-mountable

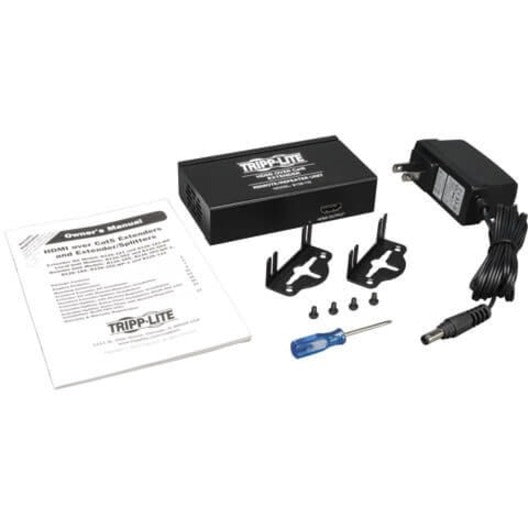

- Package Contents :
- Video Extender
- External AC Power Adapter
- Mounting Hardware
- Screwdriver for Equalization Adjustment
- User Manual

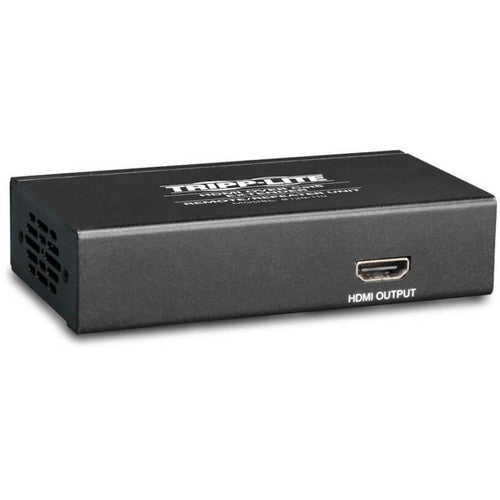

- HDMI Out : Yes
- Twisted Pair Cable Standard : Category 5
- Manufacturer : Tripp Lite by Eaton
- Product Model : B126-110
- Transmitter Height : 1" (25.40 mm)
- Environmental Certification : RoHS,WEEE
- TAA Compliant : Yes
- Environmentally Friendly : Yes
- Product Color : Black
- Limited Warranty : 1 Year
- Network (RJ-45) : Yes
- Product Type : Video Extender Transmitter/Receiver
- Transmitter Width : 4.50" (114.30 mm)
- Media Type Supported : Twisted Pair
- Country of Origin : Taiwan
- Number of Network (RJ-45) Ports : 2
- Connectivity Technology : Wired
- Manufacturer Website Address : https://tripplite.eaton.com/
- Color Family : Multicolor
