Description

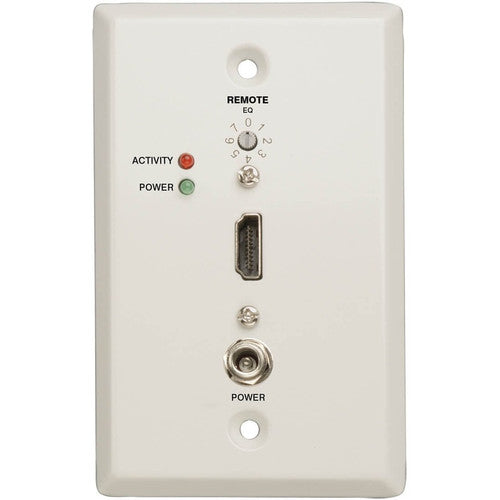

The B126-1A0-WP-1 is a receiver unit that is used with the B126-002 and B126-004 transmitter units. It extends a 1080p (60Hz) signal to a monitor up to 150 ft. away using Cat5e/6 cable. To achieve maximum distance and resolution, use 24Awg Solid Wire Cat5e/6 cable. (Tripp Lite's N202-Series) It features a built-in Equalization control for adjustment of the video image, and RJ45 jacks for easy connection with Cat5e/6 patch cable. Supports 24-bit True Color (8-bits per channel), HDCP, 3D, and both stereo audio and 7.1 channel surround sound audio (7.1 channel surround sound signal will be Multi-Channel or PCM).
Installation is simple. Connect the transmitter unit to an HDMI source using a Tripp Lite P568-Series HDMI cable (not included). Connect the receiver unit to a display using a Tripp Lite P568-Series HDMI cable (not included). Finally, connect the receiver to the RJ45 port on the transmitter using a single Cat5e/6 cable. The B126-1A0-WP-1 is TAA GSA Compliant.
- Built-in equalization control lets you adjust monitor image
- Plug and play-no software or drivers to install
- Supports stereo and 7.1-channel surround sound audio
- Works with all operating systems and HDMI video sources
- Supports high-definition video resolutions up to 1080p (60 Hz)
- Environmental Certification : RoHS
- TAA Compliant : Yes
- Environmentally Friendly : Yes
- Product Color : White
- Number of RJ-45 Ports : 1
- Limited Warranty : 1 Year
- Package Contents :
- B126-1A0-WP-1 Digital Audio/Video Faceplate
- Screwdriver for Adjustment of Equalization (Skew)
- Wallplate Mounting Hardware
- External Power Supply
- Owner's Manual
- Number of HDMI Ports : 1
- Product Type : Faceplate
- Mount Type : Wall Mount
- Manufacturer : Tripp Lite by Eaton
- Product Model : B126-1A0-WP-1
- Country of Origin : Taiwan
- Manufacturer Website Address : https://tripplite.eaton.com/
- Color Family : White
