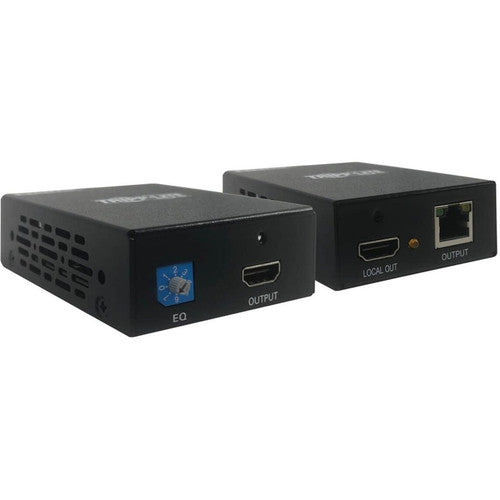

Tripp Lite by Eaton B126-1A1-POC Video Extender Transmitter/Receiver B126-1A1-POC

The B126-1A1-POC HDMI over Cat5 Active Extender Kit includes a transmitter unit and a receiver unit that work in tandem to extend an HDMI audio/video signal to a projector, monitor or television. The kit is ideal for digital signs, trade shows, classrooms, churches, offices, retail settings and other applications where the source is located farther than conventional cables allow.

HDMI cable (see Tripp Lite's P569-Series) connects an optional local display and the audio/video source, such as a Blu-ray™ player, to the transmitter's HDMI ports and a remote display to the receiver. Cat5e/6/6a cable connects the two units (for best results, use 24 AWG solid-wire Cat5e/6 cable, such as Tripp Lite's N202-Series). Built-in Power over Cable (POC) technology powers the receiver over Cat5e/6/6a cable, so no external power supply on the display side is needed.

The B126-1A1-POC can extend a high-definition 1080p (@ 60 Hz) signal up to 125 feet. In addition to crystal-clear video, the B126-1A1-POC delivers full, rich stereo and 7.1-channel surround sound (multi-channel or PCM). Built-in equalization control lets you fine-tune the image quality at the remote display. Supports 24-bit True Color (8 bits per channel) and HDCP. Easy to set up with no software or drivers to install. Mounts to a wall, rack or pole using the included hardware. Complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

Features

Extends High-Definition Signals

• Extends a 1080p (@ 60 Hz) signal up to 125 ft.
• Transmitter and receiver connect with one Cat5e/6/6a cable (for best results, use 24 AWG solid-wire Cat5e/6 cable, such as Tripp Lite's N202-Series)
• Supports stereo and 7.1-channel surround sound (multi-channel or PCM) audio
• Supports 24-bit True Color (8 bits per channel) and HDCP
• Built-in equalization control lets you adjust the image on the local monitor

Easy to Set Up and Use

• Plug-and-play engineering-no software or drivers to download and install
• Works with all operating systems and HDMI video sources
• Units connect quickly to monitors with HDMI cable, such as Tripp Lite's P569-Series
• LEDs indicate at a glance when the units are receiving power and an HDMI signal
• Included mounting hardware lets you install the units on a wall, rack or pole

TAA Compliant

• Complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

. .

• Number of HDMI Outputs : 2
• Maximum Operating Distance : 125 ft (38100 mm)
• Number of Input Devices Supported : 1
• Number of Output Devices Supported : 1
• Form Factor : Rack-mountable,Wall Mountable,Pole-mountable

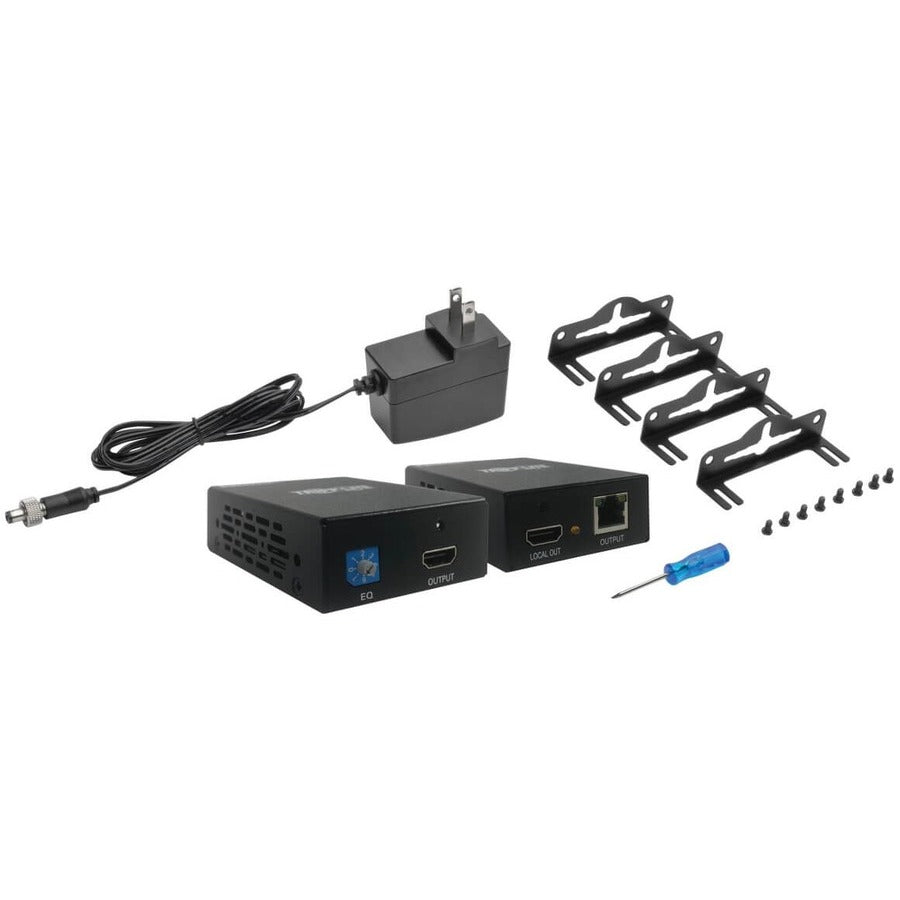

• Package Contents :
  • Transmitter Unit
  • Receiver Unit
  • Screwdriver for Adjusting Equalization
  • External Power Supply with NEMA 1-15P Plug and 5 ft. Cord (Input: 100-240V, 50/60 Hz, 0.5A; Output: 5V, 2A)
  • Mounting Hardware
  • Owner's Manual
• HDMI Out : Yes
• Twisted Pair Cable Standard : Category 6a
• Manufacturer : Tripp Lite by Eaton
• Product Model : B126-1A1-POC
• Maximum Video Resolution : 1920 x 1080
• TAA Compliant : Yes
• Environmentally Friendly : Yes
• HDMI In : Yes
• Limited Warranty : 1 Year
• Network (RJ-45) : Yes
• Number of HDMI Inputs : 1
• Product Type : Video Extender Transmitter/Receiver
• Graphics Modes : Full HD
• Media Type Supported : Twisted Pair
• Country of Origin : Taiwan
• Number of Network (RJ-45) Ports : 2
• Connectivity Technology : Wired
• Manufacturer Website Address : https://tripplite.eaton.com/
