Description
DisplayPort 1.2a Extender Transceiver Ideal for Digital Signage in Schools and Restaurants
This 4K transceiver is recommended for video presentations in conference rooms, schools, trade shows, meeting facilities, houses of worship, retail settings, hotels and other digital signage applications where the source and display are farther apart than conventional A/V cables allow.
Combines with Tripp Lite DisplayPort Extender Kit to Add More Distance
The B127A-110-BD works with Tripp Lite's B127A-111-BDTD extender kit (sold separately) to further extend a 4K audio/video signal up to 230 feet (70.1 meters) with no latency. It connects between the transmitter and receiver from the extender kit with user-supplied Cat6 cabling.
Transmits Crystal-Clear 4K Video with Multi-Channel Audio and 4:4:4 Color
The B127A-110-BD supports Ultra HD resolutions up to 3840 x 2160 (4K x 2K) at 30 Hz with 7.1-channel surround sound audio through its TOSLINK port. HDCP 2.2 compliance allows you to stream 4K Amazon and Netflix content with no complications. This receiver also supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor. Built-in equalization allows you to fine-tune the image quality at the remote display.
Create a Daisy Chain to Achieve More Distance
This transceiver combines with the Tripp Lite B127A-111-BDTD extender kit (sold separately) and additional B127A-110-BD transceivers to form daisy-chain installations up to 920 feet (280.4 meters) from the transmitter. Up to four total transceivers can be chained together, each capable of extending a 4K signal up to 230 feet per unit. In addition to the extender kit, this transceiver is also compatible with Tripp Lite's B127A-1A1-BDBD and can be used to replace any receivers in the installation as well.
Add a Tripp Lite Signal Booster to Achieve, Yes, Even More Distance
The receiver is also compatible with Tripp Lite's B127A-010-H signal booster (sold separately), which allows the signal to be boosted up to 400 feet (121.9 meters) total between the transmitter and transceiver. When used in a daisy-chain installation, this brings the total extension distance up to 1,090 ft. (332.2 meters). Note: B127A-010-H will only work when used in the first link of the daisy-chain installation.
Built-In PoC Technology Provides Receiver Power to Avoid Bulky External Power Bricks
Power over Cable (PoC) technology powers the B127A-110-BD over Cat6 cable. LEDs indicate when the system is receiving power and a signal is being transmitted. PoC lets you avoid the hassle of a bulky power brick and gives you the freedom to place the transceiver where needed without worrying about finding a nearby AC outlet. Power is also equally distributed to any additional receivers within a daisy-chain installation.
Plug-and-Play Operation for Quick Setup and Immediate Use
The transceiver works right out of the box with no software required. Mounting hardware is included for installing it on a wall, pole or 19-inch rack. Connect the transceiver to a transmitter and any additional transceivers with user-supplied Cat6 cable (such as Tripp Lite's N202-Series). Connect to a 4K display with a user-supplied DisplayPort cable (such as Tripp Lite's P580-Series).
TAA-Compliant for GSA Schedule Purchases
The B127A-110-BD is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
- TAA Compliant : Yes
- Environmentally Friendly : Yes
- Product Color : Black
- Input Voltage : 230 V AC
- Maximum Extended Range : 230 ft (70104 mm)
- Limited Warranty : 1 Year
- Product Material : Metal

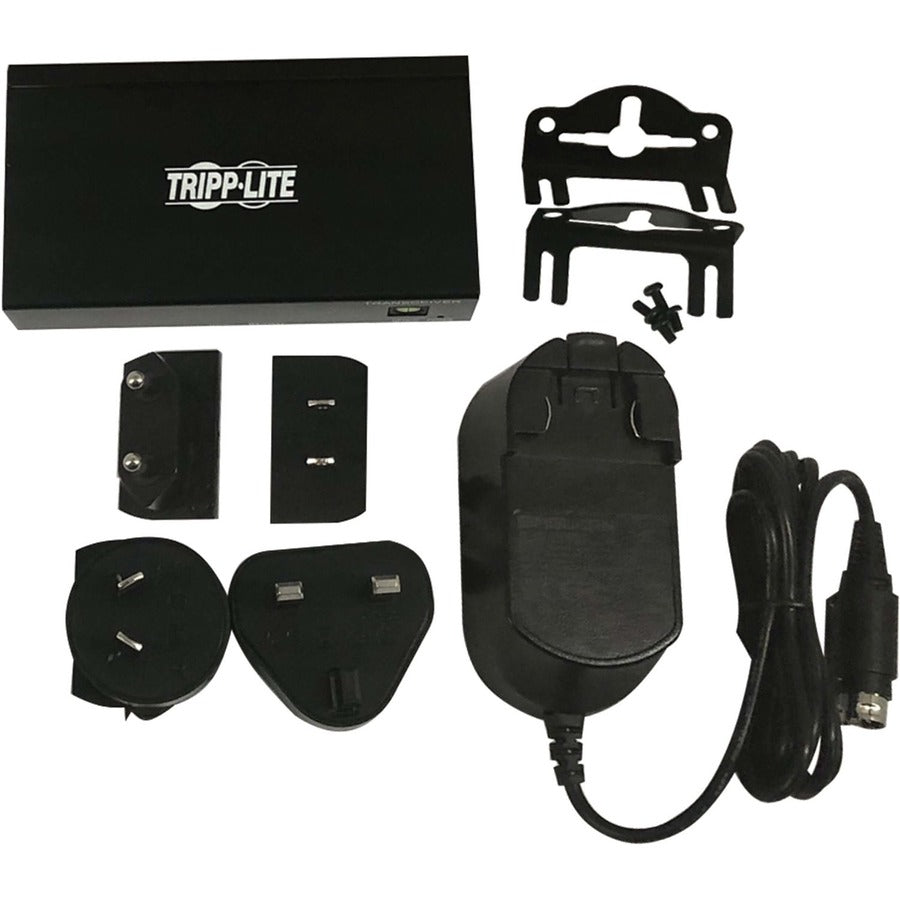

- Package Contents :
- B127A-110-BD Audio/Video Extender
- External power Supply (Input: 100-240V, 50/60 Hz, 0.6A; Output: 24V 1A)
- 4 x International Plug Adapters (North America, Europe, U.K. and Australia)
- Mounting Hardware
- Owner's Manual
- 2 x Mounting Brackets
- Network (RJ-45) : Yes
- Product Type : Audio/Video Extender
- Manufacturer : Tripp Lite by Eaton
- Product Model : B127A-110-BD
- HDMI : Yes
- Country of Origin : Taiwan
- Number of Network (RJ-45) Ports : 2
- Manufacturer Website Address : https://tripplite.eaton.com/
- Color Family : Black
