Tripp Lite by Eaton B156-002-V2 2-Port DisplayPort 1.2 MST Hub B156-002-V2

Save $55.81
Tripp Lite by EatonSKU: B156-002-V2
Price:
$95.99 $151.80
Stock:
Sold out

Description

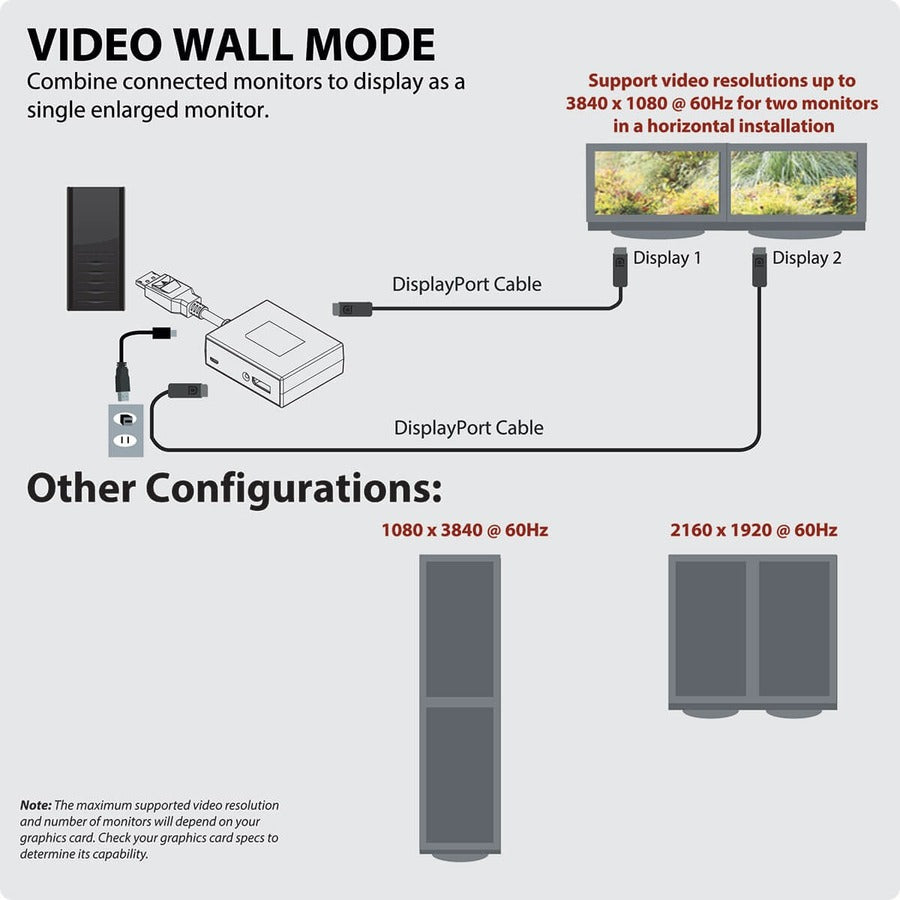

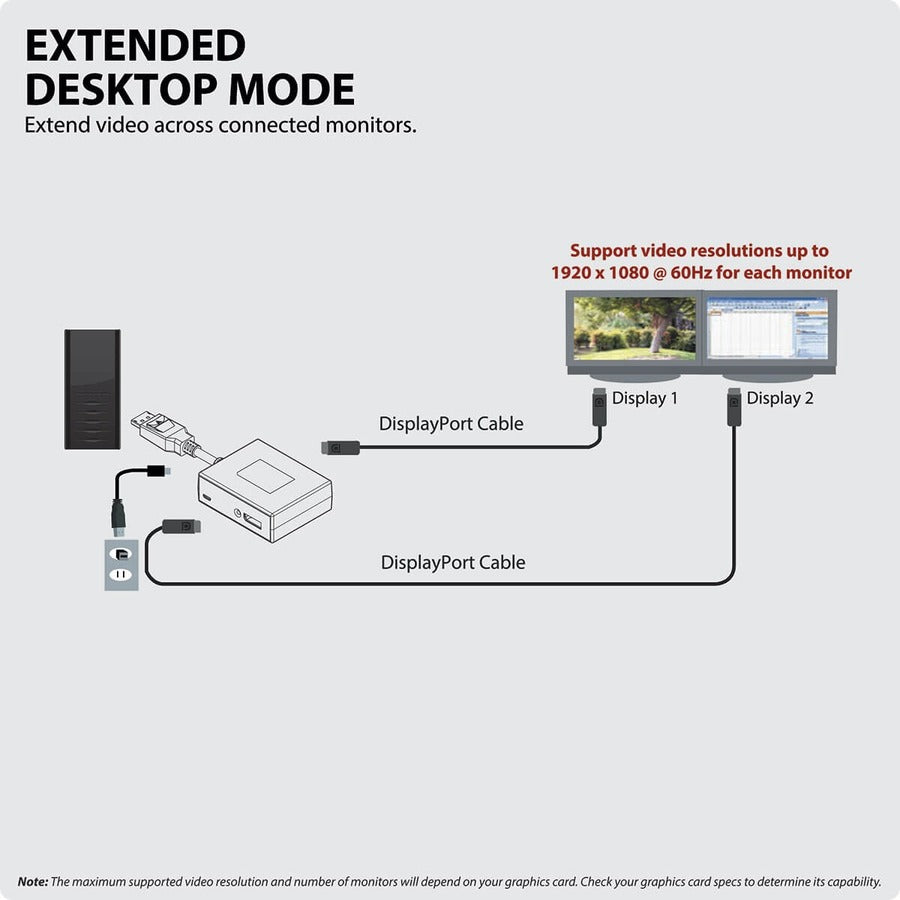

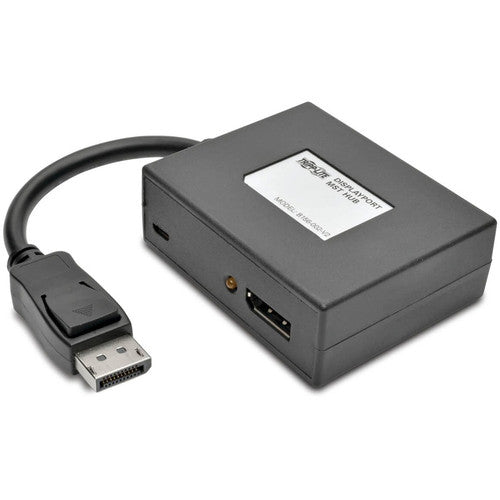

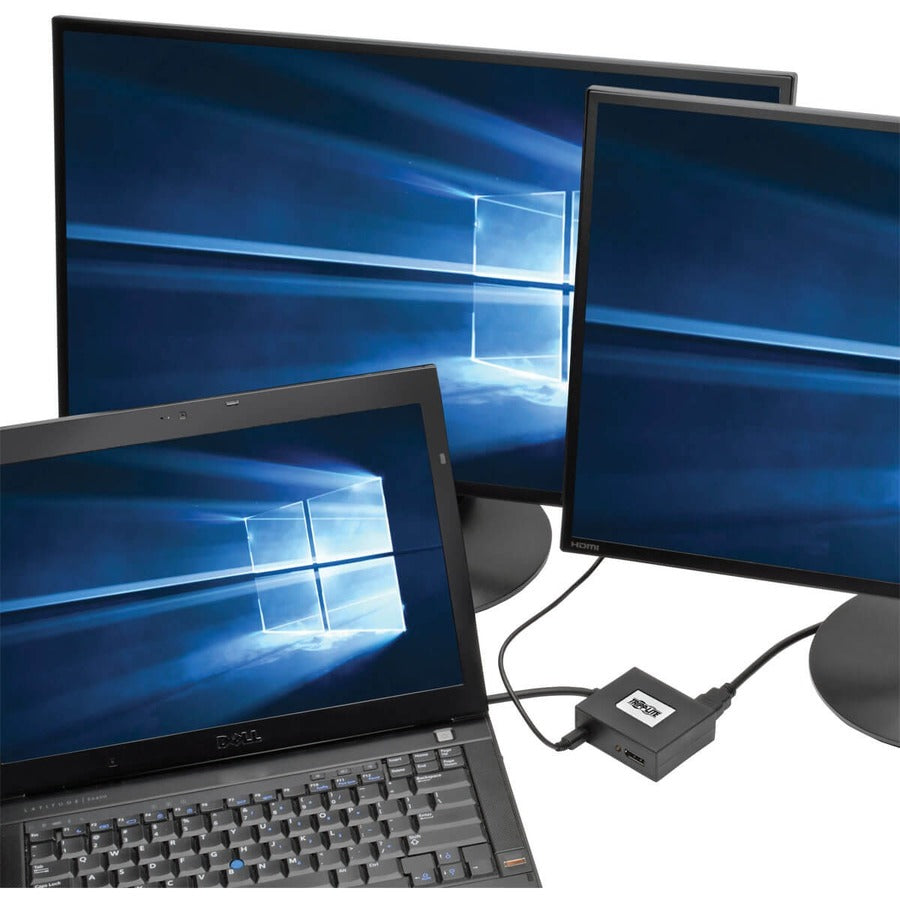

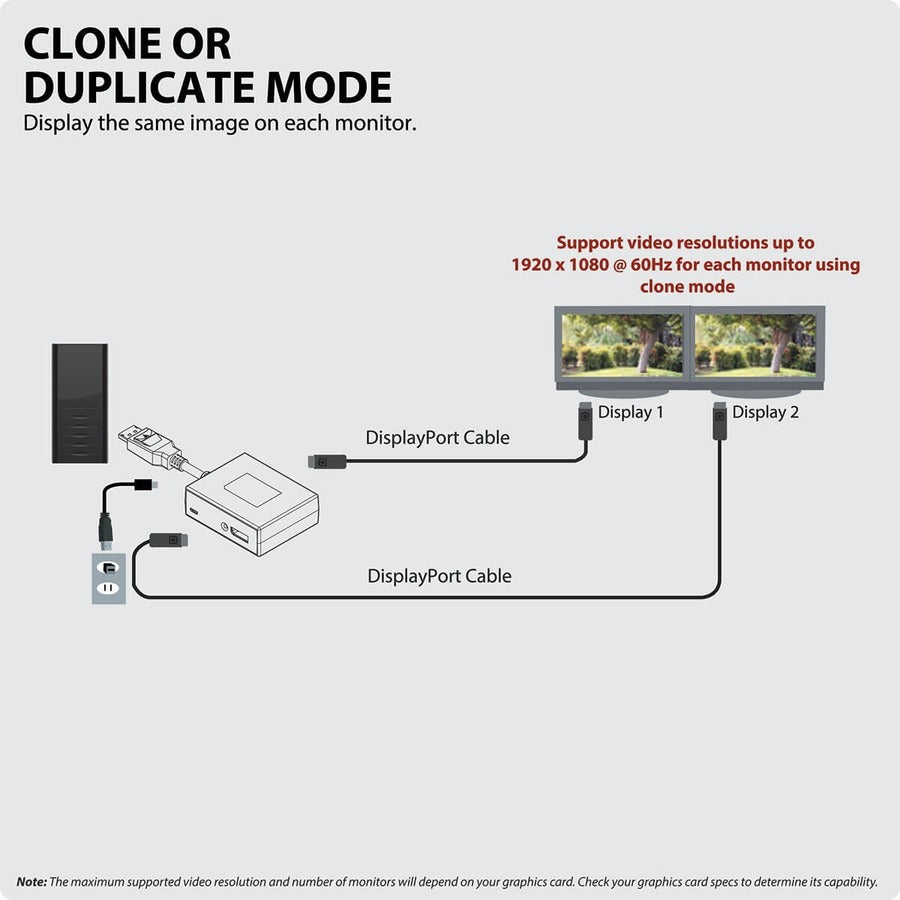

The B156-002-V2 2-Port DisplayPort 1.2 MST Hub connects two DisplayPort monitors to the DisplayPort output on your computer. Ideal for digital signage in schools, churches, conference rooms, trade shows, hotels and retail outlets, this hub allows you to display the same image on both monitors, extend the desktop across them, or combine both into one large monitor in video wall mode.

The B156-002-V2 is compliant with DisplayPort 1.2 and backward compatible with versions 1.1 and 1.1a with the feature set being limited to that of your equipment. It supports Ultra High Definition (UHD) video resolutions up to 3840 x 2160 (4K x 2K) at 24/30 Hz. This MST hub also supports HDCP, EDID, DDC and 48-bit Deep Color (16 bits per channel), as well as DTS-HD, Dolby TrueHD and 7.1-channel surround sound audio.

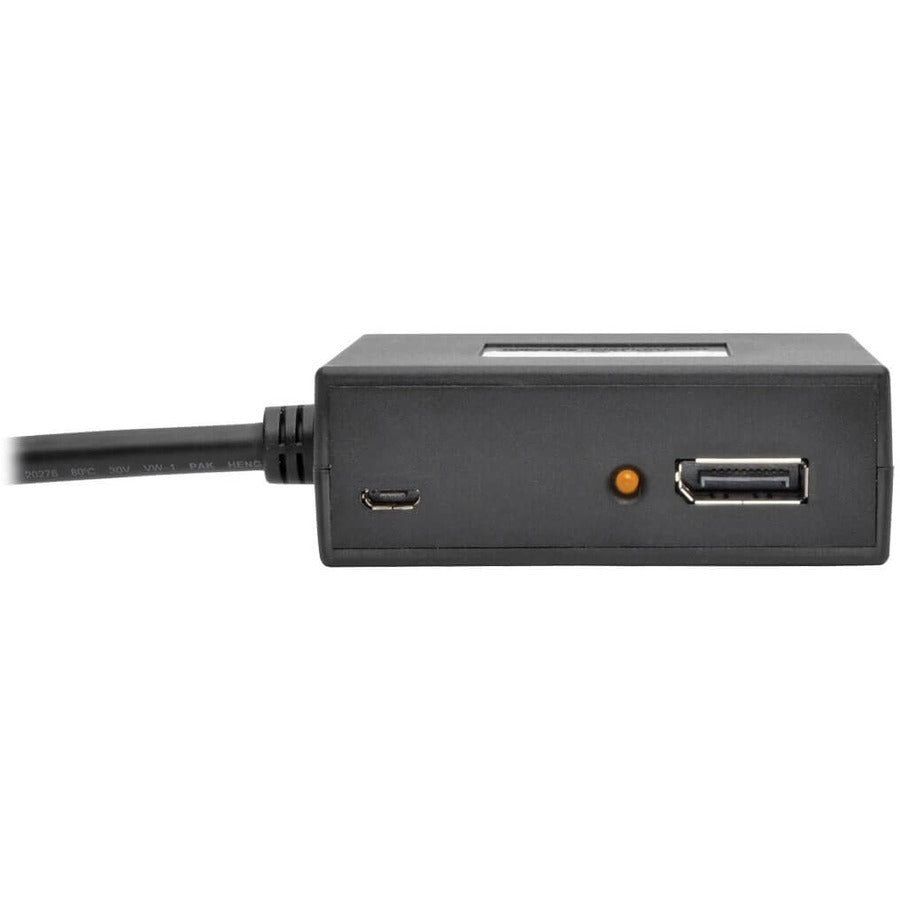

The B156-002-V2 works with all operating systems. Plug-and-play convenience means no software, drivers or external power supply is needed. The included three-foot USB Micro-B cable delivers necessary power from the connected computer. A built-in six-inch cable connects directly to a DisplayPort source. LEDs indicate when the monitors are receiving a signal. The B156-002-V2 complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
  • Split CATV and other signals with this satellite splitter so that it can be used for more than one device
  • Supports up to 30 Hz frequency
  • 3840 � 2160 resolution for high-quality video delivery
  • DisplayPort interface that transmits both audio and video signals through a single connection to deliver versatile performance
. .
  • Maximum Frequency : 30 Hz
  • Maximum Video Resolution : 3840 � 2160
  • TAA Compliant : Yes
  • Environmentally Friendly : Yes
  • USB : Yes
  • Number of DisplayPort Outputs : 2
  • Number of DisplayPort Inputs : 1
  • Limited Warranty : 3 Year
  • Package Contents :
    • B156-002-V2 2-Port DisplayPort 1.2 MST Hub
    • USB Micro-B Cable, 3 ft.
    • Owner's Manual
  • Minimum Frequency : 24 Hz
  • Product Type : Signal Splitter
  • DisplayPort : Yes
  • Manufacturer : Tripp Lite by Eaton
  • Product Model : B156-002-V2
  • Country of Origin : Taiwan
  • Manufacturer Website Address : https://tripplite.eaton.com/
