HDMI Matrix Switch for Digital Signage or Other Applications with Multiple Video Displays
This matrix switch/splitter features four HDMI inputs and four HDMI outputs. This allows you to connect as many as four high-definition video sources, such as laptops, Blu-ray players, video game systems, Roku boxes, media servers or cable/satellite boxes, and transmit them to four high-definition televisions, projectors or monitors. The B302-4HX4H-4K is recommended for home theaters (transmit to HDTVs located in different rooms) or digital signage applications in showrooms, restaurants, trade shows, schools, training rooms and retail settings.
Enjoy Great Flexibility in Transmitting Video to Different Displays or Even Different Rooms

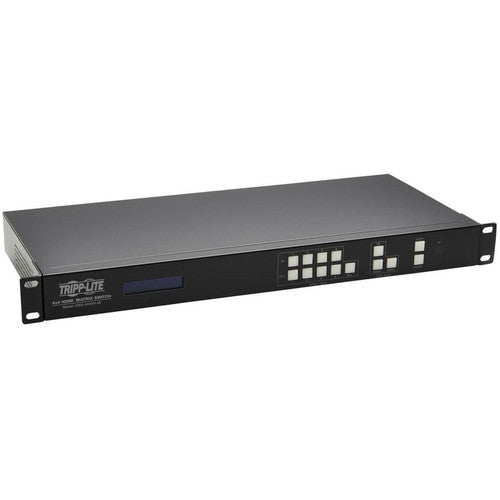

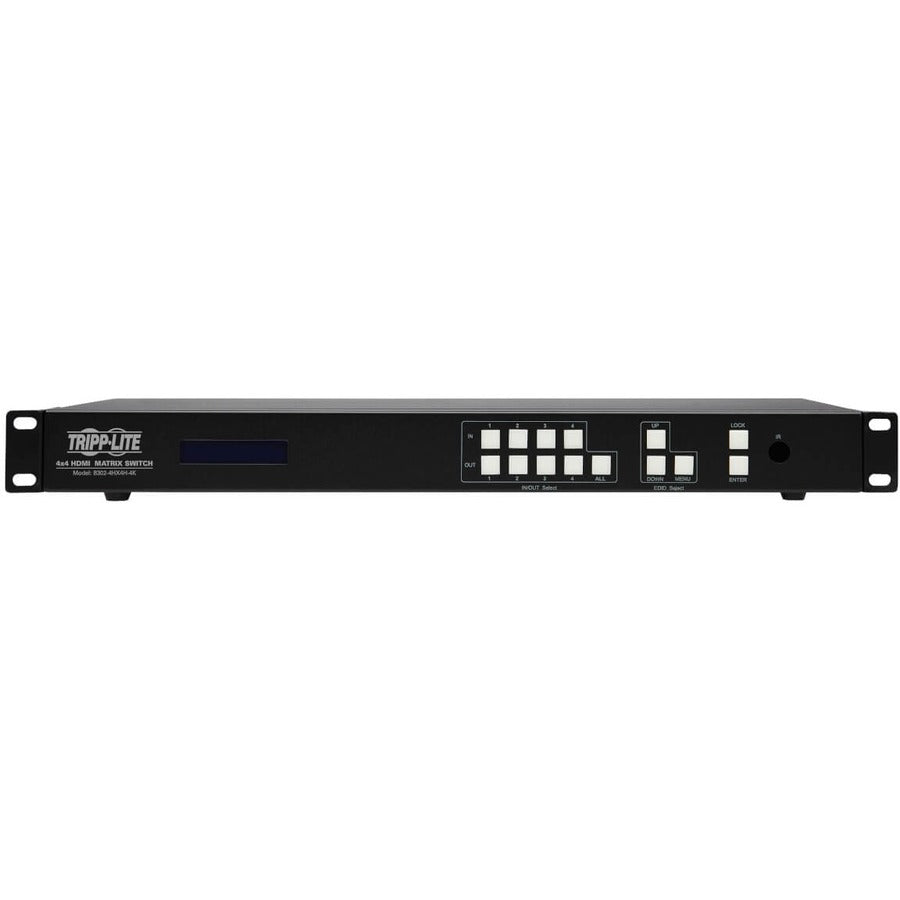

Send the same video image to all displays or transmit different videos to different displays and switch between them. Convenient push buttons on the front of the unit let you instantly choose which sources and displays to highlight. You can also use the included IR hardware, RS-232 serial commands (cable sold separately) or the included GUI software to pick and choose. Remote access of the matrix switch/splitter is possible by configuring your network to match its pre-assigned IP address.
Transmits Crystal-Clear True 4K Video with HDR and 4:4:4 Color
The B302-4HX4H-4K supports Ultra HD resolutions up to 4096 x 2160 (4K x 2K) at 60 Hz, as well as HDR video, providing a wide range of vibrant colors with richer contrast, brighter whites and deeper blacks that pop on your 4K display. HDCP 2.2 compliance allows you to stream 4K Amazon and Netflix content with no complications. This switch also supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor.
Multi-Resolution Support Allows Mixing and Matching of Displays of Different Resolutions
Say you have a brand new 4K (at 60 Hz) HDTV in the living room, but want to also connect your Blu-ray player or satellite box to the older 1080p TV in the bedroom. The B302-4HX4H-4K is backward compatible with 4K (at 30 Hz) and 1080p (at 60 Hz) resolutions via automatic switching. This matrix switch/splitter allows each connected monitor to display video at its maximum resolution. Most other splitters default each monitor to the lowest common resolution (meaning you would only get a 1080p image on that new 4K TV).
Convenient Scene Storage and Instant Recall
You can store as many as 12 different display or scene combinations in the matrix switch's internal memory. Mix and match any sources you want with the displays you want and save it to memory. Forgot which source/display combination you used last week or accidentally changed one of the sources or displays? Don't worry - use the recall feature to bring back the combination you had last.
Built-In Audio Extractor Lets You Control Sound, as Well as Picture

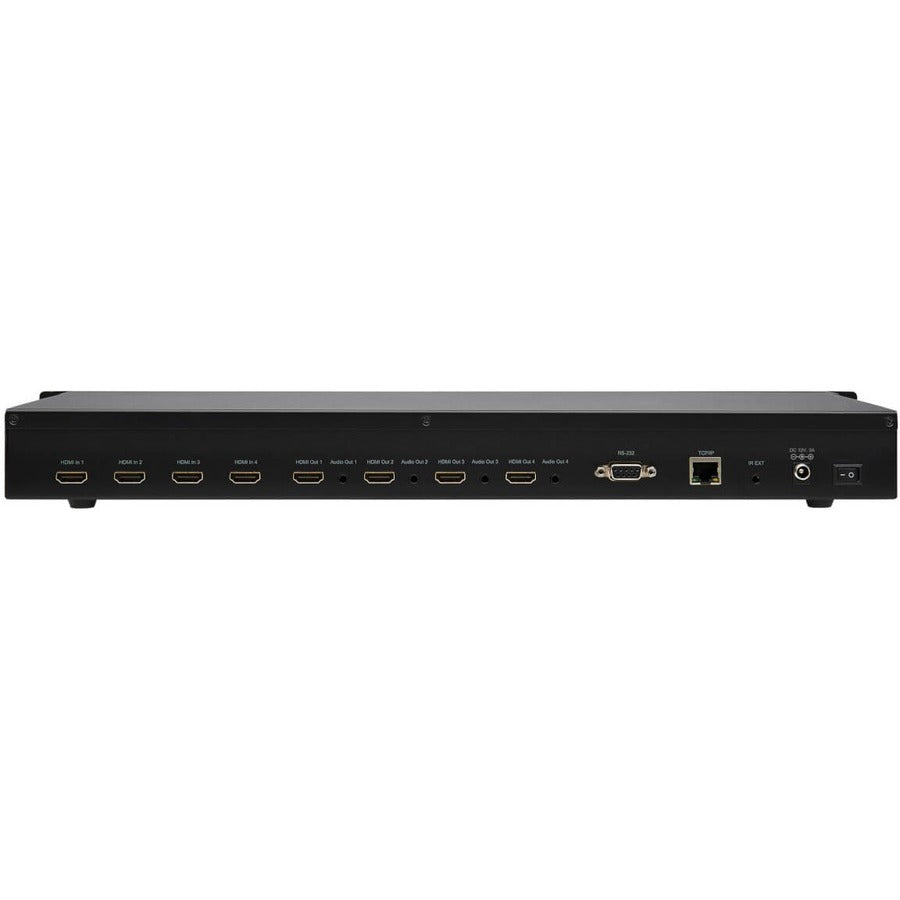

The 3.5 mm audio jacks located above each HDMI output allow you to connect an amplifier, receiver or soundbar for digital stereo sound.
Designed for Quick Setup and Immediate Use
Connect your devices to the HDMI ports with user-supplied HDMI cables (such as Tripp Lite's P569-Series), and plug the included external power supply (with four international plug adapters to ensure use all over the world) into an AC power source to get started. Use the included hardware to install the unit on a wall or 19-inch rack. A CD is included for downloading the optional GUI control software (not compatible with macOS).
- Quickly switches both video and audio between sources without physical access
- Quickly and easily connect with the display
- 4096 x 2160 resolution for high-quality video delivery
- Maximum Video Resolution : 4096 x 2160
- Environmentally Friendly : Yes
- Number of Displays Supported : 4
- HDMI In : Yes
- Number of HDMI Outputs : 4
- Number of Input Devices Supported : 4
- Device Supported : Display
- Limited Warranty : 3 Year
- Form Factor : Rack-mountable,Wall Mountable

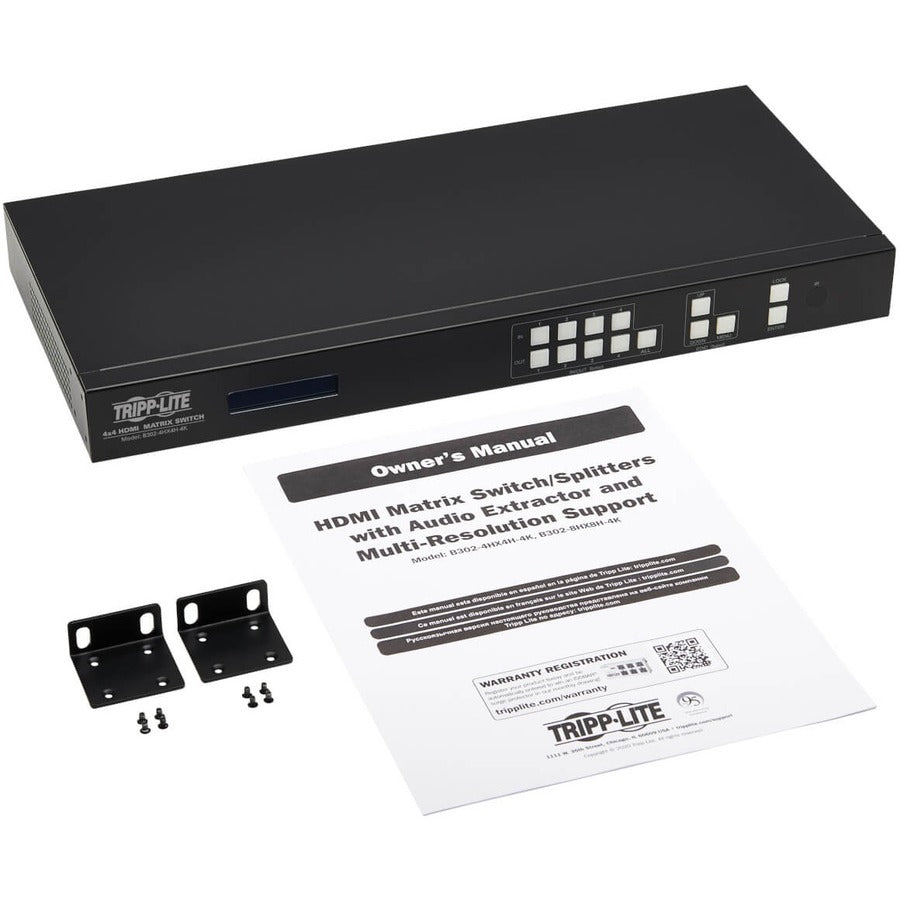

- Package Contents :
- B302-4HX4H-4K 4x4 HDMI Matrix Switch/Splitter
- IR Remote Control
- IR Receiver Cable, 4 ft.
- External Power Supply with 4 ft. Cord (Input: 100-240V, 50/60 Hz, 0.9A; Output: 12V 3A)
- 4 x International Plug Adapters (North America, U.K., Europe, Australia)
- Rack-Mounting Hardware
- Driver CD
- Owner's Manual
- HDMI Out : Yes
- Number of Connectivity (RJ-45) Ports : 1
- Number of HDMI Inputs : 4
- Product Type : Audio/Video Switchbox
- Graphics Modes : 4K
- Manufacturer : Tripp Lite by Eaton
- Product Model : B302-4HX4H-4K
- Media Type Supported : Twisted Pair
- Connectivity (RJ-45) : Yes
- Country of Origin : China
- Connectivity Technology : Cable
- Manufacturer Website Address : https://tripplite.eaton.com/
