Description

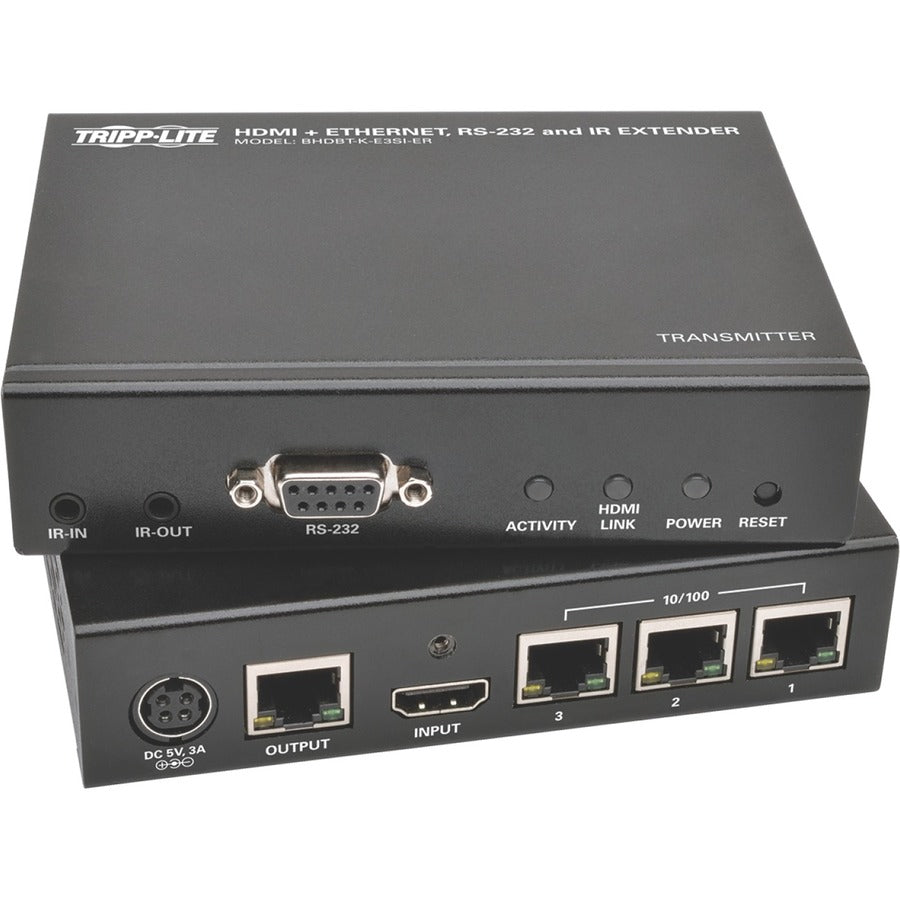

The BHDBT-K-E3SI-ER HDBaseT HDMI over Cat5e/6/6a Extender Kit extends uncompressed HDMI audio and video, RS-232 serial and IR remote control signals up to 500 feet over a single Cat5e/6/6a cable, including a 1920 x 1080(1080p) signal @ 60 Hz.
In addition to HDMI, RS-232 and IR signals, this extender kit features three built-in 10/100 Ethernet ports on both the transmitter and receiver units. This allows connected devices, such as a Blu-ray™ player, cable/satellite box, and HDTV, to communicate with each other and access online content via LAN.

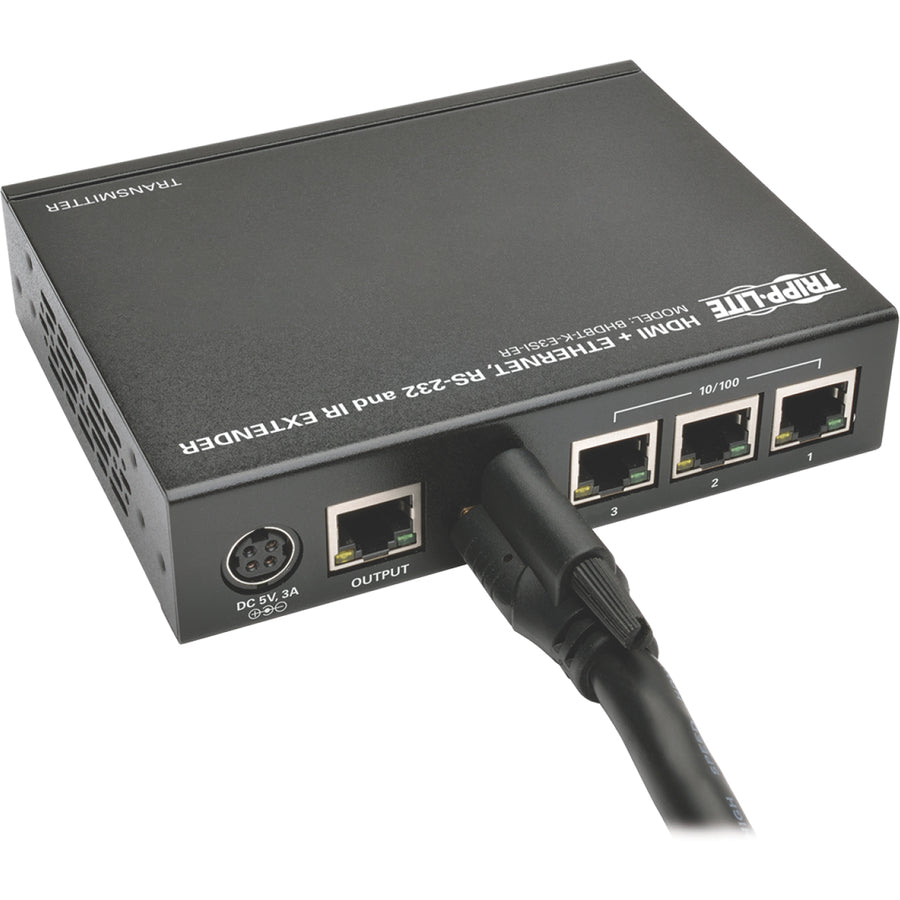

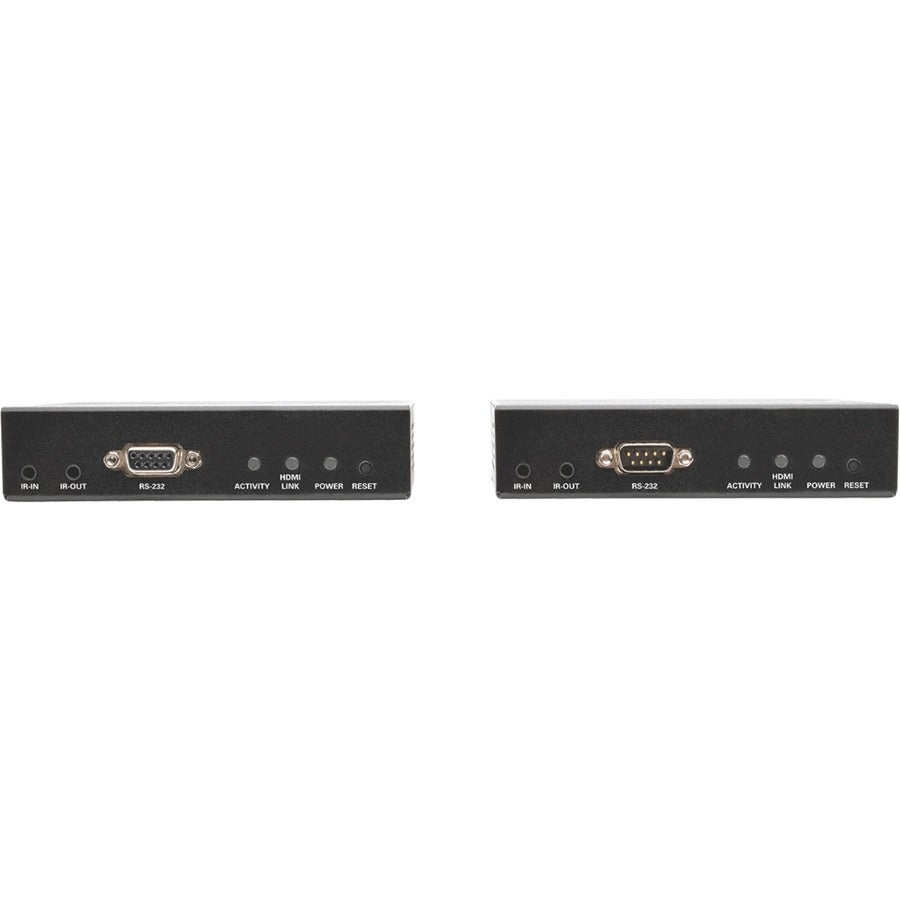

You can also control RS-232 serial devices, such as touchscreen displays or scanners, at baud rates up to 115 Kbps. The two-way IR remote control feature(@ 39 KHz) lets you control your Blu-ray player using its remote when at the remote monitor or control your remote monitor using its remote when at the Blu-ray player. Locking HDMI ports(ideal for use with Tripp Lite's P569-006-LOCK high-speed HDMI cables with locking connectors) on both the transmitter and receiver prevent cables from coming loose or undone, ensuring an intact signal.
The plug-and-play BHDBT-K-E3SI-ER supports 7.1-channel surround sound, DTS-HD and Dolby TrueHD audio, as well as 3D video, EDID and HDCP.
In addition to HDMI, RS-232 and IR signals, this extender kit features three built-in 10/100 Ethernet ports on both the transmitter and receiver units. This allows connected devices, such as a Blu-ray™ player, cable/satellite box, and HDTV, to communicate with each other and access online content via LAN.
You can also control RS-232 serial devices, such as touchscreen displays or scanners, at baud rates up to 115 Kbps. The two-way IR remote control feature(@ 39 KHz) lets you control your Blu-ray player using its remote when at the remote monitor or control your remote monitor using its remote when at the Blu-ray player. Locking HDMI ports(ideal for use with Tripp Lite's P569-006-LOCK high-speed HDMI cables with locking connectors) on both the transmitter and receiver prevent cables from coming loose or undone, ensuring an intact signal.
The plug-and-play BHDBT-K-E3SI-ER supports 7.1-channel surround sound, DTS-HD and Dolby TrueHD audio, as well as 3D video, EDID and HDCP.
- Controls RS-232 serial devices at baud rates up to 115 Kbps
- Supports 7.1-channel surround sound, DTS-HD and Dolby TrueHD
- Extends a 1920 x 1080 (1080p) signal up to 500 ft.

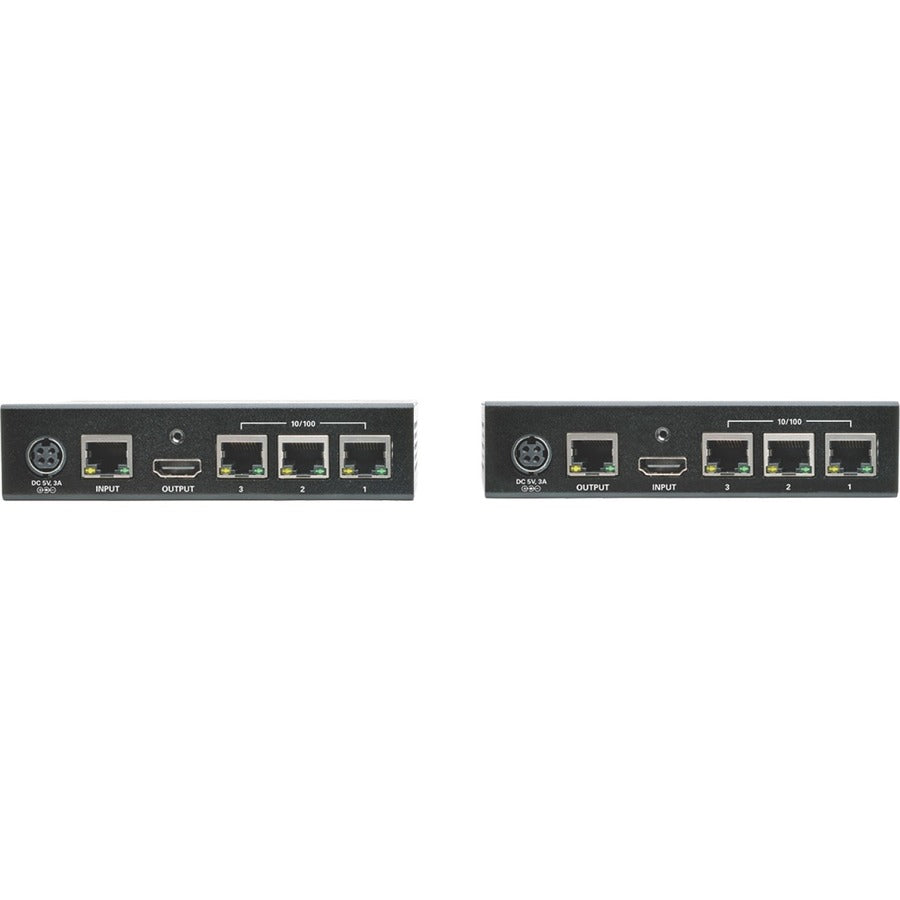

- Built-in 10/100 Ethernet ports on transmitter and receiver
- Ideal for digital signs, classrooms and trade show booths
- Maximum Video Resolution : 1920 x 1080
- TAA Compliant : Yes
- Environmentally Friendly : Yes
- HDMI In : Yes
- Number of HDMI Outputs : 1
- Maximum Operating Distance : 500 ft (152400 mm)
- Number of Input Devices Supported : 1
- Limited Warranty : 1 Year
- Number of Output Devices Supported : 1

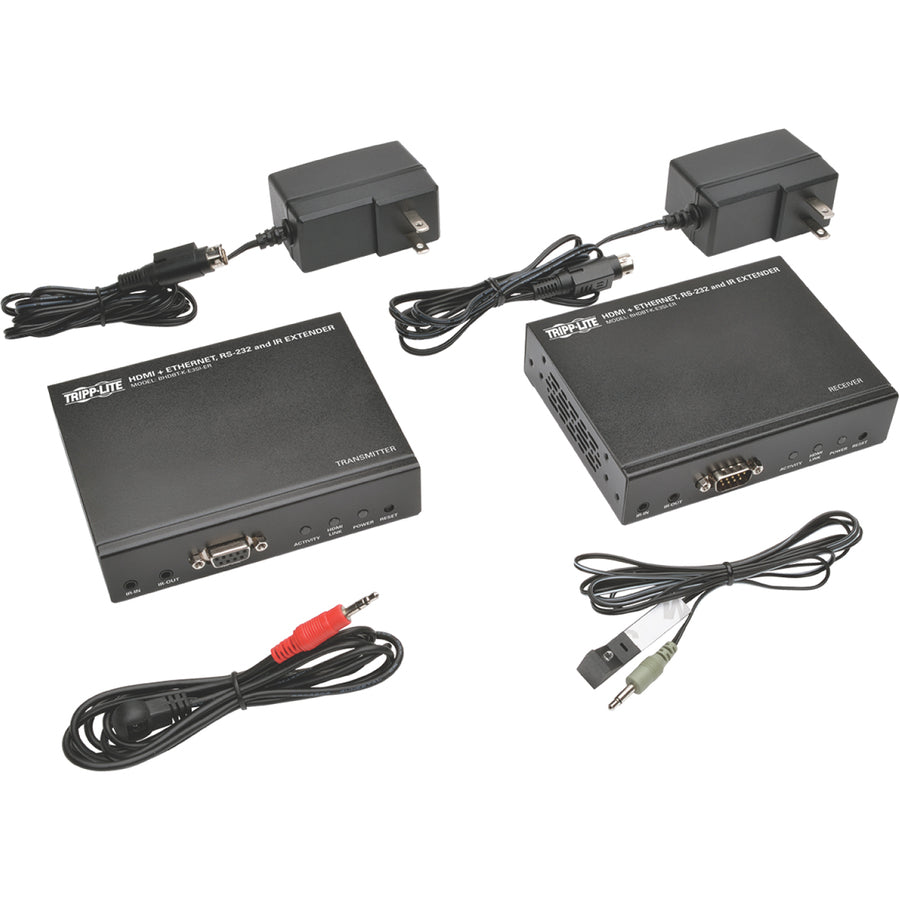

- Package Contents :
- Transmitter Unit
- Receiver Unit
- IR-IN Cable
- IR-OUT Cable
- 2 x External power supplies (Input: 100-240V, 50/60 Hz, 1A; Output: 5V, 3A)
- Mounting Hardware
- Owner's Manual
- Network (RJ-45) : Yes
- HDMI Out : Yes
- Number of HDMI Inputs : 1
- Product Type : Video Extender Transmitter/Receiver
- Graphics Modes : Full HD
- Twisted Pair Cable Standard : Category 6a
- Manufacturer : Tripp Lite by Eaton
- Product Model : BHDBT-K-E3SI-ER
- Media Type Supported : Twisted Pair
- Country of Origin : Taiwan
- Connectivity Technology : Wired
- Manufacturer Website Address : https://tripplite.eaton.com/
