Description

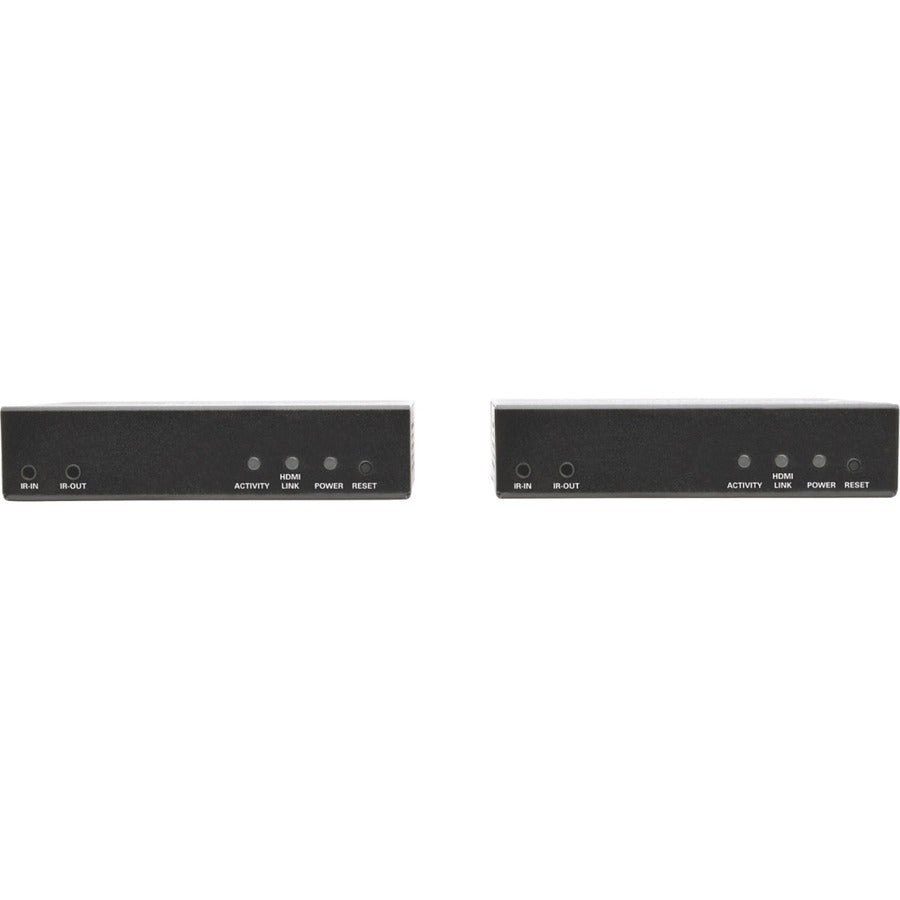

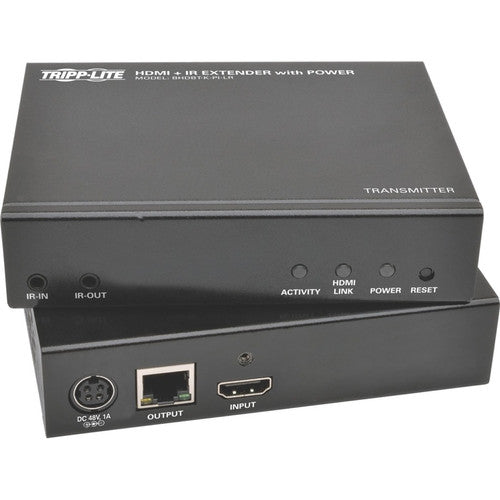

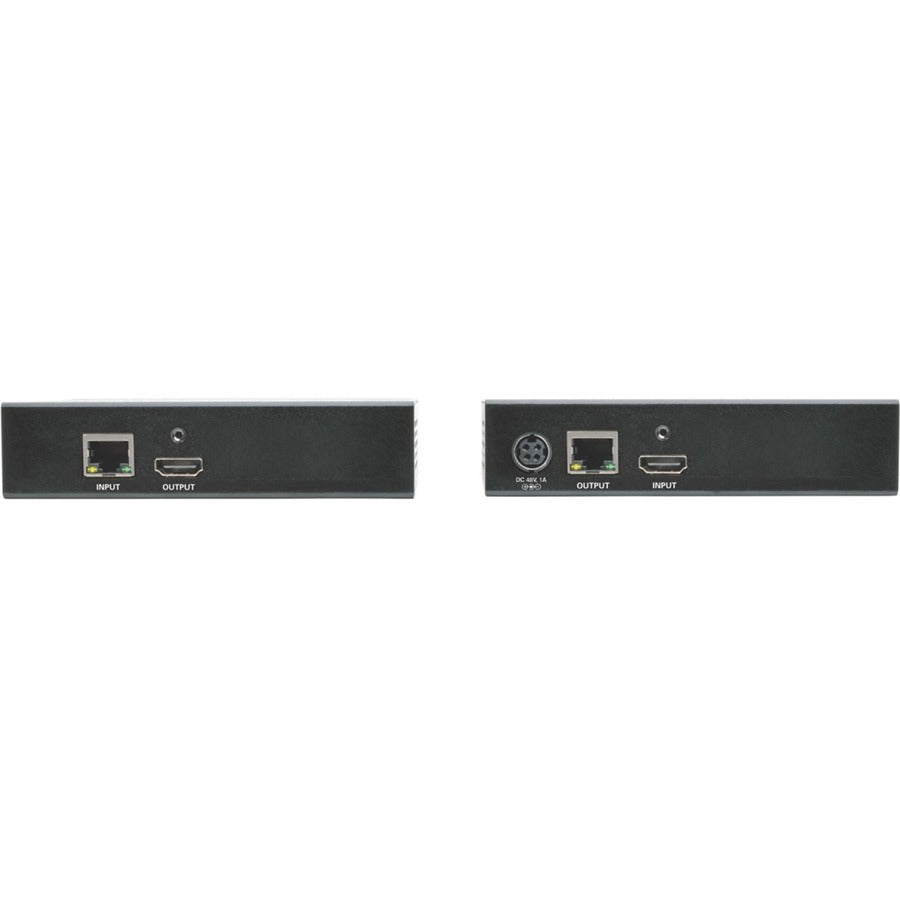

The BHDBT-K-PI-LR HDBaseT HDMI over Cat5e/6/6a Extender Kit extends uncompressed HDMI audio and video and IR remote control signals up to 328 feet over a single Cat5e/6/6a cable, including an Ultra High Definition(UHD) 3840 x 2160(4K x 2K) @ 24/30Hz signal.In addition to HDMI and IR signals, this extender kit features built-in PoE technology, which powers the receiver over Cat5e/6/6a cable, eliminating the need for an external power source. The two-way IR remote control feature(@ 39 KHz) lets you control your Blu-ray player or other HDMI source using its remote when at the remote monitor or control your remote monitor using its remote when at the Blu-ray player. Locking HDMI ports(ideal for use with Tripp Lite's P569-006-LOCK high-speed HDMI cables with locking connectors) on both the transmitter and receiver prevent cables from coming loose or undone, ensuring an intact signal. The plug-and-play BHDBT-K-PI-LR supports 7.1-channel surround sound, DTS-HD and Dolby TrueHD audio, as well as 3D video, EDID and HDCP. Attach the transmitter and receiver units to a wall, rack or pole with the included mounting hardware.
- Plug and play-no software or drivers to install
- Built-in PoE technology powers receiver over Cat5e/6/6a cable
- Supports 7.1-channel surround sound, DTS-HD and Dolby TrueHD
- Extends a 3840 x 2160 (4K x 2K) signal up to 328 ft.
- Ideal for digital signs, classrooms and trade show booths
- Number of HDMI Outputs : 1
- Maximum Operating Distance : 328 ft (99974.40 mm)
- Number of Input Devices Supported : 1
- Number of Output Devices Supported : 1
- Form Factor : Rack-mountable,Wall Mountable,Pole-mountable
- Package Contents :
- Transmitter Unit
- Receiver Unit
- IR-In Cable, 5 Ft.
- IR-Out Cable, 6 Ft.
- External Power Supply With C14 Inlet (Input: 100-240V, 50/60 Hz, 1.5A; Output: 48V, 1A), 4.5 Ft.
- C13 to NEMA 5-15P Power Cord, 6 Ft.
- Mounting Hardware
- Owner'S Manual
- HDMI Out : Yes
- Twisted Pair Cable Standard : Category 6a
- Manufacturer : Tripp Lite by Eaton
- Product Model : BHDBT-K-PI-LR
- Maximum Video Resolution : 3840 x 2160
- TAA Compliant : Yes
- Environmentally Friendly : Yes
- HDMI In : Yes
- Limited Warranty : 1 Year
- Network (RJ-45) : Yes
- Number of HDMI Inputs : 1
- Product Type : Video Extender Transmitter/Receiver
- Graphics Modes : 4K
- Media Type Supported : Twisted Pair
- Country of Origin : Taiwan
- Number of Network (RJ-45) Ports : 2
- Connectivity Technology : Wired
- Manufacturer Website Address : https://tripplite.eaton.com/
