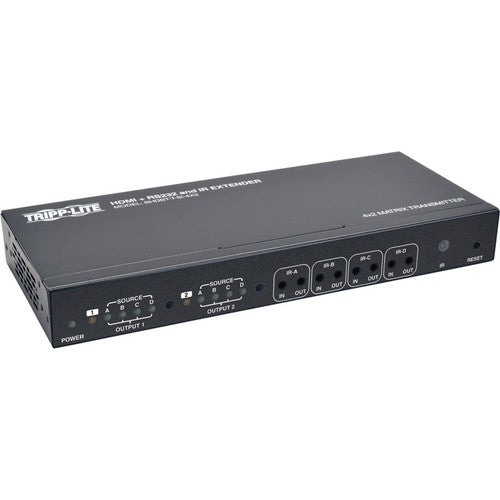

Tripp Lite by Eaton BHDBT-T-SI-4X2 HDBaseT HDMI over Cat5e/6/6a 4x2 Extender Matrix Transmitter BHDBT-T-SI-4X2

Save $420.09
Tripp Lite by EatonSKU: BHDBT-T-SI-4X2

Price:
Sale price$705.99 Regular price$1,126.08
Stock:
Sold out

Description

The BHDBT-T-SI-4X2 HDBaseT HDMI over Cat5e/6/6a 4x2 Extender Matrix Transmitter works in tandem with the Tripp Lite BHDBT-Series receiver in your HDBaseT installation to extend uncompressed HDMI video and audio, RS-232 serial and IR remote control signals. It features four HDMI input ports and two RJ45 output ports, letting you route any source to either display or the same source to both displays.Using a single Cat5e/6/6a cable, the BHDBT-T-SI-4X2 can extend an Ultra High Definition(UHD) 3840 x 2160(4K x 2K) signal up to 328 feet(100 m) or an HD 1920 x 1080(1080p) signal up to 500 feet(150 m). To further extend and expand your installation, you can insert up to five BHDBT-Series Extender Transceivers between the transmitter and receiver for a total range up to 3,000 feet with a monitor connected to each transceiver.** The sources connect to locking HDMI ports that prevent the cable from coming loose or undone, ensuring an intact signal.The BHDBT-T-SI-4X2 supports 7.1-channel surround sound, DTS-HD and Dolby TrueHD audio, as well as 3D video, EDID and HDCP. Included mounting hardware lets you attach the unit to a wall, rack or pole. Sets up quickly with no software to download or install.

  • *Maximum supported video resolutions depend on the receivers being used.
  • Mounts easily to wall, rack or pole
  • Plug and play-no software or drivers to install
  • Supports 7.1-channel surround sound, DTS-HD and Dolby TrueHD
  • Supports video resolutions up to 3840 x 2160 (4K x 2K)*

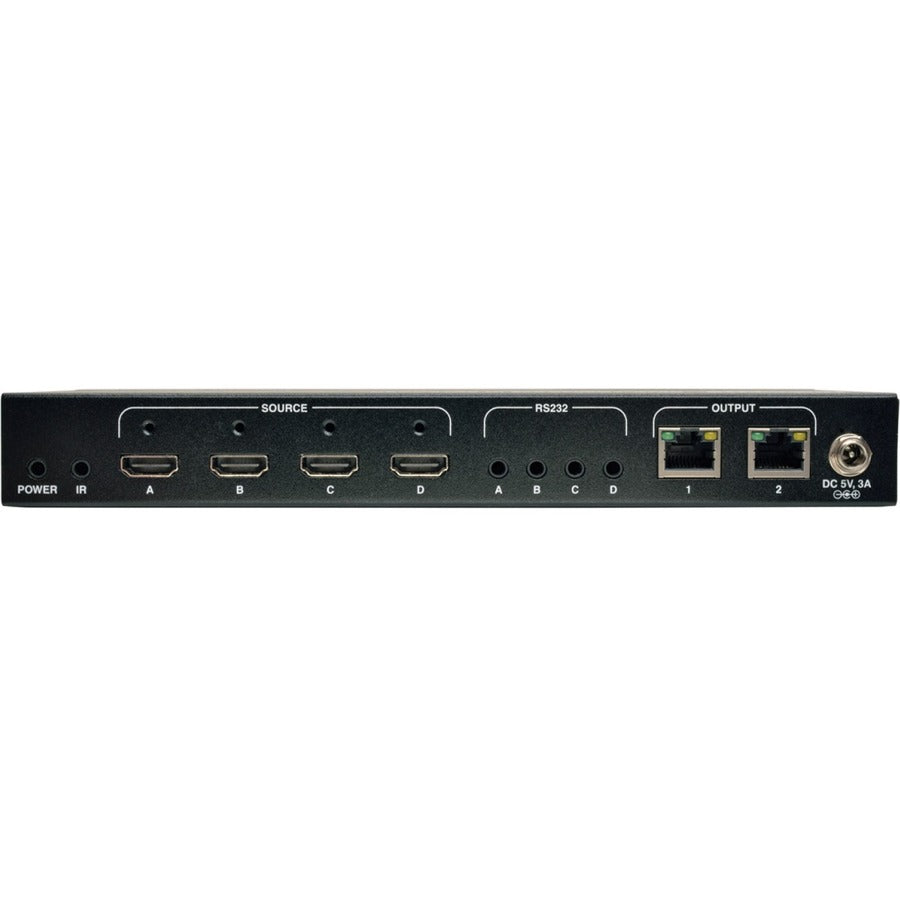

  • Features 4 HDMI input ports and 2 RJ45 output ports
. .
  • Maximum Operating Distance : 500 ft (152400 mm)
  • Number of Input Devices Supported : 4
  • Transmitter Depth : 3.90" (99.06 mm)
  • Form Factor : Wall Mountable,Rack-mountable,Pole-mountable
  • Transmitter Weight (Approximate) : 1.59 kg
  • Package Contents :
    • BHDBT-T-SI-4X2 HDBaseT HDMI over Cat5e/6/6a 4x2 Extender Matrix Transmitter
    • Remote Control
    • IR extension Cable
    • 3.5 mm Male to DB9 Female Adapter Cable
    • External Power Supply (Input: 100-240V, 50/60 Hz, 0.5A; Output: 5V, 3A)
    • Mounting Hardware
    • Owner's Manual
  • Twisted Pair Cable Standard : Category 6a
  • Manufacturer : Tripp Lite by Eaton
  • Product Model : BHDBT-T-SI-4X2
  • Transmitter Height : 1.20" (30.48 mm)
  • Maximum Video Resolution : 3840 x 2160
  • TAA Compliant : Yes
  • Environmentally Friendly : Yes
  • HDMI In : Yes
  • Product Color : Black
  • Limited Warranty : 1 Year
  • Network (RJ-45) : Yes
  • Number of HDMI Inputs : 4
  • Product Type : Video Extender Transmitter
  • Graphics Modes : 4K
  • Transmitter Width : 9.30" (236.22 mm)
  • Media Type Supported : Twisted Pair
  • Country of Origin : Taiwan
  • Number of Network (RJ-45) Ports : 2
  • Connectivity Technology : Wired
  • Manufacturer Website Address : https://tripplite.eaton.com/
  • Color Family : Multicolor
