Description

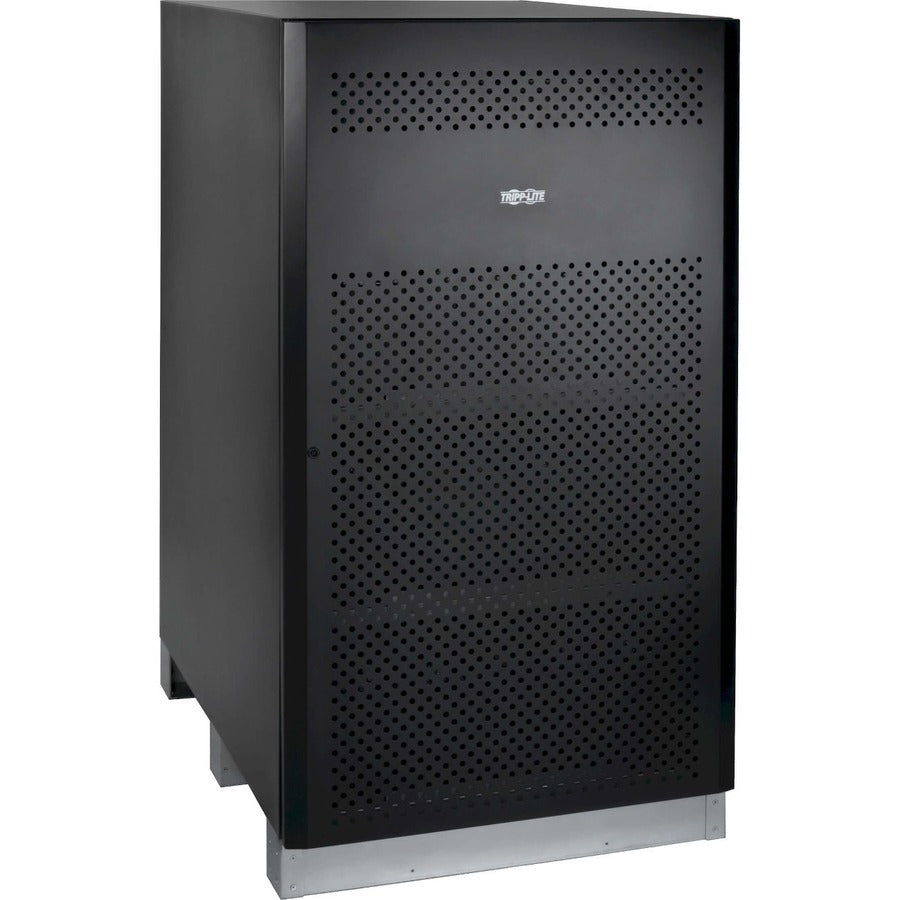

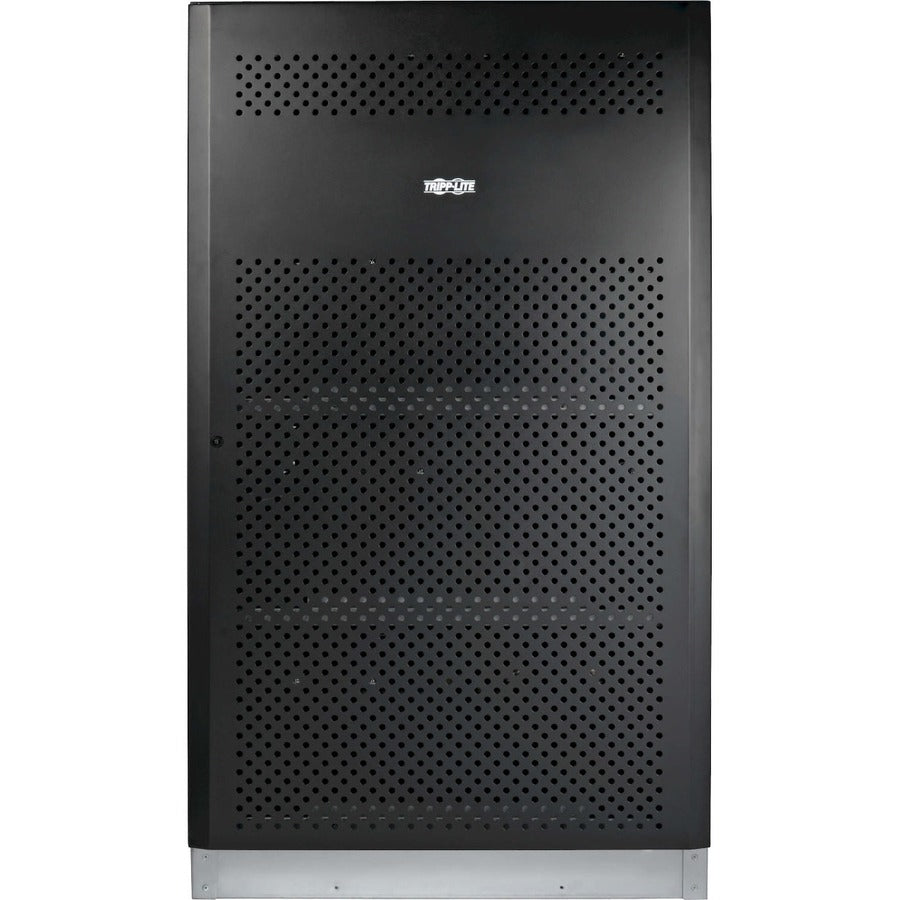

+/-240VDC Backup Battery Pack - You Provide the Batteries

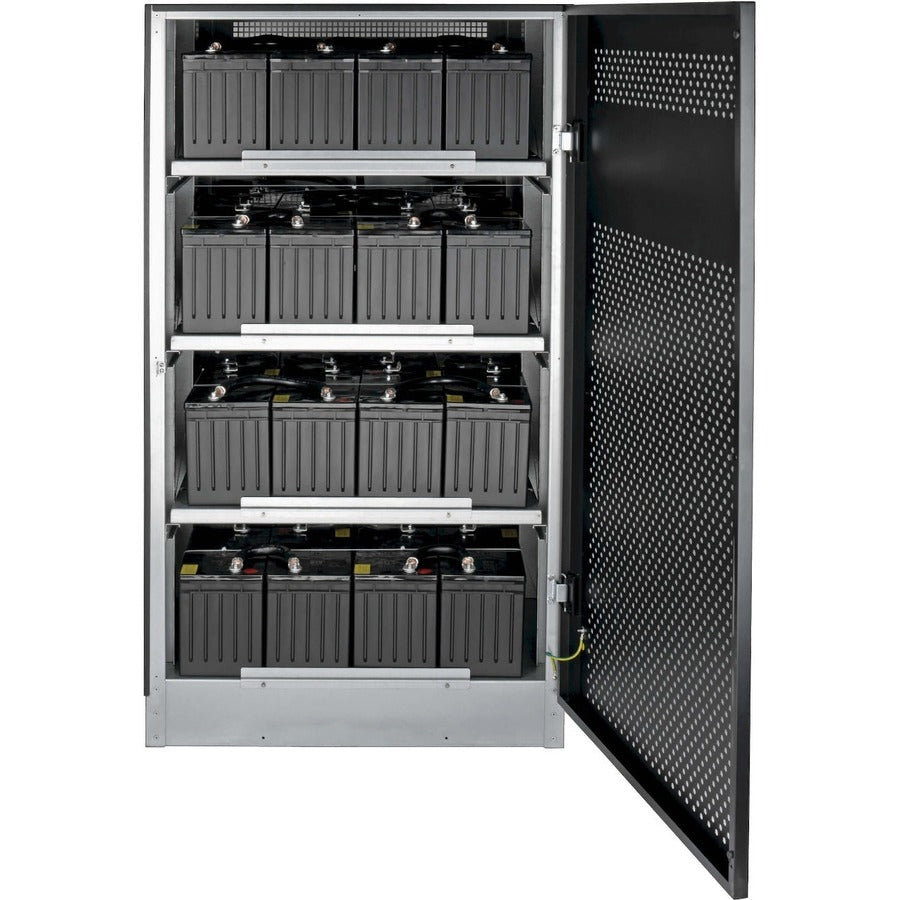

The BP480V100-NIB is compatible only with Tripp Lite's 3-phase S3M30KX-NIB, S3M40KX-NIB, S3M60KX, S3M80KX, S3M100KX, S3M120KX, S3M160KX, S3M200KX and other UPS systems that specify the use of this battery pack. The UPS battery pack includes the steel enclosure and all required internal wiring and accessories for a quantity of 40 user-supplied 100Ah internal batteries (batteries not included). For the same battery pack with internal batteries included, see Tripp Lite's BP480V100.
Daisy-Chain Multiple Cabinets for Even Longer Extended-Run Operation

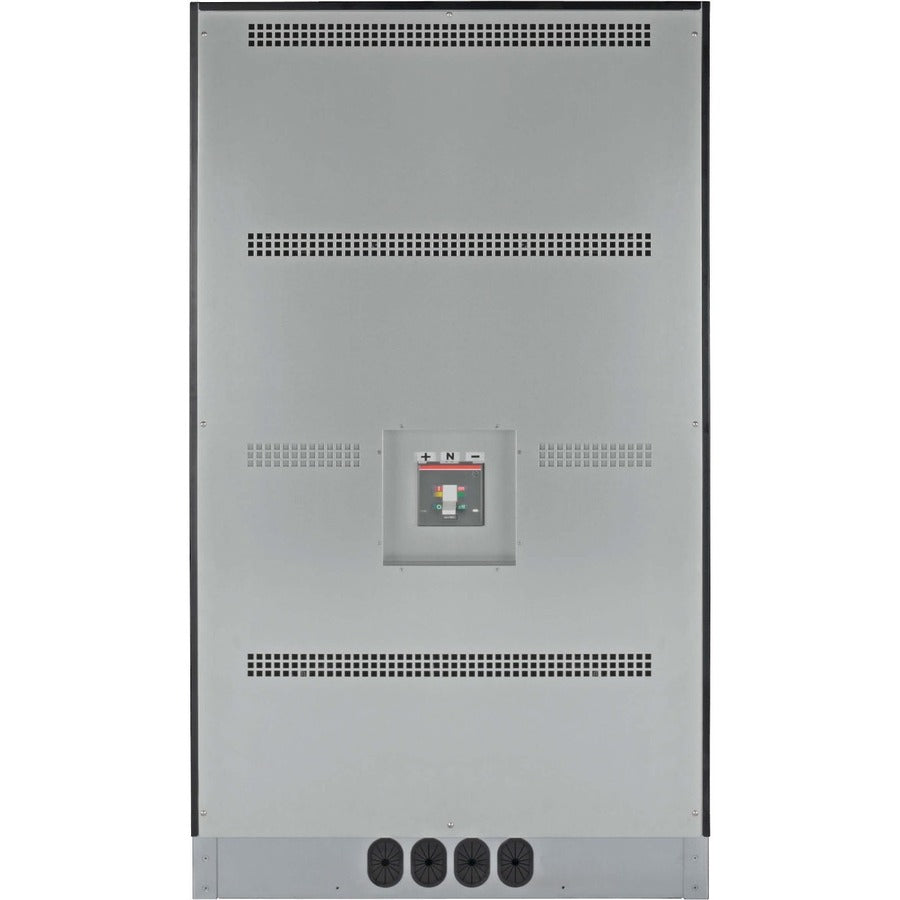

Multiple battery pack cabinets may be connected in parallel to provide the 3-phase UPS system with more runtime. Up to three external battery packs may be connected to the S3M30KX-NIB, S3M40KX-NIB, S3M60KX and S3M80KX. The S3M100KX, S3M120KX, S3M160KX and S3M200KX units can handle as many as seven BP480V100-NIBs connected in parallel. Hardwire installation is safe and simple. Circuit breakers provide overcurrent protection. Internal disconnect for battery isolation is included.
One-Year Warranty
The BP480V100-NIB is backed by a one-year warranty, ensuring reliability and performance.
. .- Form Factor : Tower
- Product Type : Power Array Cabinet
- Manufacturer : Tripp Lite by Eaton
- Product Model : BP480V100-NIB
- Number of Batteries Supported : 40
- Compatibility :
Tripp Lite S3MX-Series 3-Phase UPS Systems:
- S3M30KX-NIB
- S3M40KX-NIB
- S3M60KX
- S3M80KX
- S3M100KX
- S3M120KX
- S3M160KX
- S3M200KX
- Country of Origin : China
- Manufacturer Website Address : https://tripplite.eaton.com/
