Tripp Lite by Eaton Dual VGA with Audio over Cat5 Extender, Receiver, Up to 300-ft. B132-200A-SR

Tripp Lite's B132-200A-SR Dual VGA with Audio over Cat5 Extender Receiver Unit is designed to work with Tripp Lite's B132-002A-2 and B132-004A-2 VGA with Audio over Cat5 Extender / Splitter Transmitter Units. Unlike the B132-100A Receiver Unit (which supports distances up to 1,000-ft.), or the B132-100A-MR (which supports distances up to 750-ft.) the B132-100A-SR is a cost effective solution for distances up to 300-ft. It extends a 1440 x 900 video and audio signal up to 150-ft. from the source, or a 1024 x 768 video and audio signal up to 300-ft. It also features dual VGA and audio ports for the connection of two sets of monitors and speakers. An Equalization control is provided to adjust the video image. Audio connections are made with standard 3.5mm stereo cables (not included). Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

• Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
• Plug and play, no software or drivers required
• Extends a 1440 x 900 video and audio signal up to 150-ft, or a 1024 x 768 video and audio signal up to 300-ft.
• Works with a B132-002A-2 or B132-004A-2 Transmitter Unit to extend a VGA video and audio signal up to 300-ft. from the source

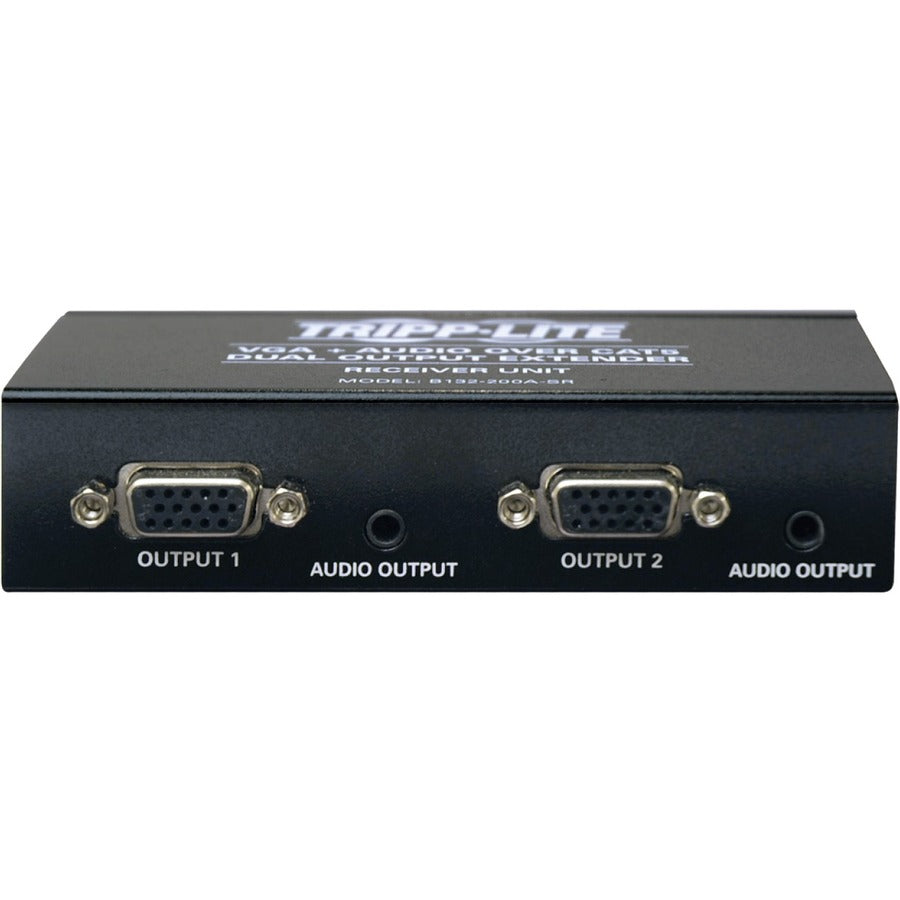

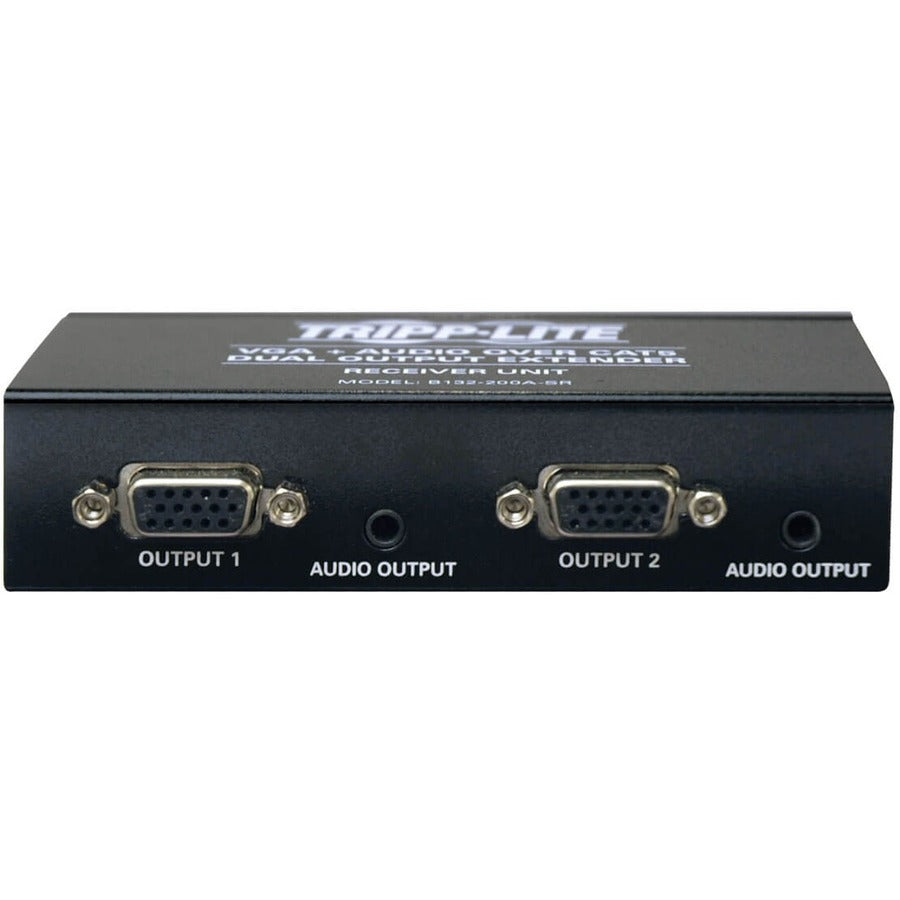

• Features dual VGA and audio ports for the connection of two sets of monitors and speakers

• Maximum Operating Distance : 300 ft (91440 mm)
• Number of Output Devices Supported : 2

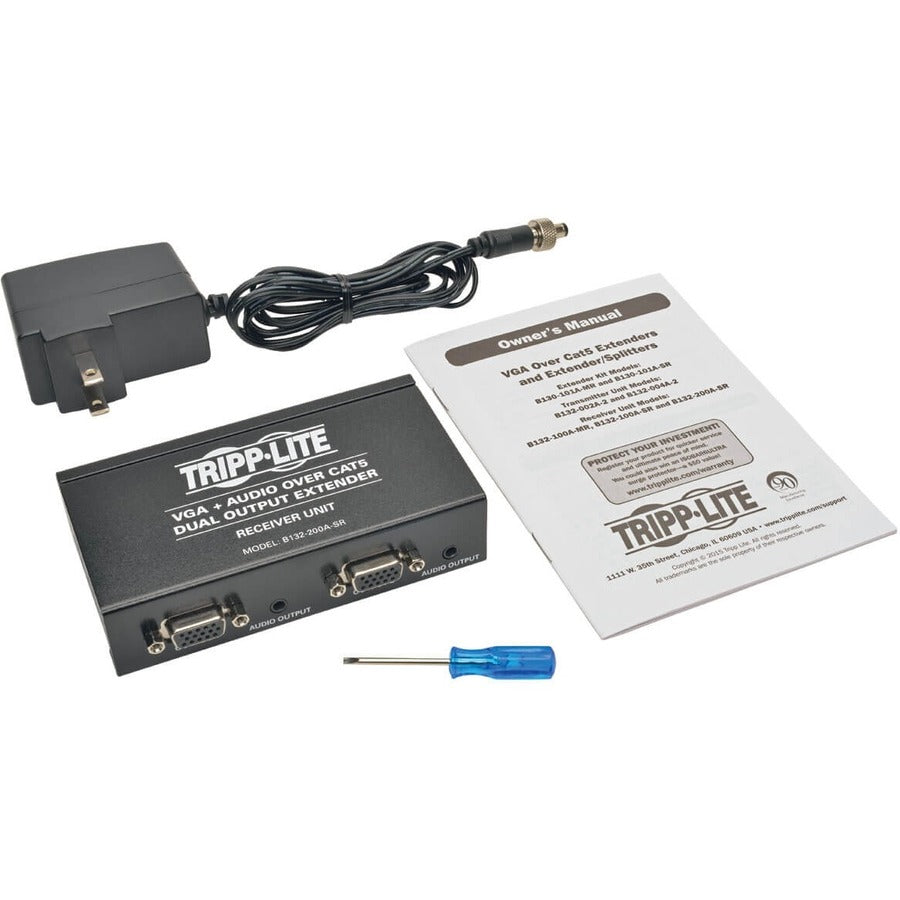

• Package Contents :
  • Dual VGA with Audio over Cat5 Extender, Receiver, Up to 300-ft.
  • External Power Supply (Input: 100-240V, 50/60Hz, 0.5A Output: 5V, 2A)
  • Screwdriver for EQ Adjustment
  • Owner's Manual
• Receiver Width : 4.50" (114.30 mm)
• Twisted Pair Cable Standard : Category 6
• Manufacturer : Tripp Lite by Eaton
• Product Model : B132-200A-SR
• Receiver Weight (Approximate) : 226.8 g
• VGA Out : Yes
• Maximum Video Resolution : 1440 x 900
• TAA Compliant : Yes
• Environmentally Friendly : Yes
• Number of VGA Outputs : 2
• Receiver Height : 1.10" (27.94 mm)
• Product Color : Black
• Receiver Depth : 2.50" (63.50 mm)
• Limited Warranty : 1 Year
• Network (RJ-45) : Yes
• Product Type : Video Extender Receiver
• Media Type Supported : Twisted Pair
• Country of Origin : Taiwan
• Number of Network (RJ-45) Ports : 1
• Connectivity Technology : Wired
• Manufacturer Website Address : https://tripplite.eaton.com/
• Color Family : Multicolor
