Description

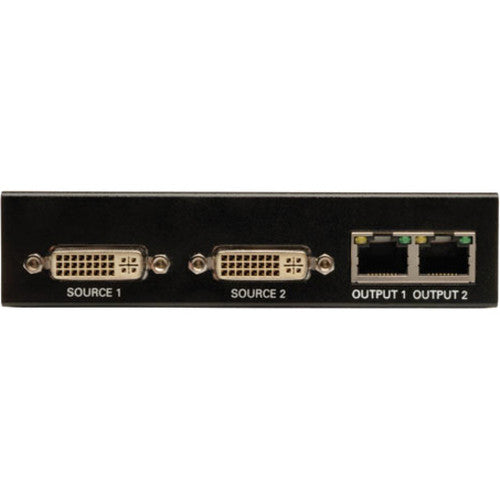

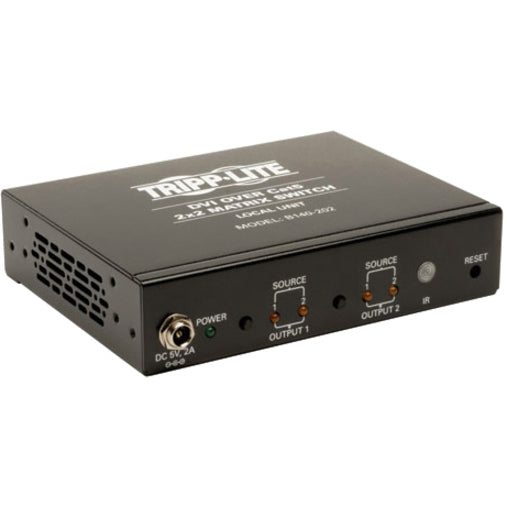

Tripp Lite's B140-202, 2X2 DVI Matrix Switch allows two DVI Single-Link video sources to be routed to one or two RJ45 outputs and extended up to 150-ft. @ 1920x1200 using Active (powered) Receivers, or up to 50-ft. @ 1920x1200 using Passive (non-powered) Receivers. Switching between sources is done manually or with included remote control. Additional monitors can be added beyond the typical two by using Tripp Lite B140-110 daisy-chain Receivers - up to 4 monitors per channel.
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
- Plug-and-Play
- Transmits over inexpensive Cat5e/6 cable up to 200 ft.
- Supports DVI Single Link computer resolutions up to 1920 x 1200 @ 60Hz
- Share two DVI sources between two monitors
- Maximum Video Resolution : 1920 x 1200
- TAA Compliant : Yes
- Number of Displays Supported : 2
- Maximum Operating Distance : 200 ft (60960 mm)
- Number of Input Devices Supported : 2
- Number of DVI Inputs : 2
- DVI In : Yes
- Device Supported : Display
- Limited Warranty : 1 Year
- Package Contents :
- DVI over Cat5 2x2 Matrix Switch, 2-Port
- External Power Supply ( Input: 100-240V, 50/60Hz, 0.5A Output: 5V, 2A
- Mounting Hardware
- Remote Control
- Owners Manual
- Number of Connectivity (RJ-45) Ports : 2
- Product Type : Video Switchbox
- Graphics Modes : WUXGA
- Manufacturer : Tripp Lite by Eaton
- Connectivity (RJ-45) : Yes
- Country of Origin : Taiwan
- Connectivity Technology : Cable
- Manufacturer Website Address : https://tripplite.eaton.com/
