Tripp Lite by Eaton DVI over Cat5 Active Extender Kit B140-101X

The B140-101X is a DVI Over Cat5 Active Extender Kit that comes with both transmitter and receiver units. It transmits a DVI-D Single-Link signal up to 200 ft. away using a single Cat5e/6 patch cable. To achieve maximum distance and resolution, use 24AWG Solid Wire Cat5e/6 cable (Tripp Lite's N202-Series). The B140-101X is compatible with all operating systems, and is plug and play, with no software or drivers required. It features a built-in Equalization control for adjustment of the video image. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

Installation is simple. Connect a the built-in DVI connector on the transmitter unit to a DVI source. Connect the receiver unit to a display using a Tripp Lite P561-Series DVI cable (not included). Finally, the RJ45 ports on the transmitter and receiver units are connected using a single Cat5e/6 cable. A 1920 x 1080 @ 60Hz signal can be extended up to 150 ft. from the source,, or a 1024 x 768 @ 60Hz signal up to 200 ft..

Further expand the range and number of monitors by using a B140-110 repeater unit. Add up to four remote units (three repeaters and one active receiver) in a single chain, for a total of 4 displays. (An active receiver should be the last unit in a chain) A 1920 x 1080 @ 60Hz signal can be extended up to 125 ft. from each repeater to the next unit in the chain, or a 1024 x 768 @ 60Hz signal can be extended up to 175 ft..

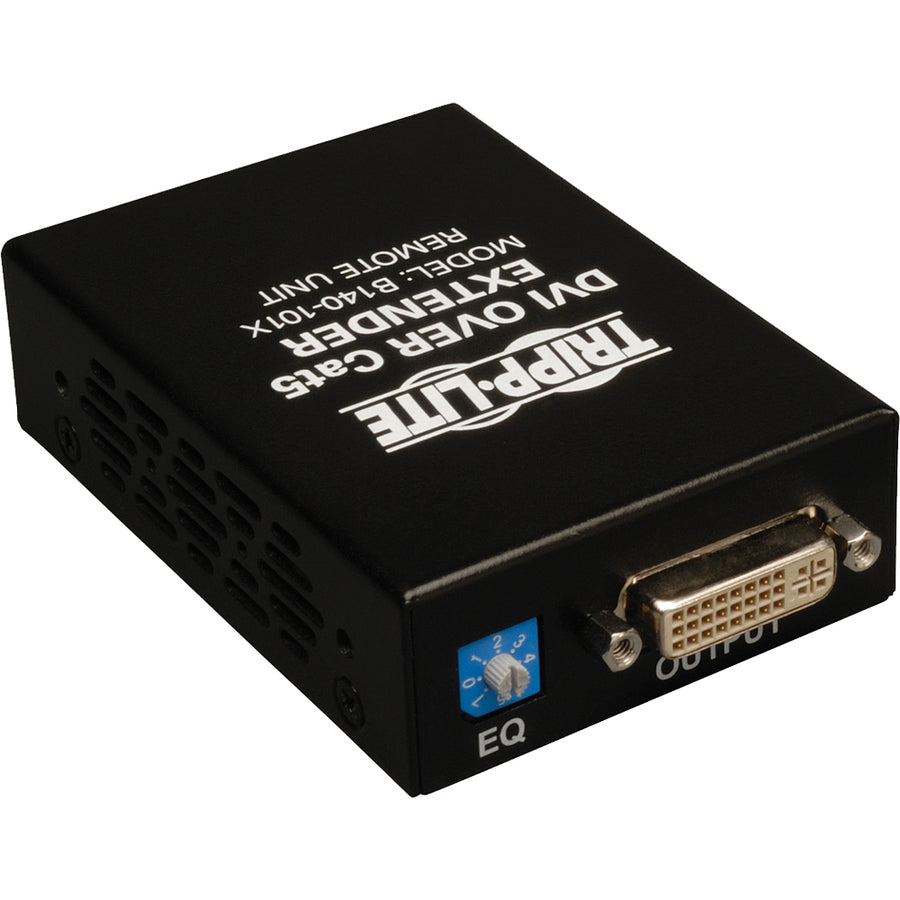

• Features a built-in Equalization control for adjustment of the video image
• Plug and play, no software or drivers required
• Compatible with all operating systems
• Can further expand the range and number of monitors by adding B140-110 repeaters
• Use 24AWG, Solid Wire Cat5e/6 cable, such as Tripp Lite's N202-Series, to achieve maximum distance and resolution
• Extends a 1920 x 1080 @ 60Hz signal up to 150 ft., or a 1024 x 768 @ 60Hz signal up to 200 ft.
• Supports DVI-D Single-Link video resolutions up to 1920 x 1080 @ 60Hz

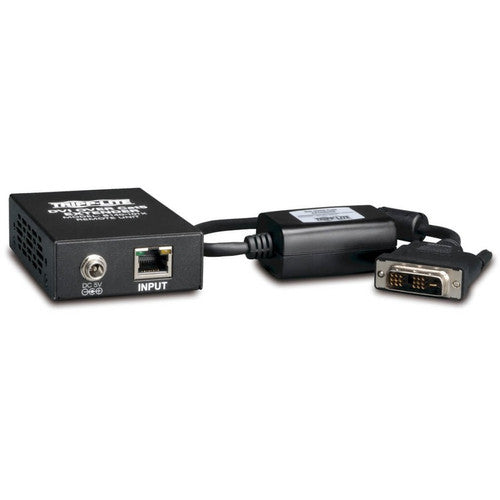

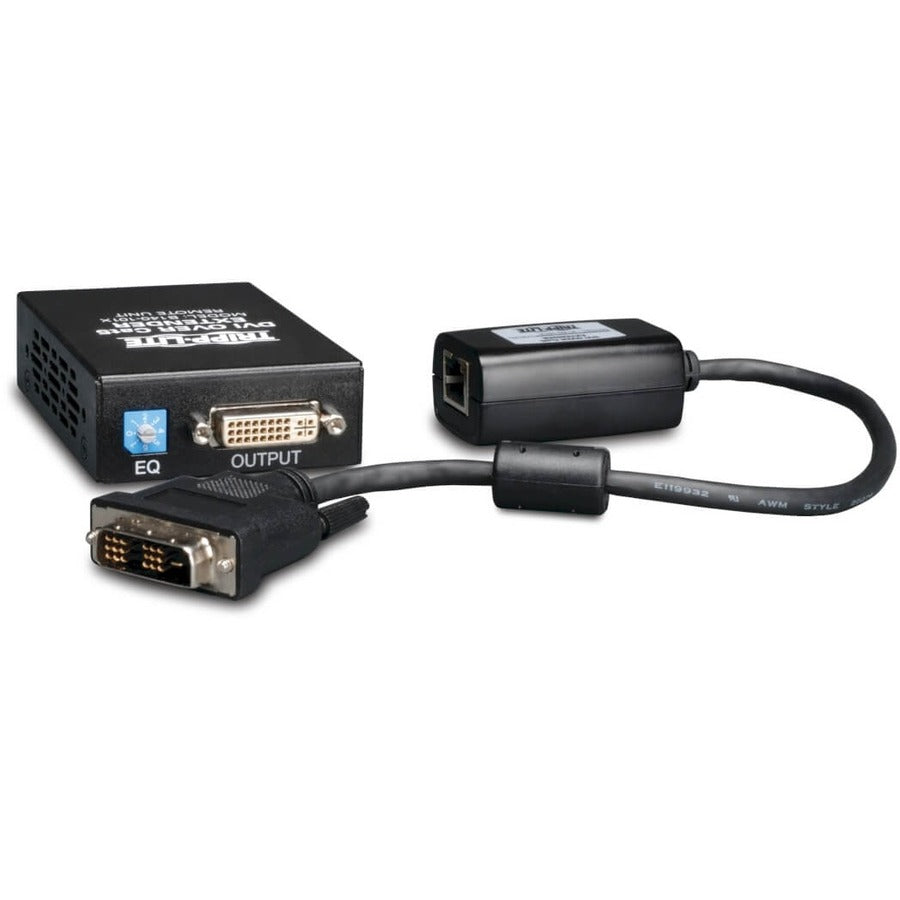

• Extender kit comes with transmitter and receiver units

• Maximum Operating Distance : 200 ft (60960 mm)
• Number of Input Devices Supported : 1
• Number of DVI Inputs : 1
• Number of Output Devices Supported : 1
• Form Factor : Wall Mountable
• Package Contents :
  • B140-101X Local Transmitter Unit

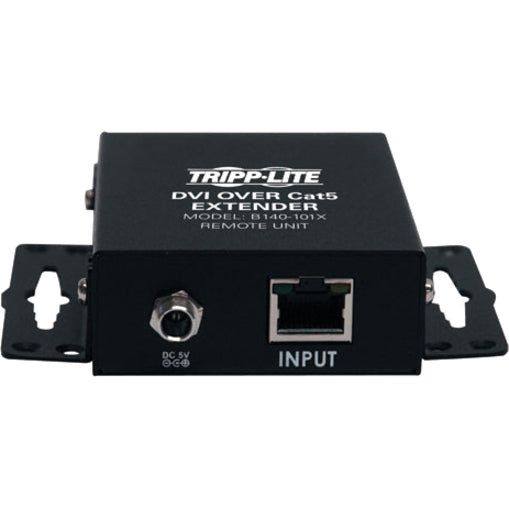

  • B140-101X Remote Receiver Unit
  • Screwdriver (used for Equalization control)
  • Mounting Hardware for Receiver Unit

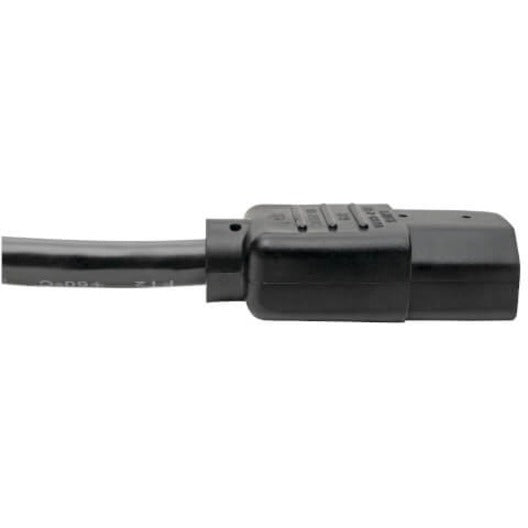

  • External Power Supply (Input: 100-240V, 50/60Hz, 0.5A Output: 5V, 2A)
  • Owner's Manual
• Twisted Pair Cable Standard : Category 6
• Manufacturer : Tripp Lite by Eaton
• Number of DVI Outputs : 1
• Product Model : B140-101X
• Maximum Video Resolution : 1920 x 1080
• TAA Compliant : Yes
• Environmentally Friendly : Yes
• Product Color : Black
• DVI In : Yes
• Limited Warranty : 1 Year
• Network (RJ-45) : Yes
• Product Type : Video Extender Transmitter/Receiver
• Graphics Modes : Full HD
• DVI Out : Yes
• Media Type Supported : Twisted Pair
• Country of Origin : Taiwan
• Number of Network (RJ-45) Ports : 2
• Connectivity Technology : Wired
• Manufacturer Website Address : https://tripplite.eaton.com/
• Color Family : Multicolor
