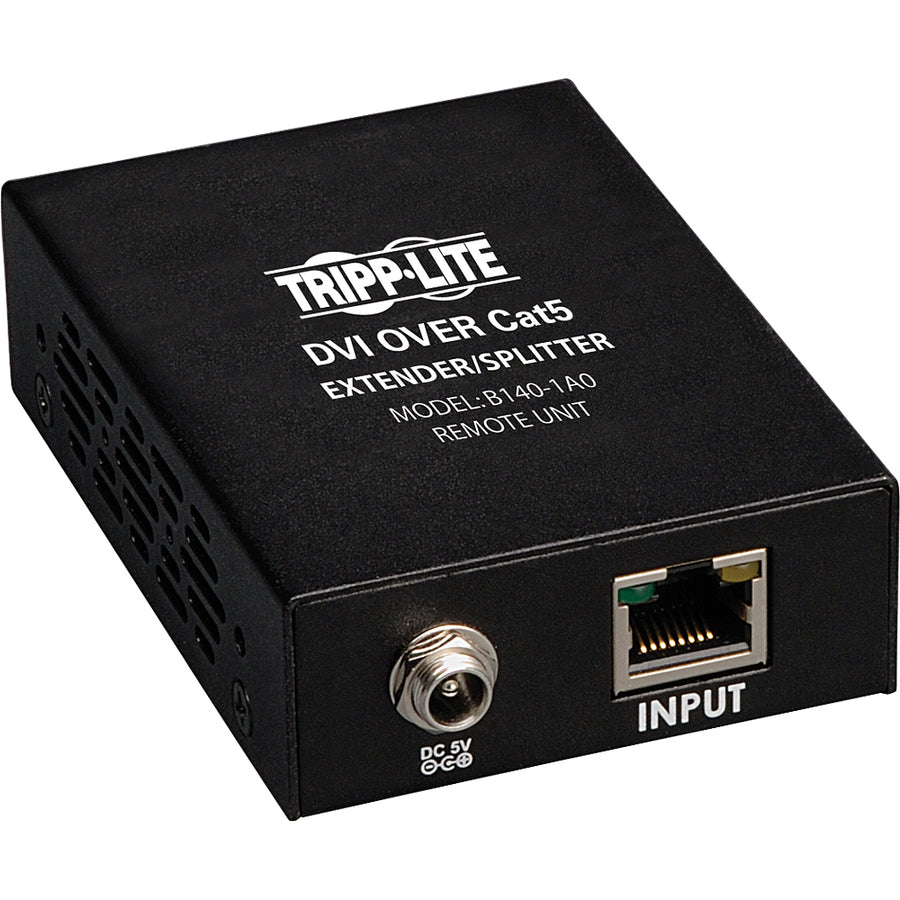

Tripp Lite by Eaton DVI Over Cat5 Active Extender Remote Unit B140-1A0

The B140-1A0 is a receiver unit that is used with the B140-002 and B140-004 extender/splitter transmitter units, and it transmits a DVI-D Single-Link signal up to 200 ft. away using a single Cat5e/6 patch cable. To achieve maximum distance and resolution, use 24AWG Solid Wire Cat5e/6 cable (Tripp Lite's N202-Series). The B140-1A0 is compatible with all operating systems, and is plug and play, with no software or drivers required. It features a built-in Equalization control for adjustment of the video image. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

Installation is simple. Connect a B140-002 or B140-004 transmitter (not included) to a DVI source using a Tripp Lite P561-Series DVI cable (not included). Connect the B140-1A0 to a display using a Tripp Lite P561-Series DVI cable (not included). Finally, the receiver unit is connected to an RJ45 port on the transmitter unit using a single Cat5e/6 cable. A 1920 x 1080 @ 60Hz signal can be extended up to 150 ft. from the source,, or a 1024 x 768 @ 60Hz signal up to 200 ft..

Further expand the range and number of monitors by using a B140-110 repeater unit. Add up to four remote units (three repeaters and one active receiver) to each channel of the B140-002 or B140-004, for a total of 4 displays per channel. (An active receiver should be the last unit in a channel) A 1920 x 1080 @ 60Hz signal can be extended up to 125 ft. from each repeater to the next unit in the channel, or a 1024 x 768 @ 60Hz signal can be extended up to 175 ft..

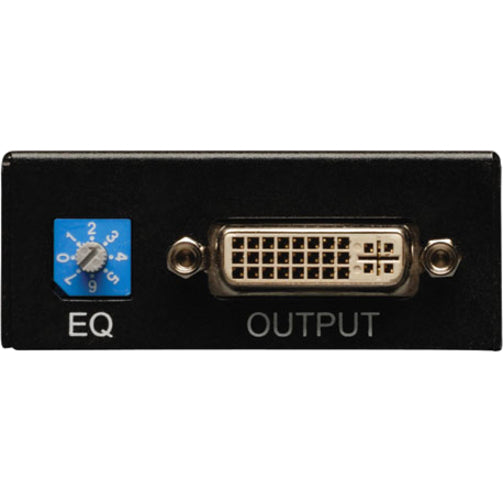

• Features a built-in Equalization control for adjustment of the video image
• Plug and play, no software or drivers required
• Compatible with all operating systems
• Can further expand the range and number of monitors by adding B140-110 repeaters
• Use 24AWG, Solid Wire Cat5e/6 cable, such as Tripp Lite's N202-Series, to achieve maximum distance and resolution
• Extends a 1920 x 1080 @ 60Hz signal up to 150 ft., or a 1024 x 768 @ 60Hz signal up to 200 ft.
• Supports DVI-D Single-Link video resolutions up to 1920 x 1080 @ 60Hz
• For use with B140-002 or B140-004 extender/splitter transmitter units

• Maximum Operating Distance : 200 ft (60960 mm)
• Number of Input Devices Supported : 1
• Number of Output Devices Supported : 1
• Package Contents :
  • B140-1A0 DVI over Cat5 Active Extender Remote Unit
  • Mounting Hardware
  • Screwdriver for adjustment of Equalization
  • External Power Supply (Input: 100-240V, 50/60Hz, 0.5A Output: 5V, 2A)
  • Owner's Manual
• Receiver Width : 2.50" (63.50 mm)
• Twisted Pair Cable Standard : Category 6
• Manufacturer : Tripp Lite by Eaton
• Number of DVI Outputs : 1
• Product Model : B140-1A0
• Maximum Video Resolution : 1920 x 1080
• TAA Compliant : Yes
• Environmentally Friendly : Yes
• Receiver Height : 1" (25.40 mm)
• Receiver Depth : 3.60" (91.44 mm)
• Limited Warranty : 1 Year
• Network (RJ-45) : Yes
• Product Type : Video Extender Receiver
• Graphics Modes : Full HD
• DVI Out : Yes
• Media Type Supported : Twisted Pair
• Country of Origin : Taiwan
• Number of Network (RJ-45) Ports : 1
• Connectivity Technology : Wired
• Manufacturer Website Address : https://tripplite.eaton.com/
