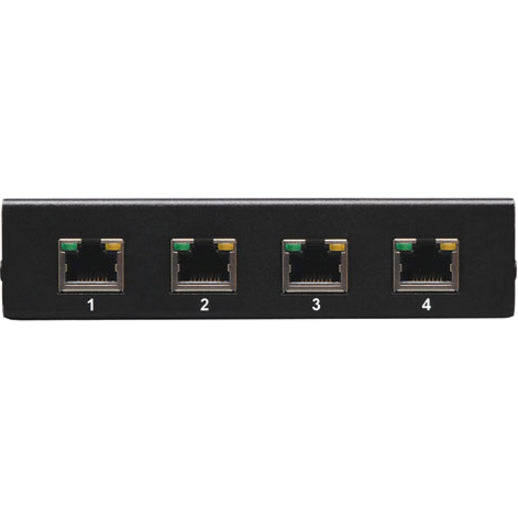

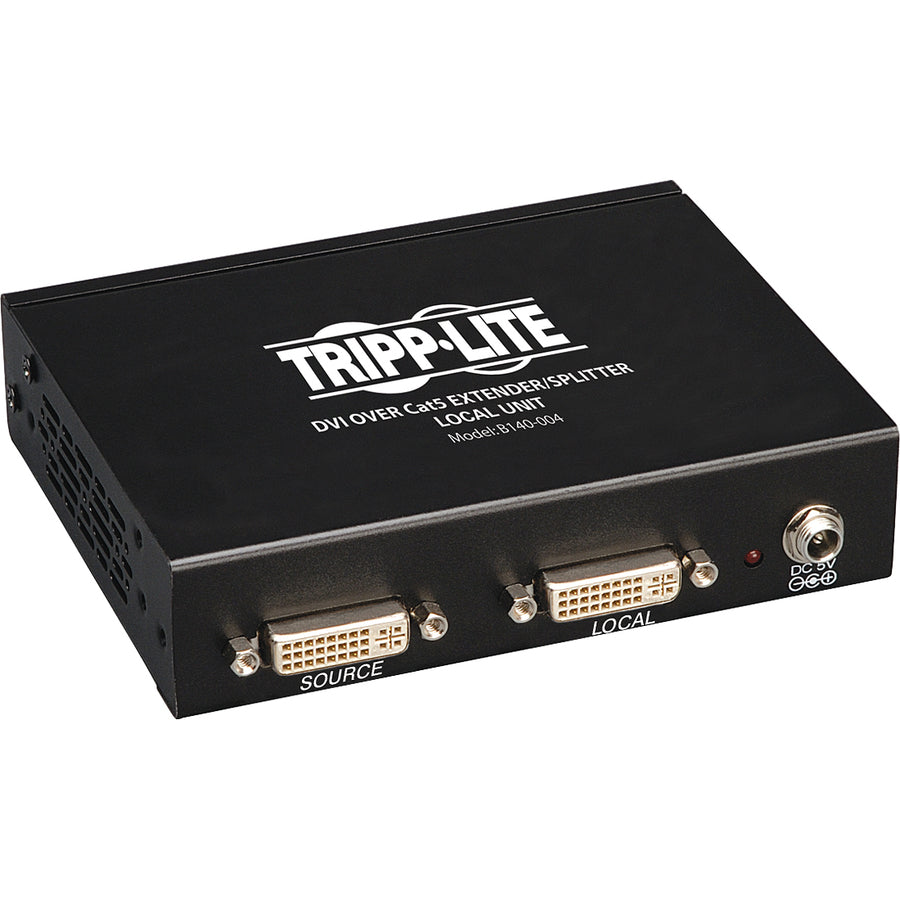

Tripp Lite by Eaton DVI over Cat5 Extender/Splitter, 4-Port Local Transmitter Unit B140-004

The B140-004 transmits a DVI-D Single-Link signal to four monitors up to 200 ft. away using a single Cat5e/6 patch cable. To achieve maximum distance and resolution, use 24AWG Solid Wire Cat5e/6 cable (Tripp Lite's N202-Series). An additional DVI port is provided for the connection of a local monitor. This local DVI port can also be used to daisychain up to 3 units together, allowing for the connection of up to 13 monitors (12 remote, 1 local). Mounting hardware is included that allows the unit to be rackmounted, wallmounted or pole mounted. In addition, up to three units can be mounted in 1U of rack space using a Tripp Lite B132-004-RB 19" rackmount bracket. The B140-002 is compatible with all operating systems, and is plug and play, with no software or drivers required.

Installation is simple. Connect the B140-004 transmitter to a DVI source using a Tripp Lite P561-Series DVI cable (not included). Connect a Tripp Lite B140-series receiver (not included) to each display using a Tripp Lite P561-Series DVI cable (not included). Finally, each remote receiver is connected to an RJ45 port on the B140-004 using a single Cat5e/6 cable.

For longer extension distances, use a B140-1A0 or B140-1A0-WP active receiver unit to extend a 1920 x 1080 @ 60Hz signal up to 150 ft., or a 1024 x 768 @ 60Hz signal up to 200 ft..

For shorter extension distances, use a B140-1P0 or B140-1P0-WP passive receiver unit to extend a 1920 x 1080 @ 60Hz signal up to 50 ft., or a 1024 x 768 @ 60Hz signal up to 100 ft..

Further expand the range and number of monitors by using a B140-110 repeater unit. Add up to four remote units (three repeaters and one active receiver) to each channel of the B140-004, for a total of 4 displays per channel. (An active receiver should be the last unit in a channel) A 1920 x 1080 @ 60Hz signal can be extended up to 125 ft. from each repeater to the next unit in the channel, or a 1024 x 768 @ 60Hz signal can be extended up to 175 ft..

• Plug and play, no software or drivers required
• Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
• Compatible with all operating systems
• Can further expand the range and number of monitors by adding B140-110 repeaters
• Use 24AWG, Solid Wire Cat5e/6 cable, such as Tripp Lite's N202-Series, to achieve maximum distance and resolution
• For shorter distances - Use a B140-1P0 or B140-1P0-WP-1 passive receiver unit to extend a 1920 x 1080 @ 60Hz signal up to 50 ft., or a 1024 x 768 @ 60Hz signal up to 100 ft.
• For longer distances - Use a B140-1A0 or B140-1A0-WP active receiver unit to extend a 1920 x 1080 @ 60Hz signal up to 150 ft., or a 1024 x 768 @ 60Hz signal up to 200 ft.
• Supports DVI-D Single-Link video resolutions up to 1920 x 1080 @ 60Hz

• Maximum Operating Distance : 200 ft (60960 mm)
• Number of Input Devices Supported : 1
• Number of DVI Inputs : 2
• Transmitter Depth : 4" (101.60 mm)
• Number of Output Devices Supported : 5
• Package Contents :
  • B140-004 DVI Over Cat5 Extender/Splitter, 4-Port Local Transmitter Unit
  • 1 ft. DVI Daisychain Cable
  • Mounting Hardware
  • External Power Supply (Input: 100-240V, 50/60Hz, 0.5A Output: 5V, 2A)
  • Owner's Manual
• Twisted Pair Cable Standard : Category 6
• Manufacturer : Tripp Lite by Eaton
• Product Model : B140-004
• Transmitter Height : 1.13" (28.58 mm)
• Maximum Video Resolution : 1920 x 1080
• TAA Compliant : Yes
• Environmentally Friendly : Yes
• Product Color : Black
• DVI In : Yes
• Limited Warranty : 1 Year
• Network (RJ-45) : Yes
• Product Type : Video Extender Transmitter
• Graphics Modes : Full HD
• Transmitter Width : 5" (127 mm)
• Media Type Supported : Twisted Pair
• Country of Origin : Taiwan
• Number of Network (RJ-45) Ports : 4
• Connectivity Technology : Wired
• Manufacturer Website Address : https://tripplite.eaton.com/
• Color Family : Multicolor
