Description
Tripp Lite 3 phase Metered PDU / Power Distribution Units offer real-time local reporting of current levels in amps via set of 3 built-in digital meters. Enables visual monitoring of PDU current levels to preserve proper loading balance and prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
Key features
- Federal Trade Agreements Act / TAA Compliant for GSA Schedule purchases

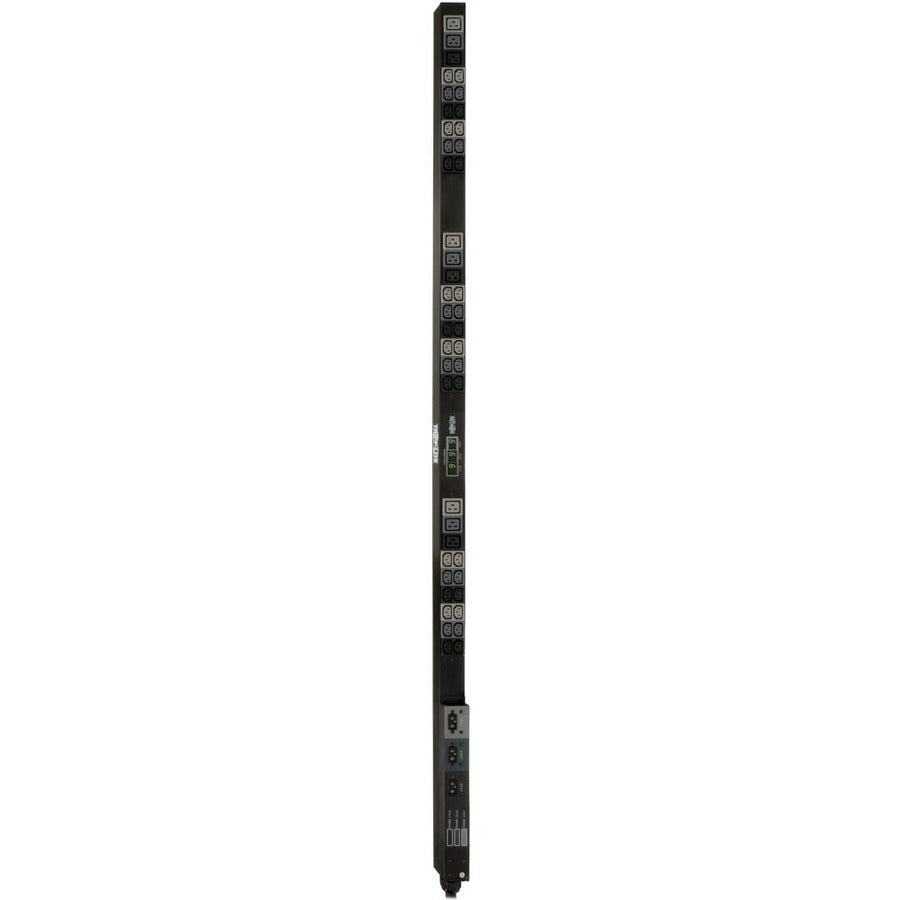

- 45 208V outlets total (36 C13, 9 C19)

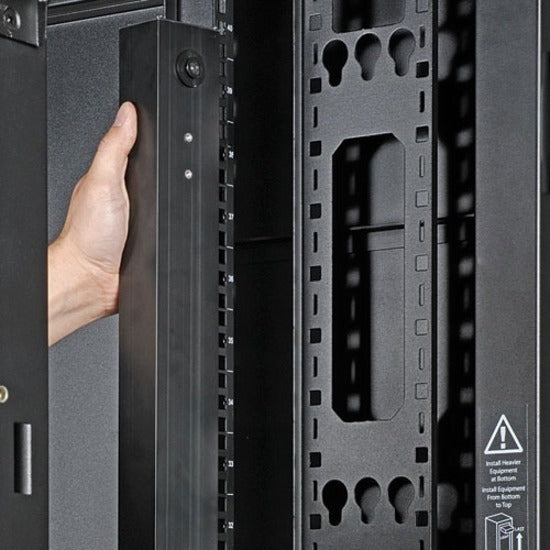

- Toolless button-mount installation; cord retention brackets included

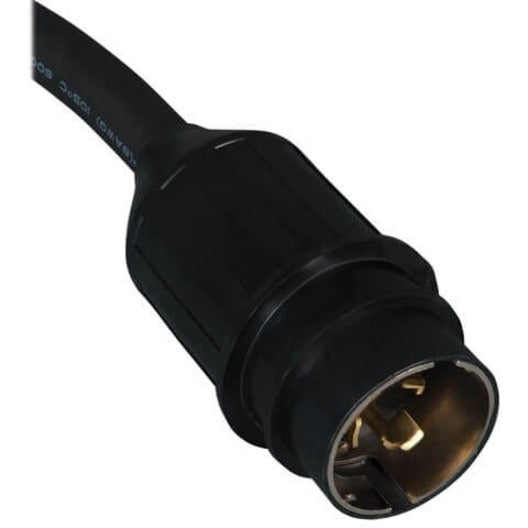

- Hubbell CS8365C 50A (3P+E) 208V 3 phase input; 6 ft. / 1.8m line cord

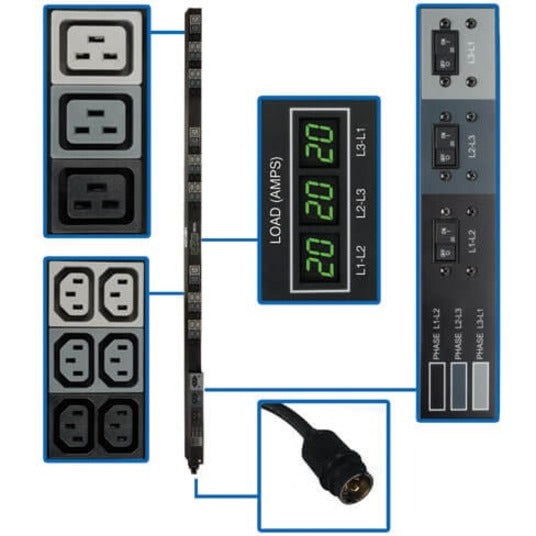

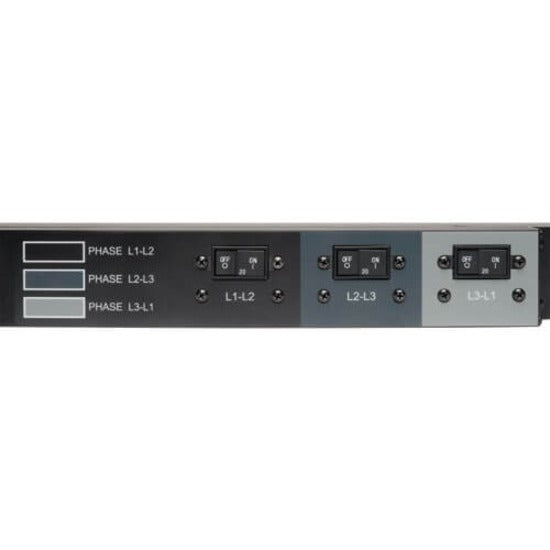

- Reports load current per-phase via set of 3 built-in current meters
- Metered 12.6kW 3 Phase 208V PDU; 70. / 178cm 0U vertical rackmount
Specifications

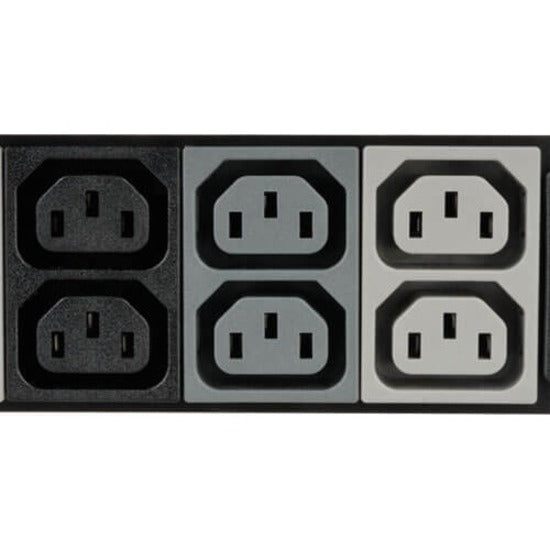

- Receptacle Type: IEC 60320 C19,IEC 60320 C13
- Receptacle Detail: 9 x IEC 60320 C19,36 x IEC 60320 C13
- Environmental Certification: RoHS
- TAA Compliant: Yes
- Environmentally Friendly: Yes
- Power Rating (Watt): 12.60 kW
- Input Voltage: 230 V AC
- Product Series: Metered
- Limited Warranty: 2 Year

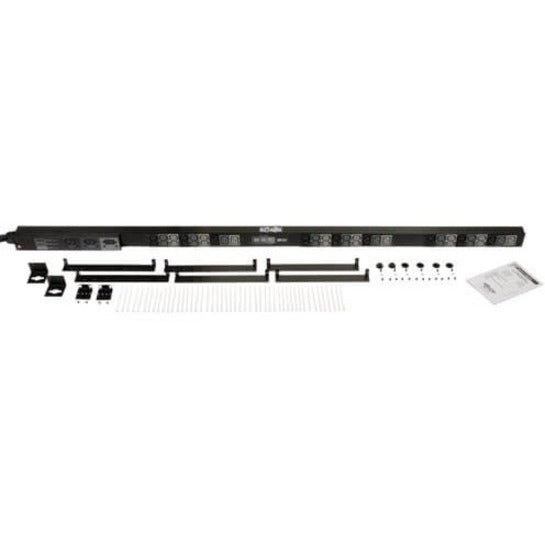

- Package Contents: Metered PDU3MV6H50 45-Outlets PDU Cord Retention Brackets Rack Mounting Brackets Owner's Manual
- Plug/Connector Type: Hubbell CS8365C
- Product Type: PDU
- Mount Type: Rack-mountable
- Protection Type: Overload Protection
- Manufacturer: Tripp Lite by Eaton
- Product Model: PDU3MV6H50
- Output Voltage: 208 V AC
- Mounting Orientation: Vertical
- Country of Origin: Taiwan
