Description
Tripp Lite 3 phase Metered PDU / Power Distribution Units offer real-time local reporting of current levels in amps via set of 3 built-in digital meters. Enables visual monitoring of PDU current levels to preserve proper loading balance and prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
- Federal Trade Agreements Act / TAA Compliant for GSA Schedule purchases

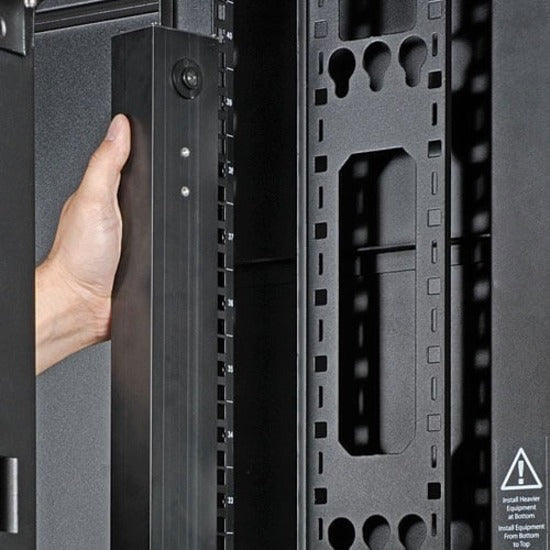

- Toolless button-mount installation; cord retention brackets included

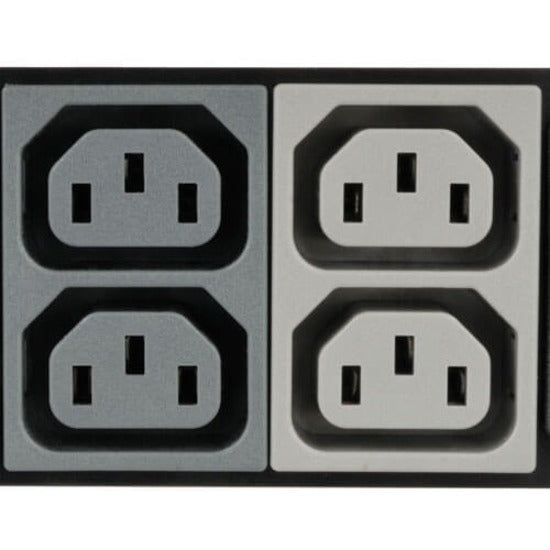

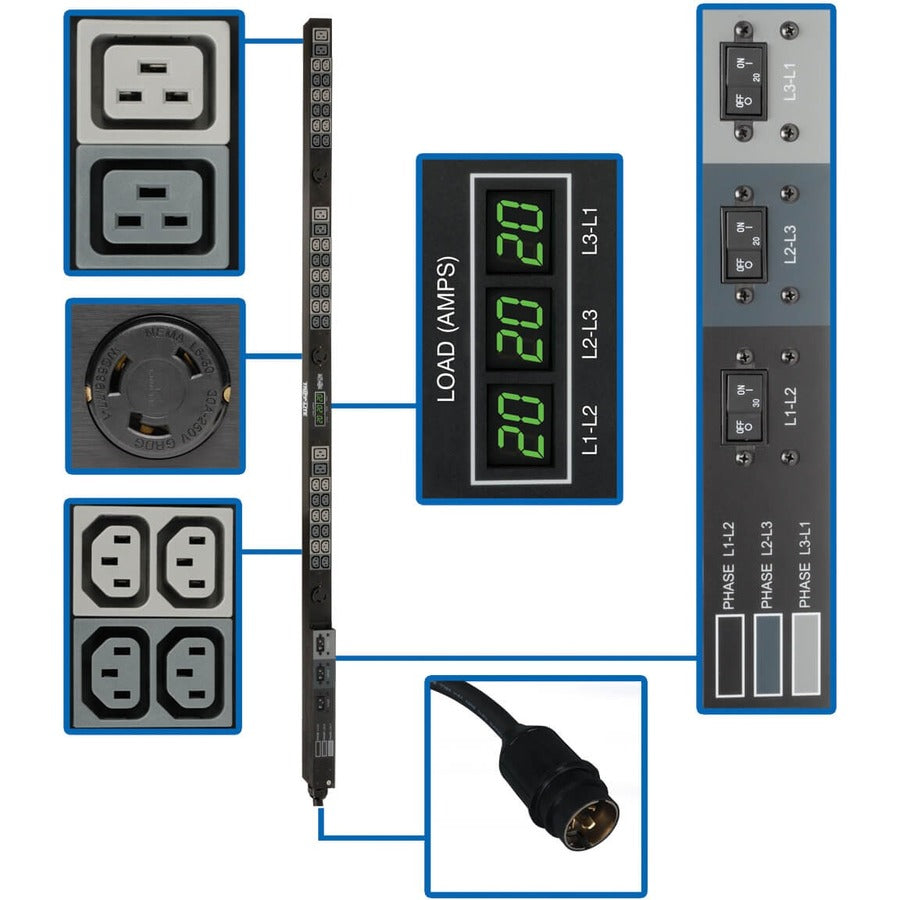

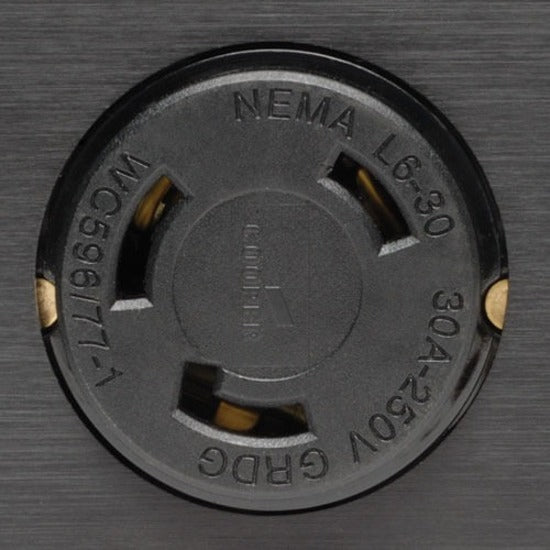

- 45 208V outlets total (36 C13, 6 C19, 3 L6-30R)

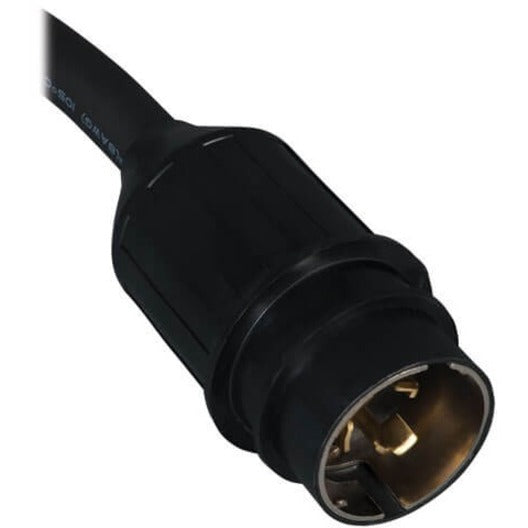

- Hubbell CS8365C 50A (3P+E) 208V 3 phase input; 6 ft. / 1.8m line cord

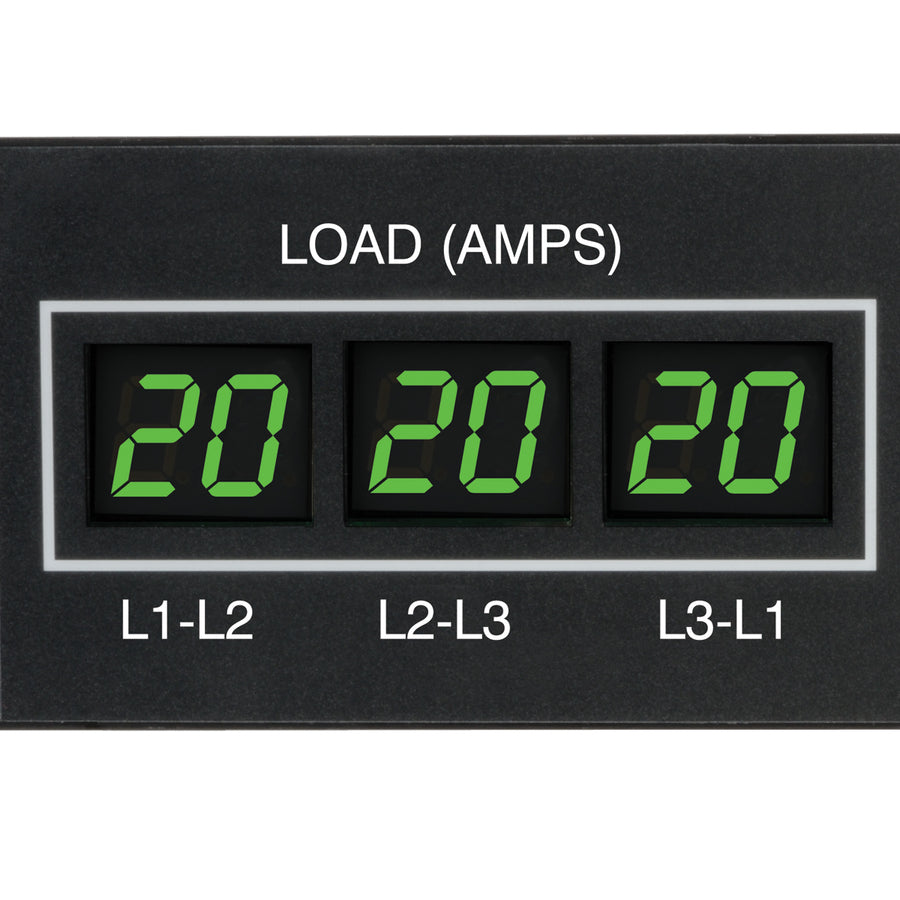

- Reports load current per-phase via set of 3 built-in current meters

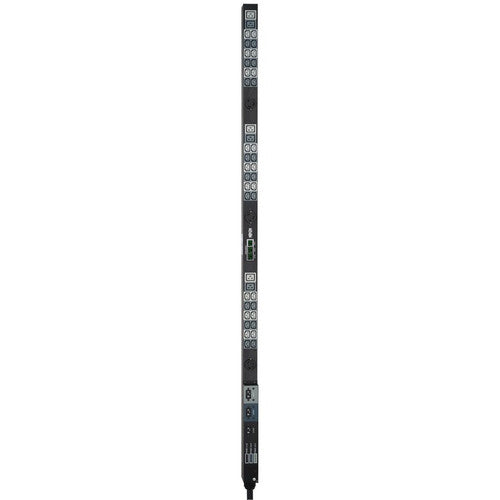

- Metered 14.4kW 3 Phase 208V PDU; 70 in. / 178cm 0U vertical rackmount
- Receptacle Type : IEC 60320 C19,IEC 60320 C13,NEMA L6-30R
- Receptacle Detail : 6 x IEC 60320 C19,36 x IEC 60320 C13,3 x NEMA L6-30R
- Environmental Certification : RoHS
- TAA Compliant : Yes
- Environmentally Friendly : Yes
- Power Rating (Watt) : 14.40 kW
- Input Voltage : 230 V AC
- Product Series : Metered
- Limited Warranty : 2 Year

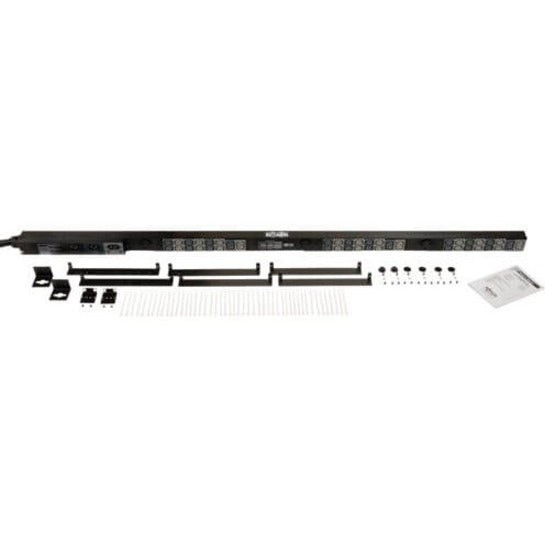

- Package Contents :
- Metered PDU3MV6H50A 45-Outlets PDU
- Cord Retention Brackets
- Rack Mounting Brackets
- Owner's Manual
- Plug/Connector Type : Hubbell CS8365C
- Product Type : PDU
- Mount Type : Rack-mountable

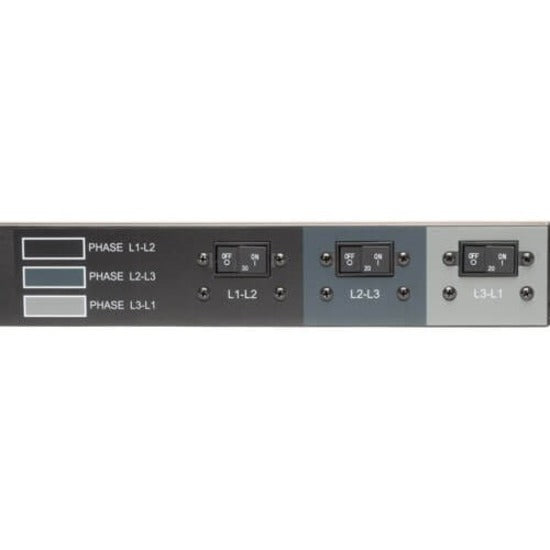

- Protection Type : Overload Protection
- Manufacturer : Tripp Lite by Eaton
- Product Model : PDU3MV6H50A
- Output Voltage : 208 V AC
- Mounting Orientation : Vertical
- Country of Origin : Taiwan
- Manufacturer Website Address : https://tripplite.eaton.com/
