Description

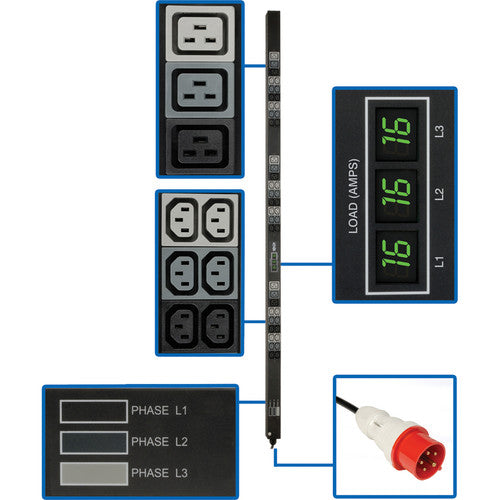

Tripp Lite 3 phase Metered PDU / Power Distribution Units offer real-time local reporting of current levels in amps via set of 3 built-in digital meters. Enables visual monitoring of PDU current levels to preserve proper loading balance and prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
- 36 C13 & 9 C19 single phase outlets; Included cord retention brackets
- IEC-309 Red 16/20A (3P+N+E) 3 phase input; 6ft 1.8m line cord
- 70in / 1778mm 0U vertical format, toolless button-mount installation
- Set of 3 digital meters reports output load level per phase in amps
- Metered 11.5kW 3 Phase 415/240V, 400/230V, 380/220V input / output PDU
- Receptacle Type : IEC 60320 C19,IEC 60320 C13
- Receptacle Detail : 9 x IEC 60320 C19,36 x IEC 60320 C13
- Environmental Certification : RoHS
- TAA Compliant : Yes
- Environmentally Friendly : Yes
- Power Rating (VA) : 11.50 kVA
- Product Series : Metered
- Limited Warranty : 2 Year
- Package Contents :
- Metered PDU3XMV6G20 45-Outlets 11.5kVA PDU
- Cord Retention Brackets
- Mounting Brackets
- Plug/Connector Type : IEC 60309 16A
- Product Type : PDU
- Mount Type : Rack-mountable
- Manufacturer : Tripp Lite by Eaton
- Product Model : PDU3XMV6G20
- Input Voltage Range : 380 V AC - 415 V AC
- Output Voltage : 220 V AC,230 V AC,240 V AC
- Mounting Orientation : Vertical
- Country of Origin : Taiwan
- Manufacturer Website Address : https://tripplite.eaton.com/
