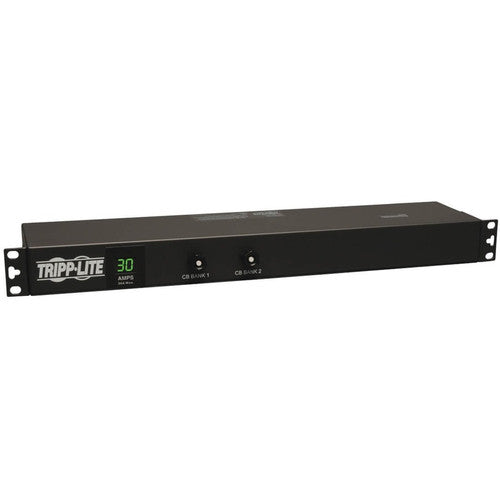

Tripp Lite by Eaton Metered PDUMH30 12-Outlets PDU PDUMH30

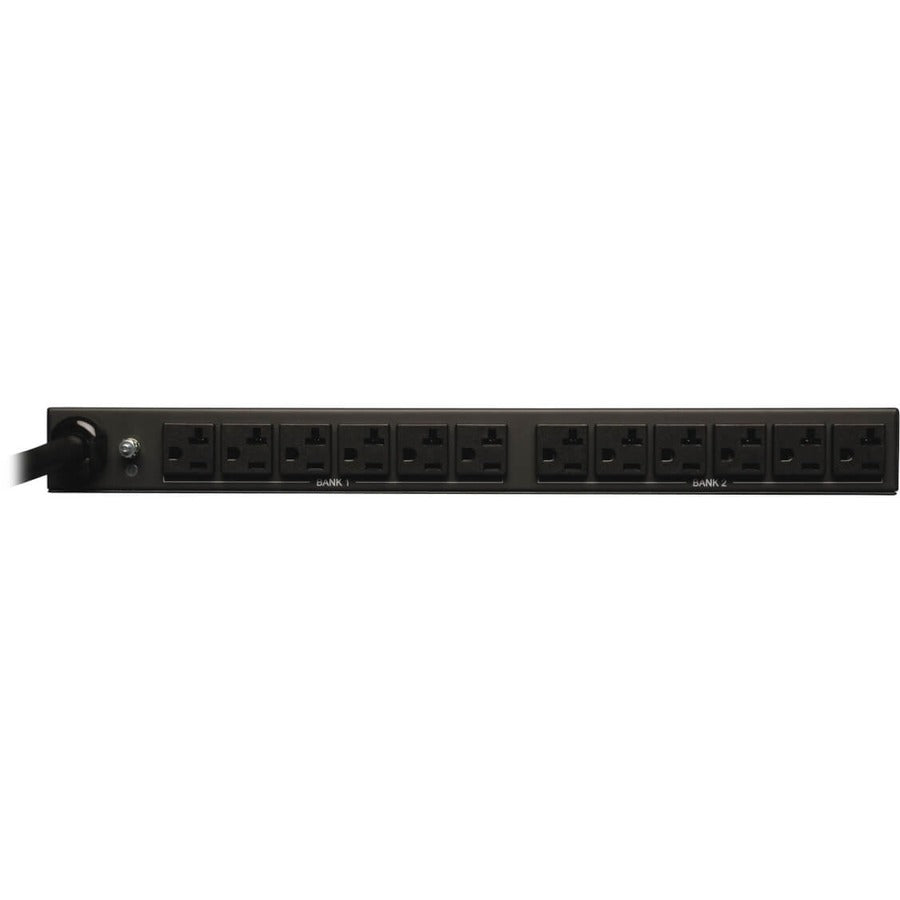

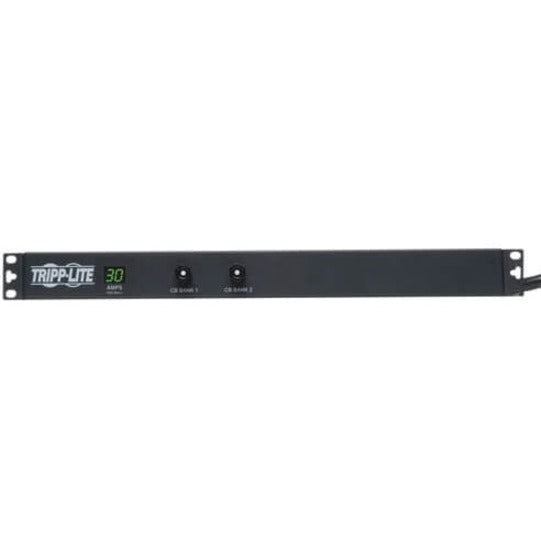

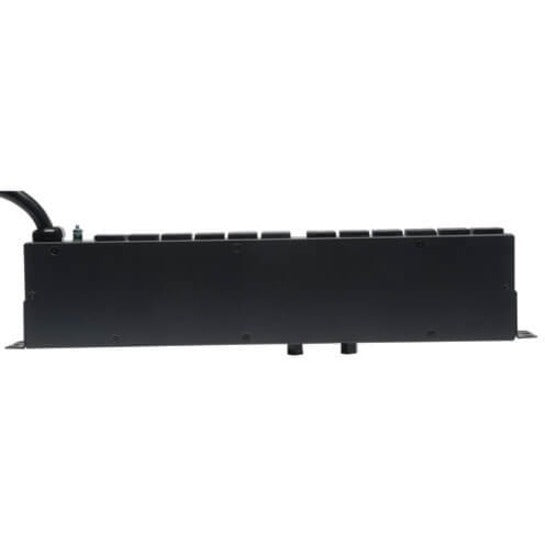

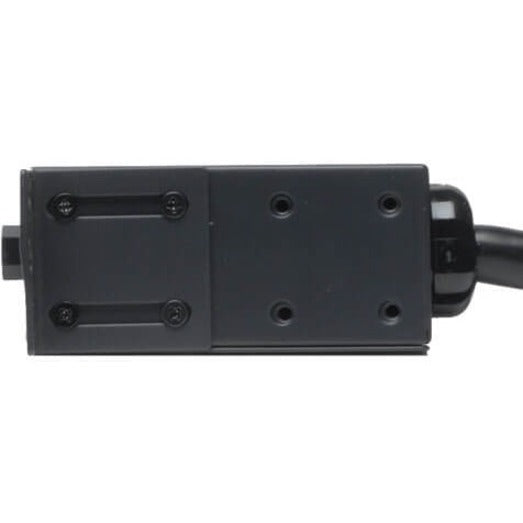

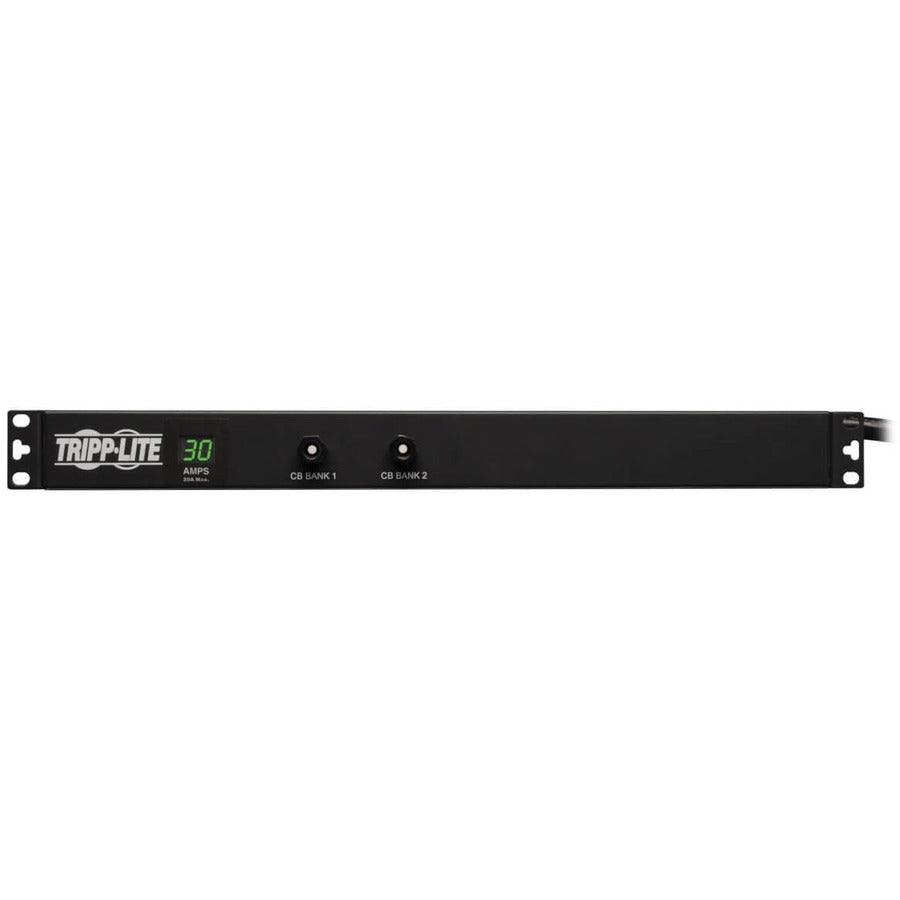

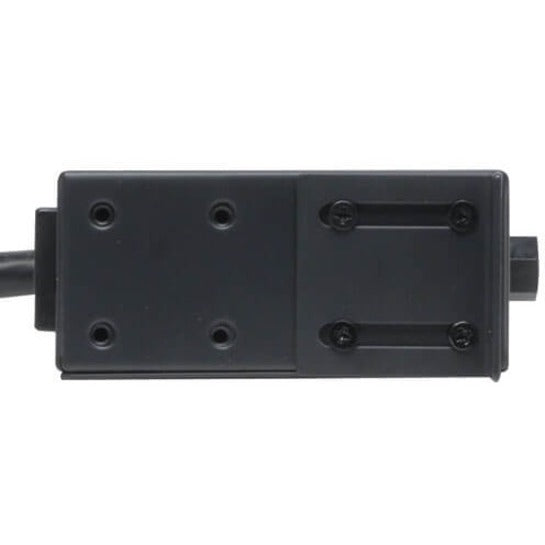

Tripp Lite's PDUMH30 AC power distribution unit offers a digital current monitor and provides 30 amps of 120 volt capacity in a versatile multi-mount cabinet (agency de-rated to 24A continuous). Detachable mounting flanges are configurable for wallmount, under-counter, or 1U/0U rackmount installation. Uses only 1U of rack space when installed in any 19-inch rack, with the potential for zero U mounting in the cable management area of most rack enclosures. Built-in digital ammeter display offers continuous visual input current monitoring data for the entire PDU. Attractive rackmount housing with 12 rear-facing outlets measures only 4.5 inches in depth. Output is arranged in two separately breakered 20A output loading banks. Unfiltered electrical pass-through without a power switch makes the PDUMH30 ideal for distributing UPS or generator power in rack enclosures, network closets, and more. Includes 12 rear-facing NEMA 5-15/20R outlets, 15-ft. AC power cord with L5-30P input plug. TVSS grounding lug and rugged all-metal rackmount case design.

• 12 NEMA 5-15/20R outlets
• Reversible housing, 6.5 in. / 16.5cm depth
• Attached 15 ft. / 4.5m cord with NEMA L5-30P input plug

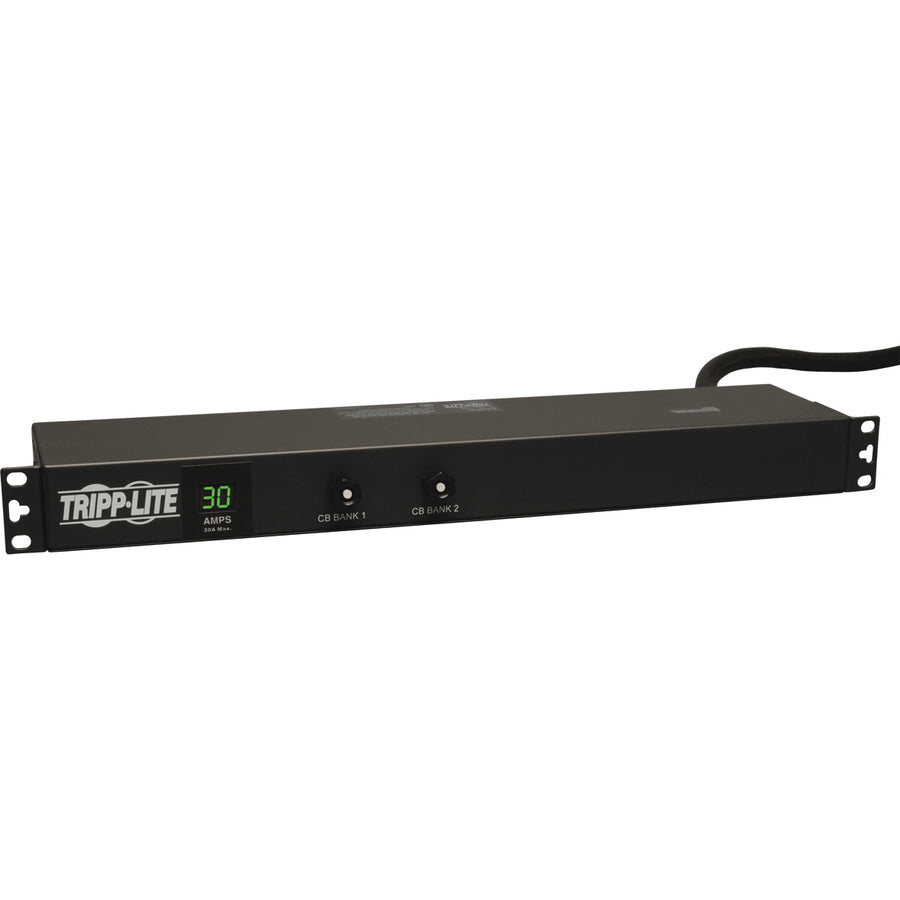

• Two-digit current meter reports total PDU input current in amps
• Metered single phase 30A 120V 1U horizontal rackmount PDU

• Receptacle Type : NEMA 5-15/20R
• Receptacle Detail : 12 x NEMA 5-15/20R
• Environmentally Friendly : Yes
• Input Voltage : 120 V AC
• Product Series : Metered
• Limited Warranty : 2 Year
• Package Contents :
  • Metered PDUMH30 12-Outlets PDU
  • Owner's Manual with Warranty Information
• Plug/Connector Type : NEMA L5-30P
• Product Type : PDU
• Mount Type : Rack-mountable
• Protection Type : Overload Protection
• Manufacturer : Tripp Lite by Eaton
• Product Model : PDUMH30
• Output Voltage : 120 V AC
• Mounting Orientation : Horizontal/Vertical
• Rack Height : 1U
• Country of Origin : China
• Manufacturer Website Address : https://tripplite.eaton.com/
