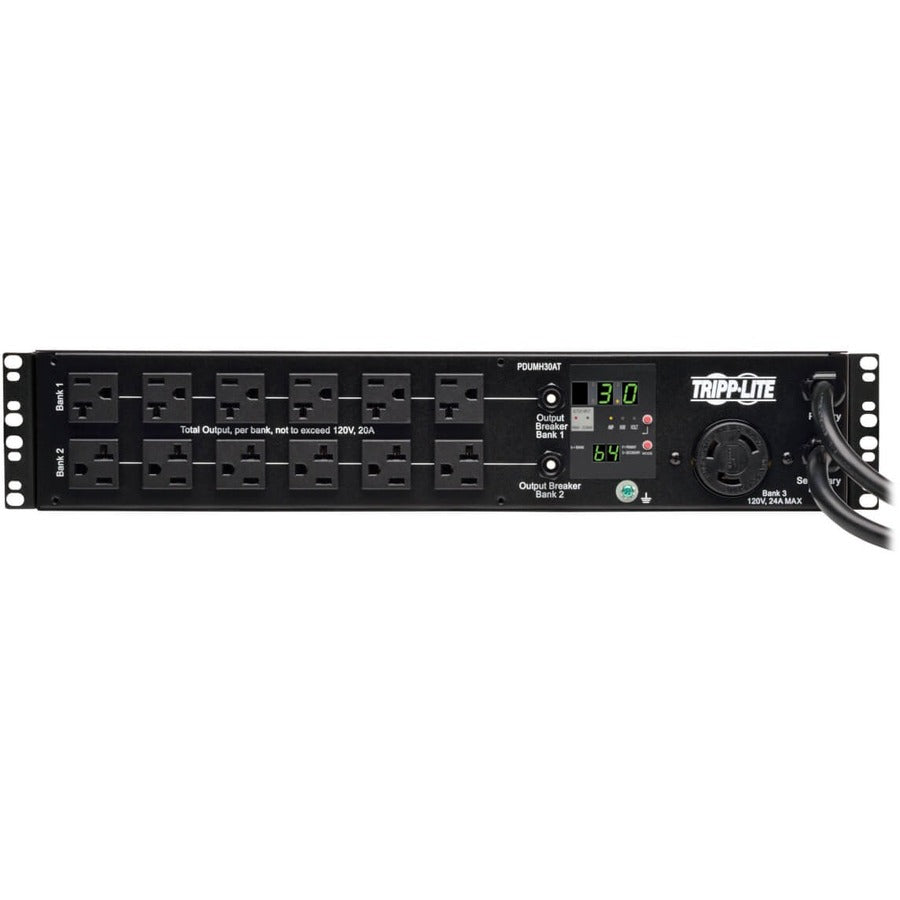

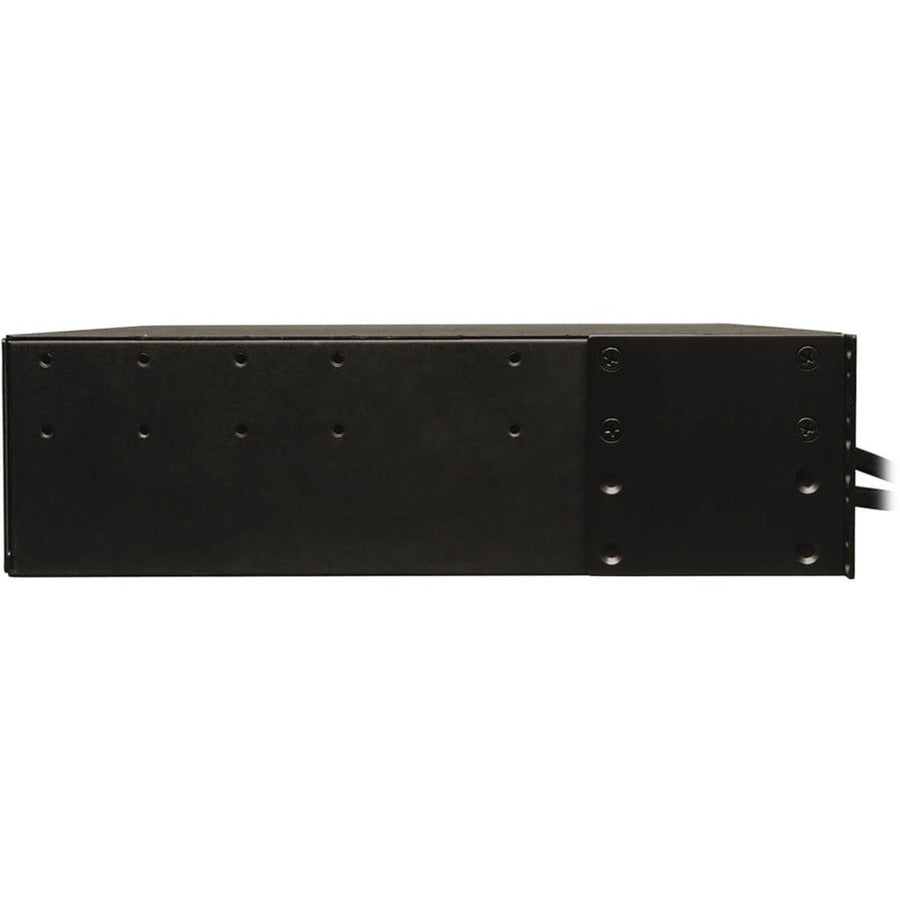

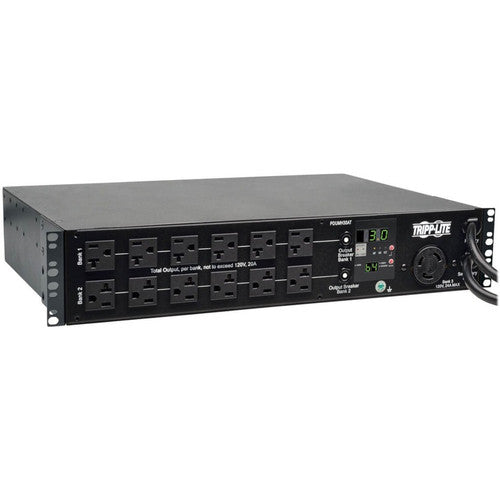

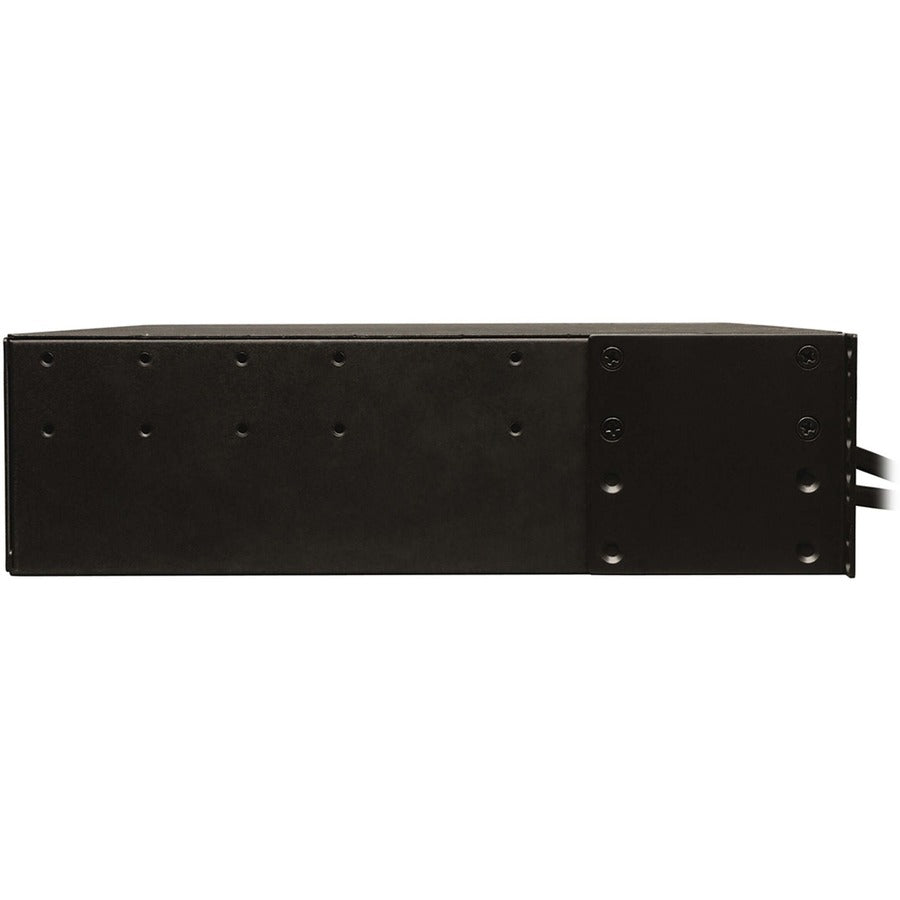

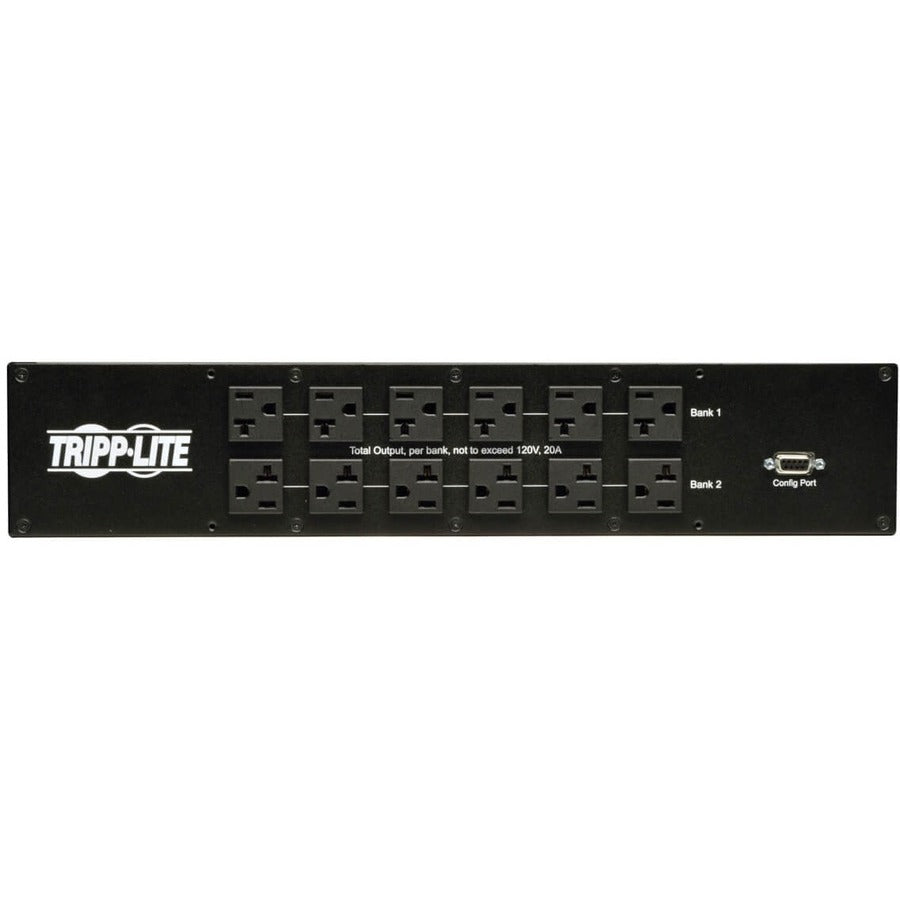

Tripp Lite by Eaton Metered PDUMH30AT 25-Outlets PDU PDUMH30AT

PDUMH30AT Metered ATS / Auto-Transfer Switch offers 120V 30A dual-input power distribution and visual current metering in a 2U horizontal rackmount installation format. Set of two NEMA L5-30P line cords enable separate primary and secondary input connections. Includes 25 built-in outputs (24 NEMA 5-15/20R and 1 L5-30R). Digital current metering with push-button display control tracks output power consumption in 4 segments: Bank 1 (12 upper 5-15/20R outlets), Bank 2 (12 lower 5-15/20R outlets), L5-30R (single outlet) and total PDU output. Supports 2U installation in 2 or 4 post racks, with additional support for wall-mount and under-counter placement.

• TAA Compliant

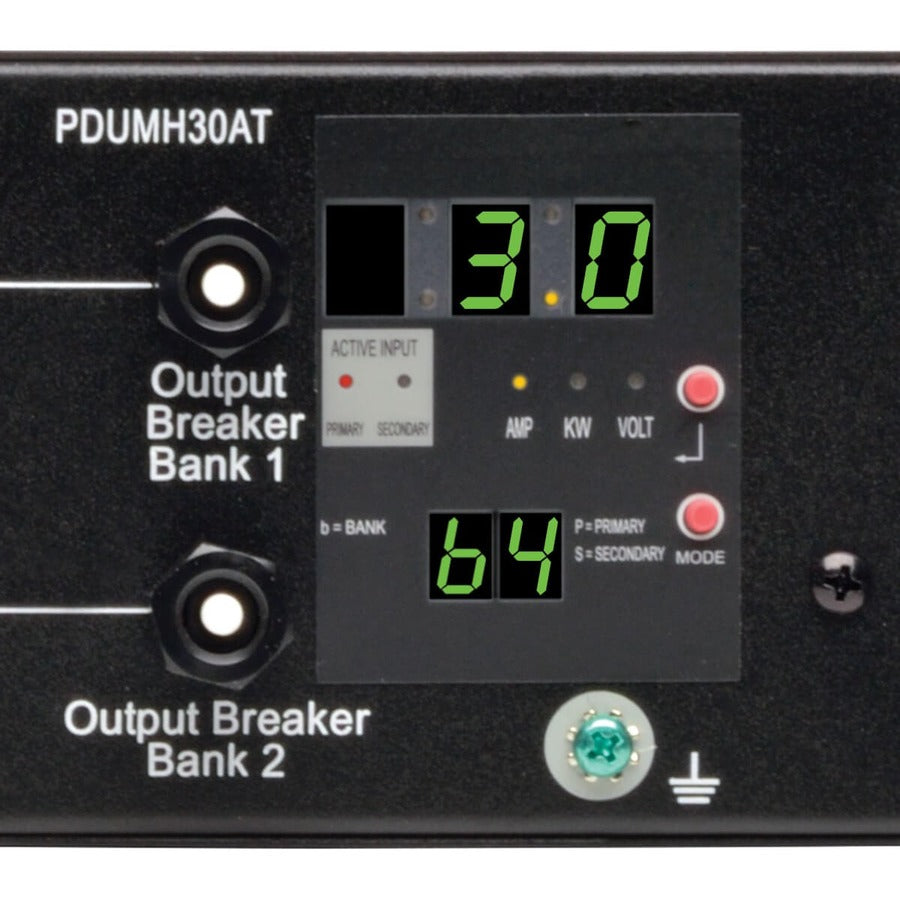

• Digital meter reports voltage, kW load level and output amperage in 4 load segments
• 2U horizontal rackmount; 2 L5-30P inputs; 24 5-15/20R & 1 L5-30R outlets
• Separate primary & secondary inputs connect to any two compatible power sources
• Enables redundant A/B power option for single-corded network devices
• Single phase 30A 120V Auto Transfer Switch / ATS PDU; Highly reliable Solid State Switching

• Receptacle Type : NEMA 5-15/20R,NEMA L5-30R
• Receptacle Detail : 24 x NEMA 5-15/20R,1 x NEMA L5-30R
• TAA Compliant : Yes
• Environmentally Friendly : Yes
• Input Voltage : 120 V AC
• Product Series : Metered
• Limited Warranty : 2 Year

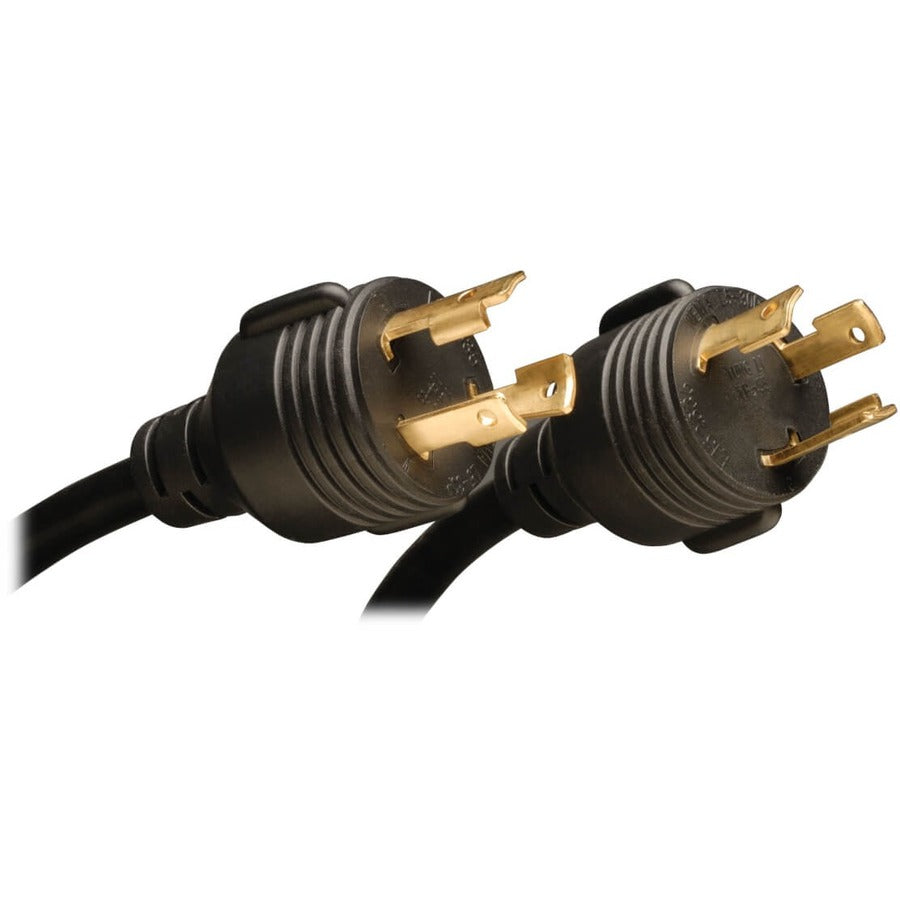

• Plug/Connector Detail : 2 x NEMA L5-30P
• Package Contents :
  • Metered PDUMH30AT 25-Outlets PDU
  • Installable Plug-retention Shelves
  • Rackmount Installation Brackets
  • Cable Ties
• Plug/Connector Type : NEMA L5-30P
• Product Type : PDU
• Mount Type : Wall-mountable,Rack-mountable
• Manufacturer : Tripp Lite by Eaton
• Product Model : PDUMH30AT
• Input Voltage Range : 100 V AC - 127 V AC
• Output Voltage : 100 V AC,120 V AC,127 V AC
• Mounting Orientation : Horizontal
• Rack Height : 2U
• Country of Origin : Taiwan
• Manufacturer Website Address : https://tripplite.eaton.com/
