Description

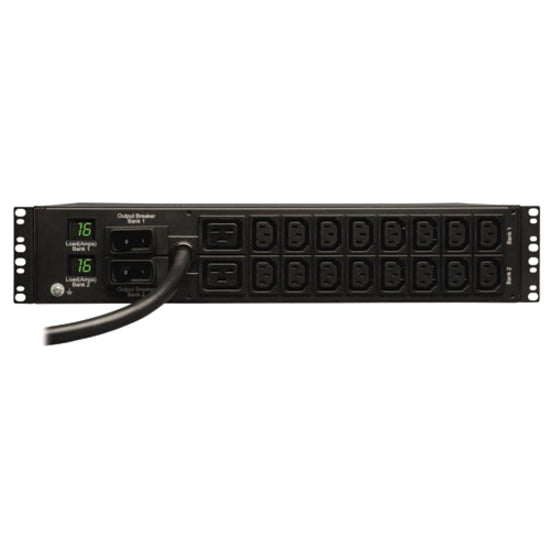

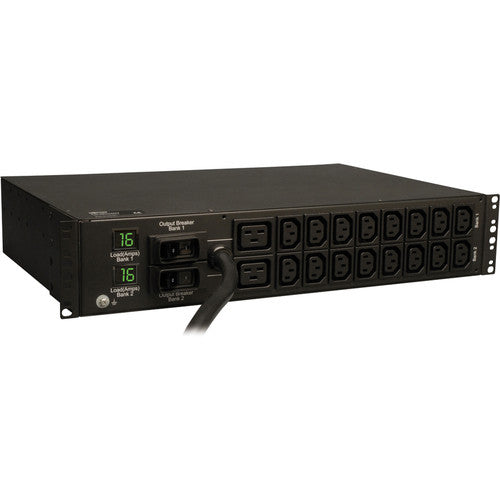

PDUMH32HV horizontal 2U metered rack PDU supports 32A maximum capacity at 230V. Includes 12 ft / 3.6m attached line cord with Blue IEC-309 32A input plug and 18 output receptacles (16 C13, 2 C19). Outlets are arranged in two separately breakered 9 outlet load banks. Set of two visual current meters tracks the output current of each load bank separately. Supports 2U rackmount installation in 19 inch racks. Included cord retention brackets keeps vital network equipment plugged in and continuously powered.
- 18 total 230V outlets (2 C19, 16 C13)
- Reversible housing, 12.5 in. / 31.75cm depth
- Attached 12 ft. / 3.6m cord with IEC-309 32A (2P+E) input plug
- Set of 2 current meters reports current in amps for each output load bank
- Metered single phase 32A 230V 2U horizontal rackmount PDU
- Receptacle Type : IEC 60320 C19,IEC 60320 C13
- Receptacle Detail : 2 x IEC 60320 C19,16 x IEC 60320 C13
- TAA Compliant : Yes
- Environmentally Friendly : Yes
- Power Rating (Watt) : 7.30 kW
- Input Voltage : 230 V AC
- Product Series : Metered
- Limited Warranty : 2 Year
- Package Contents :
- Metered PDUMH32HV 18-Outlets 7.3kW PDU
- Mounting Brackets
- Plug Retention Brackets
- User Manual
- Product Type : PDU
- Mount Type : Rack-mountable
- Protection Type : Overload Protection
- Manufacturer : Tripp Lite by Eaton
- Product Model : PDUMH32HV
- Output Voltage : 230 V AC
- Mounting Orientation : Horizontal
- Rack Height : 2U
- Country of Origin : Taiwan
- Manufacturer Website Address : https://tripplite.eaton.com/
