Description
Tripp Lite single phase Metered PDU / Power Distribution Units offer real-time local reporting of load level in amps via built-in digital display. Enables visual monitoring of PDU load levels to prevent overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.

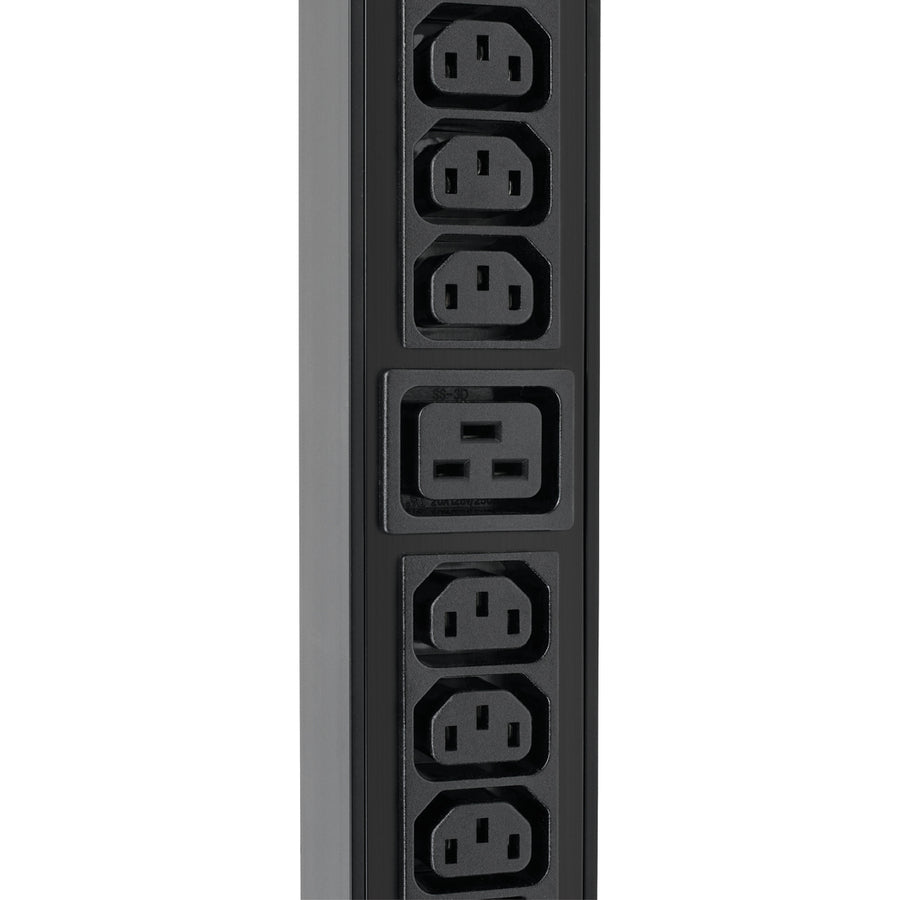

- 38 output receptacles (6 C19, 32 C13), included plug-lock cord retention sleeves
- 10ft / 3m input cable with IEC309 Blue 16A input connection

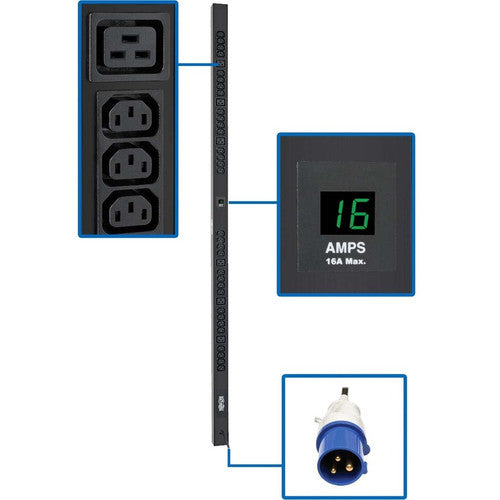

- Two-digit meter reports output current in amps
- Metered single phase 16A 200/220/230/240V 0U 63.75in / 162cm vertical rackmount PDU
- Receptacle Type : IEC 60320 C13,IEC 60320 C19
- Receptacle Detail : 32 x IEC 60320 C13,6 x IEC 60320 C19
- Environmentally Friendly : Yes
- Power Rating (Watt) : 3.84 kW
- Input Voltage : 230 V AC
- Limited Warranty : 2 Year

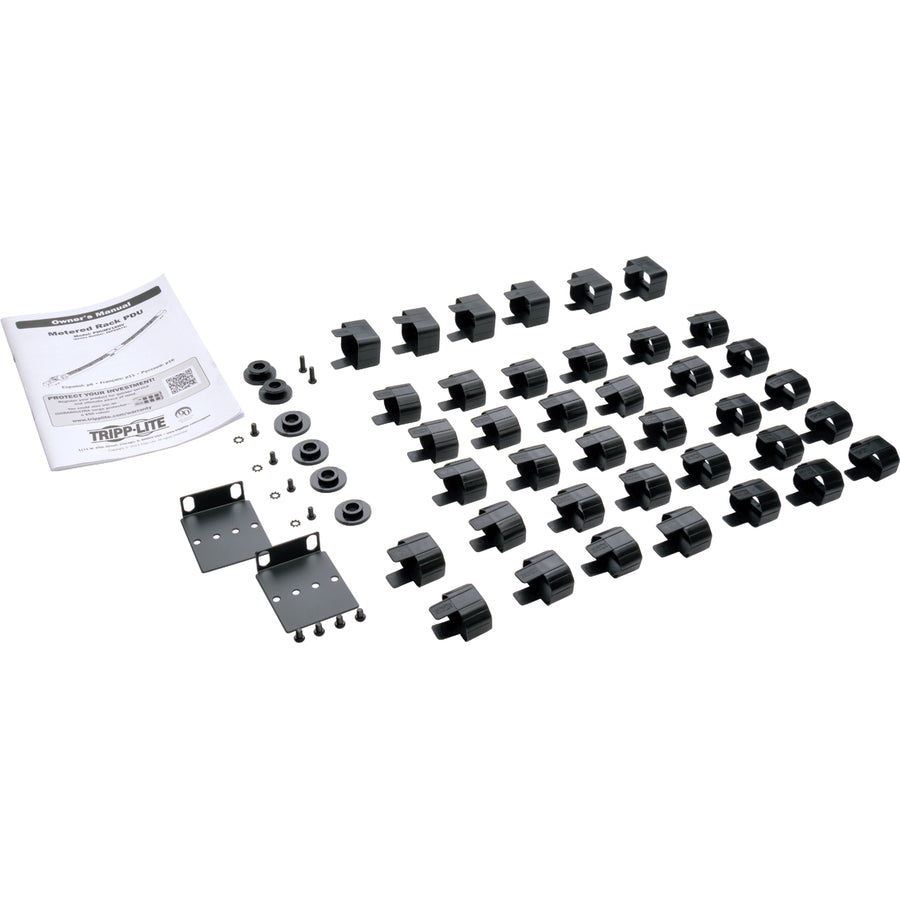

- Package Contents :
- Metered PDUMV16HV 38-Outlets PDU
- Owner's Manual
- Plug-Lock Cord Retention Sleeves (32 C14 and 6 C20)

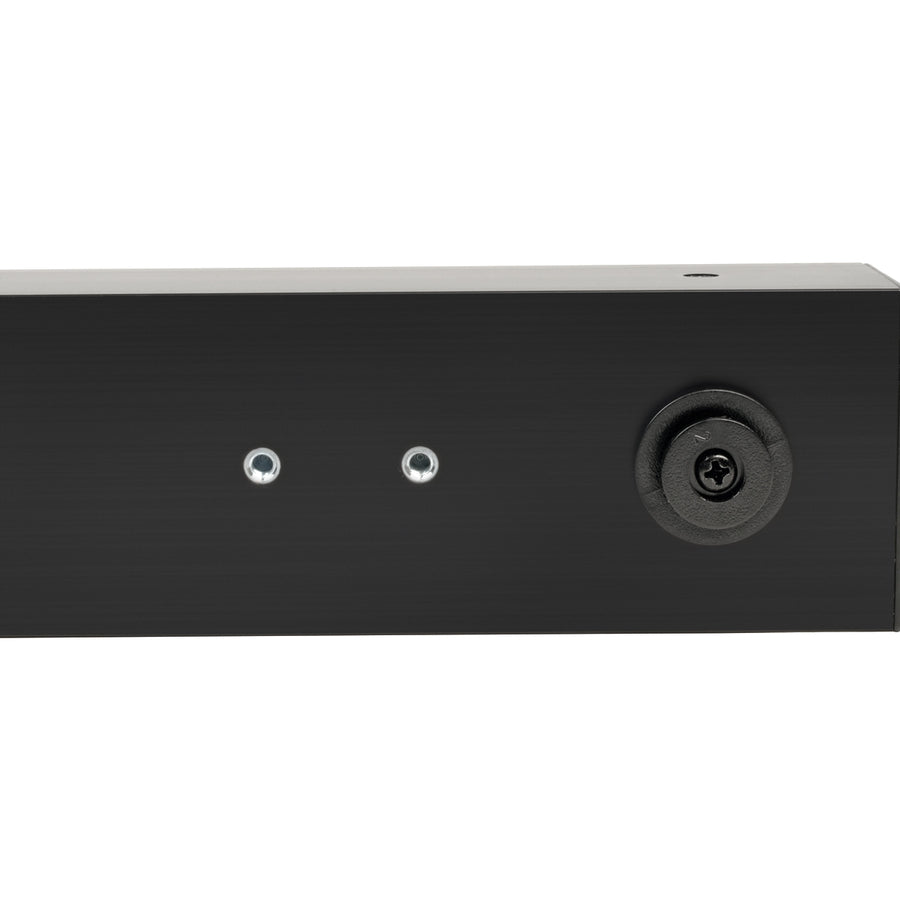

- Set of Mounting Brackets and Installation Hardware

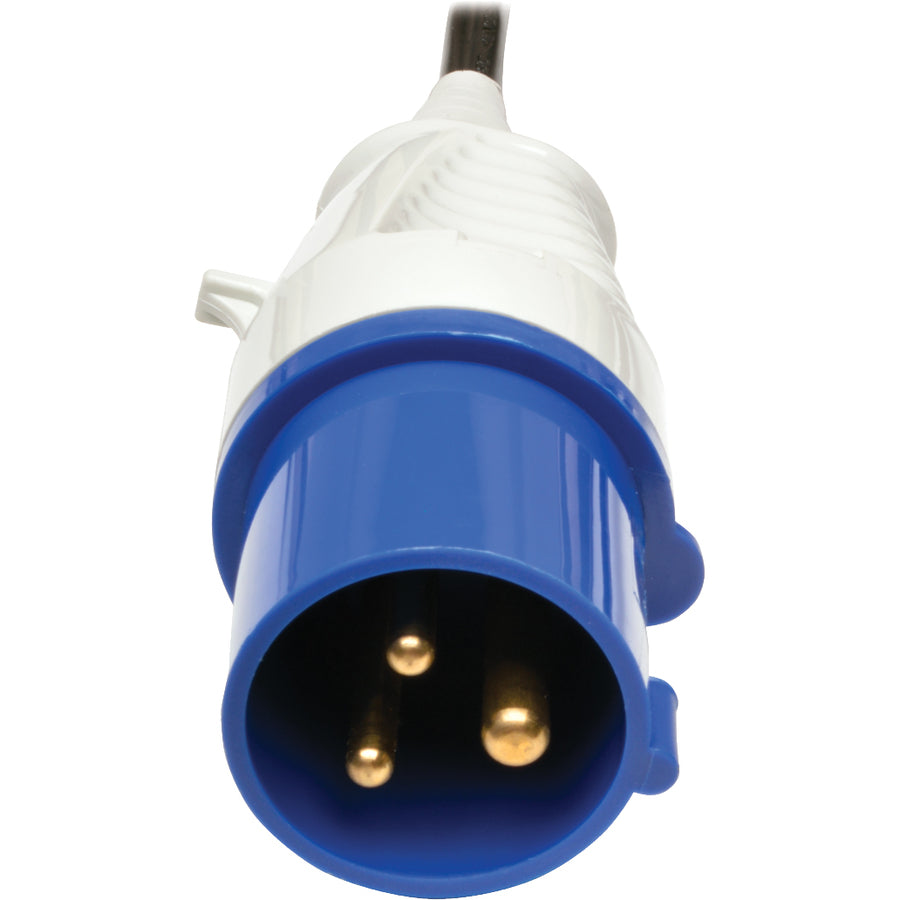

- Plug/Connector Type : IEC 60309 16A Blue (2P+E)
- Product Type : PDU
- Mount Type : Wall-mountable,Rack-mountable
- Manufacturer : Tripp Lite by Eaton
- Product Model : PDUMV16HV
- Output Voltage : 230 V AC
- Mounting Orientation : Vertical
- Input Current : 16 A
- Rack Height : 0U
- Country of Origin : China
- Product Line : Metered
- Manufacturer Website Address : https://tripplite.eaton.com/
- Placement : Under-counter
