Description

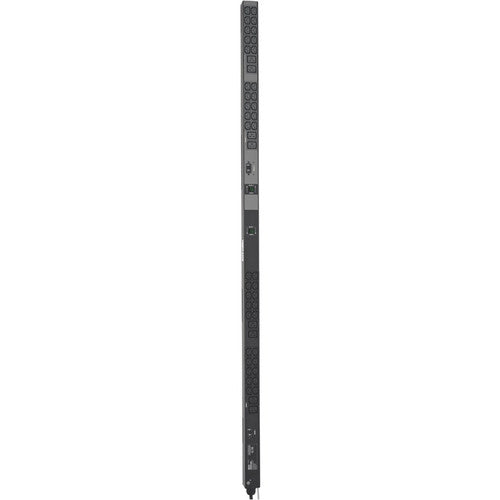

The 70-inch (178-centimeter) PDUMV32HV 32A 230V 7.4kW Single-Phase Metered Power Distribution Unit features 48 outlets for distributing single-phase AC power to rack-mounted equipment, including computers, routers, switches and servers.

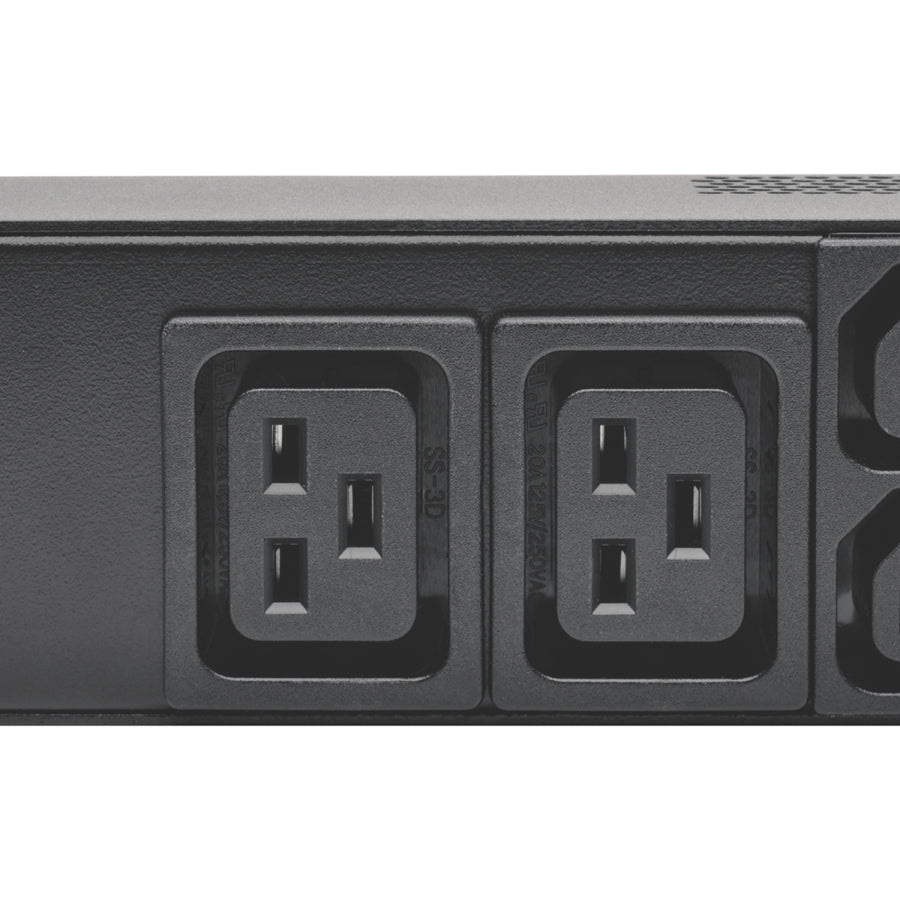

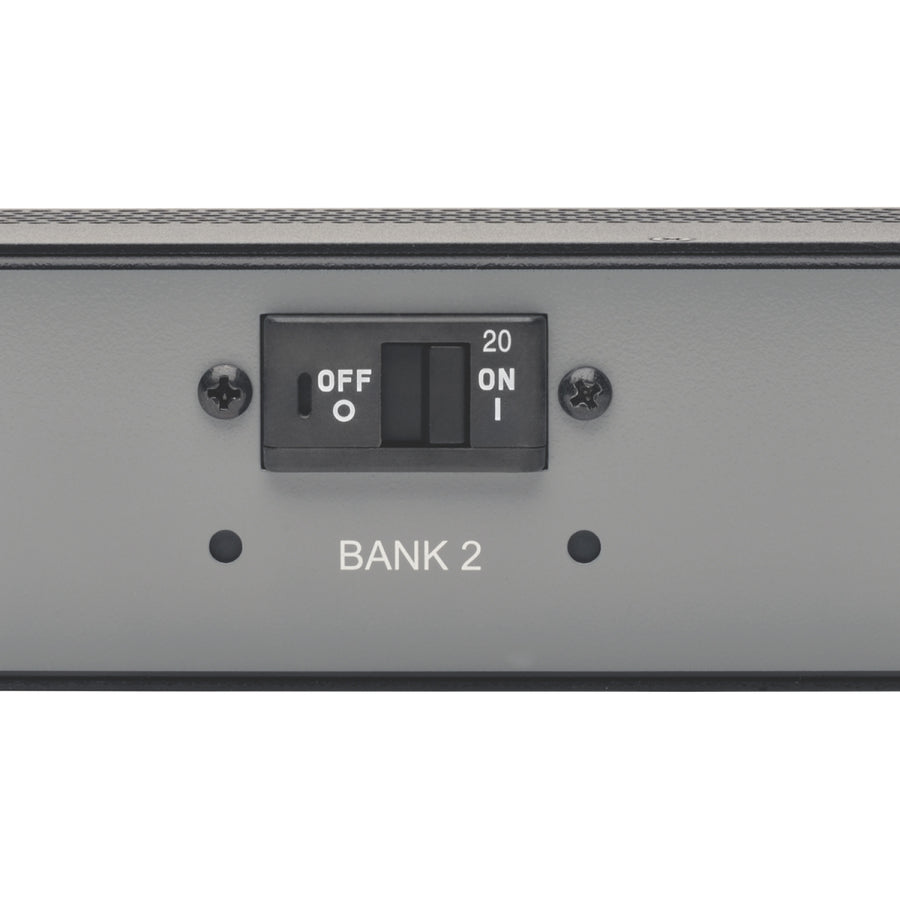

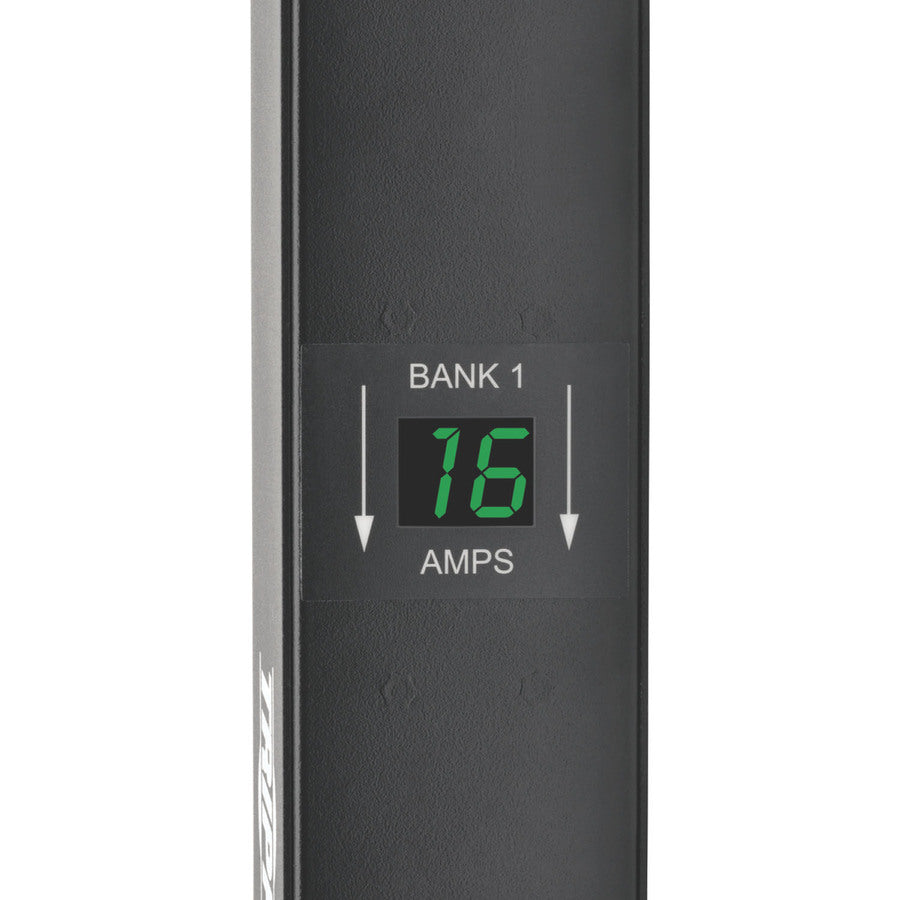

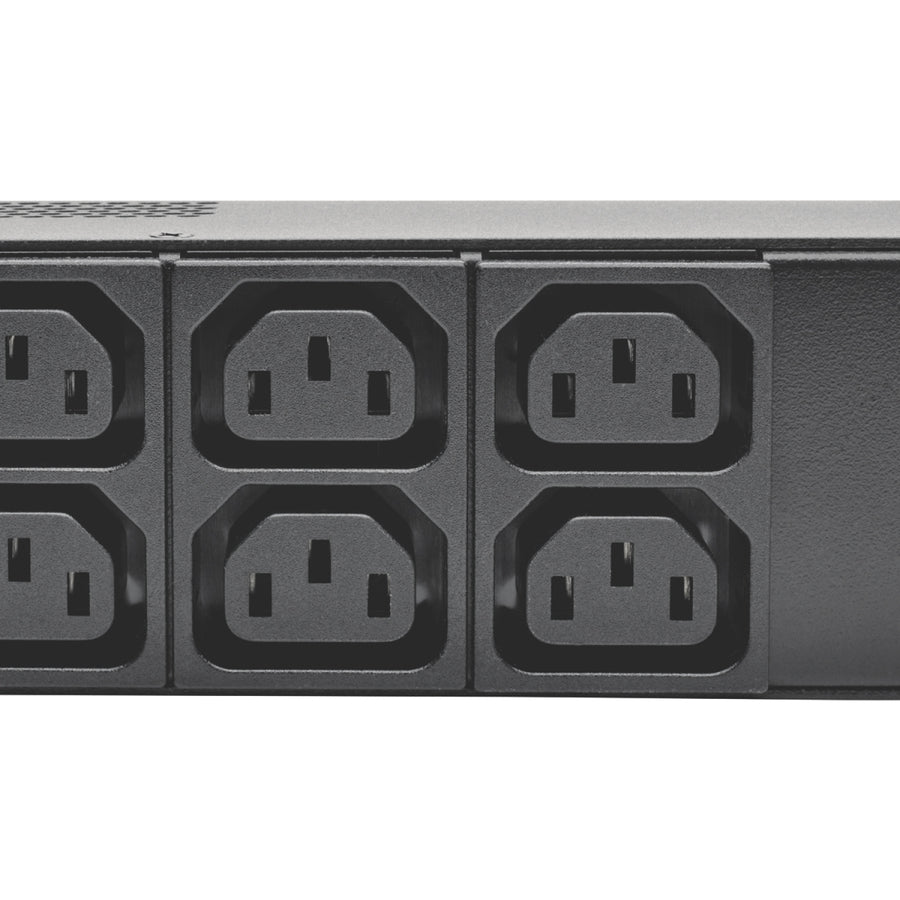

Outlets are arranged in two separate load banks, each with 24 outlets (4 C19 and 20 C13), a dedicated 20A circuit breaker and a digital meter that reports the bank's real-time output current in amps. The ammeters let you visually monitor each bank and maintain balanced loads to prevent circuit overloads and downtime due to breakers tripping. Special guards prevent the breakers from tripping accidentally. Outlets, breakers and ammeters are color-coded and labeled for easy identification.

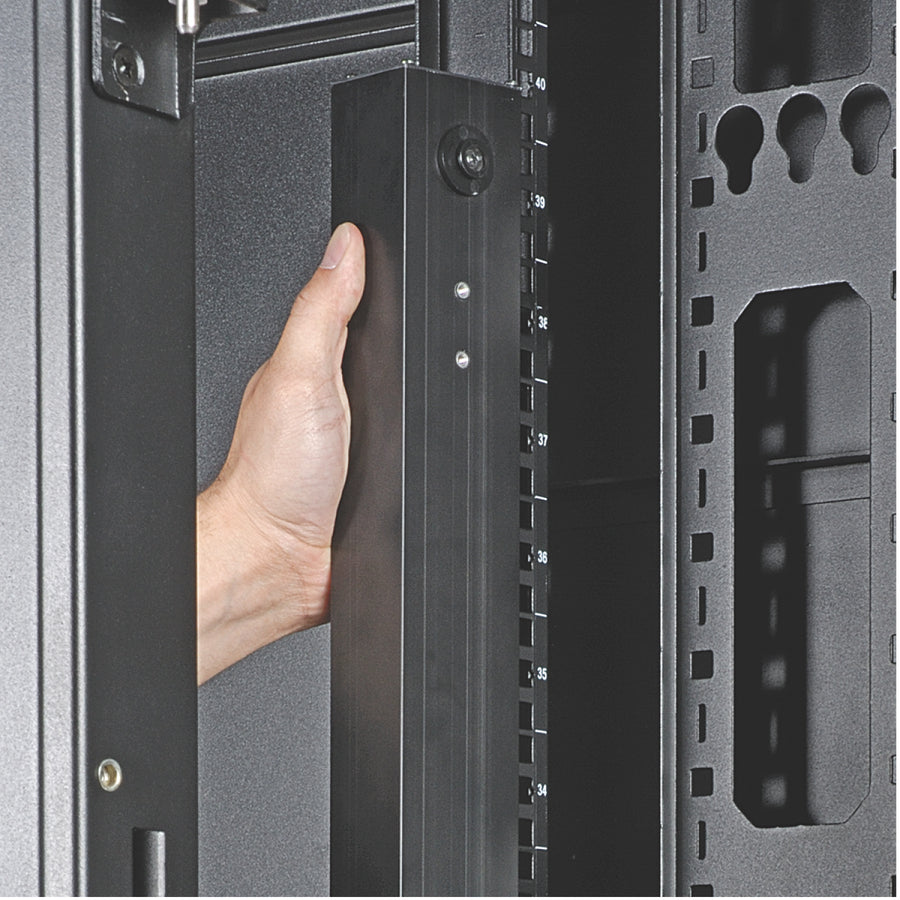

An ideal PDU for server rooms, network closets and data centers, the PDUMV32HV's all-metal housing comes ready to mount vertically in your rack using the preinstalled 9 mm buttons or the included hardware. The IEC-309 32A blue input plug with 10-foot (3-meter) cord connects to your facility's compatible AC power source, generator or protected UPS. Included C20 and C14 plug-lock inserts connect to your components' plugs to ensure they remain connected and continuously powered. Use the included ground screw to connect any equipment that requires a chassis ground.
Outlets are arranged in two separate load banks, each with 24 outlets (4 C19 and 20 C13), a dedicated 20A circuit breaker and a digital meter that reports the bank's real-time output current in amps. The ammeters let you visually monitor each bank and maintain balanced loads to prevent circuit overloads and downtime due to breakers tripping. Special guards prevent the breakers from tripping accidentally. Outlets, breakers and ammeters are color-coded and labeled for easy identification.
An ideal PDU for server rooms, network closets and data centers, the PDUMV32HV's all-metal housing comes ready to mount vertically in your rack using the preinstalled 9 mm buttons or the included hardware. The IEC-309 32A blue input plug with 10-foot (3-meter) cord connects to your facility's compatible AC power source, generator or protected UPS. Included C20 and C14 plug-lock inserts connect to your components' plugs to ensure they remain connected and continuously powered. Use the included ground screw to connect any equipment that requires a chassis ground.
- Ready for immediate toolless 0U installation
- IEC-309 32A blue input plug with 10 ft. (3 m) cord
- Dedicated 20A circuit breakers protect output
- Dual load banks with 24 outlets each (4 C19 and 20 C13)
- Ideal for server rooms, network closets and data centers
- Receptacle Type : IEC 60320 C13,IEC 60320 C19
- Receptacle Detail : 40 x IEC 60320 C13,8 x IEC 60320 C19
- TAA Compliant : Yes
- Power Rating (Watt) : 7.40 kW
- Input Voltage : 230 V AC
- Limited Warranty : 2 Year
- Package Contents :
- Metered PDUMV30HV 48-Outlet PDU
- Plug-lock inserts (8 C20, 40 C13)
- Spare installation buttons, 2.9mm/4.6 mm
- Ground screw
- Mounting hardware
- Owner's Manual
- Plug/Connector Type : IEC 60309 2P+E
- Product Type : PDU
- Protection Type : Overload Protection
- Manufacturer : Tripp Lite by Eaton
- Product Model : PDUMV32HV
- Output Voltage : 230 V AC
- Mounting Orientation : Vertical
- Input Current : 32 A
- Rack Height : 0U
- Country of Origin : Taiwan
- Product Line : Metered
- Manufacturer Website Address : https://tripplite.eaton.com/
