Description
Features l Thunderbolt 4 Hub Turns Your Laptop or Computer into a 4-Port 8K Workstation
Tripp Lite's versatile MTB4-HUB3-01 dramatically expands the potential of your desktop computer or laptop by adding four ports to its Thunderbolt 4 or Thunderbolt 3 port. It goes further than a USB-C hub, offering three Thunderbolt 4 ports that support 8K video and 40 Gbps data transfer speeds. All three ports are backward compatible with Thunderbolt 3 and USB-C monitors as well. A USB 3.2 Gen 2 port allows speeds up to 10 Gbps.
Thunderbolt 4 Supports Blisteringly Fast 40 Gbps Data Transfer Speeds
The Thunderbolt 4 hub supports bidirectional speeds up to 40 Gbps, which is eight times faster than USB 3.0, four times faster than Thunderbolt 1 and twice as fast as Thunderbolt 2. With dual 20 Gbps channels moving data both directions at the same time, the MTB4-HUB3-01 is perfectly suited for video playback or Zoom meetings on one monitor and video editing or document sharing on another. Because Thunderbolt 4 supports minimum PCIe (PCI Express) data rates of 32 Gbps (twice that of Thunderbolt 3), transferring large RAW video, Photoshop images or CAD files takes hardly any time at all.
Transmits Crystal-Clear 8K and 4K Video for Professional Editing and Digital Signage

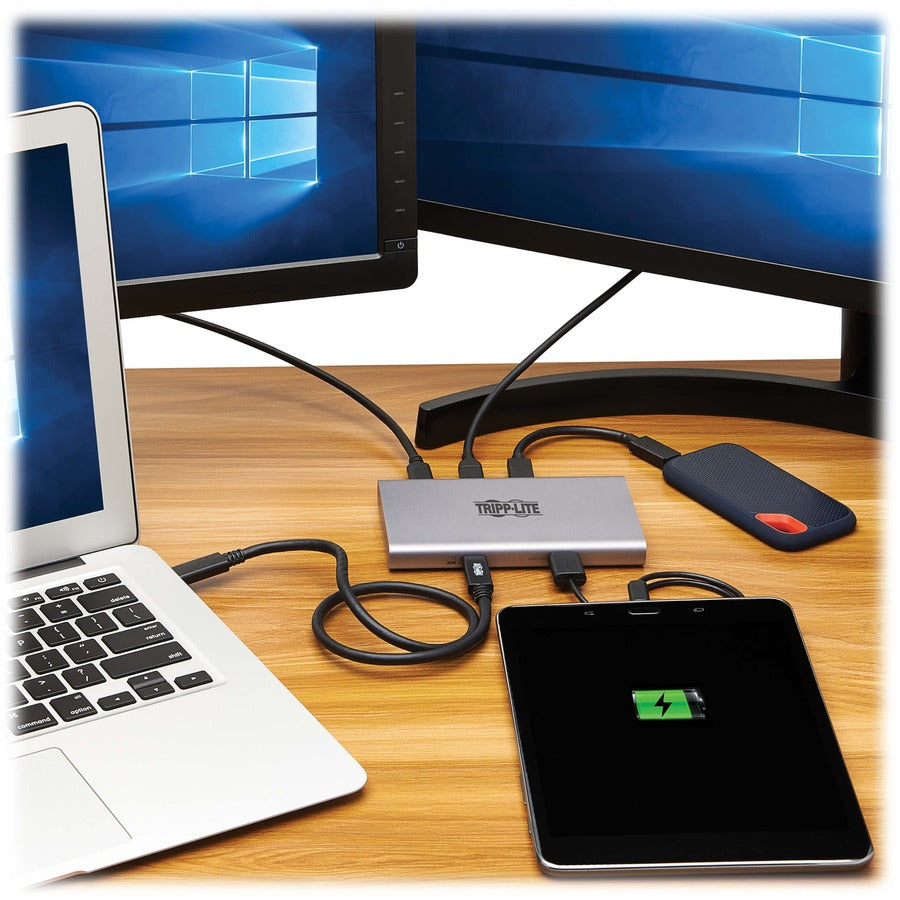

When connected to a Thunderbolt 4 source, the hub supports one 8K monitor (7680 x 4320 at 30 Hz) or two 4K monitors (3840 x 2160 at 60 Hz). With dual monitors, you can display the same image on both, extend your host desktop across them, or combine all screens into one large display as a video wall. The Thunderbolt 4 ports also accept Thunderbolt 3 and USB-C monitors for trade shows and video presentations. Note: Source device must support DisplayPort 1.3 to achieve 8K resolution.
Cascade up to 6 Thunderbolt Devices at Once
The hub's three Thunderbolt 4 ports let you connect three devices directly and cascade another three for six connected devices in total. Add 4K and 8K displays, hard drives, RAID memory, SD card readers, audio speakers and even additional docks and hubs to your original source device. The hub's 40 Gbps data speed is shared among all ports and connected peripherals and displays.

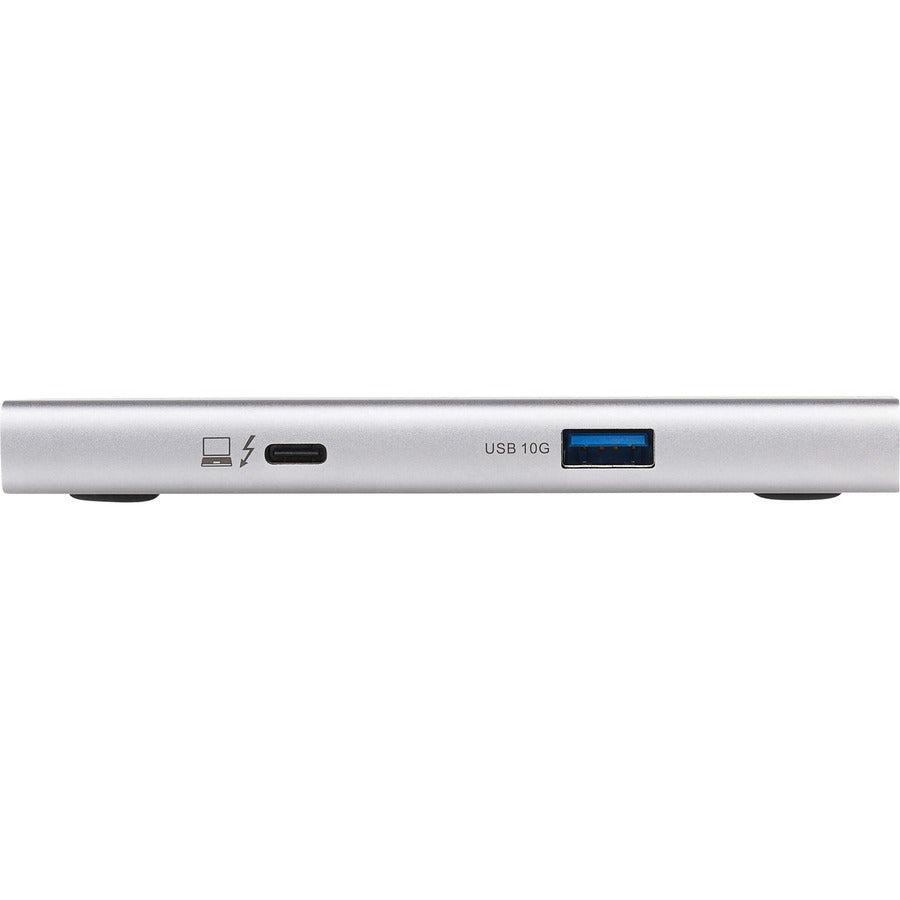

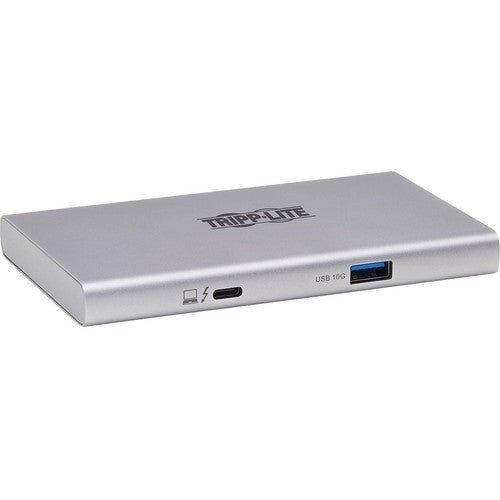

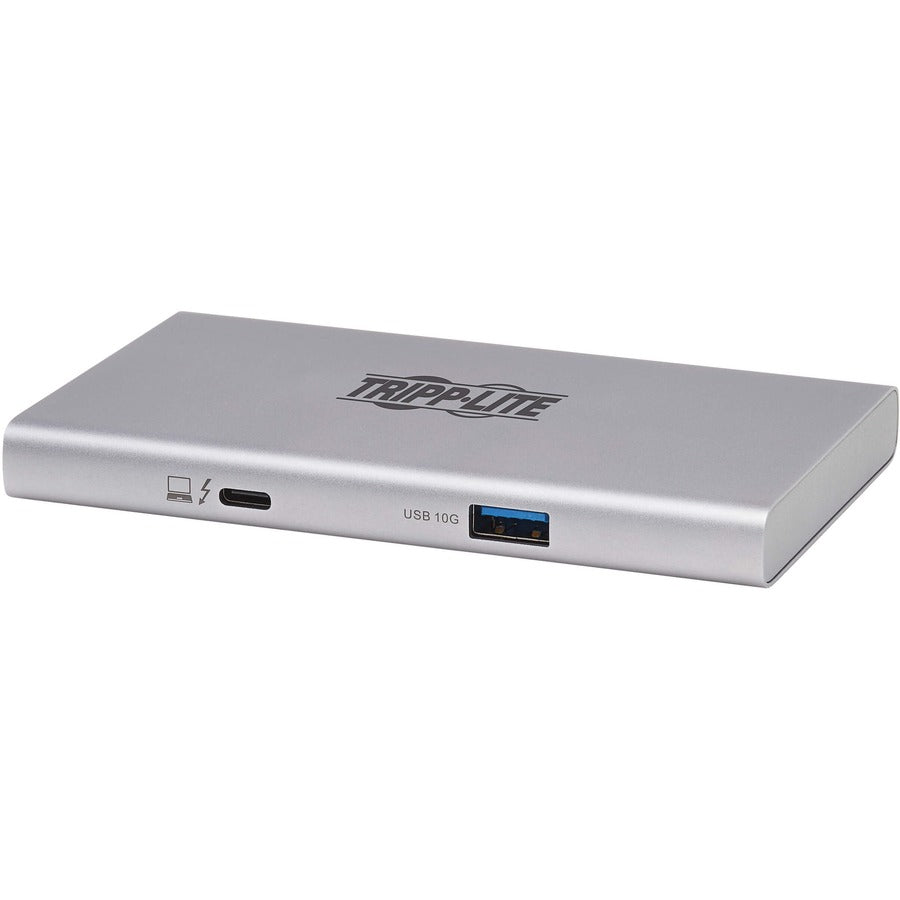

USB Port Connects Thumb Drives and Other USB Peripherals
The USB-A hub port supports USB 3.2 Gen 2 speeds up to 10 Gbps, which is twice as fast as USB 3.2 Gen 1. It accepts high-speed USB peripherals, such as external hard drives, giving you access to essential data storage. It also supports downstream charging of mobile devices up to 900mA (0.9A) and is backward compatible with previous USB generations.
- USB Hub plug-in with Thunderbolt 4 host interface
- Offers additional 3 USB ports to the existing USB systems

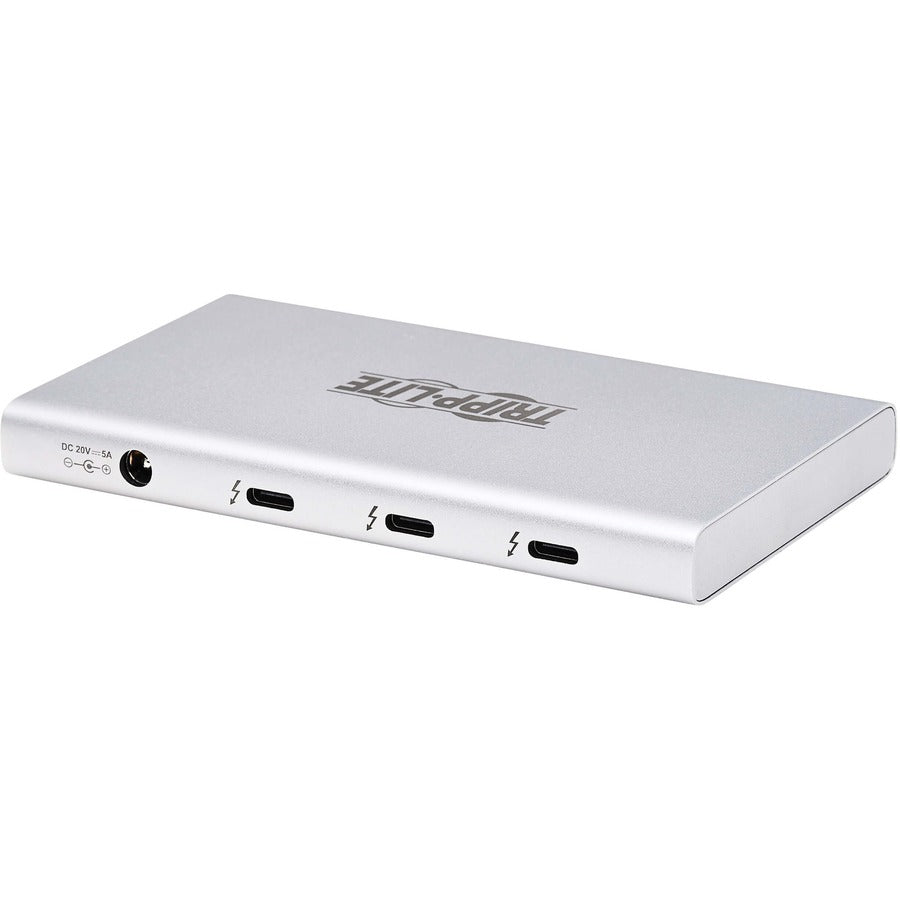

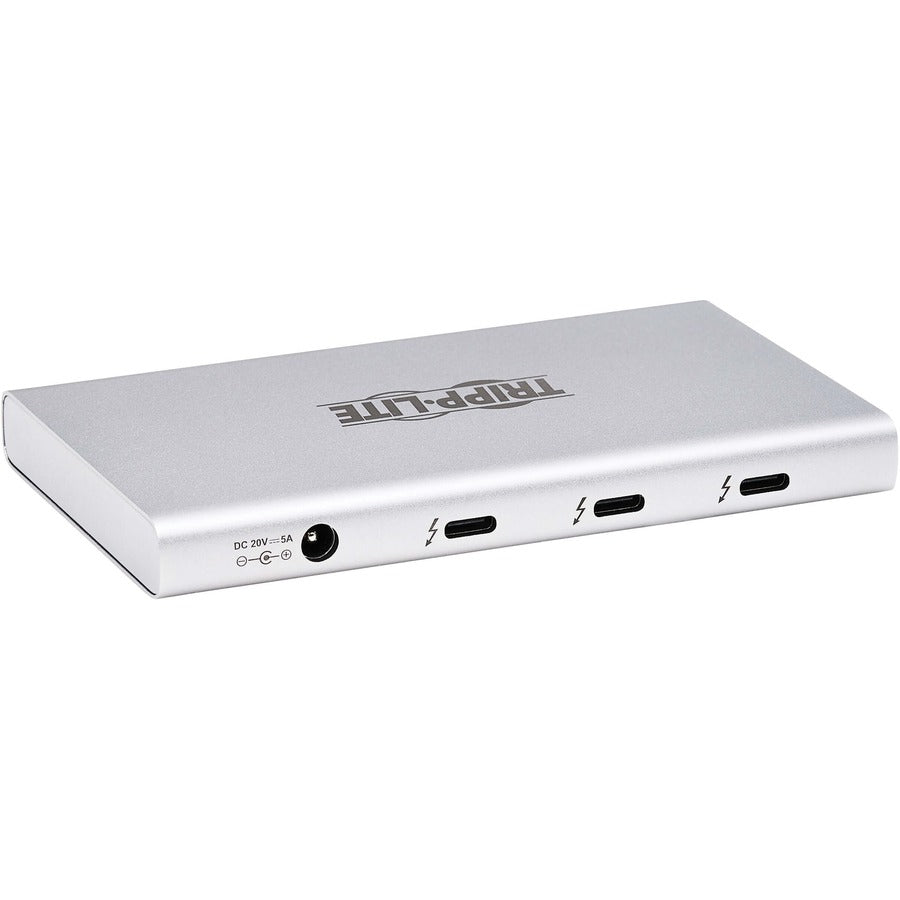

- Number of Thunderbolt Ports : 3
- Environmentally Friendly : Yes
- Product Color : Gray
- Total Number of USB Ports : 3
- Limited Warranty : 1 Year
- Form Factor : External

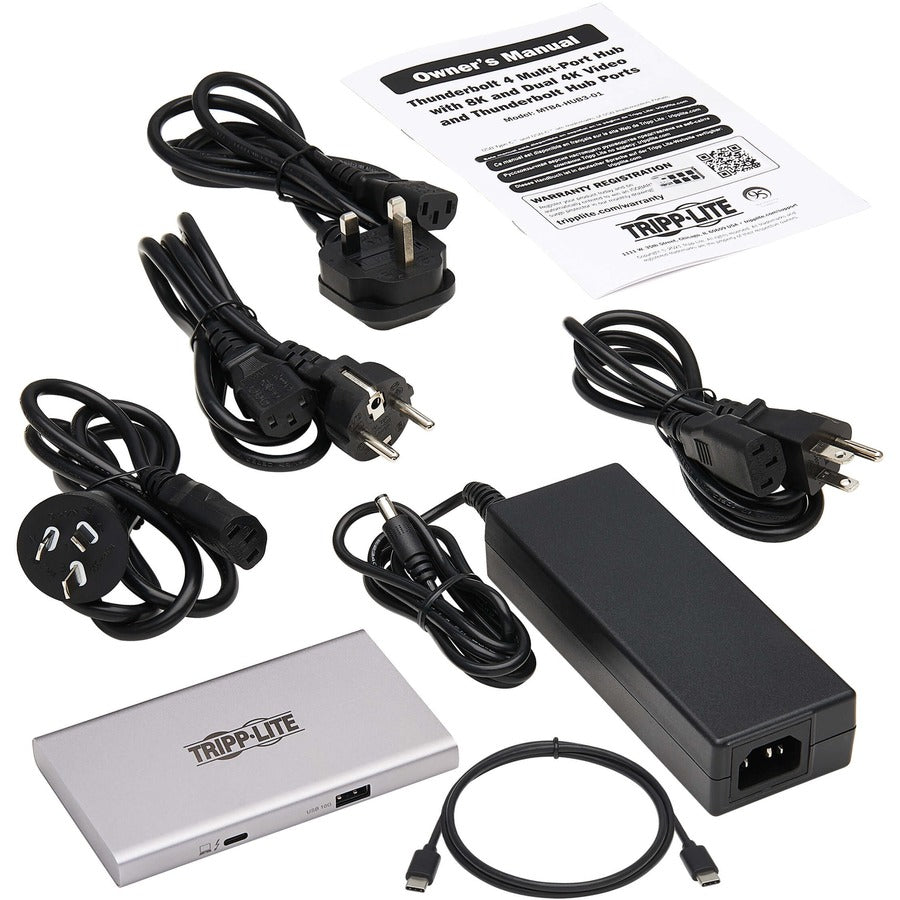

- Package Contents :
- MTB4-HUB3-01 4-Port Thunderbolt 4 Hub

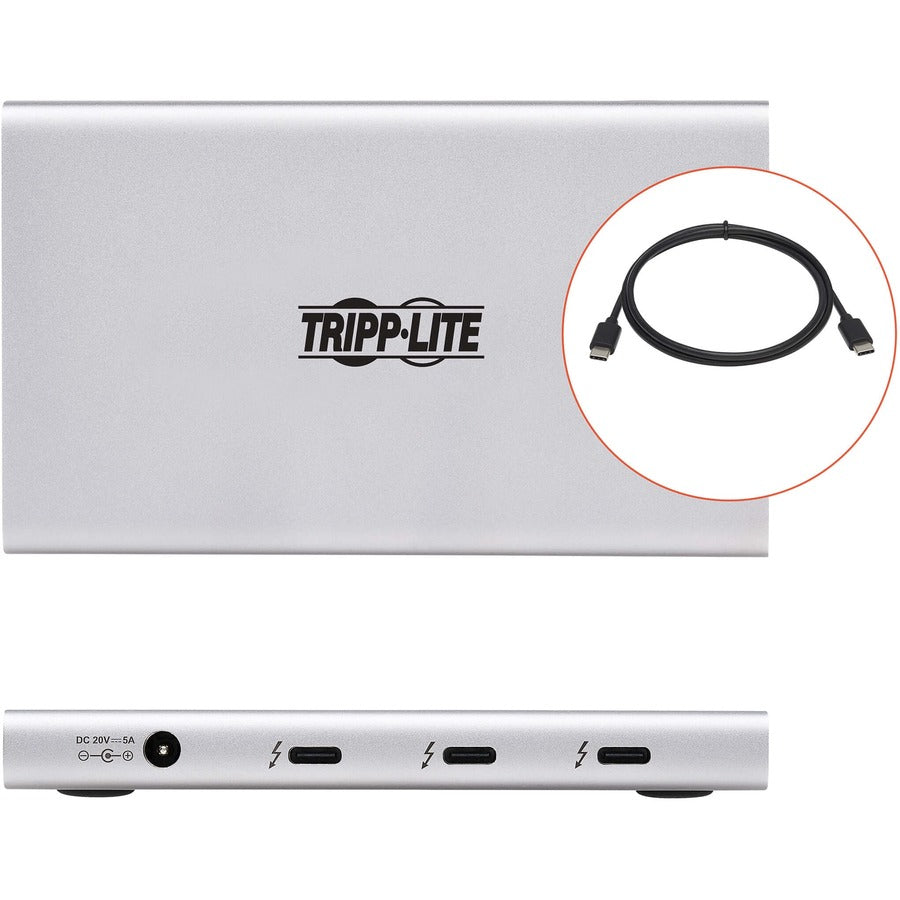

- Thunderbolt 4 Passive Cable (M/M), 2.6 ft. (0.8 m)
- External Power Supply (Input: 100-240V, 50/60 Hz, 1.5A; Output: 20V 5A)
- 4 x International Plug Adapters (North America, U.K., Europe, Australia)
- Owner's Manual
- Host Interface : Thunderbolt 4
- Product Type : USB Hub
- Manufacturer : Tripp Lite by Eaton
- Number of USB 3.2 Ports : 1
- Product Model : MTB4-HUB3-01
- Country of Origin : China
- Platform Supported : Windows,ChromeOS,Mac,iPadOS,PC
- Manufacturer Website Address : https://tripplite.eaton.com/
- Color Family : Gray
