Description

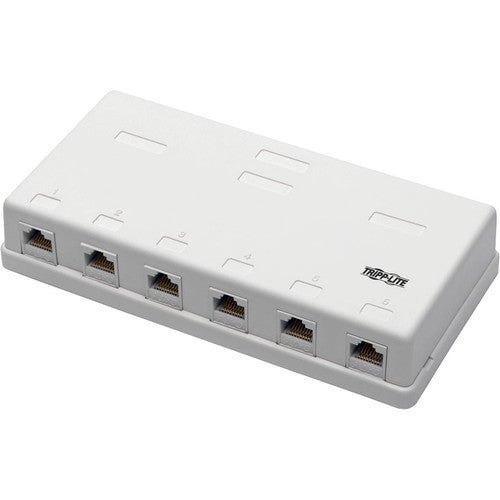

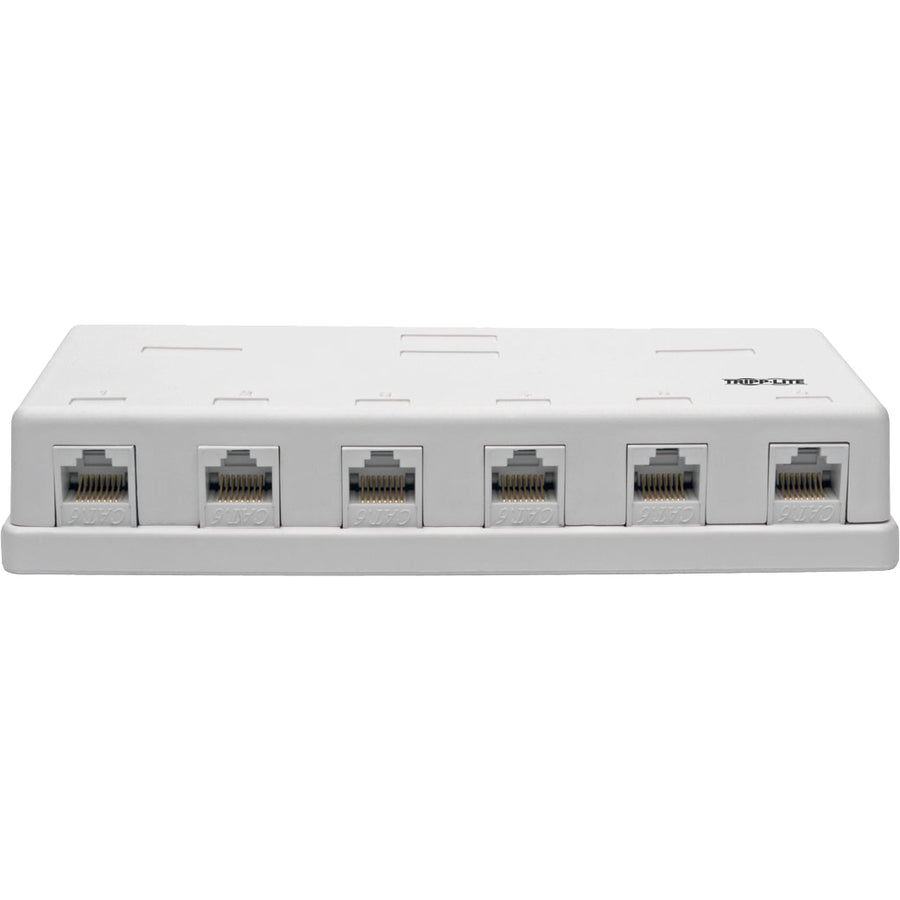

The N236-006-WH Pre-Configured Unshielded Cat6 6-Port Surface-Mount Box features six RJ45 female connectors as a safe, easy, cost-effective tool for expanding your Cat5e/6 audio/video, voice or Ethernet network. The ABS UL 94V-0 flame-retardant housing mounts practically anywhere, including a wall or baseboard, using the included mounting screws or double-sided adhesive tape.

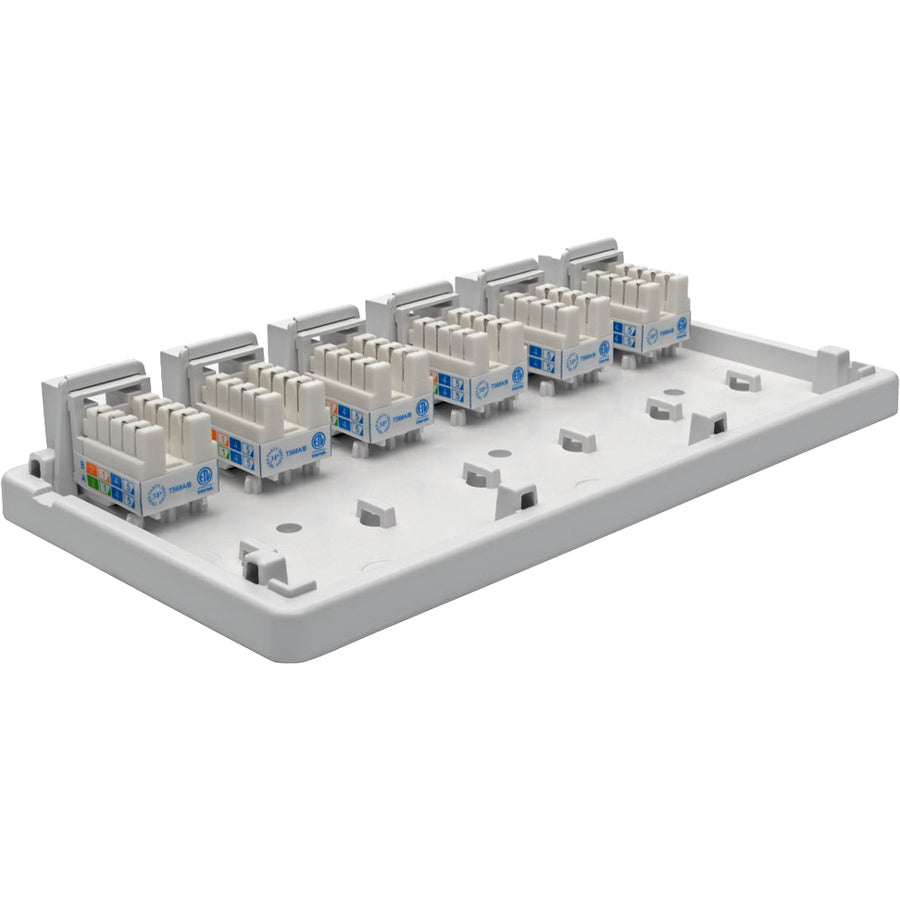

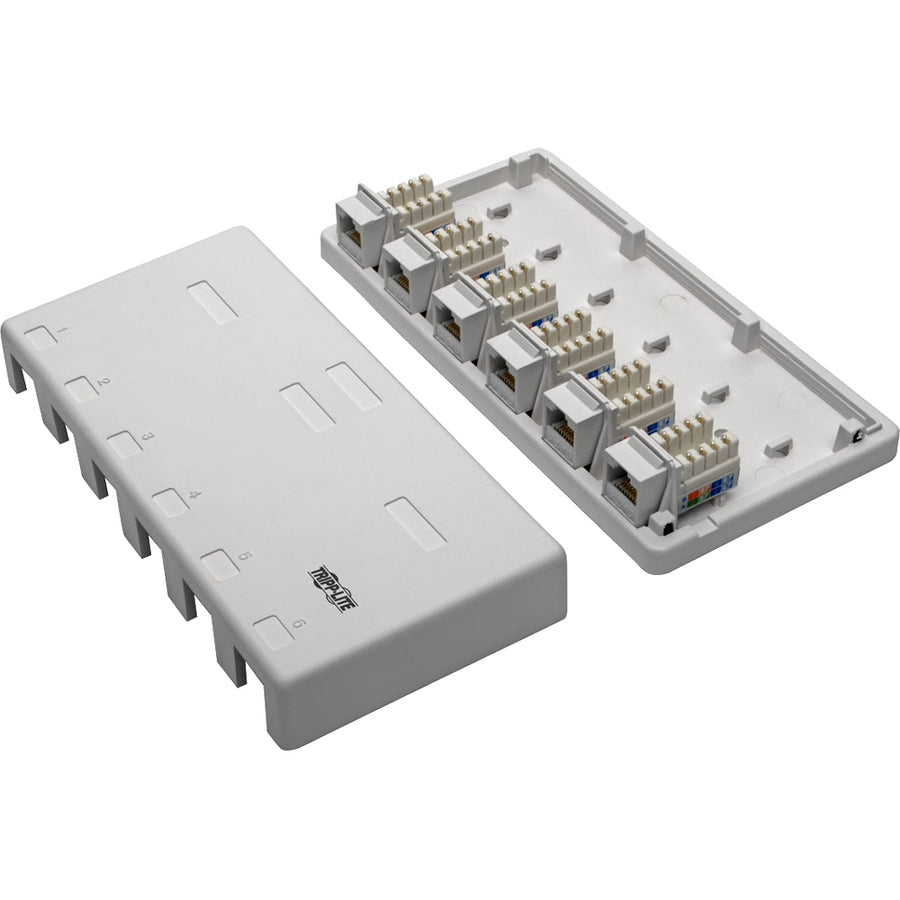

Just snap open the top cover to terminate up to six 22-26 AWG Cat5e/6 copper cables using a standard 110 IDC punchdown tool (such as Tripp Lite's N046-000). The termination blocks are color-coded for easy T568A or T568B wiring. Zip ties are included for neatly securing the cables to the Cat6 surface-mount box, which features rear routing slots to allow the box to be installed flush against a wall or ceiling.

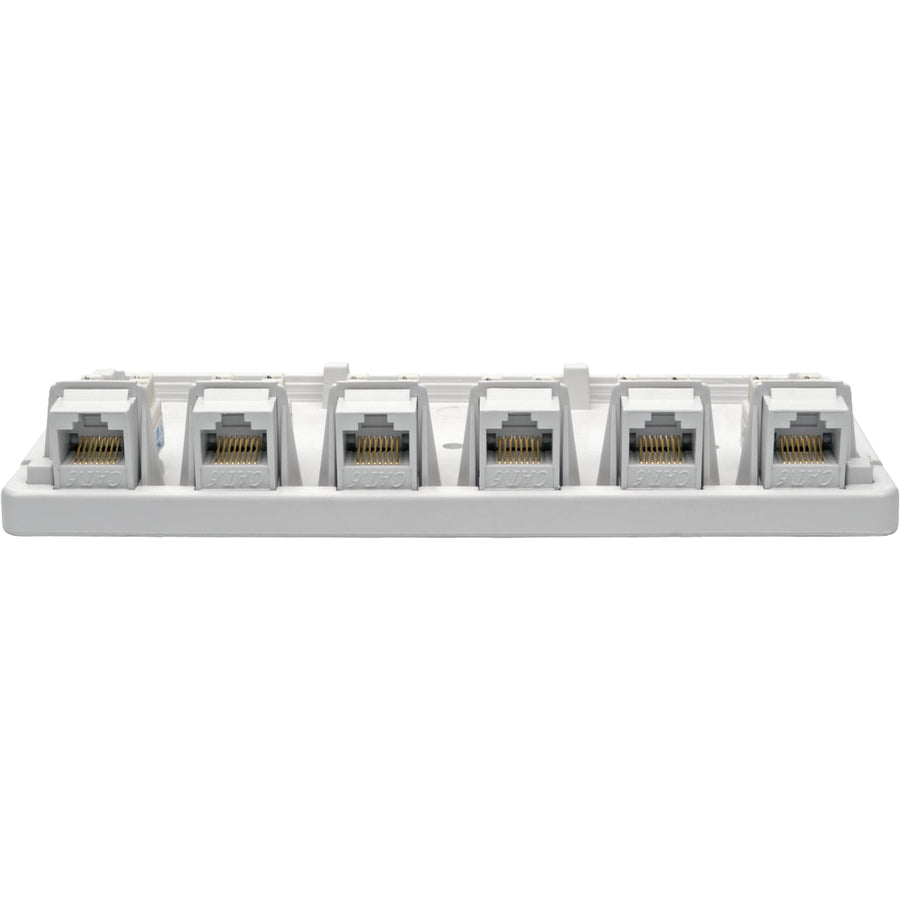

Snap the cover back on, and connect up to six Cat5e/6 cables to the pre-installed RJ45 keystone jacks with 50-micron gold-plated contacts for maximum conductivity and minimum data loss. The N236-006-WH offers great flexibility in placement, especially in applications where in-wall box and wire installation is impossible.
- Product Material : Acrylonitrile Butadiene Styrene (ABS)

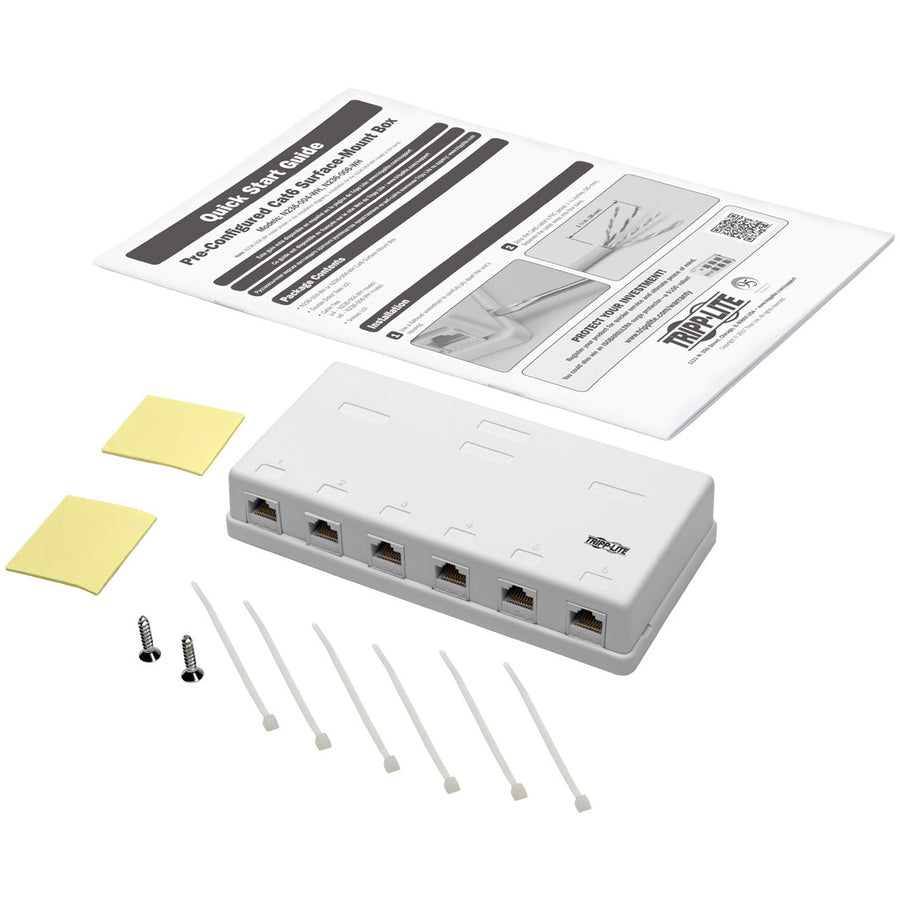

- Package Contents :
- N236-006-WH Mounting Box
- 2 x Double-sided Tape
- 6 x Cable Ties
- 2 x Mounting Screws
- Quick Start Guide
- Environmentally Friendly : Yes
- Product Type : Mounting Box
- Product Color : White
- Application/Usage : Wall
- Manufacturer : Tripp Lite by Eaton
- Product Model : N236-006-WH
- Limited Warranty : 3 Year
- Country of Origin : China
- Manufacturer Website Address : https://tripplite.eaton.com/
- Color Family : White
