Description
QSFP-DD Cable Connects High-Density Network Equipment at Speeds Up to 400 Gbps

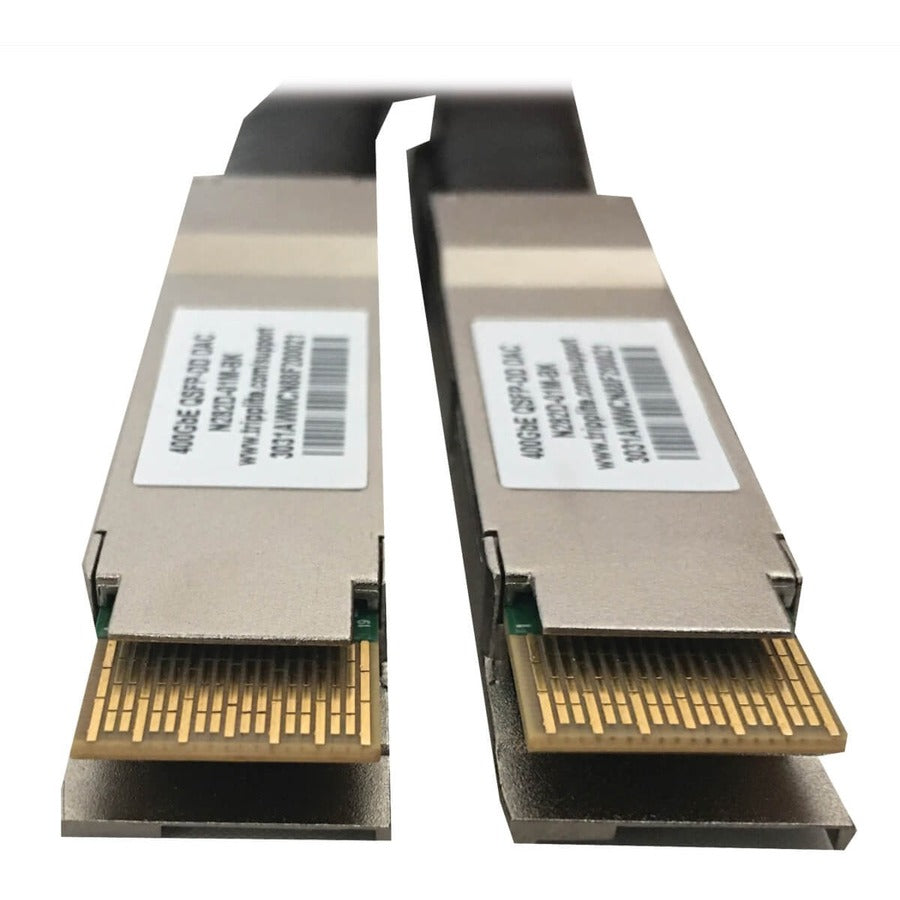

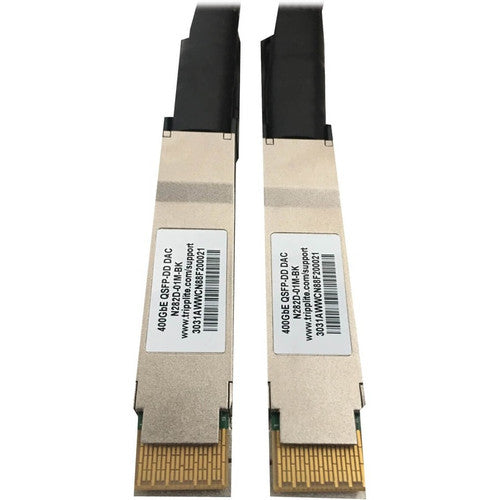

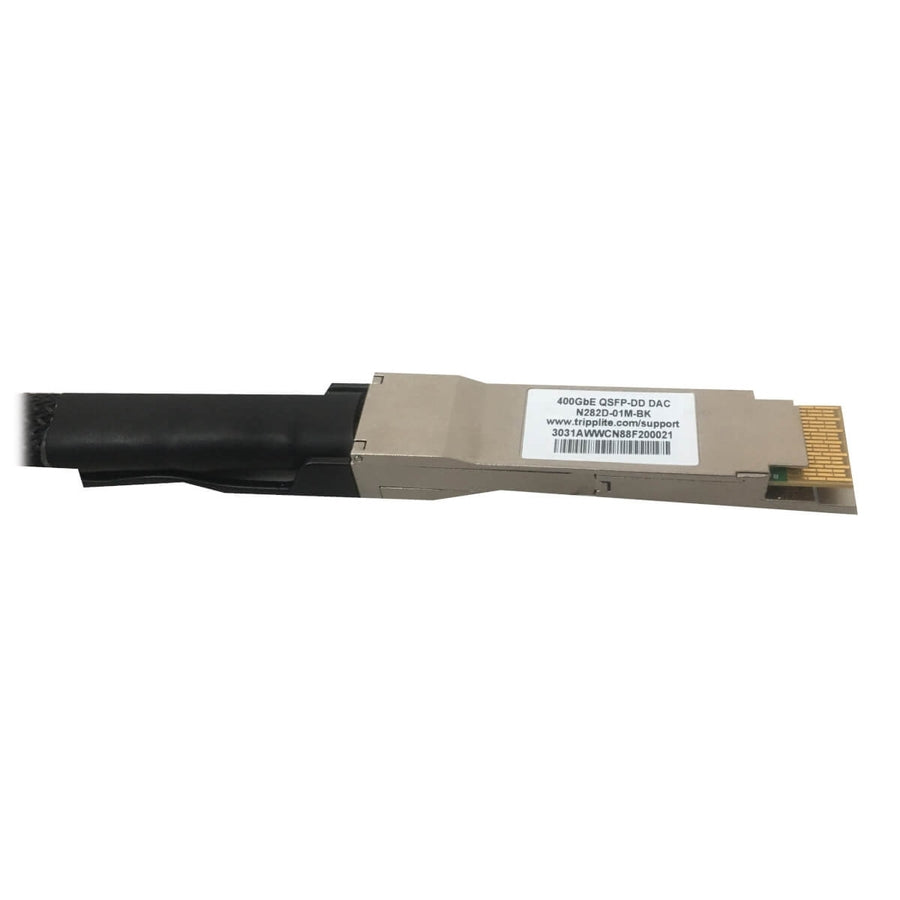

Tripp Lite's N282D-01M-BK provides next-generation performance by combining eight 50 Gb SFP channels into one high-density cable. It's a direct-attach solution ideal for connecting newer switches and other active network devices over short distances in data centers, high-end servers, telco rooms and enterprise wiring closets.
This passive copper cable integrates a 400G Ethernet-optimized (400 GbE) 38-position "board as connector" design. Zinc die-cast QSFP-DD connectors on both ends offer superior EMI resistance, minimal insertion loss and low crosstalk for top performance. Ergonomic push/pull tabs make the cable easy to install or remove with one hand. Eight-pair wire technology is optimized for bandwidth-intense applications, such as 128G Fibre Channel and EDR 4x InfiniBand. Flexible 30 AWG conductors maintain a smooth high-frequency response.
The N282D-01M-BK undergoes a rigorous assembly and testing procedure aimed at eliminating unnecessary signal loss. It's fully compliant with the MSA (Multi-Source Agreement) SFF-8665 architecture for guaranteed compatibility with all QSFP-DD ports, as well as RoHS, REACH and IEEE 802.3cd. It is also backward compatible with 40 Gb and 100 Gb networks, so you can future-proof your current application for an eventual upgrade to 400 Gb.
Key features
- Twinaxial cable type - for places where up to 10 meters coverage with high-speed data transfer is required
- Features Passive
- Best-in-Class Construction Optimized for Applications That Use Much Bandwidth
- Fully Compliant and Compatible with a Wide Range of Applications
Specifications
- Data Transfer Rate: 400 Gbit/s
- Cable Type: Twinaxial
- Connector on First End Details: 1 x QSFP-DD Network - Male
- Environmentally Friendly: Yes
- Jacket Material: Polyvinyl Chloride (PVC)
- Product Color: Black/Silver
- Device Supported: Network Device,Network Switch,Transceiver,Server
- Limited Warranty: Lifetime
- Connector on Second End Details: 1 x QSFP-DD Network - Male
- Product Material: Copper
- Connector Type on First End: QSFP-DD Network - Male
- Connector Type on Second End: QSFP-DD Network - Male
- Product Type: Network Cable
- Manufacturer: Tripp Lite by Eaton
- Product Model: N282D-01M-BK
- Cable Length: 3.3 ft
- Features: Passive,EMI Protection,Crosstalk Protection,Flexible
- Country of Origin: China
- American Wire Gauge: 30 AWG
- Color Family: Multicolor
