Description

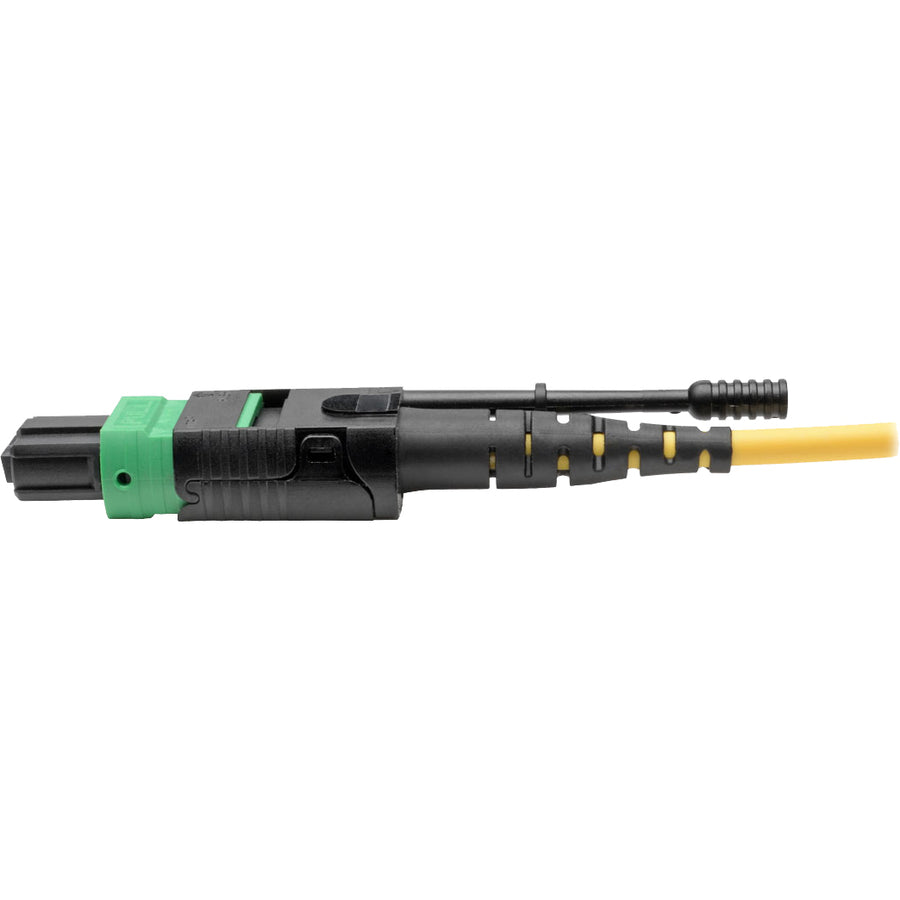

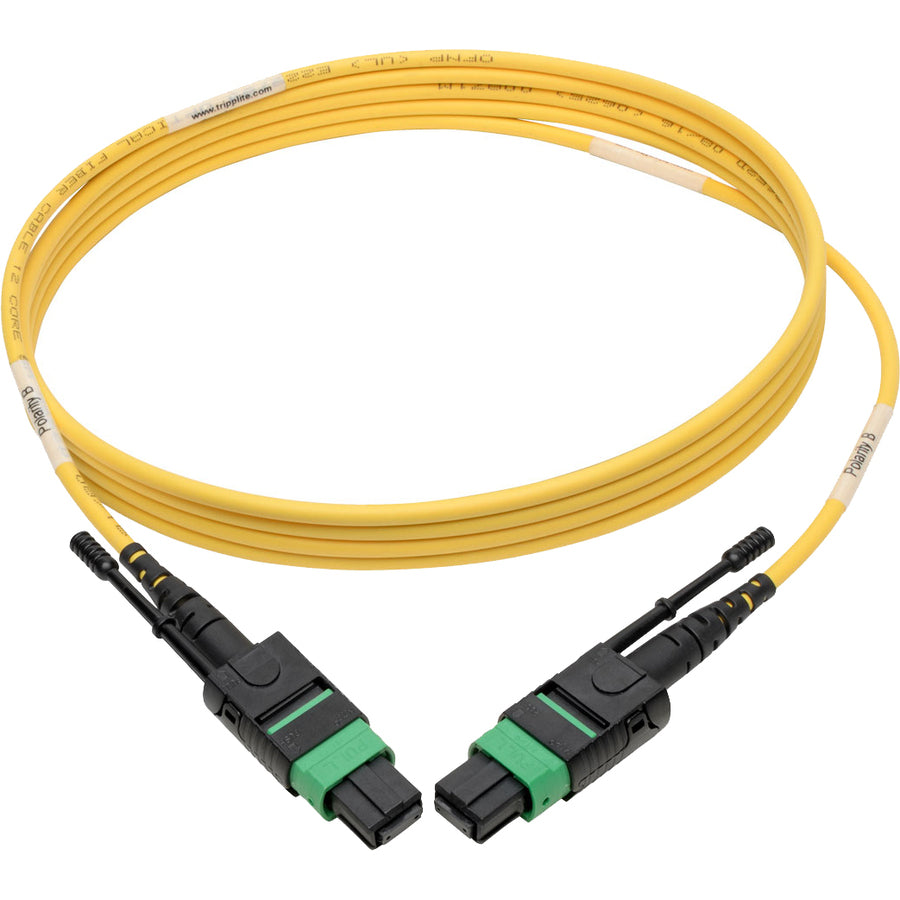

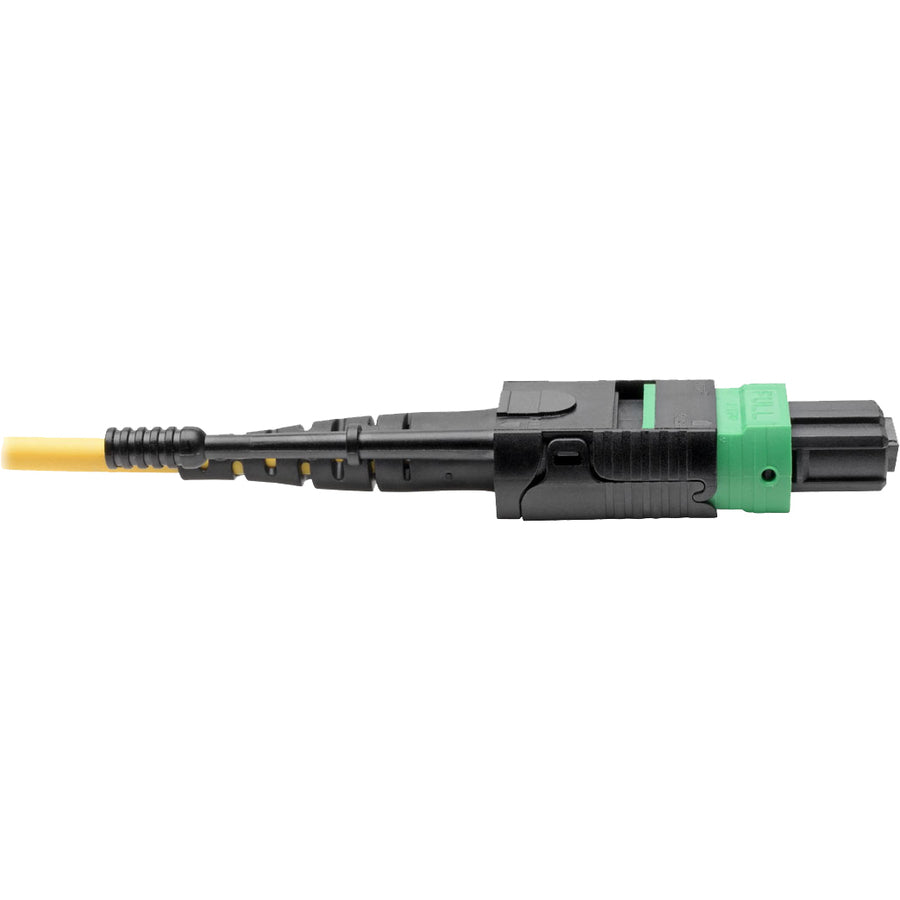

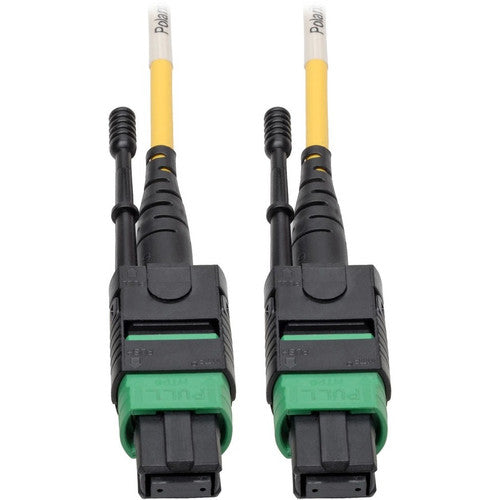

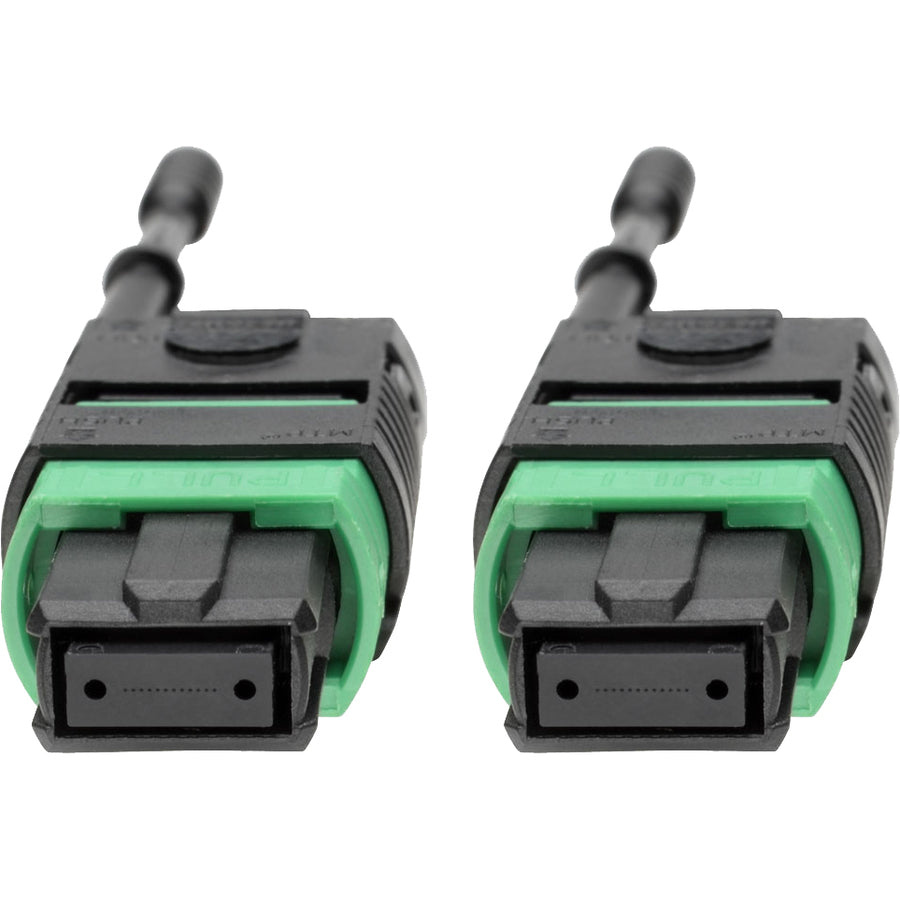

The N390-01M-12-AP MTP/MPO Singlemode Patch Cable (F/F) supports 40/100 Gb Ethernet speeds and is designed for QSFP+ applications in enterprise installations in wiring closets, telecom rooms and data centers. With two female MTP/MPO connectors, this singlemode fiber optic cable with plenum-rated jacket is recommended for connecting switches, hubs, routers and other high-speed network components in ceilings, walls and ducts.
The 12-fiber MTP/MPO connectors are about the same size as SC connectors, but are 12 times denser, freeing up rack space for other cables. The APC connectors are angled to prevent infrared light entering the fiber from bouncing back into the laser. The N390-01M-12-AP is tested for low insertion loss and back reflection on every connector and attenuation loss that meets or exceeds current standards.
The N390-01M-12-AP is colored yellow for instant identification in a crowded switch or patch panel as a singlemode cable. Push/pull tab connectors are easily accessible in high-density data center environments and make the plug-and-play cable easy to install and remove with one hand.
The 12-fiber MTP/MPO connectors are about the same size as SC connectors, but are 12 times denser, freeing up rack space for other cables. The APC connectors are angled to prevent infrared light entering the fiber from bouncing back into the laser. The N390-01M-12-AP is tested for low insertion loss and back reflection on every connector and attenuation loss that meets or exceeds current standards.
The N390-01M-12-AP is colored yellow for instant identification in a crowded switch or patch panel as a singlemode cable. Push/pull tab connectors are easily accessible in high-density data center environments and make the plug-and-play cable easy to install and remove with one hand.
- Experience a simpler way to connect devices with the entire business network
- Features Fiber Optic cable type
- Features Angled Connector
- Fully compatible with network devices
- Data Transfer Rate : 100 Gbit/s
- Cable Type : Fiber Optic
- Connector on First End Details : 1 x MTP/MPO Network - Female
- Environmentally Friendly : Yes
- Product Color : Yellow
- Device Supported : Network Device,Switch,Hub,Router,Patch Panel
- Limited Warranty : Lifetime
- Connector on Second End Details : 1 x MTP/MPO Network - Female
- Connector Type on First End : MTP/MPO Network - Female
- Connector Type on Second End : MTP/MPO Network - Female
- Product Type : Network Cable
- Manufacturer : Tripp Lite by Eaton
- Product Model : N390-01M-12-AP
- Cable Length : 3.3 ft
- Features : Angled Connector
- Core/Cladding Diameter : 8.3/125 µm
- Cable Characteristic : Patch Cable
- Country of Origin : China
- Fiber Optic Mode : Single-mode
- Manufacturer Website Address : https://tripplite.eaton.com/
- Color Family : Yellow
