Description
40/100 GbE Cable Supports Higher Bandwidths Needed for High-Density Data Networking
As the amount of traffic in data networks grows, so does the need for devices and fiber cables to support higher bandwidths for high-density patching between data center MDFs and IDFs in enterprise installations. This singlemode 9/125 OS2 cable is an ideal choice for 100G Ethernet applications up to 100 meters (328 feet) at 1550 nm. It is also backward compatible with 10 Gb and 25 Gb networks, so you can future-proof your current application for an eventual upgrade to 100 Gb.
100% Tested for Low Insertion Loss and Back Reflection

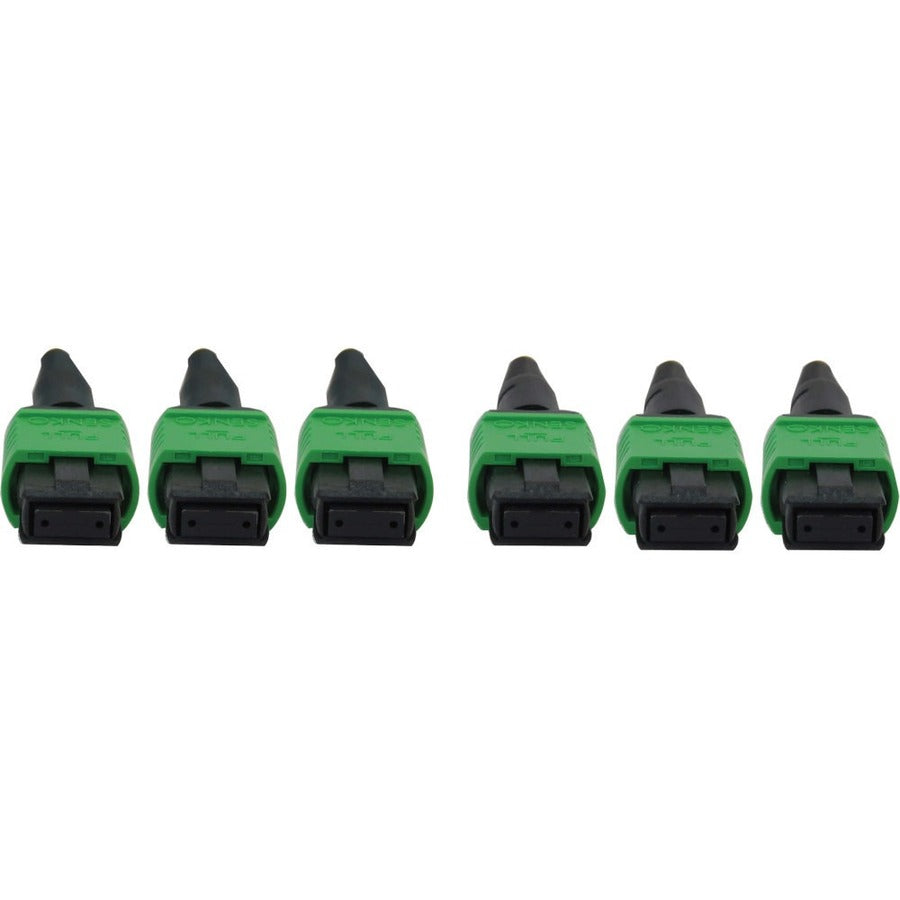

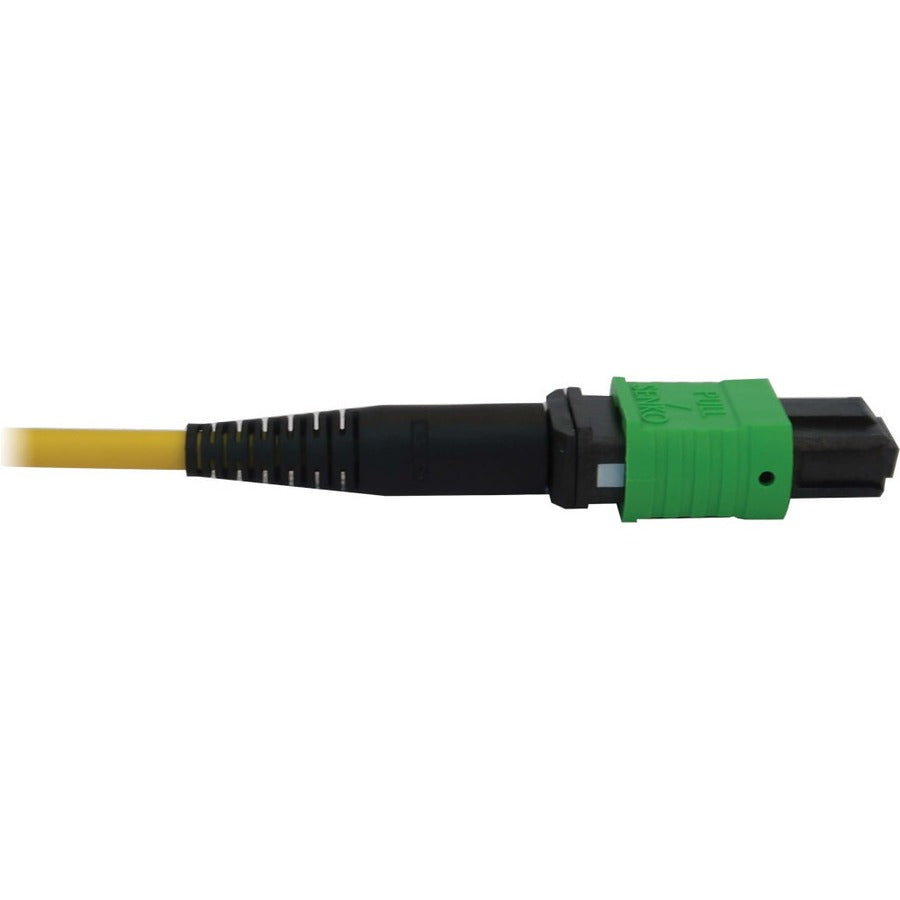

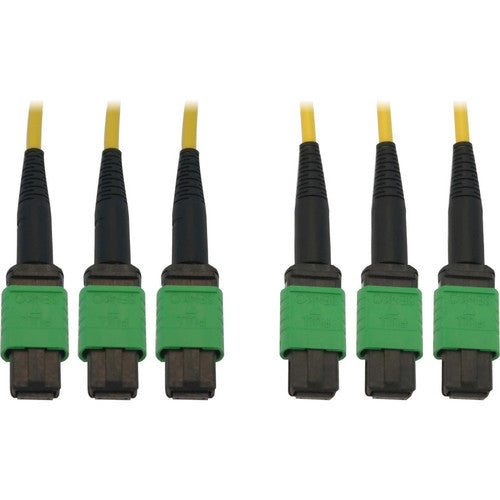

The factory-terminated 8-fiber MTP/MPO APC connectors help minimize back reflection with low insertion loss. The connector's slim boot and green housing allow easy one-handed installation and removal of the cable.
Yellow Jacket Helps Avoid Misidentification That Can Cause Costly Downtime
The OS2-rated cable has a yellow jacket to identify it as singlemode in a crowded patch panel or switch and prevent it from becoming accidentally disconnected. The round low-smoke zero-halogen (LSZH) jacket limits the amount of toxic smoke emitted in case of combustion, making it suitable for poorly ventilated areas.
- For exceptional quality, upright compatibility and reliability use this Network Cable
- Features Fiber Optic cable type
- Features Bendable
- Fully compatible with network devices
- Data Transfer Rate : 400 Gbit/s
- Cable Type : Fiber Optic
- Connector on First End Details : 3 x MTP/MPO Network - Female
- Environmentally Friendly : Yes
- Device Supported : Switch,Patch Panel,Network Device
- Limited Warranty : Lifetime
- Connector on Second End Details : 3 x MTP/MPO Network - Female
- Connector Type on First End : MTP/MPO Network - Female
- Connector Type on Second End : MTP/MPO Network - Female
- Connector Color : Black,Green
- Product Type : Network Cable
- Manufacturer : Tripp Lite by Eaton
- Product Model : N392B-30M-3X8AP
- Cable Length : 98.4 ft
- Jacket Type : LSZH
- Features : Bendable,Stranded,Angled Physical Contact (APC),Push-Pull Tab
- Jacket Color : Yellow
- Core/Cladding Diameter : 9/125 µm
- Cable Characteristic : Trunk Cable
- Country of Origin : China
- Fiber Optic Mode : Single-mode
- Boot Type : Slim
- Manufacturer Website Address : https://tripplite.eaton.com/
