Description
1U network panel replaces a standard MTP/MPO-to-LC cross-connect with MTP/MPO Elite ports to eliminate rack clutter.
1U Spine-Leaf Panel Simplifies Your Rack Connections and Helps You Keep Costs Down
This network patch panel is designed for spine-and-leaf architecture, which replaces a standard MTP/MPO-to-LC cross-connect with MTP/MPO ports and helps eliminate significant rack clutter. This data center network technology provides high-bandwidth, low-latency, non-blocking server-to-server connectivity, which saves you money, simplifies your rack cabling and improves network performance.
All-in-One Solution Consists of 2 Switch Layers: Spine and Leaf
The groundbreaking N48LSM-16X16 contains a complete spine-and-leaf mesh topology, resulting in less labor, less troubleshooting and fewer errors. It features spine ports in the front that mate with a spine switch, as well as leaf ports in the rear that mate with a leaf switch. No LC-to-LC patching, double cassette or user cable shuffling is required with spine-and-leaf architecture, which improves link performance.
Easy to Mount in Just 1U of Rack Space

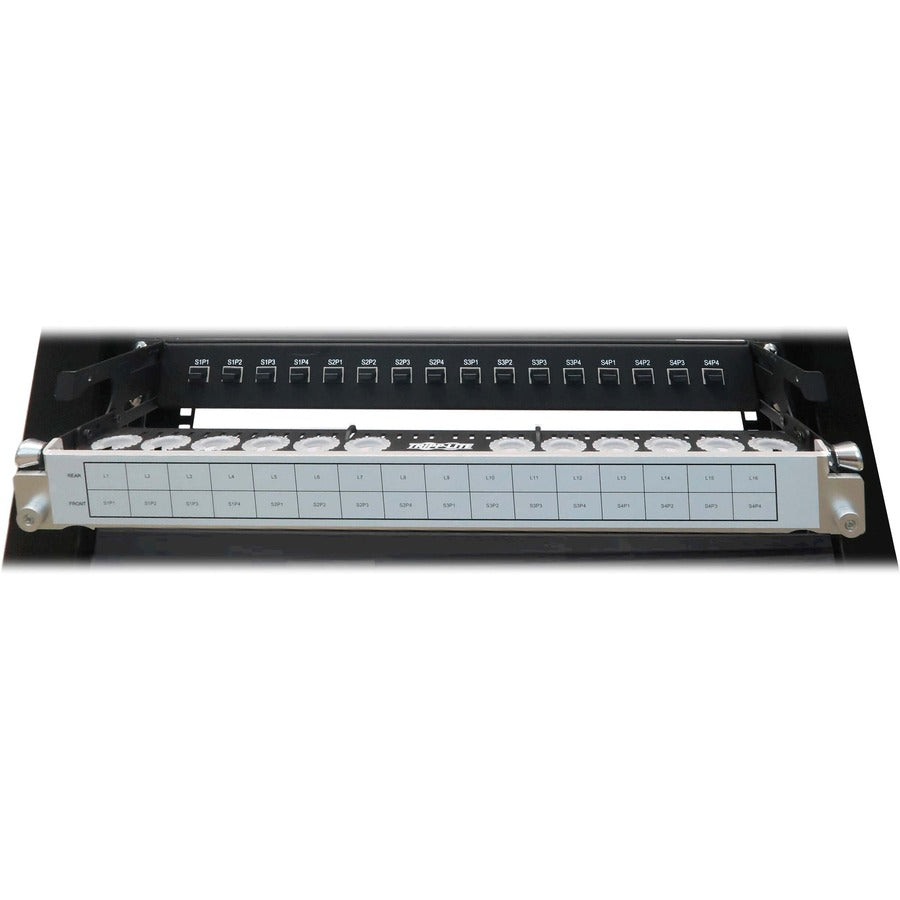

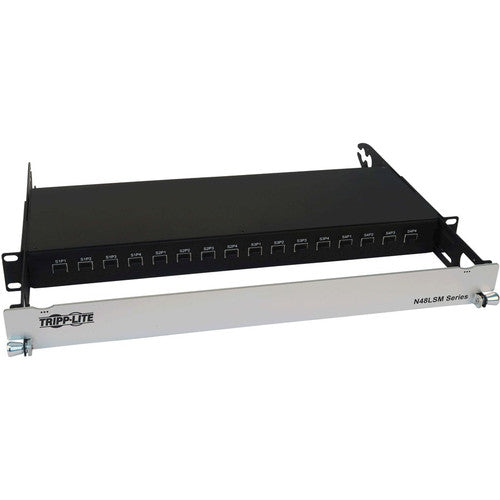

This aluminum panel with key-up to key-up MTP/MPO adapter features 32 12-fiber Elite MTP/MPO-PC male ports: 16 front spine ports and 16 rear leaf ports. The N48LSM-16X16 mounts into 1U of space in an EIA-standard 19-inch rack. Cable managers in both front and rear help organize cabling and eliminate unsightly clutter.
- Environmentally Friendly : Yes
- Product Color : Black
- Limited Warranty : Lifetime
- Product Material : Aluminum
- Form Factor : Rack-mountable
- Package Contents :
- N48LSM-16X16 Spine-Leaf MPO Panel, 16 x 16 Ports, 1U
- Owner's Manual
- Compatible Rack Width : 19"
- Total Number of Ports : 32
- Product Type : Network Patch Panel
- Manufacturer : Tripp Lite by Eaton
- Product Model : N48LSM-16X16
- Compatible Rack Unit : 1U
- Country of Origin : China
- Product Line : Spine-Leaf
- Manufacturer Website Address : https://tripplite.eaton.com/
- Color Family : Black
