Description
Features | Extends a Network Connection up to 2 km over ST Multimode Fiber Optic Cable

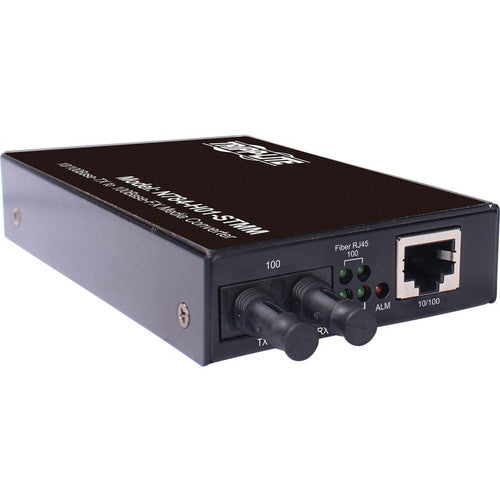

This network media converter converts a copper Ethernet signal to a multimode fiber optic signal and extends it to a second network device up to two kilometers (1.2 miles) away. Because copper Cat5e/6 cables are limited to only 100 meters, it is more effective to couple the N784-H01-STMM with multimode fiber cable to reach hubs, switches and other 10/100Base-TX/FX network devices located farther away. Auto-negotiation and automatic MDI/MDI-X configuration seamlessly connect devices without crossover cabling.
Monitor Your Installation with Link Fault Signaling and Loop Back Functions
Determine the health of your network connection via the Link Fault Signaling (LFS) and Loop Back functions. The LFS LED indicates when a copper or fiber cable has been severed or another cause of disruption in service has occurred. The Local Loop Back (LLB) and Remote Loop Back (RLB) functions ensure copper and fiber cables have been correctly installed. Use the DIP switches to control each function or turn them on or off.
LEDs Indicate Installation Performance and Diagnostic Functions

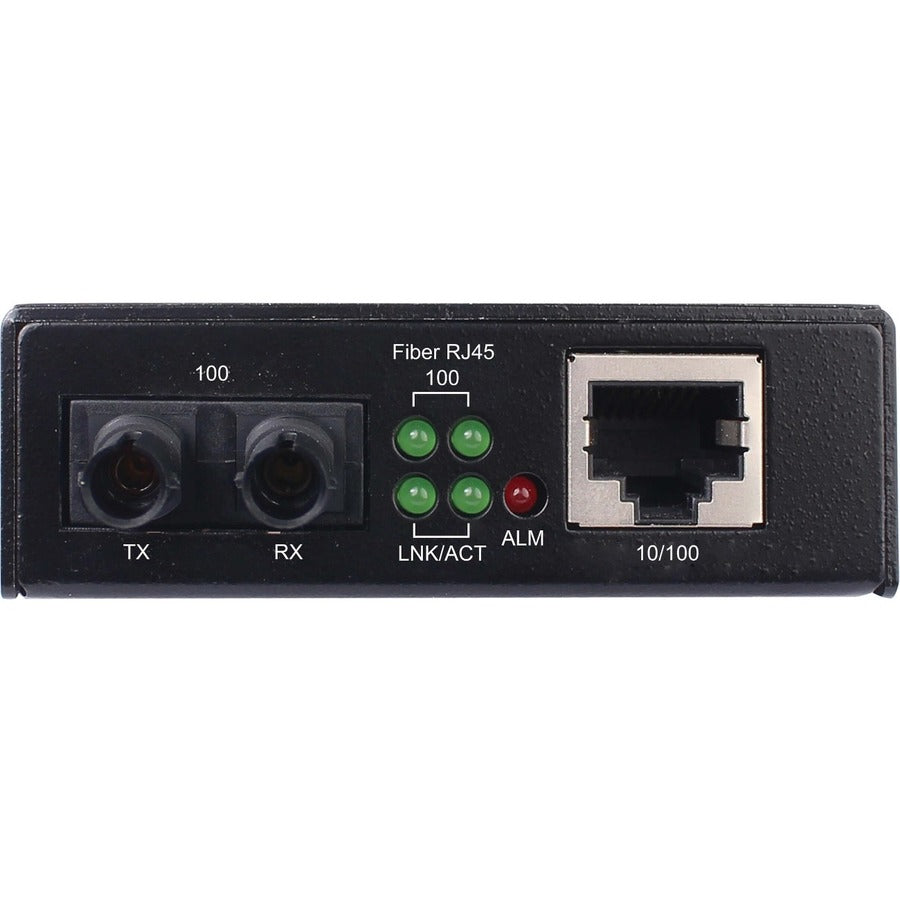

Easy-to-read LEDs on the side of the unit indicate essential status information, including network speed and connection, LFS diagnostics and unit power.
Protective Metal Housing Built to Withstand a Variety of Hazards
The hardened aluminum case is designed to operate in extreme temperatures ranging from -10 to 60 degrees Celsius (14 to 140 degrees Fahrenheit). It is protected from electrostatic discharge (ESD), radio frequency interference (RFI) and power surges. Hardware is included for wall or DIN mounting.
Works in Tandem with Tripp Lite's N785-CH12 Chassis
House and power up to 12 Tripp Lite media converters, including the N784-H01-STMM, using the N785-CH12 12-port chassis (sold separately) to create an organized installation.
TAA-Compliant for GSA Schedule Purchases
The N784-H01-STMM is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
- Expand your network capacity and fulfill requirement with this 2 transceiver/media converter
- With Twisted Pair cable, get the desired data transfer rate up to a required distance
- With 10/100Base-TX technology get up to 100Mbps data transfer rate over twisted pair cable
- The Wall Mountable provides convenient installation
- ST Port Type : Duplex
- Power Source : AC Adapter
- Form Factor : Wall Mountable,DIN Rail Mountable,Desktop
- Package Contents :
- N784-H01-STMM Transceiver/Media Converter
- L-shaped Bracket
- Rubber Foot
- ST Connector Cap
- External Power Supply with NEMA 1-15P Plug (Input: 100-240VAC, 50/60 Hz, 0.5A; Output: 12VDC 1.5A)
- DIN Rail Kit

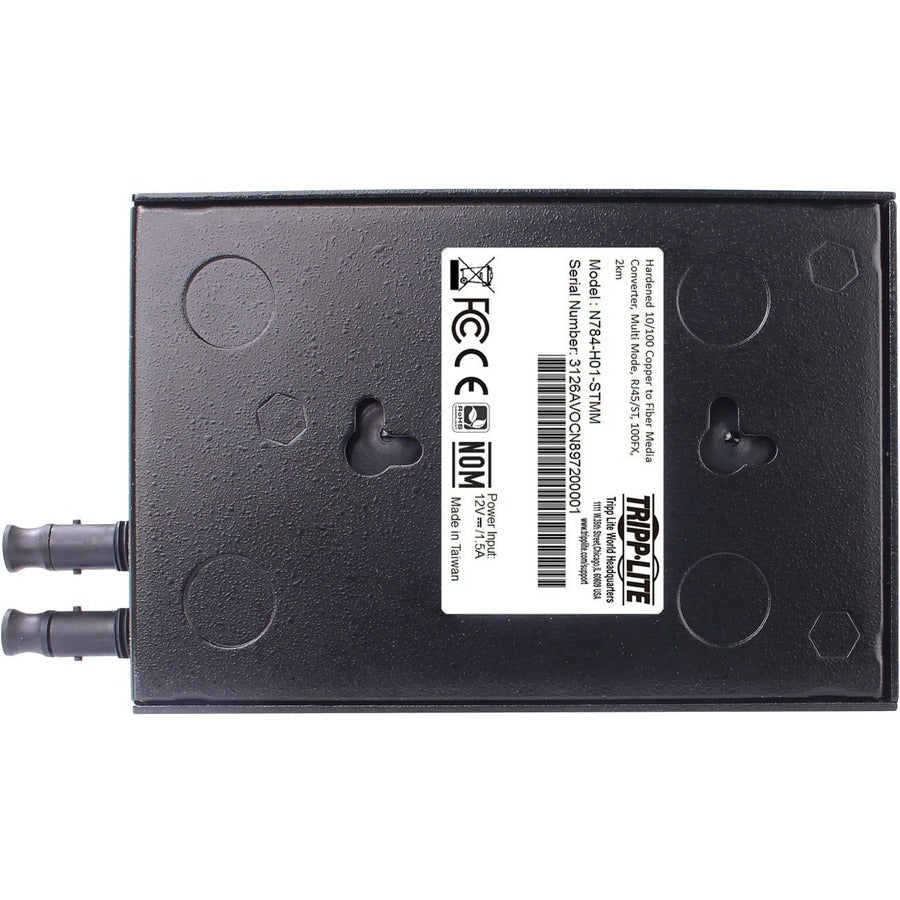

- Wall-mounting Hardware
- Quick Start Guide
- Total Number of Ports : 2
- Manufacturer : Tripp Lite by Eaton
- Product Model : N784-H01-STMM
- Number of ST Ports : 1
- Network Technology : 10/100Base-TX,100Base-FX
- Fiber Optic Wavelength : 1310 nm
- Ethernet Technology : Fast Ethernet
- TAA Compliant : Yes
- Environmentally Friendly : Yes
- Limited Warranty : 2 Year
- Network (RJ-45) : Yes
- Plug/Connector Type : NEMA 1-15P
- Product Type : Transceiver/Media Converter
- Maximum Distance Supported : 1.2 Mile
- Power Consumption : 1.80 W
- Media Type Supported : Twisted Pair,Optical Fiber
- Fiber Mode Supported : Multi-mode
- Country of Origin : Taiwan
- Number of Network (RJ-45) Ports : 1
- Manufacturer Website Address : https://tripplite.eaton.com/
