Description
Features | Extends a Network Connection up to 500 m over SC Multimode Fiber Optic Cable

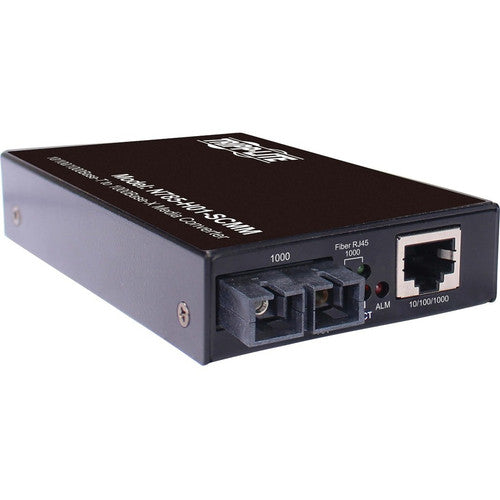

This network media converter converts a copper Gigabit Ethernet signal to a multimode fiber optic signal and extends it to a second network device up to 500 meters (1640 feet) away. Because copper Cat5e/6 cables are limited to only 100 meters, it is more effective to couple the N785-H01-SCMM with multimode fiber cable to reach hubs, switches and other network devices located farther away. Auto-negotiation and automatic MDI/MDI-X configuration seamlessly connect devices without crossover cabling.
Monitor Your Installation with Link Fault Signaling and Loop Back Functions
Determine the health of your network connection via the Link Fault Signaling (LFS) and Loop Back functions. The LFS LED indicates when a copper or fiber cable has been severed or another cause of disruption in service has occurred. The Local Loop Back (LLB) and Remote Loop Back (RLB) functions ensure copper and fiber cables have been correctly installed. Use the DIP switches to control each function or turn them on or off.
LEDs Indicate Installation Performance and Diagnostic Functions

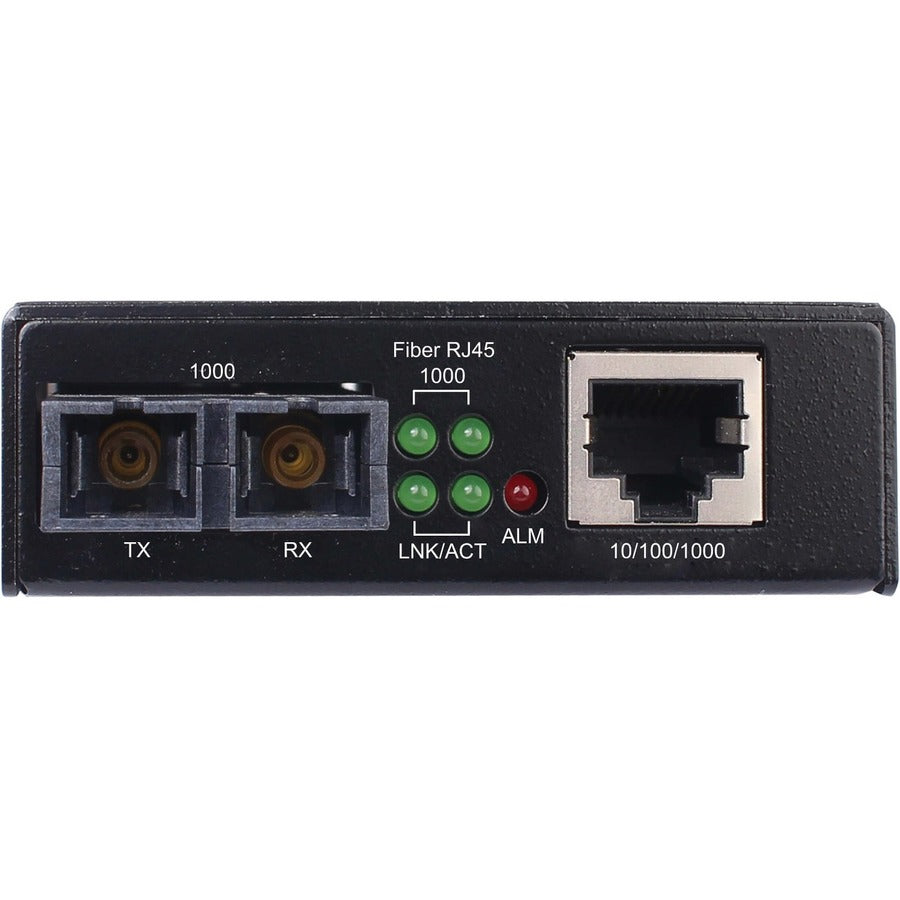

Easy-to-read LEDs on the side of the unit indicate essential status information, including network speed and connection, LFS diagnostics and unit power.
Protective Metal Housing Built to Withstand a Variety of Hazards

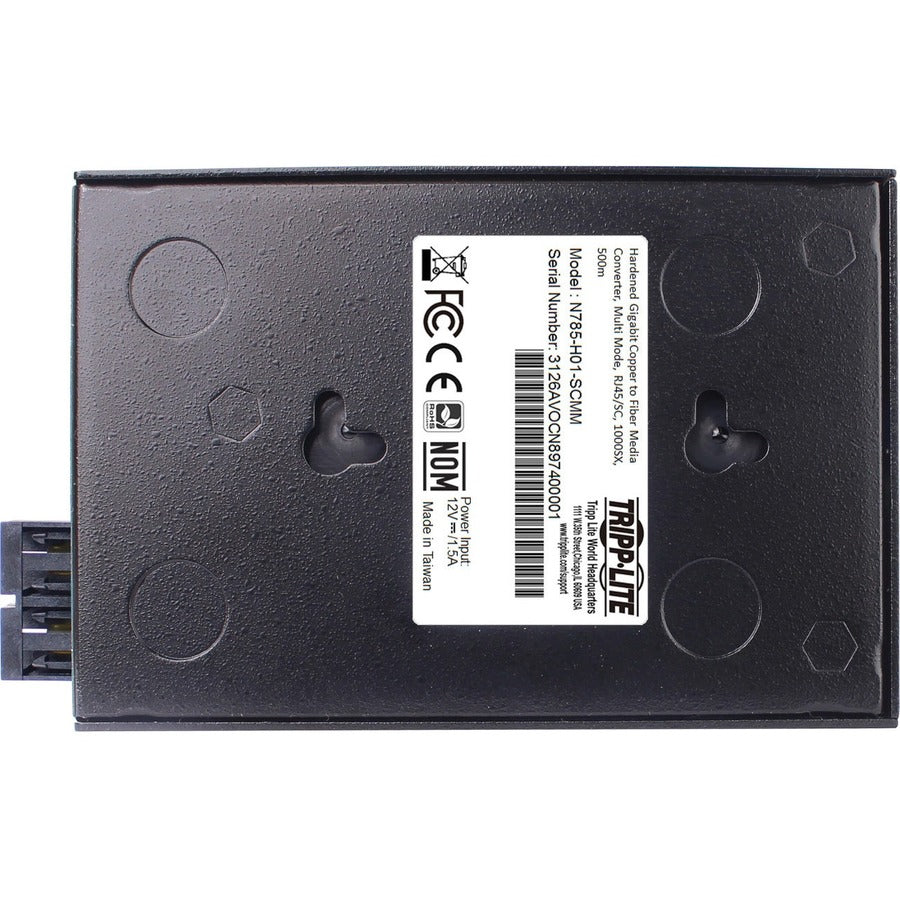

The hardened aluminum case is designed to operate in extreme temperatures ranging from -10 to 60 degrees Celsius (14 to 140 degrees Fahrenheit). It is protected from electrostatic discharge (ESD), radio frequency interference (RFI) and power surges. Hardware is included for wall or DIN mounting.
Works in Tandem with Tripp Lite's N785-CH12 Chassis
House and power up to 12 Tripp Lite media converters, including the N785-H01-SCMM, using the N785-CH12 12-port chassis (sold separately) to create an organized installation.
TAA-Compliant for GSA Schedule Purchases
The N785-H01-SCMM is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
- Attach multiple devices together or expand the number of devices connected to your existing network by using 2 transceiver/media converter
- Supports optical fiber cable for durable performance, minimal signal loss, and fast data transfers to greater distances
- With 10/100/1000Base-T technology get up to 1000Mbps data transfer rate over supported network cable
- The Wall Mountable provides convenient installation
- Power Source : AC Adapter
- Form Factor : Wall Mountable,DIN Rail Mountable,Desktop
- Package Contents :
- N785-H01-SCMM Transceiver/Media Converter
- L-shaped Bracket
- Rubber Foot
- SC Connector Cap
- External Power Supply with NEMA 1-15P Plug (Input: 100-240VAC, 50/60 Hz, 0.5A; Output: 12VDC 1.5A)
- DIN Rail Kit
- Wall-mounting Hardware
- Quick Start Guide
- Total Number of Ports : 2
- Manufacturer : Tripp Lite by Eaton
- Product Model : N785-H01-SCMM
- Network Technology : 10/100/1000Base-T,1000Base-X
- Fiber Optic Wavelength : 850 nm
- Ethernet Technology : Gigabit Ethernet
- TAA Compliant : Yes
- Environmentally Friendly : Yes
- SC Port Type : Duplex
- Number of SC Ports : 1
- Limited Warranty : 2 Year
- Network (RJ-45) : Yes
- Plug/Connector Type : NEMA 1-15P
- Product Type : Transceiver/Media Converter
- Maximum Distance Supported : 1640.4 ft
- Power Consumption : 1.80 W
- Media Type Supported : Twisted Pair,Optical Fiber
- Fiber Mode Supported : Multi-mode
- Country of Origin : Taiwan
- Number of Network (RJ-45) Ports : 1
- Manufacturer Website Address : https://tripplite.eaton.com/
