Description
Features | Customize a Network Connection Extension over Fiber Optic Cable
This network media converter works with a variety of SFP transceivers to convert a copper Gigabit Ethernet signal to fiber optic and extend it to a second network device. The customizable SFP port supports both singlemode and multimode transceivers, allowing your network connection to reach hubs, switches and other devices located farther away than copper cabling's 100-meter limit. Auto-negotiation and automatic MDI/MDI-X configuration seamlessly connect devices without crossover cabling.
Monitor Your Installation with Line Loop Back

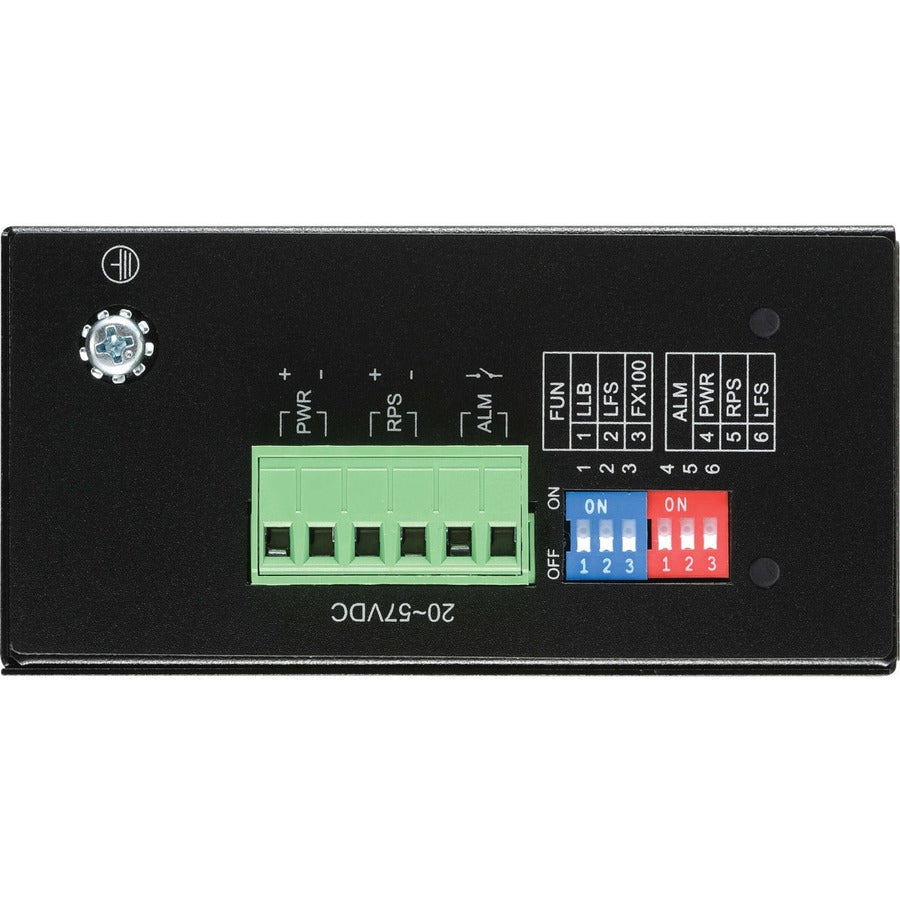

Determine the health of your network connection via the Line Loop Back (LLB) function, which ensures copper and fiber cables have been correctly installed. Use the DIP switches to control each function or turn them on or off.

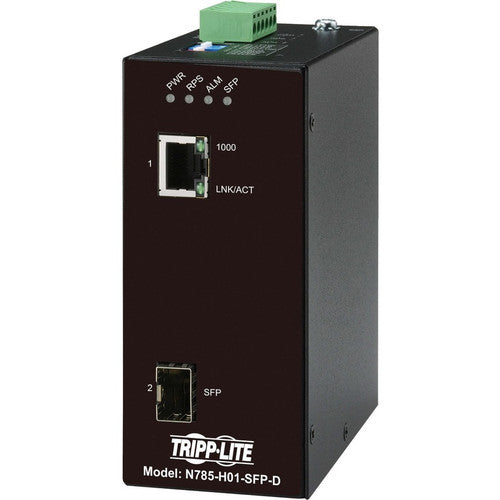

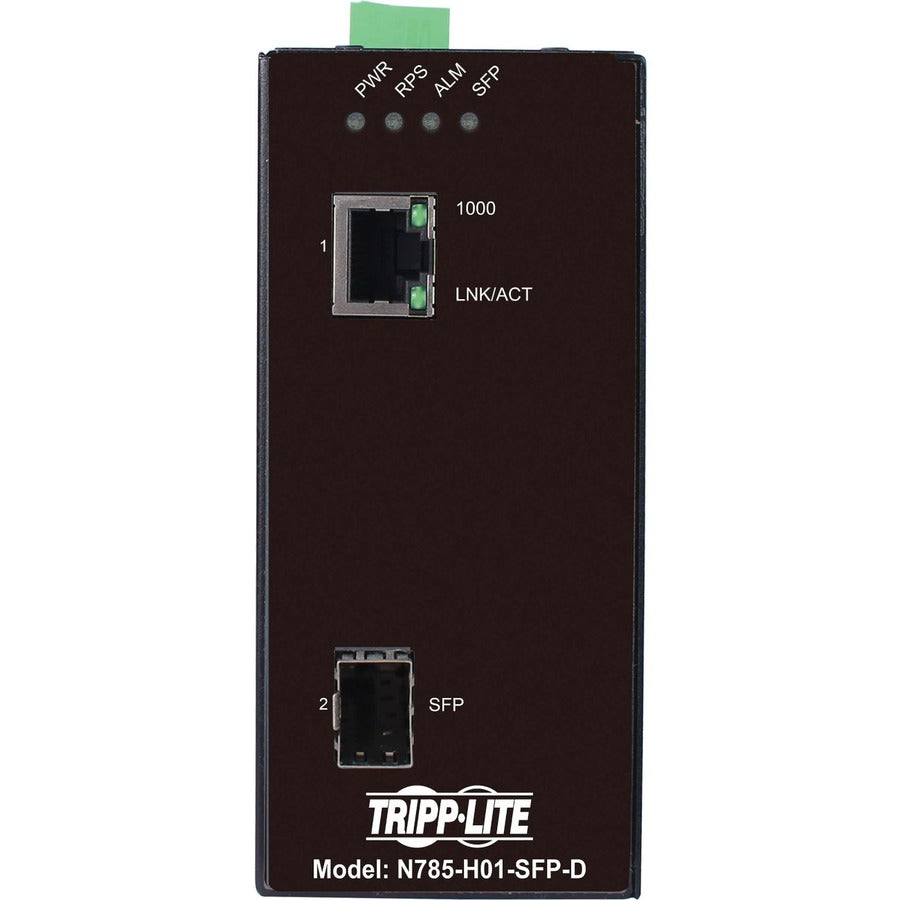

LEDs Indicate Installation Performance and Diagnostic Functions
Easy-to-read LEDs on the side of the unit indicate essential status information, including network speed and connection, LFS diagnostics and unit power. The included 20-57VDC terminal block provides primary and secondary power inputs.
Protective Metal Housing Built to Withstand a Variety of Hazards

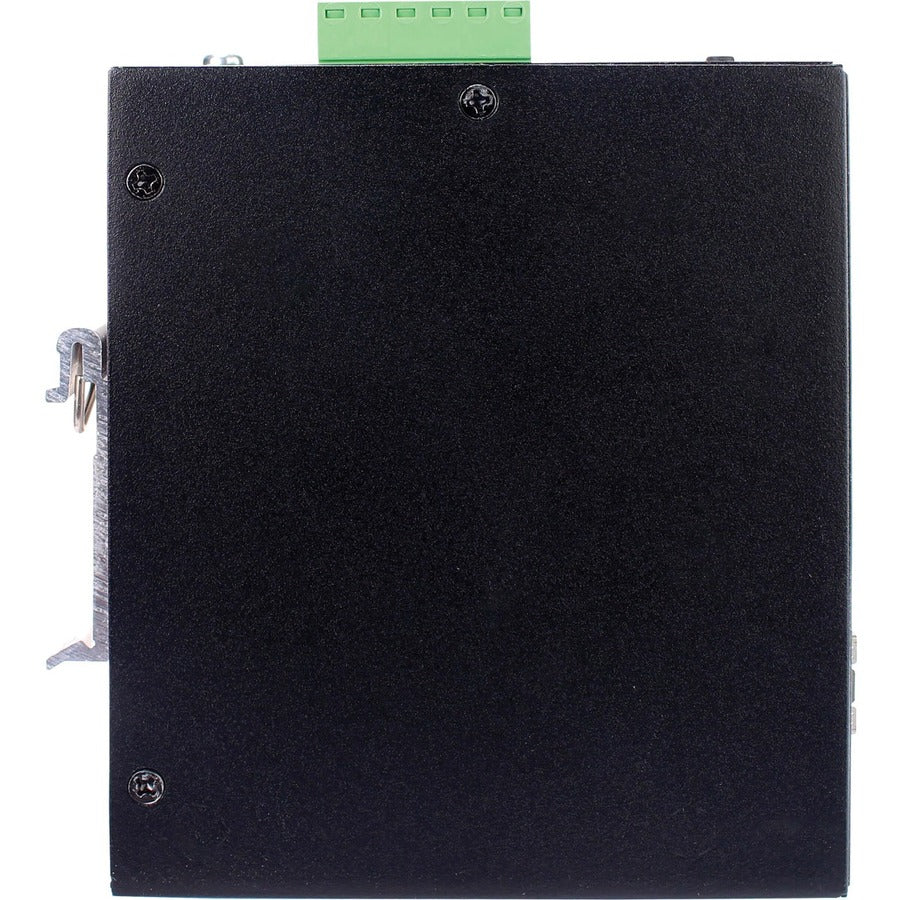

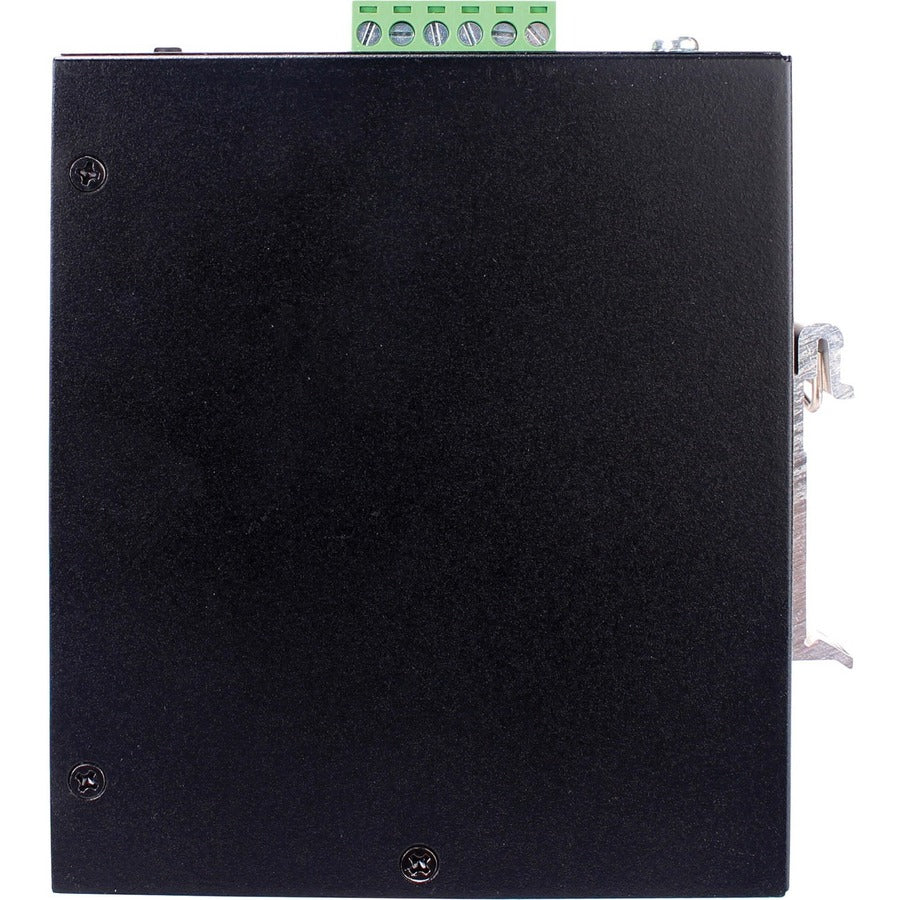

The hardened aluminum case is designed to operate in extreme temperatures ranging from -10 to 60 degrees Celsius (14 to 140 degrees Fahrenheit). It is protected from electrostatic discharge (ESD), radio frequency interference (RFI) and power surges. Hardware is included for DIN mounting.
TAA-Compliant for GSA Schedule Purchases
The N785-H01-SFP-D is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
- Connect different types of media within a network with this single port
- Supports twisted pair cables for durability and improved signal transfer while ensuring smooth and seamless data transfer
- With 10/100/1000Base-T technology get up to 1000Mbps data transfer rate over supported network cable
- The DIN Rail Mountable provides convenient installation
- Ethernet Technology : Gigabit Ethernet
- TAA Compliant : Yes
- Environmentally Friendly : Yes
- Power Source : DC
- Limited Warranty : 2 Year
- Form Factor : DIN Rail Mountable
- Package Contents :
- N785-H01-SFP-D Transceiver/Media Converter
- SFP Connector Cap
- RJ45 Connector Cap
- Terminal Block (20-57VDC)
- DIN Rail Kit
- Quick Start Guide
- Network (RJ-45) : Yes
- Plug/Connector Type : Terminal Block
- Total Number of Ports : 1
- Product Type : Transceiver/Media Converter
- Number of Total Expansion Slots : 1
- Manufacturer : Tripp Lite by Eaton
- Product Model : N785-H01-SFP-D
- Power Consumption : 5.50 W
- Media Type Supported : Twisted Pair,Optical Fiber
- Fiber Mode Supported : Multi-mode,Single-mode
- Country of Origin : Taiwan
- Number of Network (RJ-45) Ports : 1
- Number of SFP Slots : 1
- Network Technology : 10/100/1000Base-T,100/1000Base-X
- Expansion Slot Type : SFP (mini-GBIC)
- Manufacturer Website Address : https://tripplite.eaton.com/
