Description
Media converter lets you extend your copper Gigabit Ethernet network connection up to 20 km (12.4 mi.) over fiber optic cable.
Extend Your Gigabit Ethernet Signal up to 12.4 Miles via SC Singlemode Fiber CableThis economical unit converts a copper Ethernet signal to singlemode fiber (and vice versa) to extend a Gigabit Ethernet connection up to 12.4 miles (20 kilometers). Because Cat5e/6 cables are limited to only 100 meters, it is more effective to couple the N785-INT-SC-SM with singlemode fiber cable to reach greater distances. This could include providing network connectivity to employees in a secluded area of a facility, college or branch office or connecting multiple office workstations to a switch located in a separate building Supports Auto-Sensing of Network Speed and Other Advanced FunctionsMonitoring and controlling your network nodes is easy with the N785-INT-SC-SM's advanced features, such as automatic network speed sensing, full/half-duplex auto-detection and automatic MDI/MDIZ configuration. Six LEDs indicate the converter's Ethernet network and fiber link status at a glance Supports Singlemode Fiber Cable with SC ConnectorsTwo N785-INT-SC-SM converters are needed to extend an Ethernet network connection. Singlemode fiber optic cabling with SC ends (such as Tripp Lite's N356-Series, sold separately) connect the two converters. Copper Cat5e/6 cabling (see Tripp Lite's N201-Series, sold separately) connects one converter to your network device, such as a server, and the other converter to a network switch Completely Plug-and-Play with No Additional Software Required for ConnectionThe compact metal converter is easy to install and set up with no software or drivers required. The included power supply connects to a convenient AC outlet with no computer or other signal source needed. International plug adapters for North America (NEMA 5-15P), the United Kingdom (BS 1363), Europe (CEE 7/16 Schuko) and Australia (AS/NZS 3112) are included- Media converter lets you extend your copper Gigabit Ethernet network connection up to 20 km (12.4 mi.) over fiber optic cable
- Extends your copper Gigabit Ethernet network past the standard 100 m limit
- Supports singlemode fiber optic cable with SC connectors
- RJ45 jack supports auto-MDI/MDIZ to bridge various network devices
- Supports both full- and half-duplex operation
- Includes North America, U.K., Europe and Australia plug adapters
- 2-year limited warranty
- Fiber Optic Wavelength : 1310 nm
- Ethernet Technology : Gigabit Ethernet
- Environmentally Friendly : Yes
- SC Port Type : Duplex
- Power Source : Power Supply
- Number of SC Ports : 1
- Limited Warranty : 2 Year

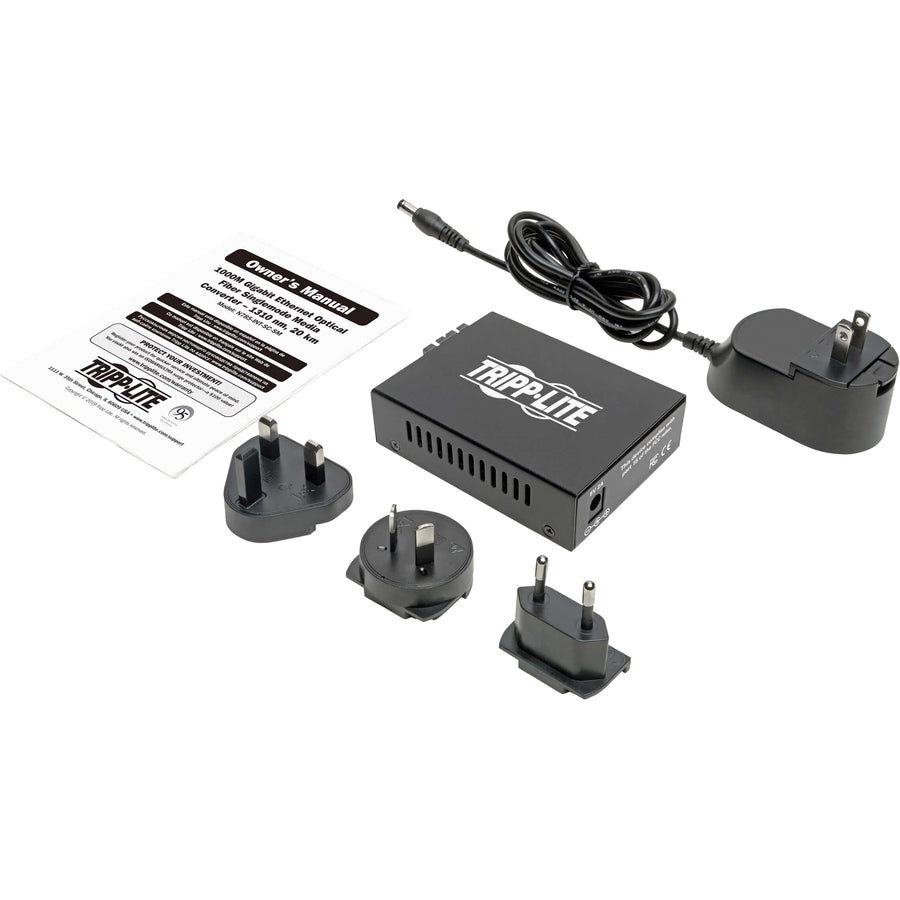

- Package Contents :
- N785-INT-SC-SM Transceiver/Media Converter
- International Power Supply (Input: 100-240V)
- 4 x International Plug Adapters (North America, U.K., Europe, Australia)
- Owner's Manual
- Network (RJ-45) : Yes
- Total Number of Ports : 2
- Product Type : Transceiver/Media Converter
- Manufacturer : Tripp Lite by Eaton
- Product Model : N785-INT-SC-SM
- Maximum Distance Supported : 12.4 Mile
- Media Type Supported : Optical Fiber,Twisted Pair
- Fiber Mode Supported : Single-mode
- Country of Origin : China
- Number of Network (RJ-45) Ports : 1
- Network Technology : 1000Base-T,1000Base-X
- Manufacturer Website Address : https://tripplite.eaton.com/
