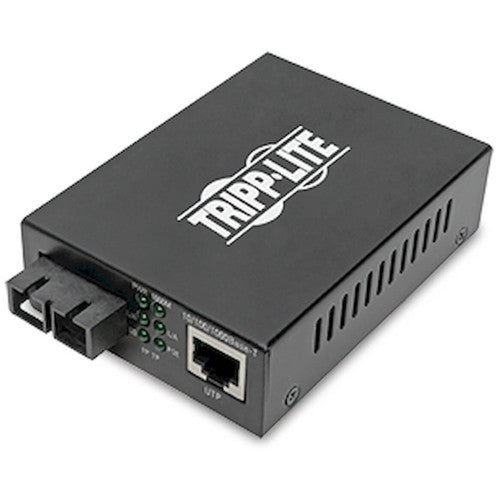

Tripp Lite by Eaton N785-P01-SC-MM1 Transceiver/Media Converter N785-P01-SC-MM1

Save $94.17
Tripp Lite by EatonSKU: N785-P01-SC-MM1

Sale price$158.99 Regular price$253.16
Sold out


Extends Power and Data to a PoE+ Device up to 550 Meters via SC Multimode Fiber Cable

This economical unit converts a multimode fiber optical signal to a copper Ethernet signal that extends both power (48 VDC) and 10/100/1000 Mbps Gigabit Ethernet to a PoE+ (Power over Ethernet) device. Because Cat5e/6 cables are limited to only 100 meters, it is more effective to couple the N785-P01-SC-MM1 with multimode fiber cable to reach greater distances. This could include providing both data and power to PoE and PoE+ devices, such as security cameras, VoIP telephones, point-of-sale kiosks and access control devices.

Supports Power over Ethernet to Save You Money and Give You More Installation Choices

PoE saves you the expense and effort of purchasing, connecting and installing individual power supplies for each device. It also helps you install PoE devices in areas far away from AC outlets, such as poles or ceilings.

Supports Auto-Sensing of Network Speed and Other Advanced Functions

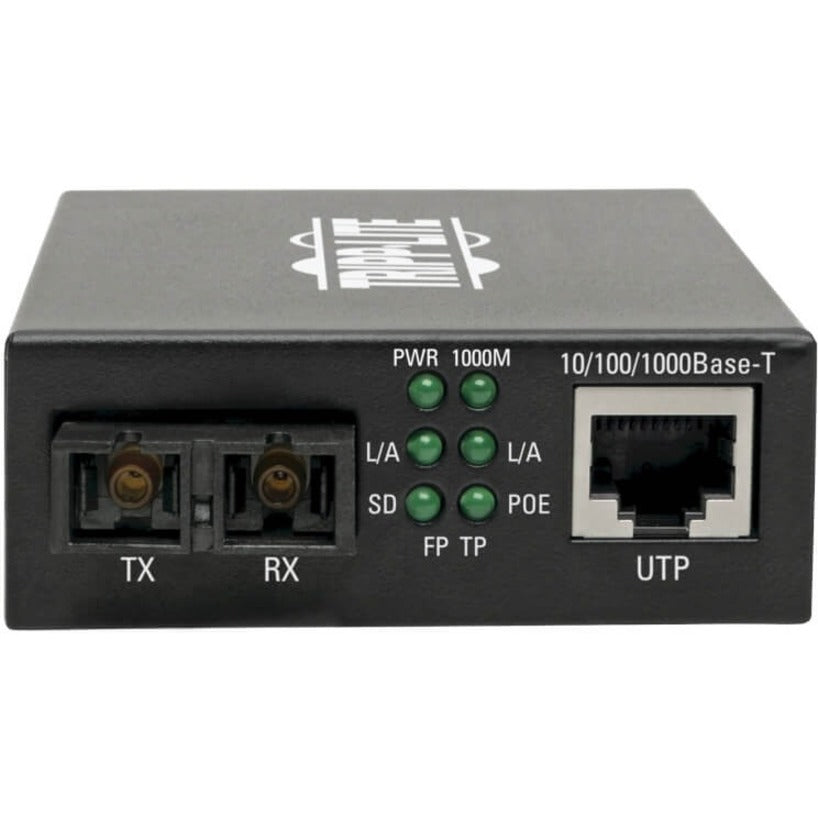

Monitoring and controlling your network nodes is easy with the N785-P01-SC-MM1's advanced features, such as automatic network speed sensing, full/half-duplex auto-detection and automatic MDI/MDIZ configuration. Six LEDs indicate the converter's power, PoE, Ethernet network and fiber link statuses at a glance. Link fault pass through (LFP) monitors both the SC and RJ45 ports to ensure link status remains active.

Works in Tandem with Tripp Lite's N785-001-SC-MM Media Converter

This media converter connects to the N785-001-SC-MM using multimode fiber optic cabling with SC ends (such as Tripp Lite's N520-Series, sold separately) to extend an Ethernet network connection up to 550 meters. Use Cat5e/6 cabling (such as Tripp Lite's N001- or N201-Series cables) to deliver data and power to a 10/100/1000 Mbps PoE device up to 100 meters (328 feet) from the N785-P01-SC-MM1.

Completely Plug-and-Play with No Additional Software Required for Connection

The compact metal converter is easy to install and set up with no software or drivers required. The included power supply connects to a convenient AC outlet with no computer or other signal source needed.

  • Expand your network capabilities with this 2 transceiver/media converter
  • Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
  • With 10/100/1000Base-T technology get up to 1000Mbps data transfer rate over twisted pair cable
. .
  • Fiber Optic Wavelength : 850 nm
  • Ethernet Technology : Gigabit Ethernet
  • Environmentally Friendly : Yes
  • SC Port Type : Duplex
  • Power Source : Power Supply
  • Number of SC Ports : 1
  • Limited Warranty : 2 Year

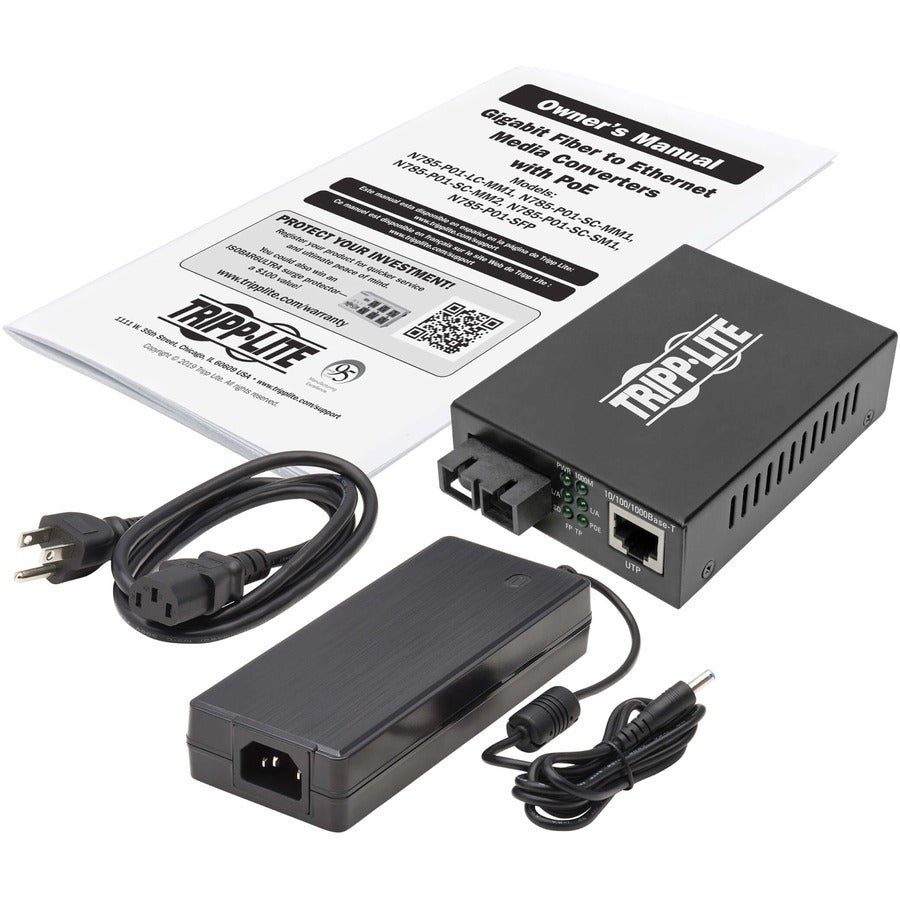

  • Package Contents :
    • N785-P01-SC-MM1 Transceiver/Media Converter
    • External Power Supply with 3.6 ft. Cord and NEMA 5-15P Plug (Input: 100-240V, 50/60 Hz, 1.5A; Output: 48V 1.25A)
    • Owner's Manual
  • Network (RJ-45) : Yes
  • Total Number of Ports : 2
  • Product Type : Transceiver/Media Converter
  • Manufacturer : Tripp Lite by Eaton
  • Product Model : N785-P01-SC-MM1
  • Maximum Distance Supported : 1804.5 ft
  • Media Type Supported : Twisted Pair,Optical Fiber
  • Fiber Mode Supported : Multi-mode
  • Country of Origin : China
  • Number of Network (RJ-45) Ports : 1
  • Network Technology : 10/100/1000Base-T,1000Base-X
  • Manufacturer Website Address :
