Description

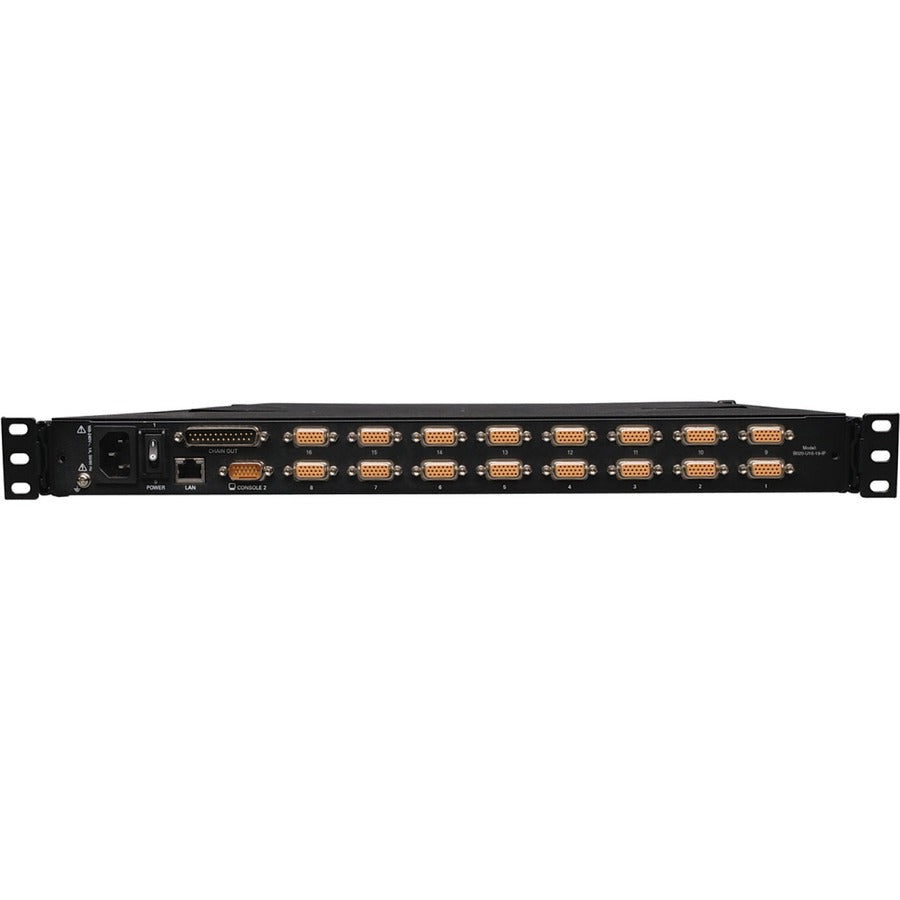

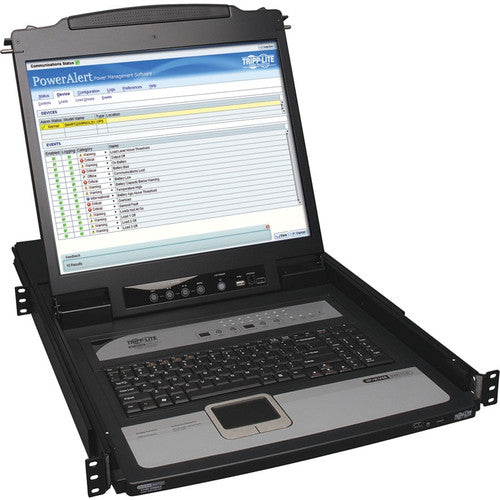

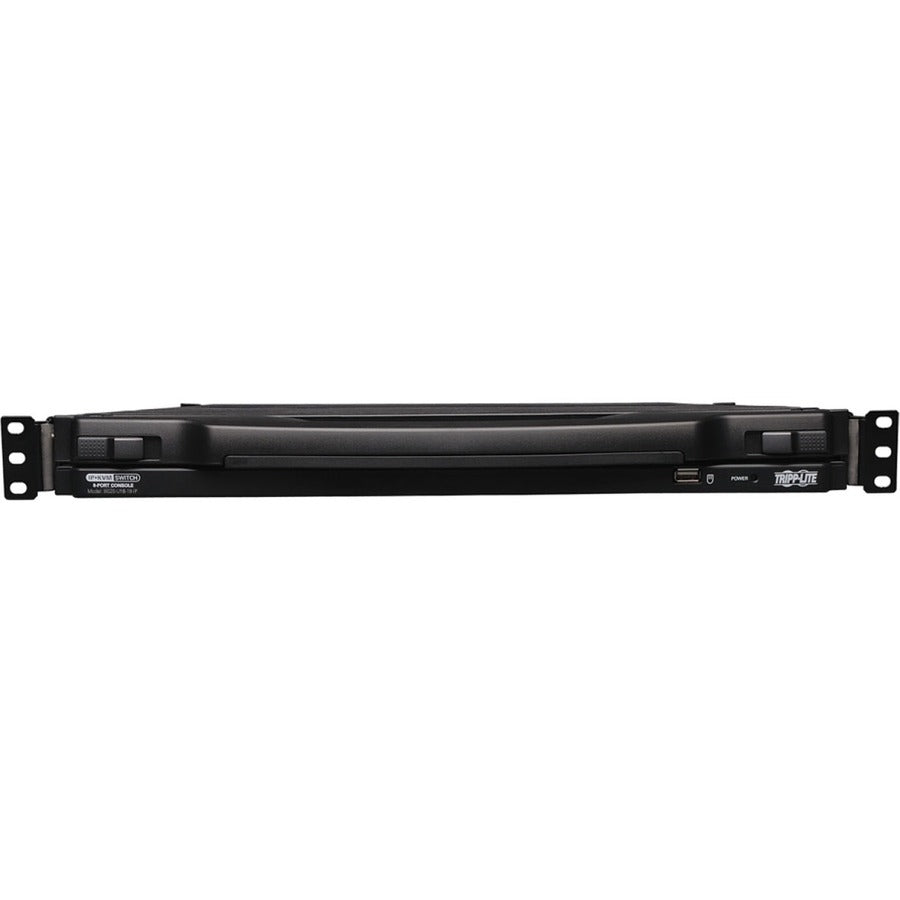

The B020-U16-19-IP NetDirector 16-Port 1U Rack-Mount Console IP KVM Switch combines a 16-port KVM switch, keyboard, touch pad, numeric keypad, 19-inch LCD and built-in IP remote access into a compact housing that stores neatly in 1U of rack space. Ideal for data centers, server rooms and other environments with multiple servers, the B020-U16-19-IP lets you handle complex problems without needing to be on-site, which saves money and time.
You can control up to 16 servers or computers directly from the KVM switch or remotely from anywhere else via LAN, WAN or the Internet, including system administration, BIOS-level troubleshooting, GUI application installations and equipment reboots. The built-in 19-inch monitor supports VGA video resolution up to 1280 x 1024 (@ 75 Hz). Compatible with both USB and PS/2 connections using the included cable kits, the KVM switch allows you to select a connected computer using console buttons or keyboard hotkeys. It supports IPv4 and IPv6, as well as Link Local IPv6 Address and Stateless Auto Configuration protocol.
The B020-U16-19-IP is compatible with all major operating systems and web browsers. Three levels of password protection, as well as advanced encryption and activity logging, keep your confidential data secure. You can create up to 64 user accounts, which can communicate and manage port access through a message board. An external USB port lets you connect a flash drive or card reader to share external data among connected computers.
You can control up to 16 servers or computers directly from the KVM switch or remotely from anywhere else via LAN, WAN or the Internet, including system administration, BIOS-level troubleshooting, GUI application installations and equipment reboots. The built-in 19-inch monitor supports VGA video resolution up to 1280 x 1024 (@ 75 Hz). Compatible with both USB and PS/2 connections using the included cable kits, the KVM switch allows you to select a connected computer using console buttons or keyboard hotkeys. It supports IPv4 and IPv6, as well as Link Local IPv6 Address and Stateless Auto Configuration protocol.
The B020-U16-19-IP is compatible with all major operating systems and web browsers. Three levels of password protection, as well as advanced encryption and activity logging, keep your confidential data secure. You can create up to 64 user accounts, which can communicate and manage port access through a message board. An external USB port lets you connect a flash drive or card reader to share external data among connected computers.
- Enables up to 64 secure user accounts
- Protects data with 3 security levels (Admin, User and Select)
- Installs in just 1U to save rack space
- Works with all major operating systems and browsers
- Controls up to 16 computers remotely via LAN, WAN or Internet
- Screen Resolution : 1280 x 1024
- TAA Compliant : Yes
- Environmentally Friendly : Yes
- Screen Size : 19"
- USB : Yes
- Number of Computers Supported : 16
- Product Color : Black
- Keyboard : Yes
- Device Type : LCD Rack Console
- Input Voltage : 120 V AC,230 V AC
- Limited Warranty : 1 Year
- VGA : Yes
- KVM Switch : Yes
- Package Contents :
- NetDirector 16-Port 1U Rack-Mount Console IP KVM Switch w/19 in. LCD
- 2 x P778-Series USB/PS2 combo KVM Cable Kits, 6 ft.
- USB/PS2 Combo External Console Cable Kit
- Grounding Wire
- RJ11 to DB9 Firmware Upgrade Cable
- C13 to NEMA 5-15P Power Cord
- Mounting Hardware
- CD with Owner's Manuals and device files
- Product Type : LCD Rack Console
- Display Screen Type : LCD
- KVM Technology : Digital
- Manufacturer : Tripp Lite by Eaton
- Product Model : B020-U16-19-IP
- Country of Origin : Taiwan
- Product Line : NetDirector
- PS/2 Port : Yes
- Manufacturer Website Address : https://tripplite.eaton.com/
- Color Family : Black
