Description
Industrial-grade switch expands Ethernet connectivity to factory floors and other environments with space constraints and wide temperature ranges.
Features | 5-Port Unmanaged Ethernet Switch Connects Your Devices to a LAN
This space-saving Tripp Lite switch transmits data over an Ethernet network. Five auto-negotiating 10/100 Mbps ports send data only to the devices designated to receive it, which improves the efficiency and potential throughput of the network.
Ruggedized Metal Housing Built to Last in Harsh Environments

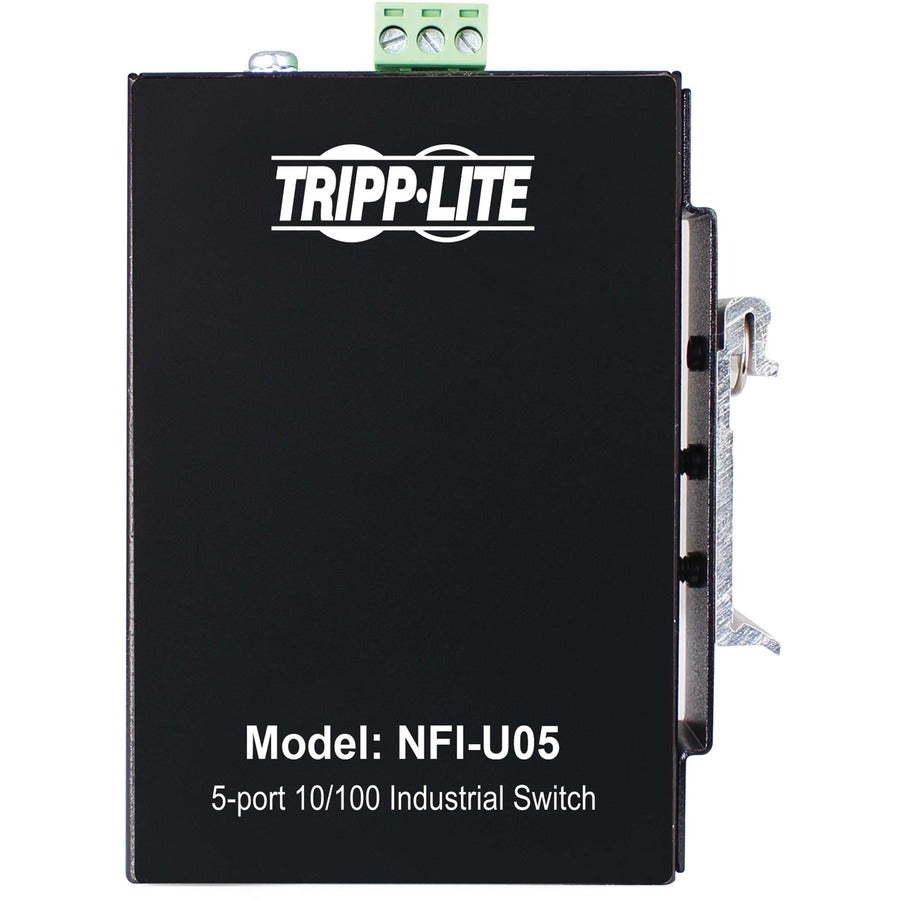

The compact NFI-U05 adds 10/100 Mbps Ethernet capacity to your industrial and commercial applications, such as factory floors, warehouse operations and other environments with space constraints and wide temperature ranges. The industrial-grade high-strength case withstands vibration, shock and free fall. It can also operate in extreme temperatures ranging from -40 degrees to 167 degrees Fahrenheit.
Unmanaged Switch Requires Little to No Configuration

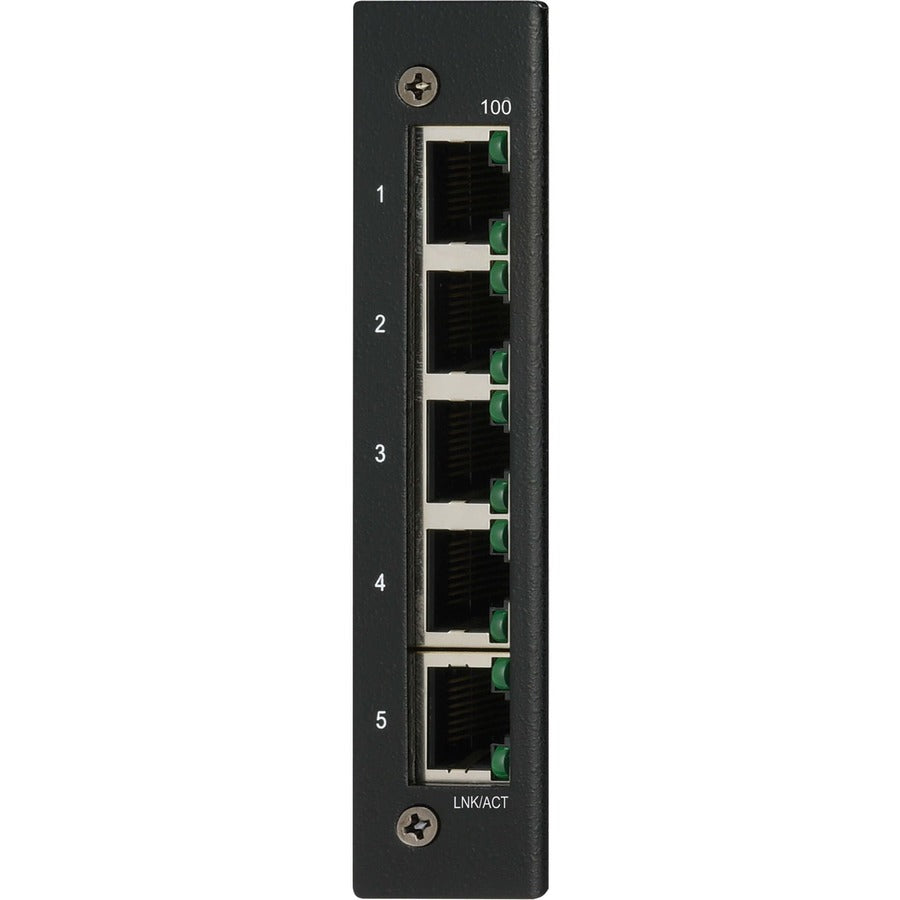

Quickly connect your network devices with little to no configuration. LEDs indicate when the switch is powered on and which Ethernet ports are showing activity. The NFI-U05 supports MAC address autolearning and auto-aging for efficient routing, as well as automatic MDI/MDI-X crossover detection for plugand-play functionality. IEEE 802.3x flow control allows smooth transmission of large files.
Flexible Mounting Options

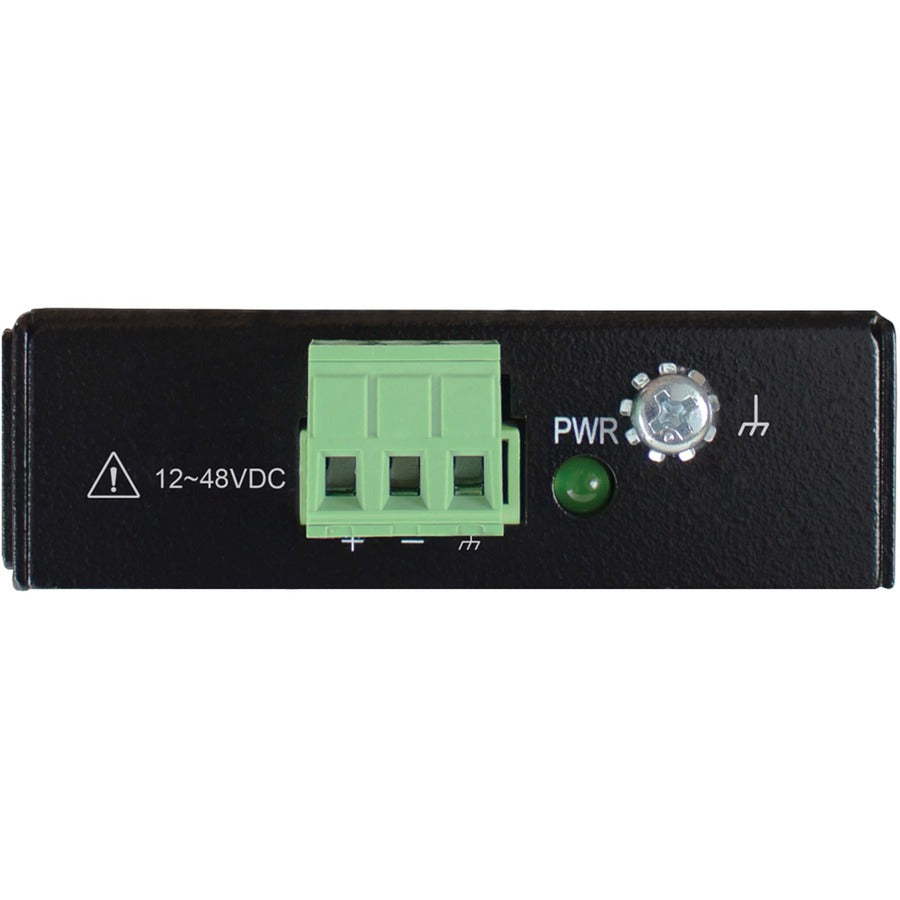

The open-type device may be DIN mounted using the pre-installed rail clip, which mounts firmly to any standard 35 mm DIN rail. It may also be wall mounted using the rear mounting holes. A 3-pin 12-48VDC terminal block supplies power input. Device power must be supplied by SELV circuit.
TAA-Compliant for GSA Schedule Purchases
The NFI-U05 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
Features | 5-Port Unmanaged Ethernet Switch Connects Your Devices to a LAN
This space-saving Tripp Lite switch transmits data over an Ethernet network. Five auto-negotiating 10/100 Mbps ports send data only to the devices designated to receive it, which improves the efficiency and potential throughput of the network.
Ruggedized Metal Housing Built to Last in Harsh Environments
The compact NFI-U05 adds 10/100 Mbps Ethernet capacity to your industrial and commercial applications, such as factory floors, warehouse operations and other environments with space constraints and wide temperature ranges. The industrial-grade high-strength case withstands vibration, shock and free fall. It can also operate in extreme temperatures ranging from -40 degrees to 167 degrees Fahrenheit.
Unmanaged Switch Requires Little to No Configuration
Quickly connect your network devices with little to no configuration. LEDs indicate when the switch is powered on and which Ethernet ports are showing activity. The NFI-U05 supports MAC address autolearning and auto-aging for efficient routing, as well as automatic MDI/MDI-X crossover detection for plugand-play functionality. IEEE 802.3x flow control allows smooth transmission of large files.
Flexible Mounting Options
The open-type device may be DIN mounted using the pre-installed rail clip, which mounts firmly to any standard 35 mm DIN rail. It may also be wall mounted using the rear mounting holes. A 3-pin 12-48VDC terminal block supplies power input. Device power must be supplied by SELV circuit.
TAA-Compliant for GSA Schedule Purchases
The NFI-U05 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 5 ports
- With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
- The unmanaged switch provides a quick, easy and cost-saving way to add wired networking to your home, office or small business; no intervention needed
- Fast Ethernet technology gives ideal solution for extending network connections to conference rooms, labs, lobbies and department workgroups
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Ethernet Technology : Fast Ethernet
- TAA Compliant : Yes
- Environmentally Friendly : Yes
- Layer Supported : 2
- Port/Expansion Slot Details : 5 x Fast Ethernet Network
- Limited Warranty : 3 Year
- Product Material : Aluminum
- Form Factor : DIN Rail Mountable,Wall Mountable
- Package Contents :
- NFI-U05 Ethernet Switch
- DIN Rail-mounting Clip
- Owner's Manual
- Network (RJ-45) : Yes
- Product Type : Ethernet Switch
- Networking Standards : IEEE 802.3,IEEE 802.3u,IEEE 802.3x
- Manufacturer : Tripp Lite by Eaton
- Product Model : NFI-U05
- Total Number of Network Ports : 5
- Power Consumption : 3 W
- Manageable : No
- Media Type Supported : Twisted Pair
- Country of Origin : Taiwan
- Network Technology : 10/100Base-T
- Manufacturer Website Address : https://tripplite.eaton.com/
