Tripp Lite by Eaton NG5POE Ethernet Switch NG5POE

The NG5POE 5-Port 10/100/1000 Mbps 1U Rack-Mount/Desktop Gigabit Ethernet Unmanaged Switch adds a Gigabit Ethernet connection with PoE+ capacity to your small office, workgroup or creative workspace.

Especially recommended for security applications to power IP cameras, VoIP phones and other PoE-compatible devices, this energy-efficient switch provides PoE+ compatibility with wireless access points and other devices. Four ports support up to 26W each with a total PoE budget of 75W. Sharing large bandwidth-intensive files, such as CAD drawings and high-definition videos, at Gigabit speeds improves efficiency and cuts costly downtime. IEEE 802.3x flow control allows smooth transmission.

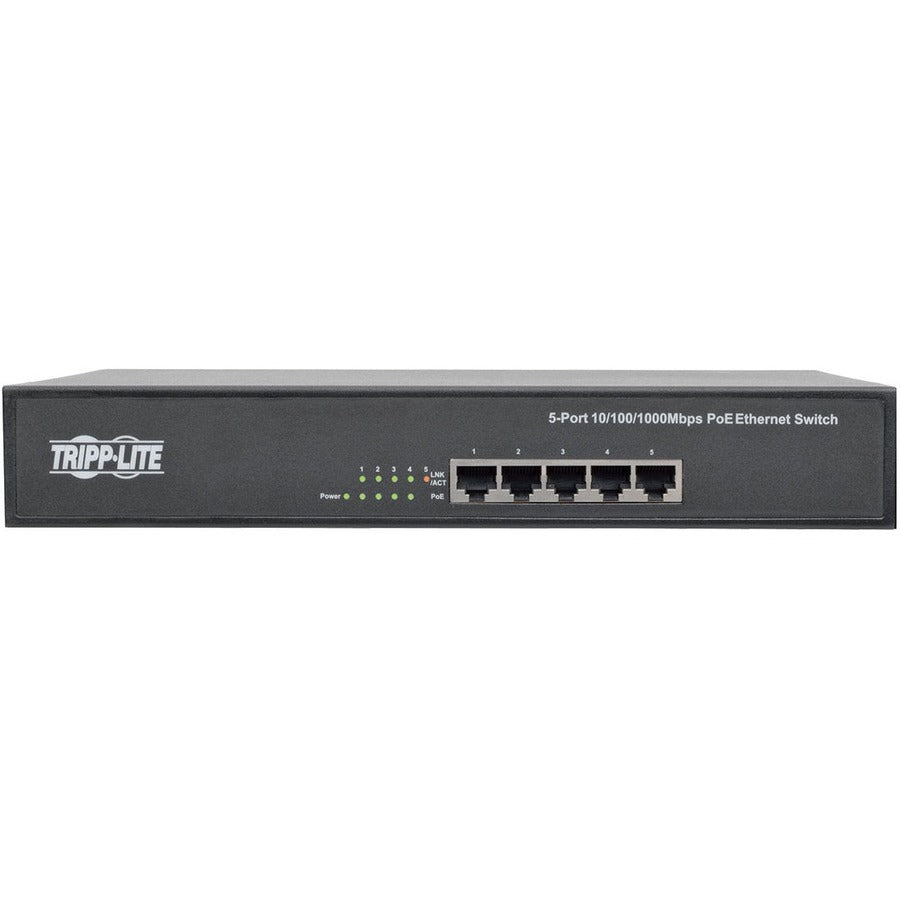

This unmanaged switch features five twisted-pair RJ45 Gigabit Ethernet ports that support auto-negotiable 10/100/1000 Mbps and auto MDI/MDIX cross-over detection. It's plug-and-play with no configuration required and can be up and running immediately. Easy-to-read LEDs indicate power, connection, activity and PoE status for each port.

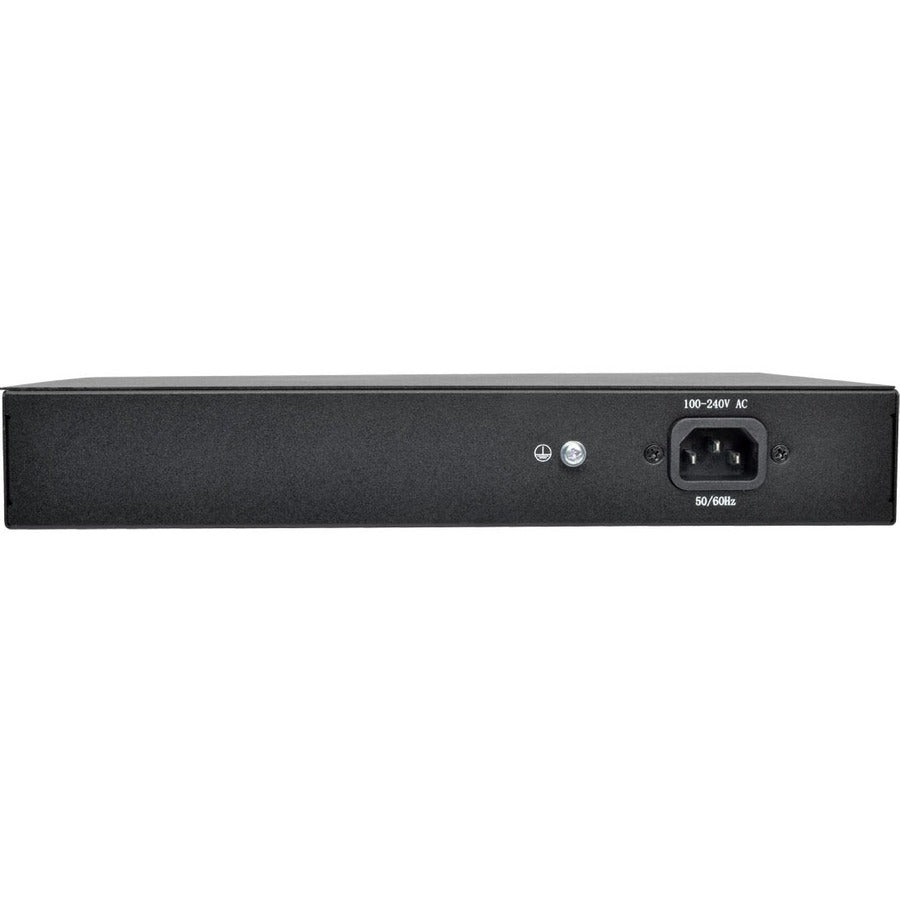

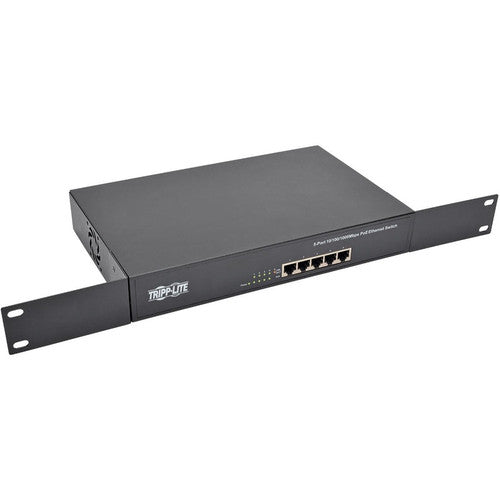

The NG5POE supports IEEE 802.3az Energy Efficient Ethernet standards by putting unused ports into a low-power state without interrupting network connections. The detachable five-foot power cord with NEMA 5-15P plug connects to any compatible AC source. The heavy-duty metal housing is designed for desktop installation or mounting into 1U of an EIA-standard 19-inch rack with the included brackets.

• Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 5 ports
• Built-in power supply to ensure all components are being supplied with accurate voltage
• With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
• Rack mounting enables you to organize wires & secure cables for professional installation
• The unmanaged switch provides a quick, easy and cost-saving way to add wired networking to your home, office or small business; no intervention needed
• Gigabit Ethernet port for ultra-fast network speeds
• Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters

. .

• Redundant Power Supply Supported : No
• Ethernet Technology : Gigabit Ethernet
• Environmentally Friendly : Yes
• Power Source : Power Supply
• Layer Supported : 2
• Port/Expansion Slot Details : 5 x Gigabit Ethernet Network
• Modular : No
• Limited Warranty : 5 Year
• Form Factor : Desktop,Rack-mountable
• Package Contents :
  • NG5POE Ethernet Switch
  • Detachable AC power cord with NEMA 5-15P plug, 5 ft.
  • 2 x Mounting brackets
  • 8 x Screws
  • 4 x Rubber feet
  • Owner's manual
• Uplink Port : No
• Product Type : Ethernet Switch
• Stack Port : No
• Manufacturer : Tripp Lite by Eaton
• Product Model : NG5POE
• Total Number of Network Ports : 5
• Compatible Rack Unit : 1U
• Manageable : No
• Media Type Supported : Twisted Pair
• Country of Origin : China
• Network Technology : 10/100/1000Base-T
• Manufacturer Website Address : https://tripplite.eaton.com/
