Description

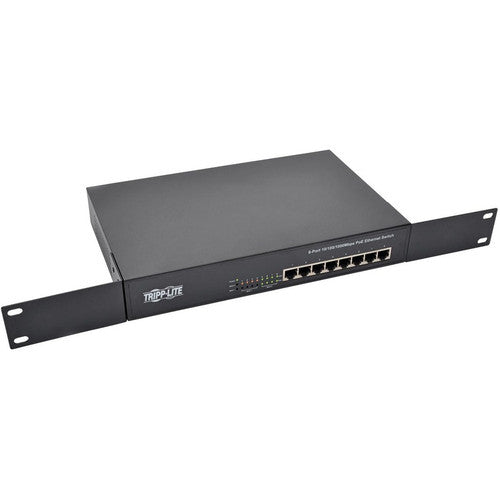

The NG8POE 8-Port 10/100/1000 Mbps 1U Rack-Mount/Desktop Gigabit Ethernet Unmanaged Switch adds a Gigabit Ethernet connection with PoE+ capacity to your small office, workgroup or creative workspace.
Especially recommended for security applications to power IP cameras, VoIP phones and other PoE-compatible devices, this energy-efficient switch provides PoE+ compatibility with wireless access points and other devices with up to 30W per port and a PoE budget of 140W (up to 70W per port bank). Sharing large bandwidth-intensive files, such as CAD drawings and high-definition videos, at Gigabit speeds improves efficiency and cuts costly downtime. IEEE 802.3x flow control allows smooth transmission.
This unmanaged switch features eight twisted-pair RJ45 Gigabit Ethernet ports that support auto-negotiable 10/100/1000 Mbps and auto MDI/MDIX cross-over detection. It's plug-and-play with no configuration required and can be up and running immediately. Easy-to-read LEDs indicate power, connection, activity and PoE status for each port.

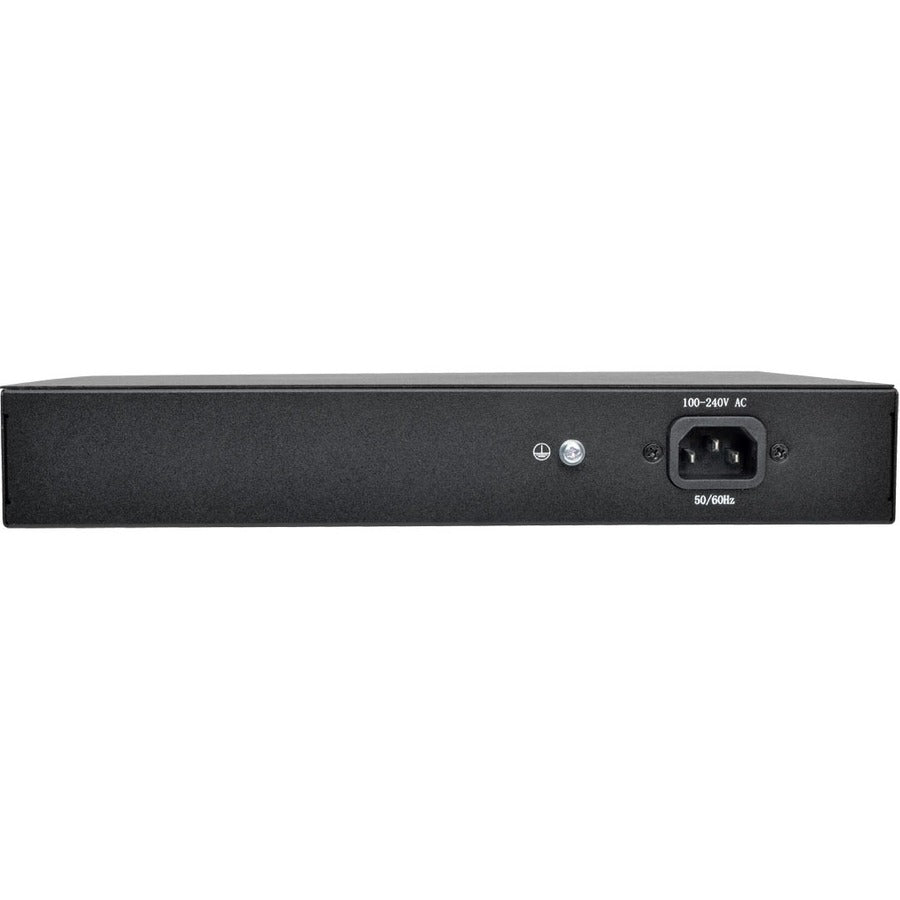

The NG8POE supports IEEE 802.3az Energy Efficient Ethernet standards by putting unused ports into a low-power state without interrupting network connections. The detachable five-foot power cord with NEMA 5-15P plug connects to any compatible AC source. The heavy-duty metal housing is designed for desktop installation or mounting into 1U of an EIA-standard 19-inch rack with the included brackets.
- Features 8 networking ports to easily establish a local network or expand your existing one
- Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
- The unmanaged switch provides a quick, easy and cost-saving way to add wired networking to your home, office or small business; no intervention needed
- Gigabit Ethernet port for ultra-fast network speeds
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Redundant Power Supply Supported : No
- Ethernet Technology : Gigabit Ethernet
- Environmentally Friendly : Yes
- Power Source : Power Supply
- Layer Supported : 2
- Port/Expansion Slot Details : 8 x Gigabit Ethernet Network
- Modular : No
- Limited Warranty : 5 Year
- Form Factor : Desktop,Rack-mountable
- Package Contents :
- NG8POE Ethernet Switch
- Detachable AC power cord with NEMA 5-15P plug, 5 ft.
- 2 x Mounting brackets
- 8 x Screws
- 4 x Rubber feet
- Owner's manual
- Uplink Port : No
- Product Type : Ethernet Switch
- Stack Port : No
- Manufacturer : Tripp Lite by Eaton
- Product Model : NG8POE
- Total Number of Network Ports : 8
- Compatible Rack Unit : 1U
- Manageable : No
- Media Type Supported : Twisted Pair
- Country of Origin : China
- Network Technology : 10/100/1000Base-T
- Manufacturer Website Address : https://tripplite.eaton.com/
