Description
Industrial-grade switch expands Ethernet connectivity to factory floors and other environments with space constraints and wide temperature ranges.
Features | 5-Port Unmanaged Ethernet Switch Connects Your Devices to a LAN

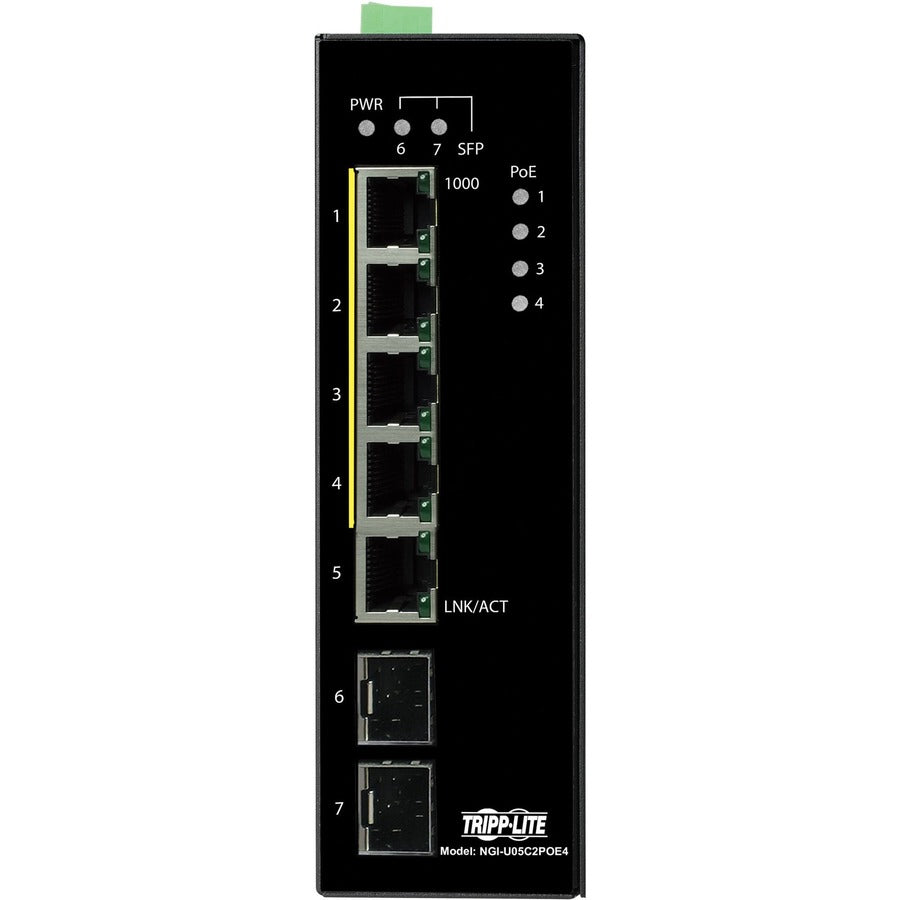

This space-saving Tripp Lite Power over Ethernet (PoE) switch transmits both power and data over a Gigabit Ethernet network. Five auto-negotiating 10/100/1000 Mbps ports send data only to the devices designated to receive it, which improves the efficiency and potential throughput of the network. The NGIU05C2POE4 also features two GbE SFP slots for uplinking data to other switches via optical fiber or copper.
PoE+ Ports Deliver Power to Devices Without Access to AC Outlets
This unmanaged switch features four PoE ports capable of powering compatible devices, such as cameras, sensors, clocks, digital signage and wireless access points, without the need to run separate power lines or install the devices near an AC outlet. The NGI-U05C2POE4 provides PoE+ compatibility up to 30W per PoE port and a PoE budget of 120W.
Ruggedized Metal Housing Built to Last in Harsh Environments
The compact NGI-U05C2POE4 adds 10/100/1000 Mbps Gigabit Ethernet capacity to your industrial and commercial applications, such as factory floors, warehouse operations and other environments with space constraints and wide temperature ranges. The industrial-grade high-strength case withstands vibration, shock and free fall. It can also operate in extreme temperatures ranging from 14 degrees to 140 degrees Fahrenheit.
Unmanaged Switch Requires Little to No Configuration
Quickly connect your network devices with little to no configuration. LEDs indicate when the switch is powered on and which Ethernet ports are showing activity. The NGI-U05C2POE4 supports MAC address auto-learning and auto-aging for efficient routing, as well as automatic MDI/MDI-X crossover detection for plug-and-play functionality. IEEE 802.3x flow control allows smooth transmission of large files.
Pre-Installed DIN Rail Clip Allows for Convenient Installation

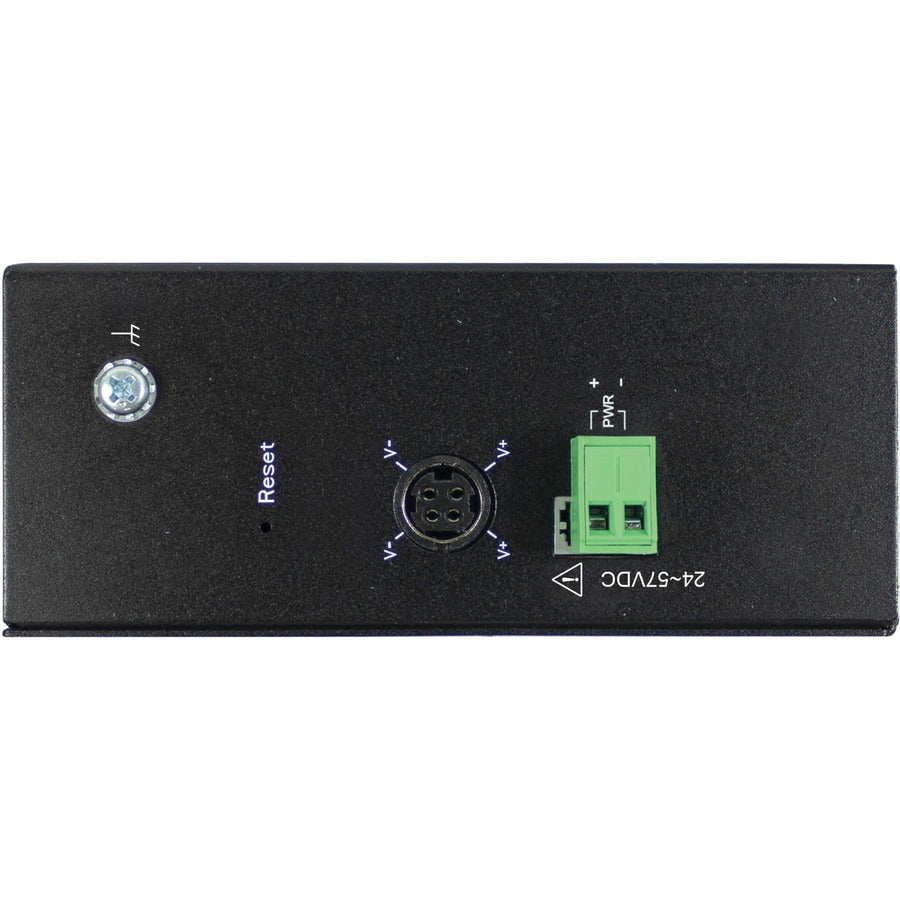

The device may be DIN mounted using the pre-installed rail clip, which mounts firmly to any standard 35 mm DIN rail. Providing seamless operation in the event of power dips or failures, the switch features a 2- pin 24-57VDC terminal block power input to help prevent unnecessary downtime. Device power must be supplied by SELV circuit.
TAA-Compliant for GSA Schedule Purchases
The NGI-U05C2POE4 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
Features | 5-Port Unmanaged Ethernet Switch Connects Your Devices to a LAN
This space-saving Tripp Lite Power over Ethernet (PoE) switch transmits both power and data over a Gigabit Ethernet network. Five auto-negotiating 10/100/1000 Mbps ports send data only to the devices designated to receive it, which improves the efficiency and potential throughput of the network. The NGIU05C2POE4 also features two GbE SFP slots for uplinking data to other switches via optical fiber or copper.
PoE+ Ports Deliver Power to Devices Without Access to AC Outlets
This unmanaged switch features four PoE ports capable of powering compatible devices, such as cameras, sensors, clocks, digital signage and wireless access points, without the need to run separate power lines or install the devices near an AC outlet. The NGI-U05C2POE4 provides PoE+ compatibility up to 30W per PoE port and a PoE budget of 120W.
Ruggedized Metal Housing Built to Last in Harsh Environments
The compact NGI-U05C2POE4 adds 10/100/1000 Mbps Gigabit Ethernet capacity to your industrial and commercial applications, such as factory floors, warehouse operations and other environments with space constraints and wide temperature ranges. The industrial-grade high-strength case withstands vibration, shock and free fall. It can also operate in extreme temperatures ranging from 14 degrees to 140 degrees Fahrenheit.
Unmanaged Switch Requires Little to No Configuration
Quickly connect your network devices with little to no configuration. LEDs indicate when the switch is powered on and which Ethernet ports are showing activity. The NGI-U05C2POE4 supports MAC address auto-learning and auto-aging for efficient routing, as well as automatic MDI/MDI-X crossover detection for plug-and-play functionality. IEEE 802.3x flow control allows smooth transmission of large files.
Pre-Installed DIN Rail Clip Allows for Convenient Installation
The device may be DIN mounted using the pre-installed rail clip, which mounts firmly to any standard 35 mm DIN rail. Providing seamless operation in the event of power dips or failures, the switch features a 2- pin 24-57VDC terminal block power input to help prevent unnecessary downtime. Device power must be supplied by SELV circuit.
TAA-Compliant for GSA Schedule Purchases
The NGI-U05C2POE4 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
- Cascade to other network devices through the uplink port to expand your local area network
- Quickly and easily set up a wired network with 5 networking ports
- With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
- The unmanaged switch provides a quick, easy and cost-saving way to add wired networking to your home, office or small business; no intervention needed
- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Modular : Yes
- PoE (RJ-45) Port : Yes
- Form Factor : DIN Rail Mountable
- Package Contents :
- NGI-U05C2POE4 Ethernet Switch
- DIN Rail-mounting Clip
- Owner's Manual
- Uplink Port : Yes
- Manufacturer : Tripp Lite by Eaton
- Product Model : NGI-U05C2POE4
- Manageable : No
- Network Technology : 10/100/1000Base-T,1000Base-X
- Ethernet Technology : Gigabit Ethernet
- TAA Compliant : Yes
- Environmentally Friendly : Yes
- Layer Supported : 2
- PoE Budget : 120 W
- Port/Expansion Slot Details : 4 x Gigabit Ethernet PoE+,1 x Gigabit Ethernet Network,2 x Gigabit Ethernet Expansion Slot
- Limited Warranty : 3 Year
- Product Material : Metal
- Network (RJ-45) : Yes
- Product Type : Ethernet Switch
- Number of Total Expansion Slots : 2
- Networking Standards : IEEE 802.3,IEEE 802.3u,IEEE 802.3x,IEEE 802.3at,IEEE 802.3ab,IEEE 802.3z,IEEE 802.1p,IEEE 802.3af
- Total Number of Network Ports : 5
- Power Consumption : 14 W
- Media Type Supported : Twisted Pair,Optical Fiber
- Country of Origin : Taiwan
- Number of SFP Slots : 2
- Expansion Slot Type : SFP (mini-GBIC)
- Manufacturer Website Address : https://tripplite.eaton.com/
