Description
8-Port Unmanaged Gigabit Ethernet Switch Connects Your Devices to a LAN

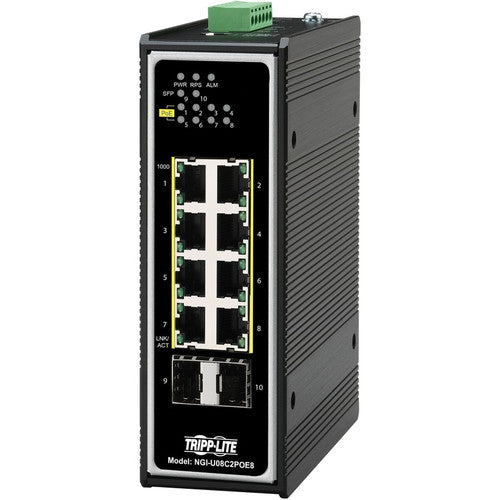

This space-saving Tripp Lite Power over Ethernet (PoE) switch transmits both power and data over a Gigabit Ethernet network. Eight auto-negotiating 10/100/1000 Mbps ports send data only to the devices designated to receive it, which improves the efficiency and potential throughput of the network. The NGI-U08C2POE8 also features two GbE SFP slots for uplinking data to other switches via optical fiber or copper.
PoE+ Ports Deliver Power to Devices Without Access to AC Outlets
This unmanaged switch features eight PoE ports capable of powering compatible devices, such as cameras, sensors, clocks, digital signage and wireless access points, without the need to run separate power lines or install the devices near an AC outlet. The NGI-U08C2POE8 provides PoE+ compatibility up to 30W per port and a PoE budget of 120W at 24VDC or 240W at 48VDC.
Ruggedized Metal Housing Built to Last in Harsh Environments
The compact NGI-U08C2POE8 adds 10/100/1000 Mbps Gigabit Ethernet capacity to your industrial and commercial applications, such as factory floors, warehouse operations and other environments with space constraints and wide temperature ranges. The industrial-grade high-strength case withstands vibration, shock and free fall. It can also operate in extreme temperatures ranging from -40 degrees to 167 degrees Fahrenheit.
Unmanaged Switch Requires Little to No Configuration
Quickly connect your network devices with little to no configuration. LEDs indicate when the switch is powered on and which Ethernet ports are showing activity. The NGI-U08C2POE8 supports MAC address auto-learning and auto-aging for efficient routing, as well as automatic MDI/MDI-X crossover detection for plug-and-play functionality. IEEE 802.3x flow control allows smooth transmission of large files. A DIP switch supports an alarm relay output in which you can connect an alarm light or buzzer.
Pre-Installed DIN Rail Clip Allows for Convenient Installation

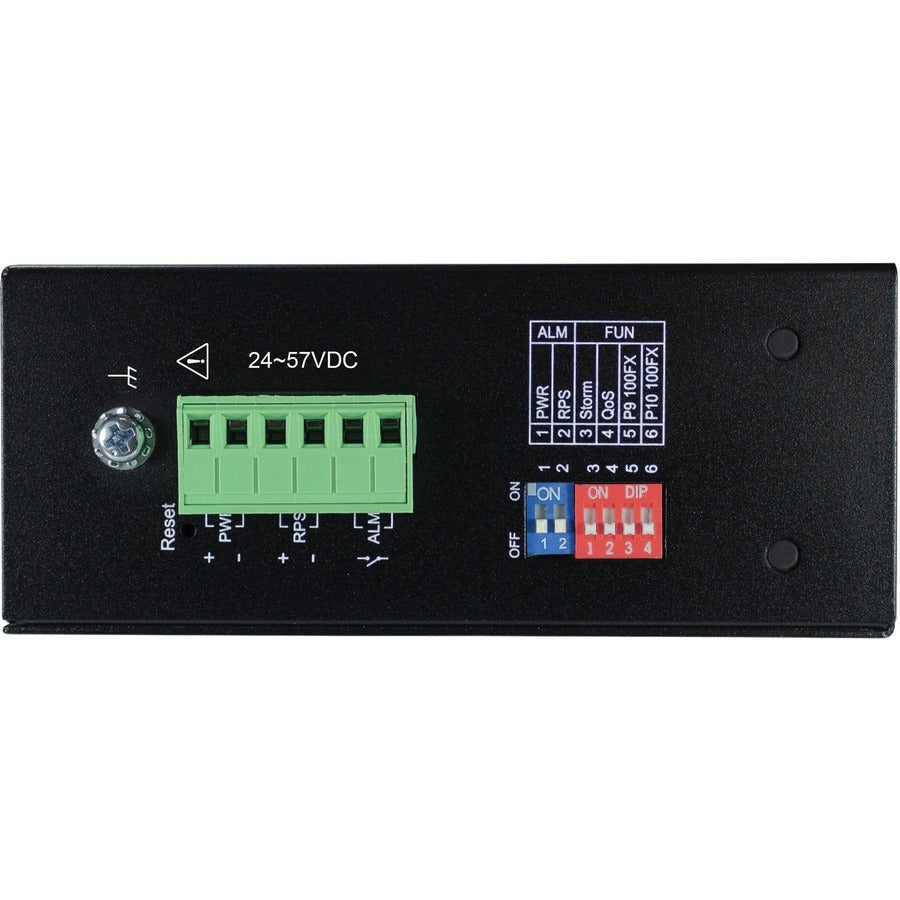

The device may be DIN mounted using the pre-installed rail clip, which mounts firmly to any standard 35 mm DIN rail. A 6-pin 24-57VDC terminal block supplies power input.
- Cascade to other network devices through the uplink port to expand your local area network
- Features 8 networking ports to easily establish a local network or expand your existing one
- Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
- The unmanaged switch provides a quick, easy and cost-saving way to add wired networking to your home, office or small business; no intervention needed
- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
- Supports optical fiber cable to span longer distances and provided high data transmission rates between servers and network components
- Modular : Yes
- PoE (RJ-45) Port : Yes
- Form Factor : DIN Rail Mountable
- Package Contents :
- NGI-U08C2POE8 Ethernet Switch
- DIN Rail-mounting Clip (Pre-installed)
- Owner's Manual
- Uplink Port : Yes
- Manufacturer : Tripp Lite by Eaton
- Product Model : NGI-U08C2POE8
- Manageable : No
- Network Technology : 10/100/1000Base-T,1000Base-X
- Ethernet Technology : Gigabit Ethernet
- TAA Compliant : Yes
- Environmentally Friendly : Yes
- Layer Supported : 2
- PoE Budget : 240 W
- Port/Expansion Slot Details : 8 x Gigabit Ethernet PoE+,2 x Gigabit Ethernet Expansion Slot
- Limited Warranty : 3 Year
- Product Material : Aluminum
- Network (RJ-45) : Yes
- Product Type : Ethernet Switch
- Number of Total Expansion Slots : 2
- Networking Standards : IEEE 802.3at,IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3x,IEEE 802.3z,IEEE 802.1p,IEEE 802.3af,IEEE 802.3az
- Total Number of Network Ports : 8
- Power Consumption : 14 W
- Media Type Supported : Optical Fiber,Twisted Pair
- Country of Origin : Taiwan
- Number of SFP Slots : 2
- Expansion Slot Type : SFP (mini-GBIC)
- Manufacturer Website Address : https://tripplite.eaton.com/
