Description

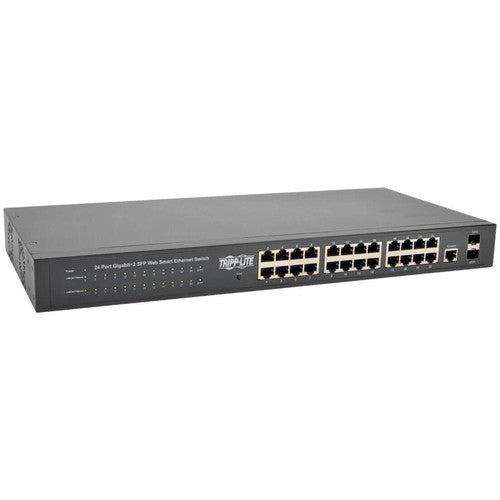

The energy-efficient NGS24C2 24-Port Gigabit L2 Web-Smart Managed Network Switch features 24 twisted-pair RJ45 Gigabit Ethernet ports that support auto-negotiable 10/100/1000 Mbps and auto MDI/MDIX cross-over detection functions for convenient plug-and-play capability. Two dedicated mini-GBIC SFP ports are also included for uplinking data to other switches via optical fiber or copper.

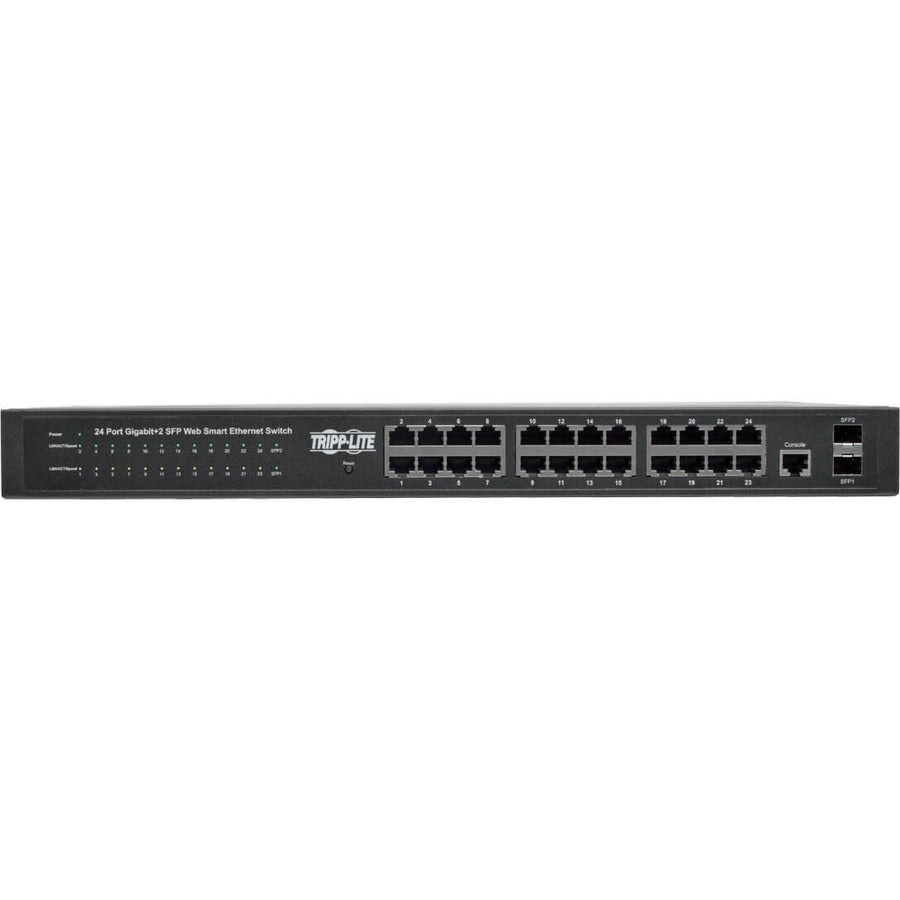

Easy-to-read LEDs indicate connection and activity status for each port. Built-in web-smart management software lets you monitor and control each connected device via secure web-based interface. Each port supports up to 2 Gbps with full duplex.
The heavy-duty metal housing mounts into 1U of an EIA-standard 19-inch rack using the included brackets and user-supplied hardware. Or attach the included rubber feet to the bottom of the unit for installation on a flat desktop surface. The five-foot input cord with NEMA 5-15P plug connects to a protected UPS, generator or mains input AC source.
- Cascade to other network devices through the uplink port to expand your local area network
- Features 24 networking ports to meet the requirements of the most demanding workgroups
- Built-in power supply to ensure all components are being supplied with accurate voltage
- Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
- Rack mounting enables you to organize wires & secure cables for professional installation
- Managed switch provides a reliable foundation for your network
- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Power Source : Power Supply
- Modular : Yes
- Packaged Quantity : 1
- Form Factor : Rack-mountable,Desktop

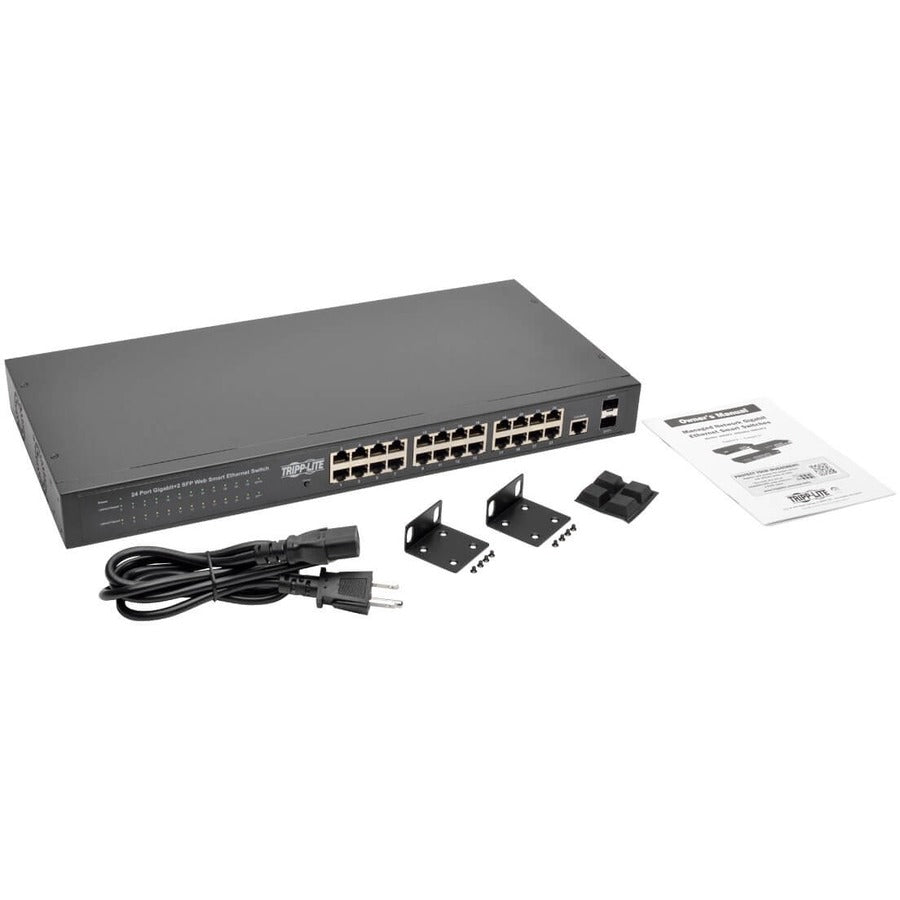

- Package Contents :
- NGS24C2 24-Port Gigabit L2 Web-Smart Managed Network Switch
- Detachable AC Power Cord w/NEMA 5-15P plug, 5 ft.
- 2 x Rack-mounting Brackets
- 8 x Screws
- 4 x Rubber Feet
- Owner's Manual
- Uplink Port : Yes
- Manufacturer : Tripp Lite by Eaton
- Product Model : NGS24C2
- Compatible Rack Unit : 1U
- Manageable : Yes
- Network Technology : 10/100/1000Base-T
- Redundant Power Supply Supported : No
- Ethernet Technology : Gigabit Ethernet
- Environmentally Friendly : Yes
- Layer Supported : 2
- Shared SFP Slot : No
- Port/Expansion Slot Details : 24 x Gigabit Ethernet Network,2 x Gigabit Ethernet Expansion Slot
- Limited Warranty : 5 Year
- Product Type : Ethernet Switch
- Stack Port : No
- Number of Total Expansion Slots : 2
- Total Number of Network Ports : 24
- Media Type Supported : Twisted Pair,Optical Fiber
- Country of Origin : China
- Number of SFP Slots : 2
- Expansion Slot Type : SFP (mini-GBIC)
- Manufacturer Website Address : https://tripplite.eaton.com/
