Description

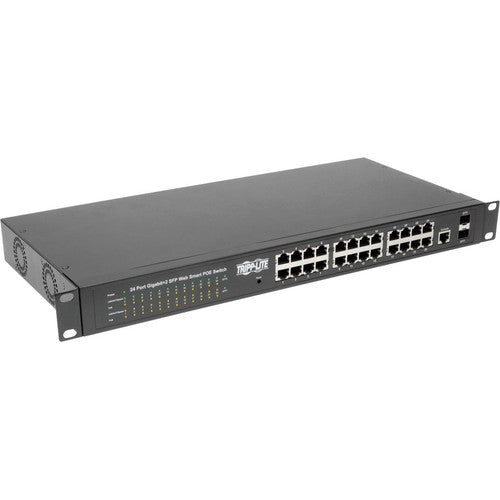

The energy-efficient NGS24C2POE 24-Port Gigabit L2 Web-Smart Managed PoE+ Network Switch features 24 twisted-pair RJ45 Gigabit Ethernet ports that support auto-negotiable 10/100/1000 Mbps and auto MDI/MDIX cross-over detection functions for convenient plug-and-play capability. Each port can be configured to supply up to 30W of PoE+ (Power over Ethernet) via network cable to connected high-wattage devices, such as VoIP phones, wireless access points and security cameras. Two dedicated mini-GBIC SFP ports are also included for uplinking data to other switches via optical fiber or copper.
Easy-to-read LEDs indicate connection and activity status for each port. Built-in web-smart management software gives you remote access to monitor and control each connected device via secure web-based interface. Each port supports up to 2 Gbps with full duplex.
The heavy-duty metal housing mounts into 1U of an EIA-standard 19-inch rack using the included brackets and user-supplied hardware. Or attach the included rubber feet to the bottom of the unit for installation on a flat desktop surface. The five-foot input cord with NEMA 5-15P plug connects to a protected UPS, generator or mains input AC source.
Features
Enterprise Managed Network Switch
- 24 twisted-pair RJ45 Gigabit Ethernet ports for connecting data-intensive devices
- Auto-negotiable 10/100/1000 Mbps
- Automatic MDI/MDIX cross-over detection
- 52 Gbps switching capacity (2 Gbps per port with full duplex)
- Easy-to-read LEDs indicate connection and activity status for each port
- Supports 9k jumbo frames
- Supports MAC address auto-learning and auto-aging up to 8,000 addresses
- Advanced Enterprise-level and L2 management features
300W Total PoE+ Budget
- Each RJ45 port can be configured to supply in-line power to connected devices, such as VoIP phones, wireless access points and security cameras
- 30W maximum per port
Built-In Web-Smart Management Software
- Remote access allows monitoring and control of connected equipment via simple Web interface
- VLAN, trunking, VPN, port monitoring and other features improve network efficiency and performance
Dual Dedicated Mini-GBIC SFP Ports
- Connect to Mini-GBIC SFP modules for uplinking to other switches via optical fiber or copper
- LEDs indicate interface traffic
Compliant with IEEE Standards
- Meets IEEE 802.3ab, 802.3i, 802.3u, 802.3x, 802.3, 802.1q, 802.1p, 802.3af and 802.3at standards
Versatile Installation Options
- Fanless metal housing mounts in 1U of EIA-standard 19 in. racks
- Supports desktop installation using included rubber feet on flat surface

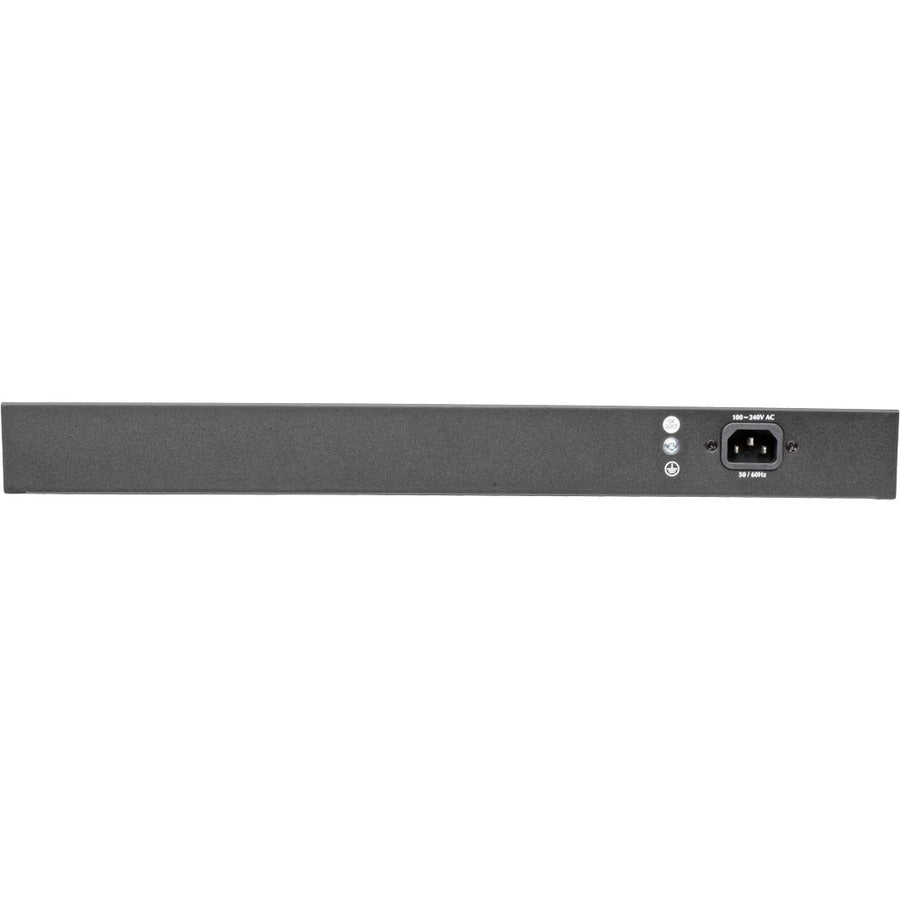

- 5 ft. power cord with NEMA 5-15P plug connects to compatible AC power source
- Cascade to other network devices through the uplink port to expand your local area network
- Features 24 networking ports to meet the requirements of the most demanding workgroups
- With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
- Management capability provides control over setup and configuration of your network
- Gigabit Ethernet port for ultra-fast network speeds
- Supports optical fiber cable to span longer distances and provided high data transmission rates between servers and network components
- Ethernet Technology : Gigabit Ethernet
- Environmentally Friendly : Yes
- Power Source : Power Supply
- Layer Supported : 2
- Port/Expansion Slot Details : 24 x Gigabit Ethernet Network,2 x Gigabit Ethernet Uplink
- Modular : Yes
- Limited Warranty : 5 Year
- Form Factor : Desktop,Rack-mountable
- Package Contents :
- NGS24C2POE Ethernet Switch
- Detachable AC Power Cord w/NEMA 5-15P Plug, 5 ft.
- 2 x Rack-Mounting Brackets
- 8 x Screws
- 4 x Rubber Feet
- Owner's Manual
- Uplink Port : Yes
- Product Type : Ethernet Switch
- Number of Total Expansion Slots : 2
- Manufacturer : Tripp Lite by Eaton
- Product Model : NGS24C2POE
- Total Number of Network Ports : 24
- Compatible Rack Unit : 1U
- Manageable : Yes
- Media Type Supported : Optical Fiber,Twisted Pair
- Country of Origin : China
- Number of SFP Slots : 2
- Network Technology : 10/100/1000Base-T
- Expansion Slot Type : SFP
- Manufacturer Website Address : https://tripplite.eaton.com/
