Description

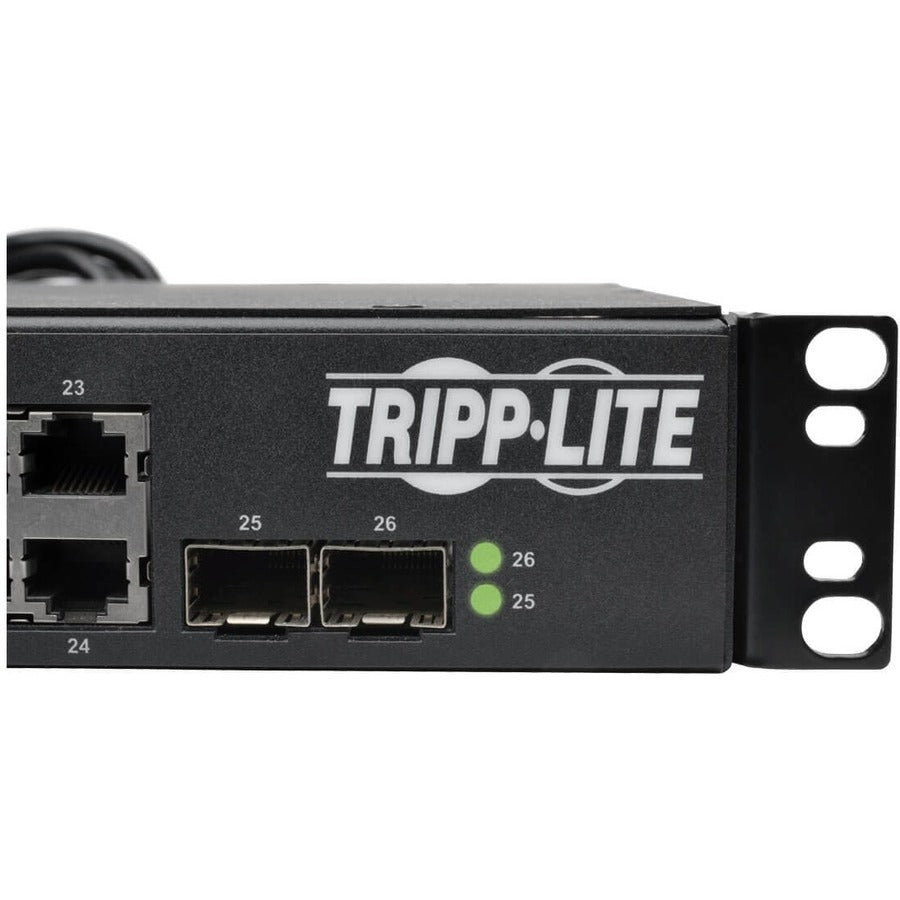

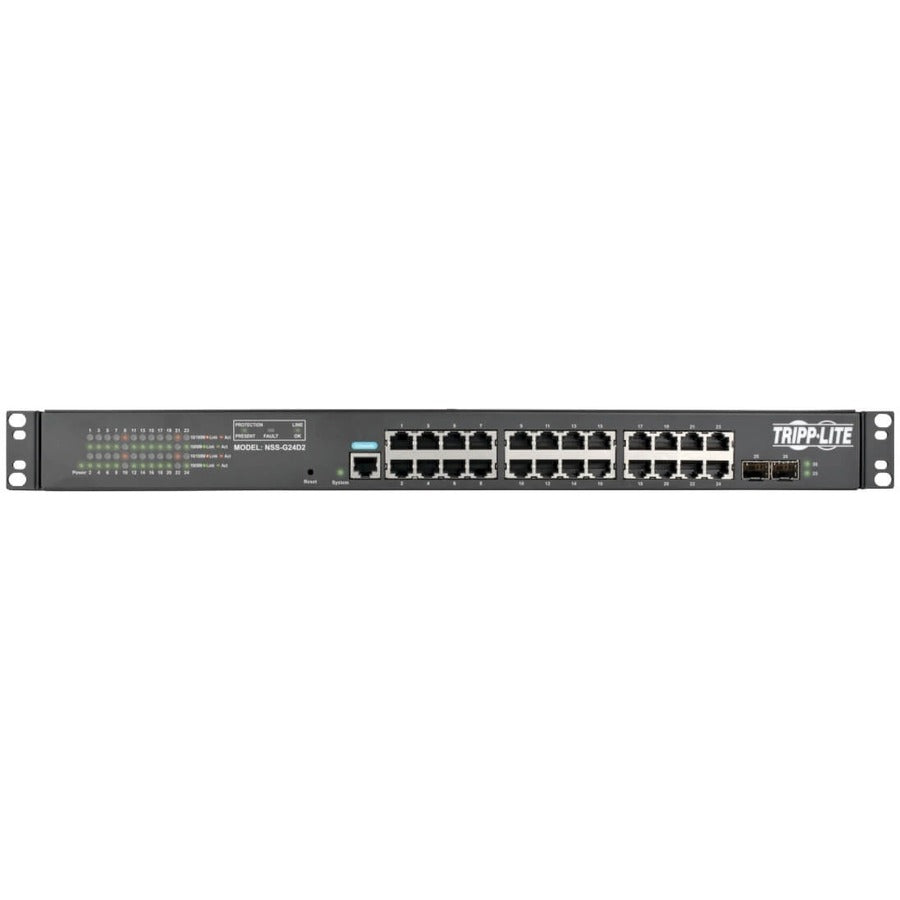

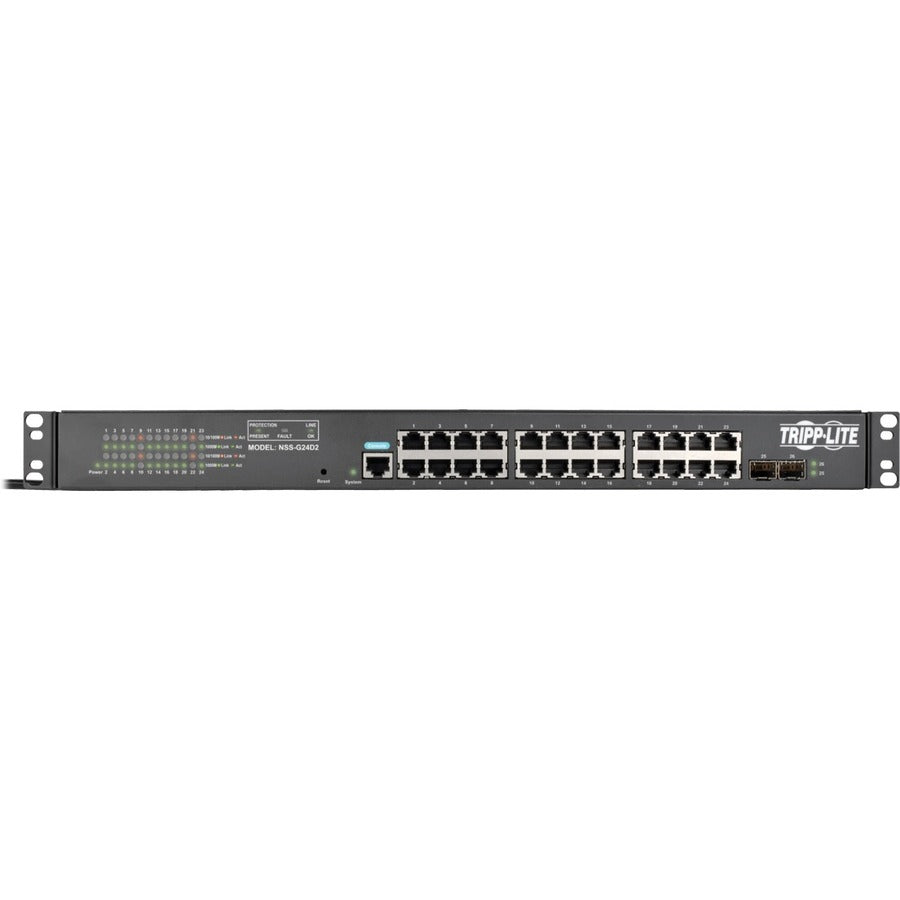

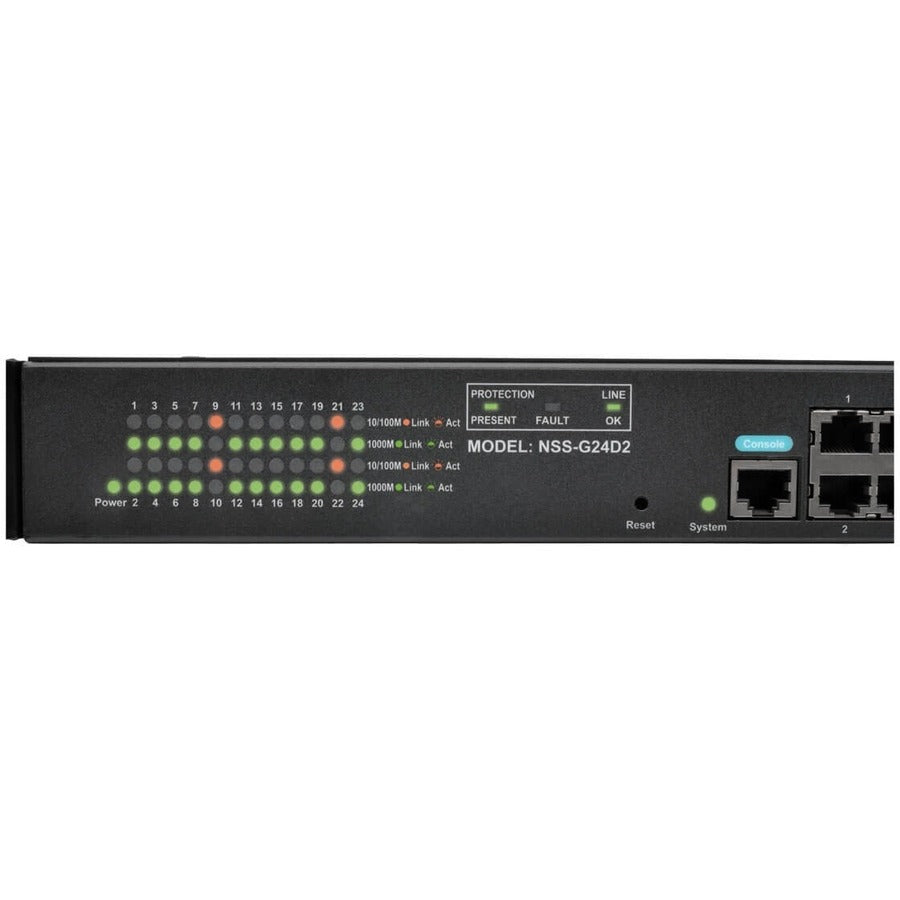

The energy-efficient NSS-G24D2 24-Port Gigabit L2 Web-Smart Managed Network Switch does more than complete your home or office LAN. It also features a basic 120V 15A PDU to distribute reliable AC power to critical IT equipment in your wiring closet, server room or equipment rack. Two dedicated SFP ports are also included for uplinking data to other switches via optical fiber or copper.This switch features 24 twisted-pair RJ45 Gigabit Ethernet ports that support auto-negotiable 10/100/1000 Mbps and auto MDI/MDIX cross-over detection functions for convenient plug-and-play capability. Easy-to-read LEDs indicate connection and activity status for each port. Built-in management software lets you monitor and control each connected device via secure web-based interface. Each port supports up to 2 Gbps with full duplex.The rear panel contains 12 NEMA 5-15R outlets that supply continuous power to connected devices. Your equipment is protected by 3860 joules of Isobar surge suppression, as well as front-panel LEDs that let you monitor line status at a glance. A 12A circuit breaker trips if the current drawn by connected equipment exceeds the PDU's maximum load rating.The NSS-G24D2 supports IEEE802.3az Energy Efficient Ethernet standards. The heavy-duty metal housing mounts into 1U of an EIA-standard 19-inch rack using the included hardware. The six-foot input cord with NEMA 5-15P plug connects to a protected UPS, generator or mains input AC source.
- Built-in 12-outlet PDU with diagnostic LEDs
- 3860-joule surge protection rating
- 24 ports and 2 dedicated SFP slots
- Enterprise-level, security and layer 2 management
- WEB, SNMP, RMON features
- Port Security, DHCP Snooping, 802.1x, L2
- MAC-Port-Binding, ACL, Storm Control
- Power Source : Power Supply
- Modular : Yes
- Form Factor : Rack-mountable
- Package Contents :
- NSS-G24D2 Ethernet Switch
- Mounting Hardware
- Owner's Manual
- Uplink Port : No
- Manufacturer : Tripp Lite by Eaton
- Product Model : NSS-G24D2
- Compatible Rack Unit : 1U
- Manageable : Yes
- Network Technology : 1000Base-X,10/100/1000Base-T
- Ethernet Technology : Gigabit Ethernet
- Environmentally Friendly : Yes
- Layer Supported : 2
- Shared SFP Slot : No
- Port/Expansion Slot Details : 24 x Gigabit Ethernet Network,2 x Gigabit Ethernet Expansion Slot
- Limited Warranty : 5 Year
- Product Type : Ethernet Switch
- Stack Port : No
- Number of Total Expansion Slots : 2
- Total Number of Network Ports : 24
- Media Type Supported : Optical Fiber,Twisted Pair
- Country of Origin : China
- Number of SFP Slots : 2
- Expansion Slot Type : SFP
- Manufacturer Website Address : https://tripplite.eaton.com/
